FCST16314-I
FCST
FCST16314-I
Product Overview

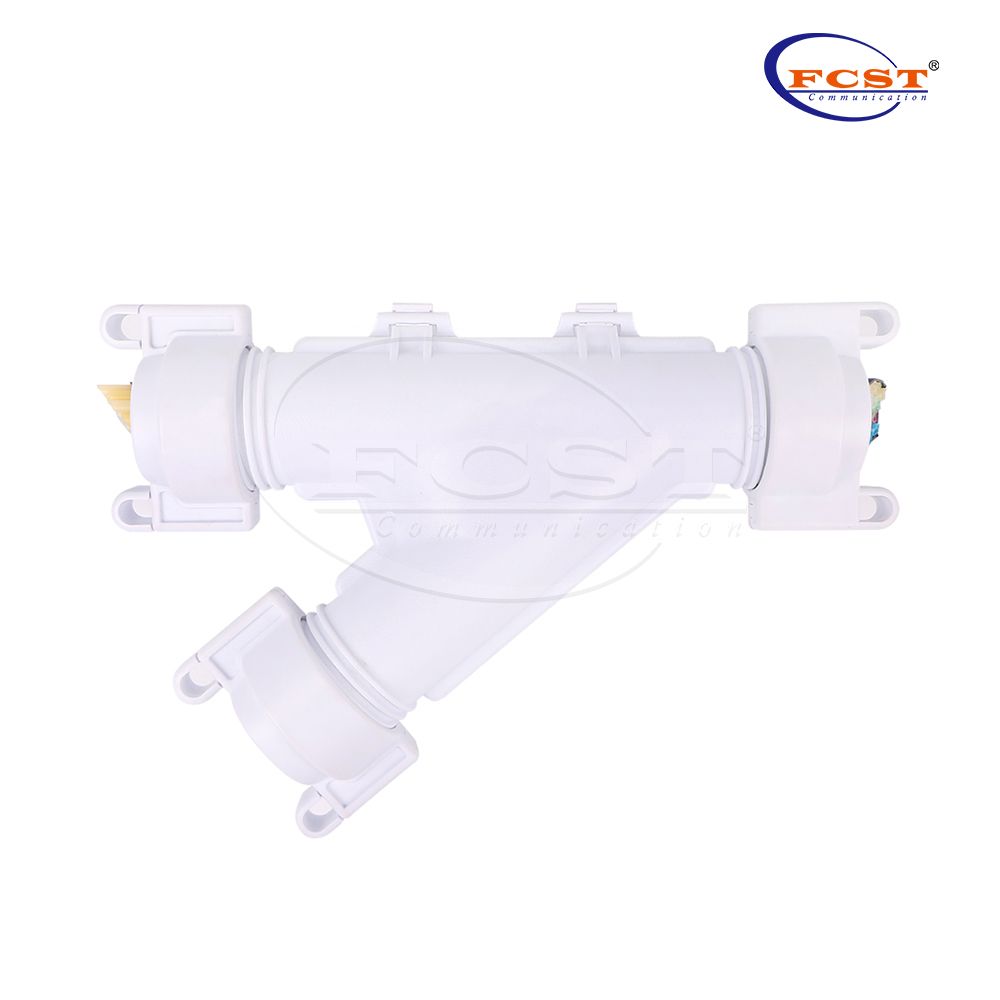

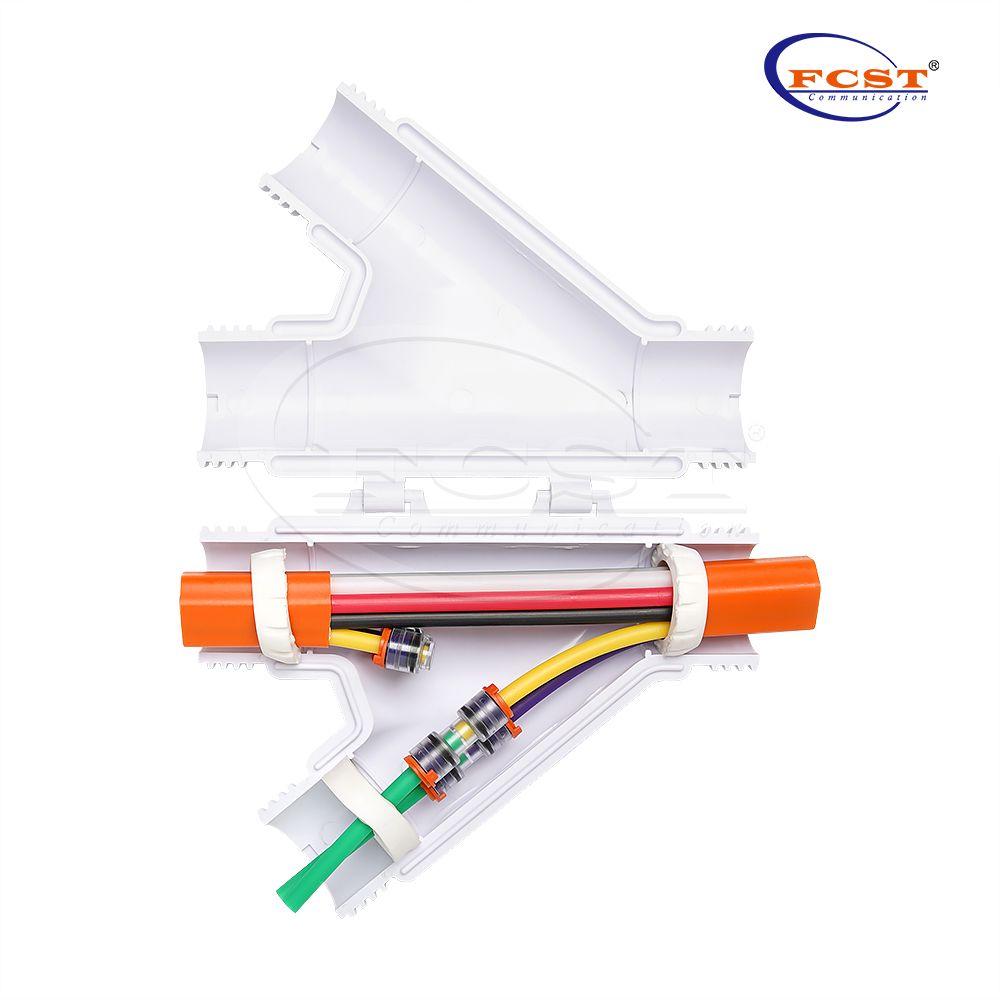

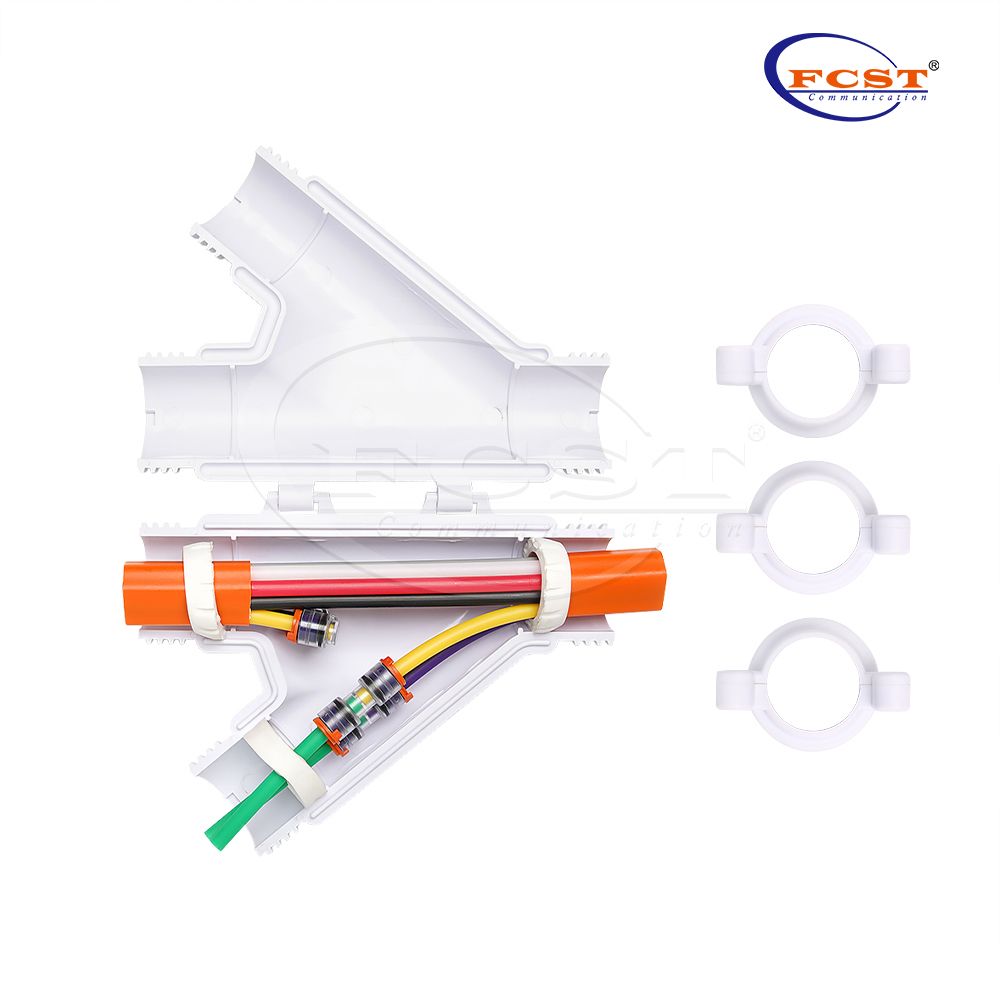

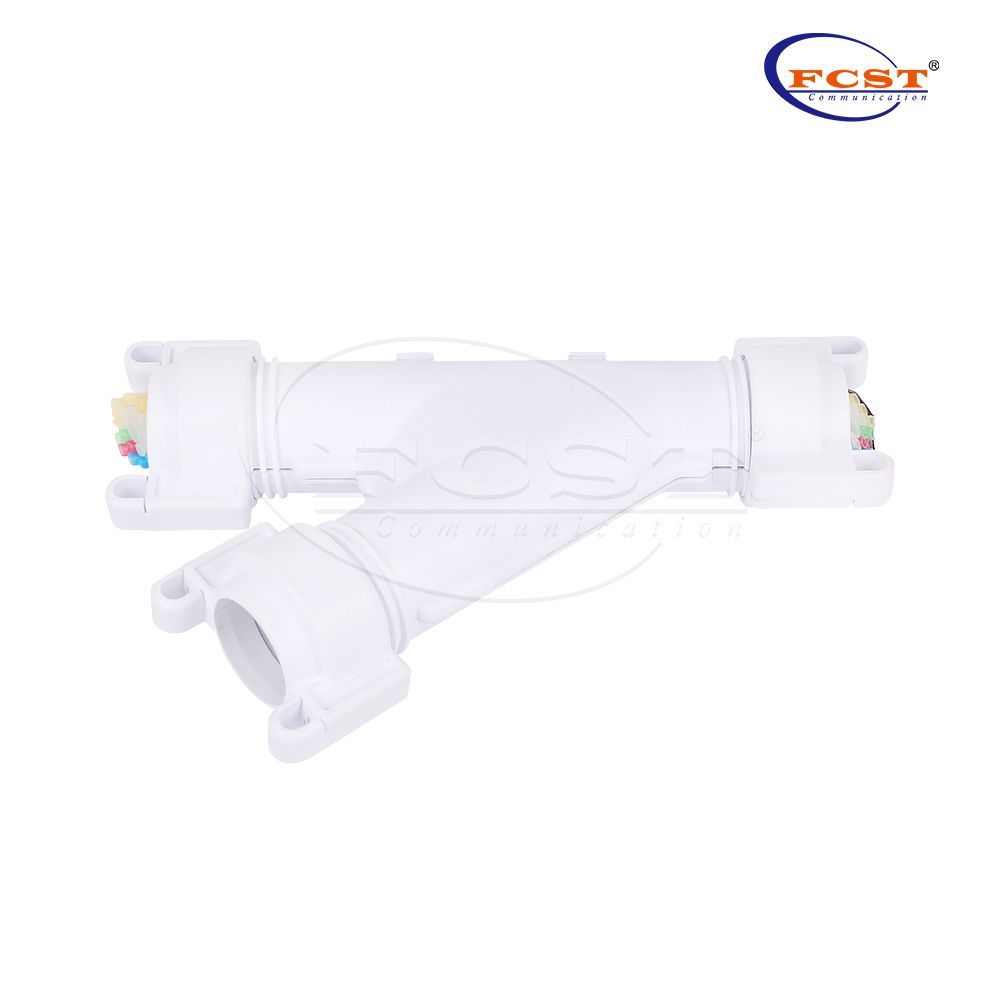

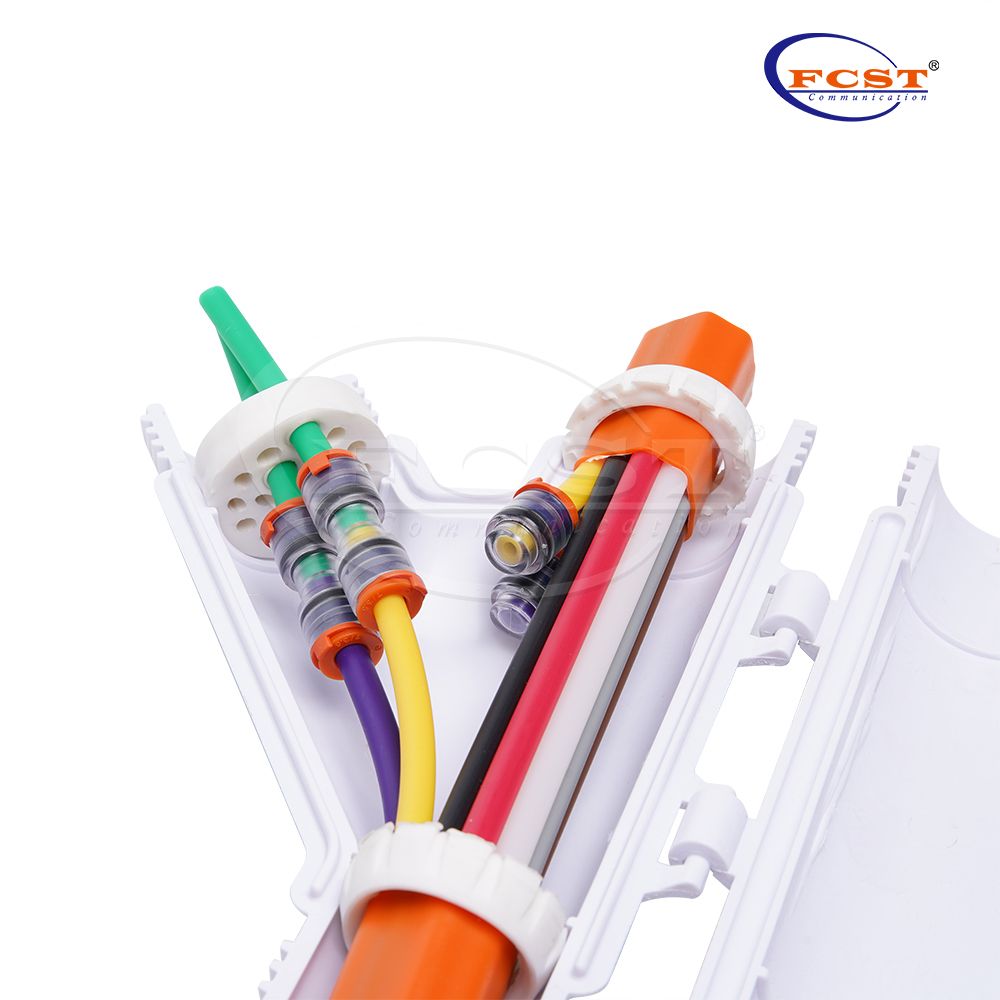

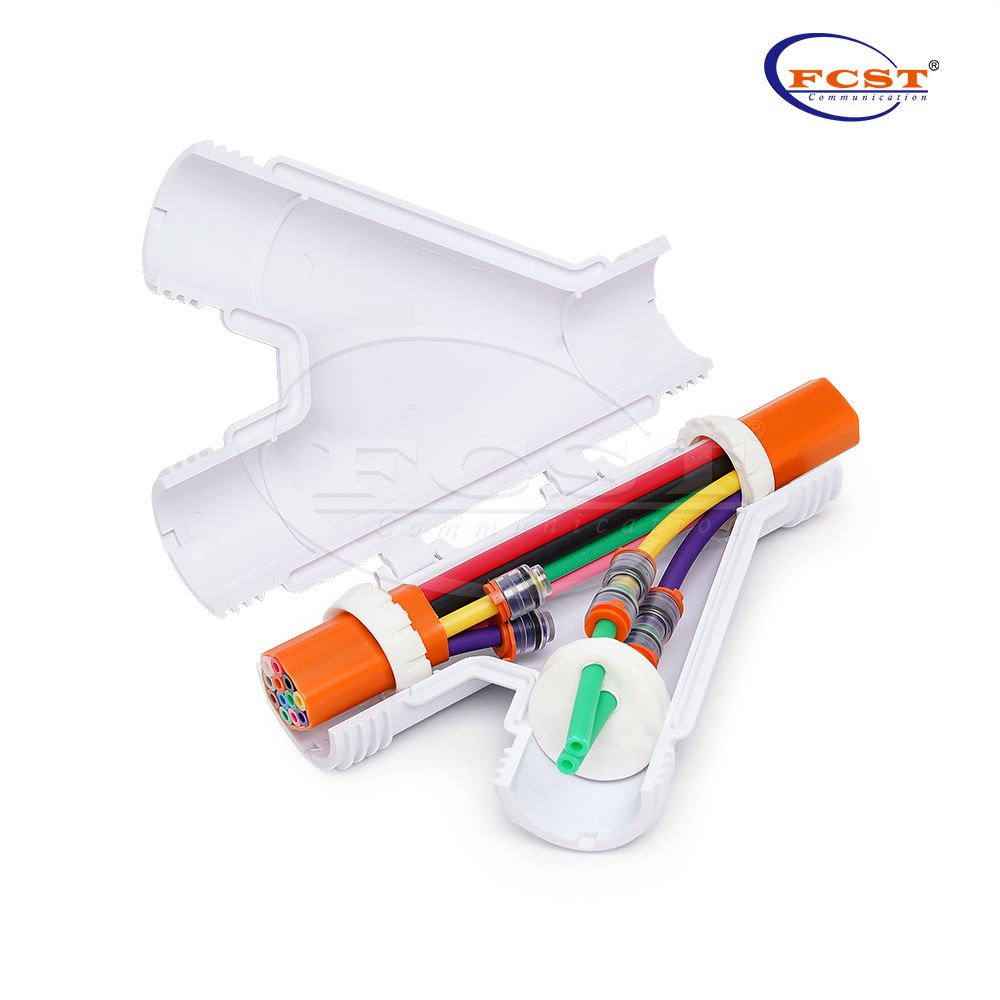

FCST16314-I Y-Type Closure is specially developed by FCST for indoor microduct branching applications.Y-Type Closure can be used to connect micro duct of different diameters and can also be used to connect different types of micro duct. Y-Type Closure are widely used in microfluidic systems.
Product Advantages
Simple structure and easy operation.
High cost performance and long service life.
Small size, light weight, easy to carry and install.
The connection is reliable and the sealing is good.
Maximum compatible microduct diameter: 40 mm
Product Specifcations
Construction | Description |
Duct Size | Max.40mm |
Material | Shell: ABS Claw: POM Cap: ABS |
Length | 280mm丨11.024in |
Width | 172mm丨6.772in |
Height | 64.5mm丨2.539in |
Weight | 430g |
Crush | 1000N/10mins |
Impact | 15 Joule |
Pull-out | >1000N |

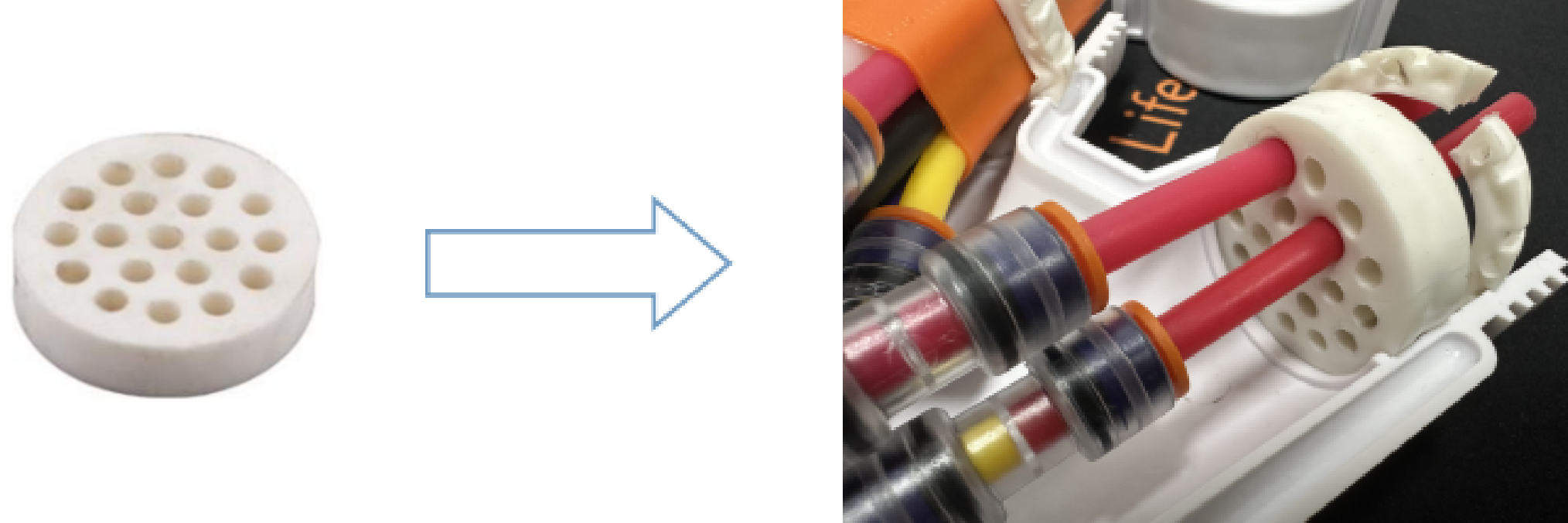

Equipped with branch rubber rings, it can branch out 19 holes.
