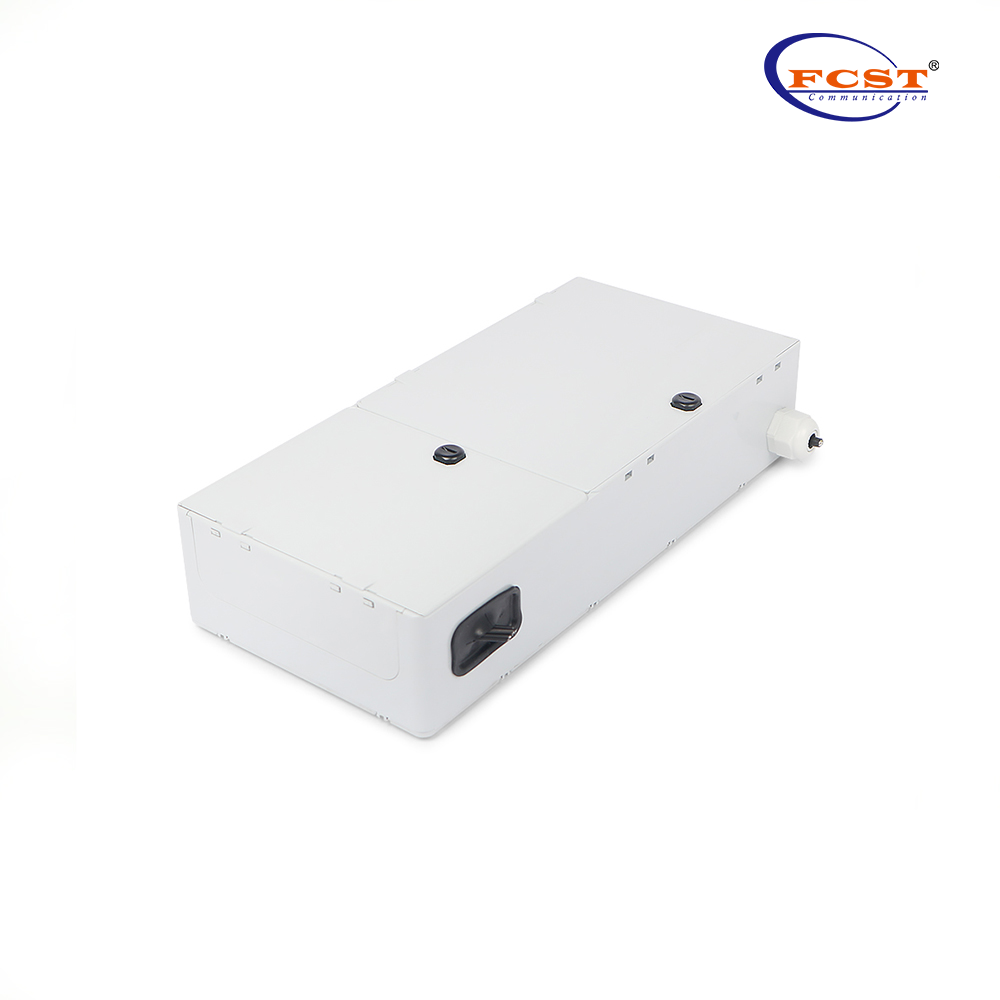

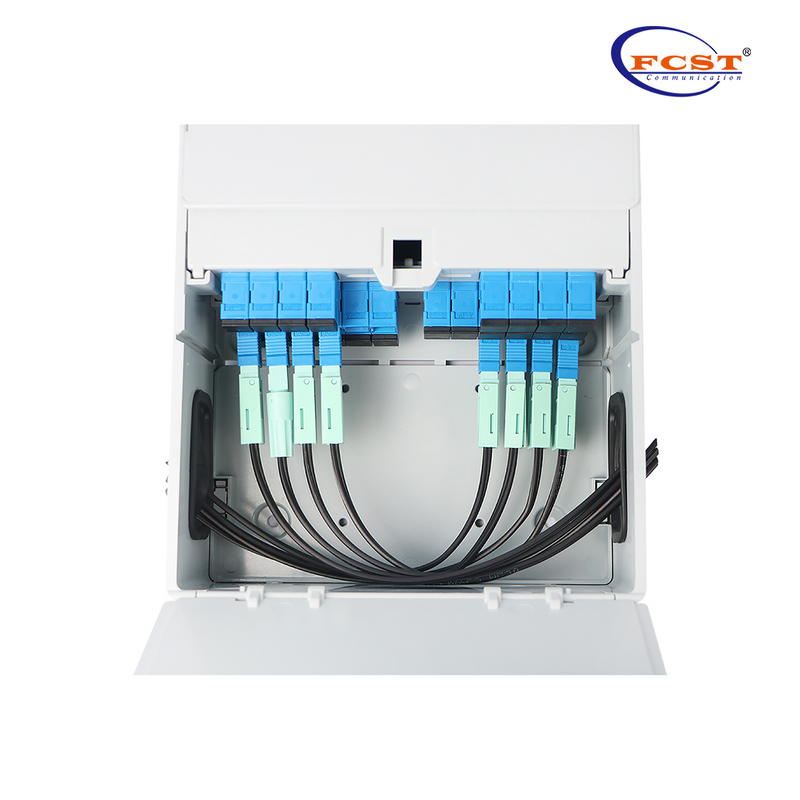

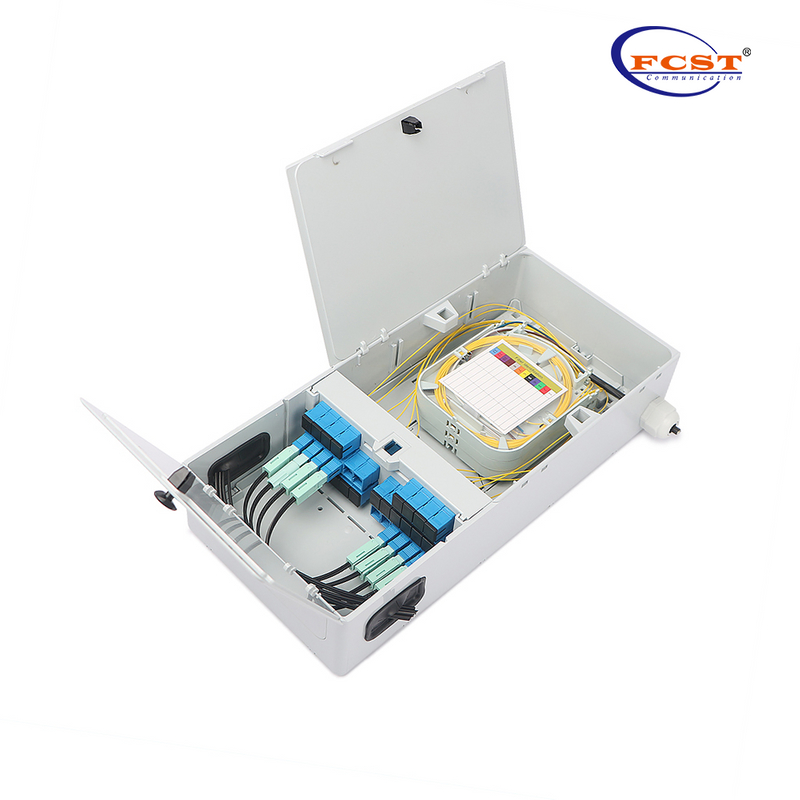

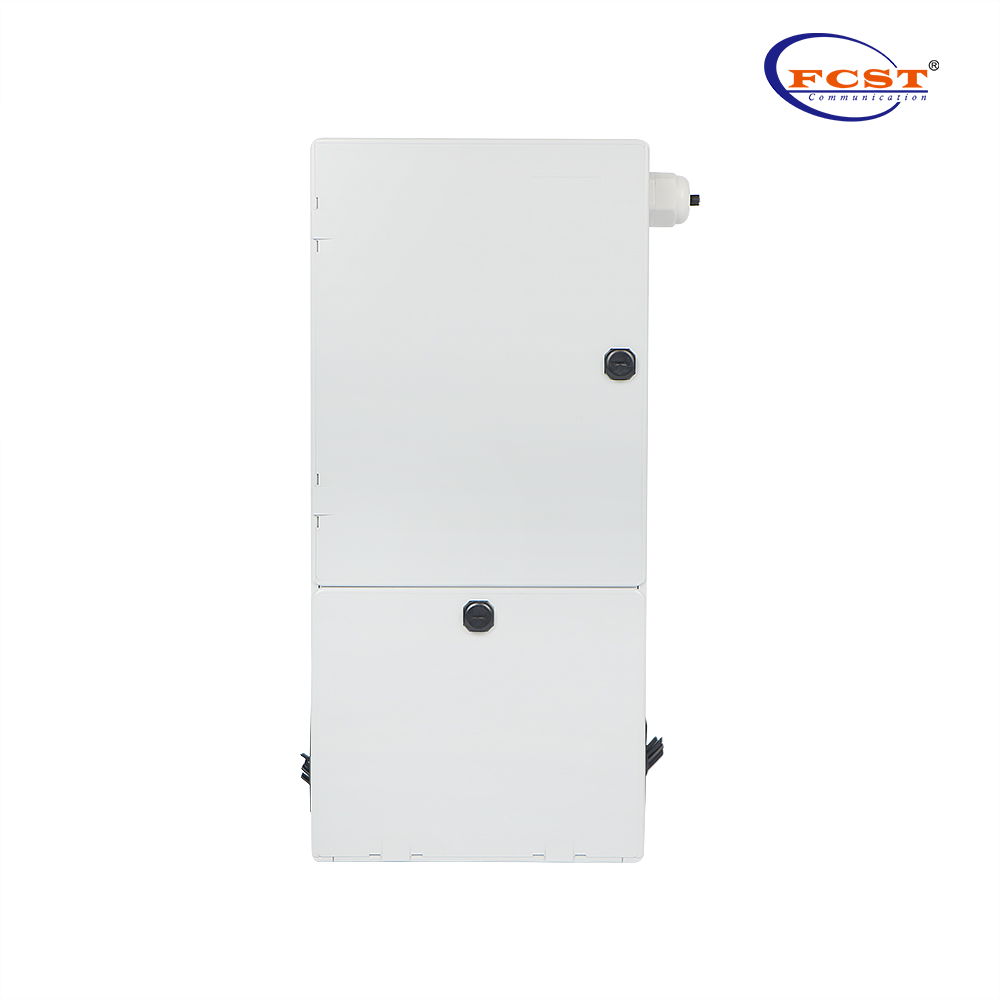

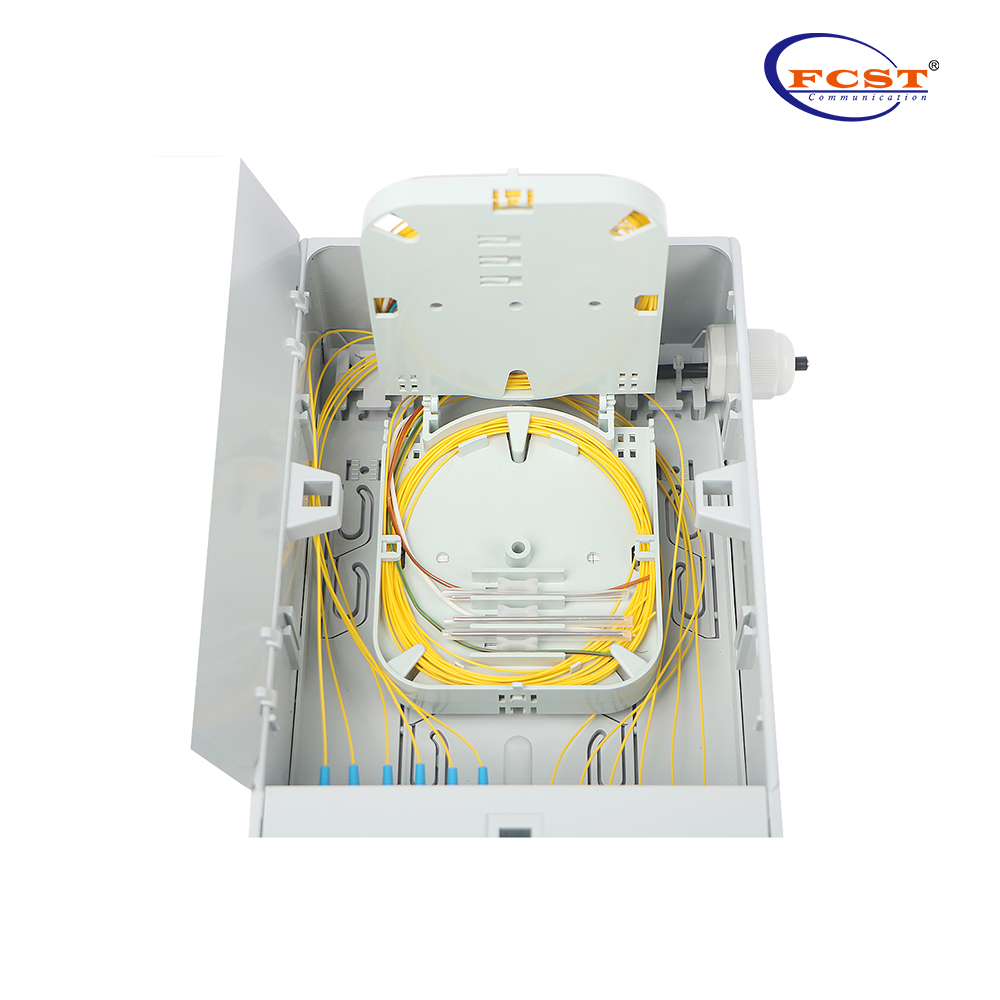

FCST02283 Optical Distribution Box

5 0 Reviews
The FCST02283 Optical Distribution Box is a pooling module for splicing, coupling and stirring up to 32 optical fibers. The modules can be stacked to support configurations of greater capacity or to allow the pooling between building operators and commercial operator. It allows the connection between the cable coming from the outside and the cable of the riser.
Availability:
Quantity:
  • FCST02283
  • FCST
  • FCST02283

Product Description

The FCST02283 Optical Distribution Box is a pooling module for splicing, coupling and stirring up to 32 optical fibers. The modules can be stacked to support configurations of greater capacity or to allow the pooling between building operators and commercial operator. It allows the connection between the cable coming from the outside and the cable of the riser.

Product Advantages

Optical cable access left with lashing system.

The split design is convenient for the wiring of different construction units.

Possible scalability depending on the number of operators addressing the building.

Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system.

Product Specifications

Construction

Description

Max. Capacity

Single:32Cores

Material

PC+ABS

Dimension (mm)

330*150*70

Installation

Wall-mounting

Net Weightg

750

Diameter Of Fiber Cable

Φ13mm

Protection Level

IP65

通用图片-1

通用图片-2
