FCST16310 (7ways)
FCST
Product Overview

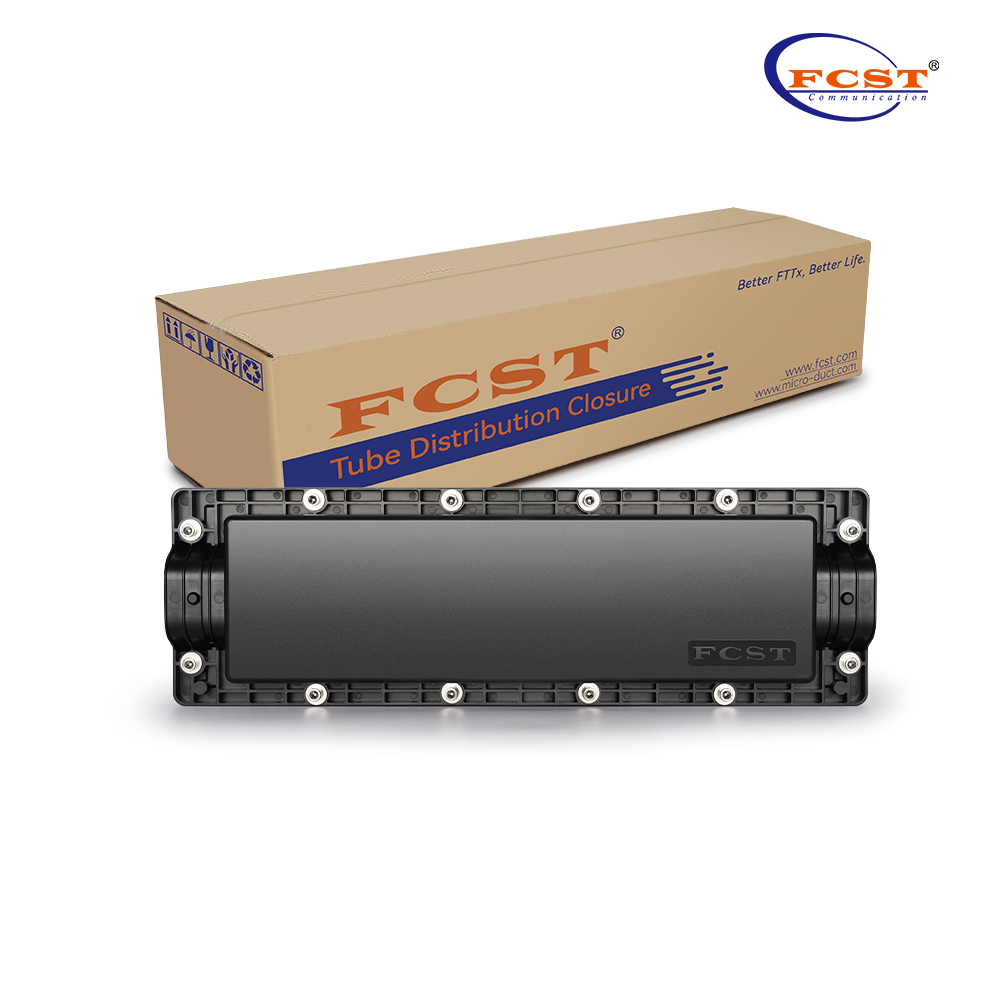

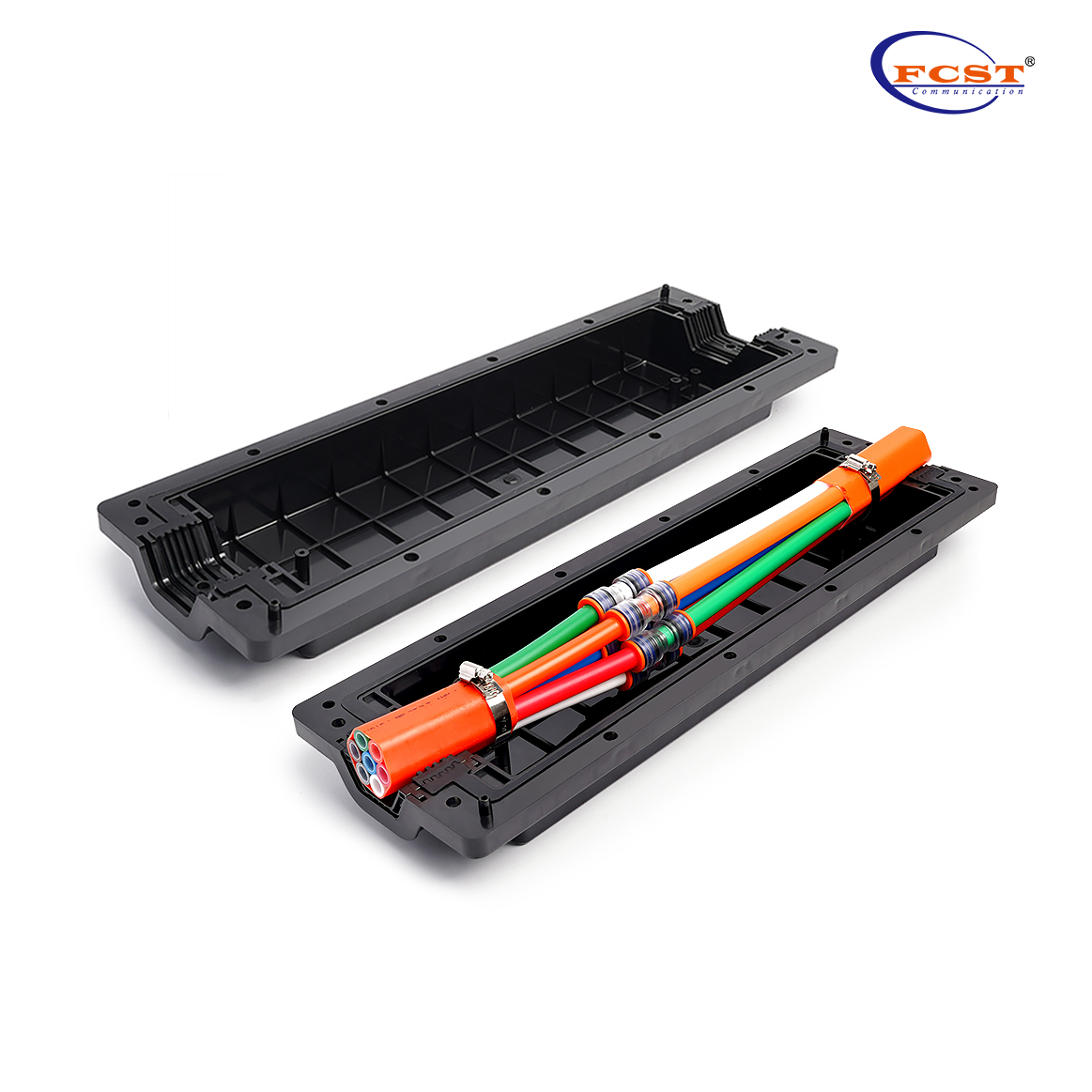

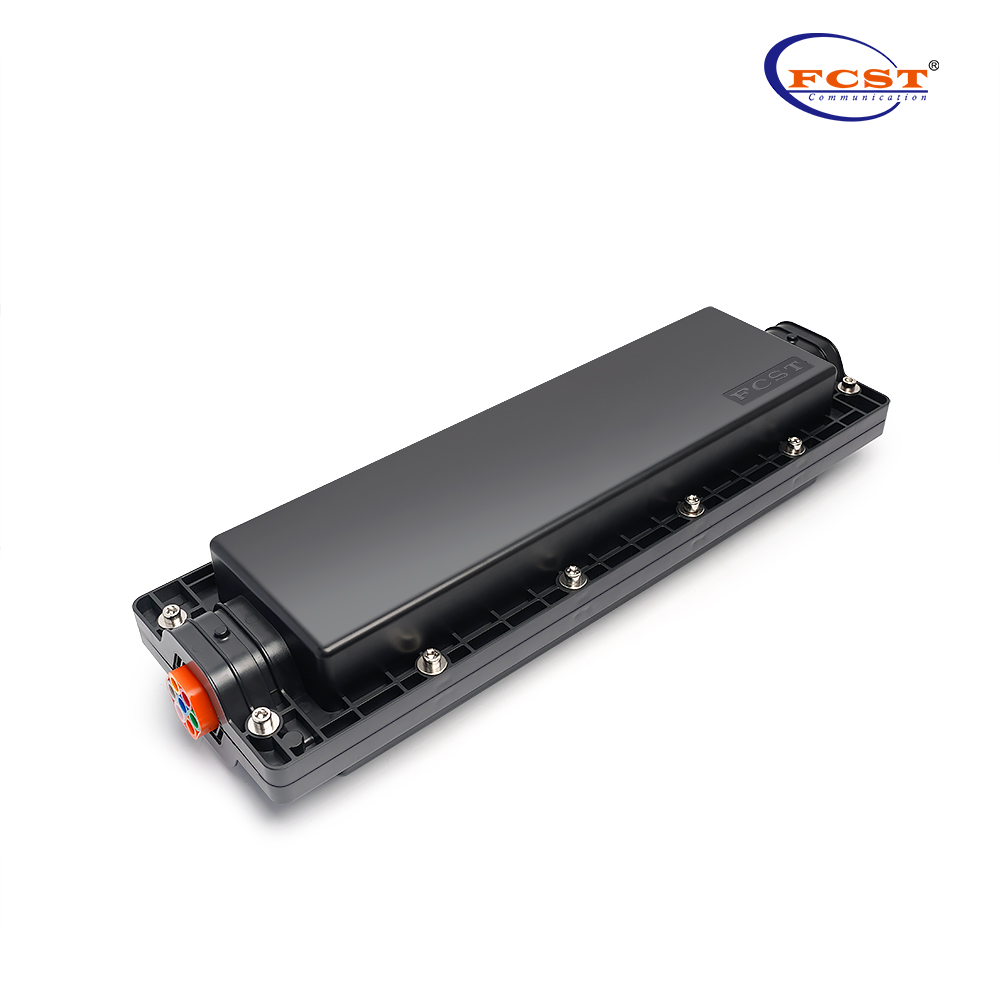

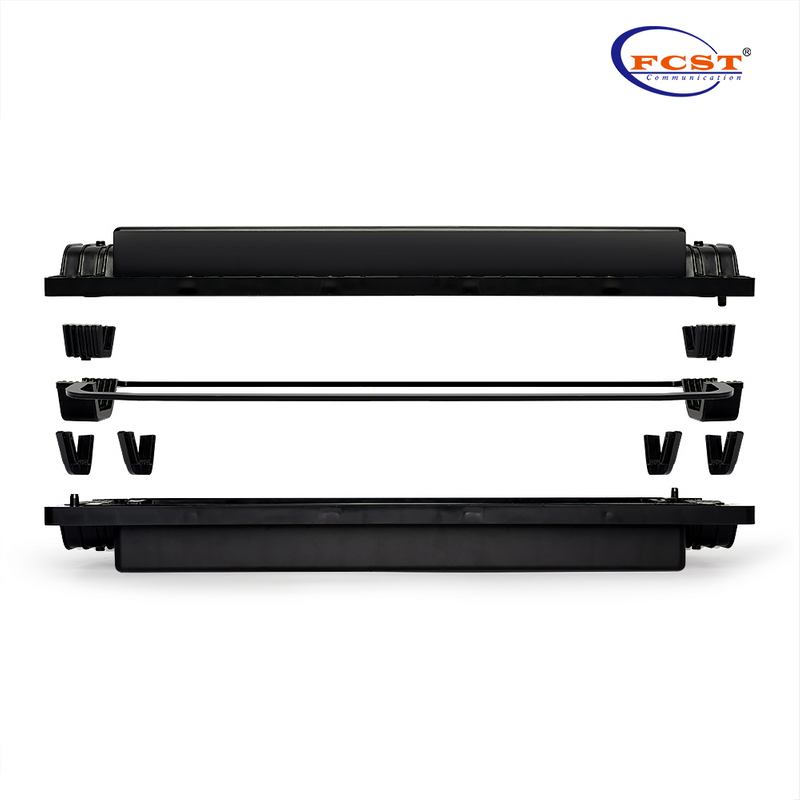

FCST16310 I-Type Tube Distribution Closure,an in-line enclosure used for the blown fibre joint applications. can be Direct Buried into a waiting trench (following FCST installation procedures on back-fill) or placed inside a manhole or handhole.
Product Advantages

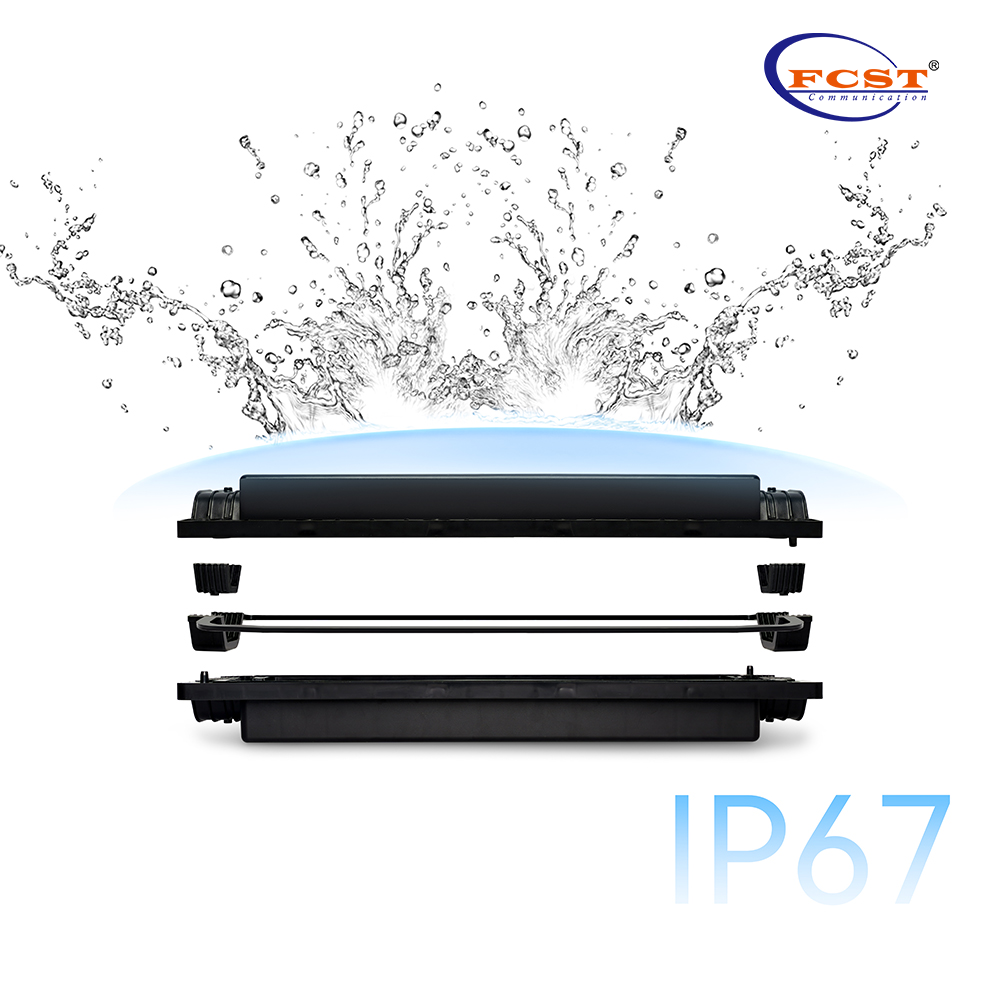

l Protection Level:IP67.
l Proven gel sealing system.
l No pressure relief valve required.
l Robust construction with high mechanical strength.
l Easy handling at all temperatures,Tool-less installation or re-entry.
l Sealing rings can be customized according to the size of microduct.
l Cable configuration changes possible with a minimum of extra accessories.
Product Specifications
Construction | Description |
Micro Duct Diameters | Duct Width:≤62 Duct Height:≤47.5 |
Material | ABS |
Dimension (mm) | 570*180*110 |
Net Weight(g) | 2640 |
Protection Levely | IP67 |
Port Supports | 1 in 1 out |
Temperature Range | -40°C to +60°C |
Micro Duct Diameters Description
Packing Information
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
