LSZH Microduct(Indoor)
FCST
Product Overview

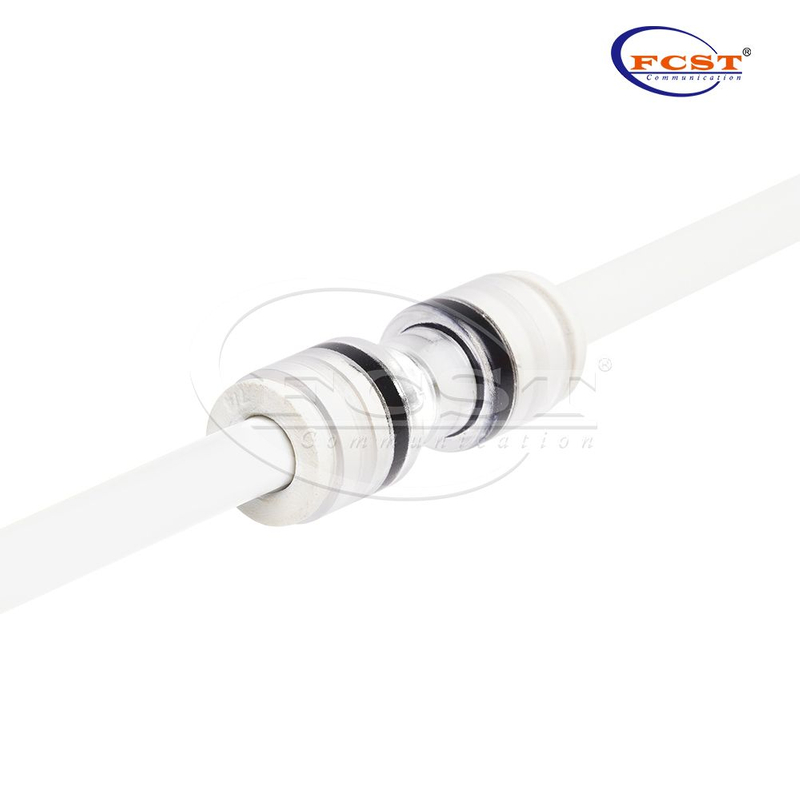

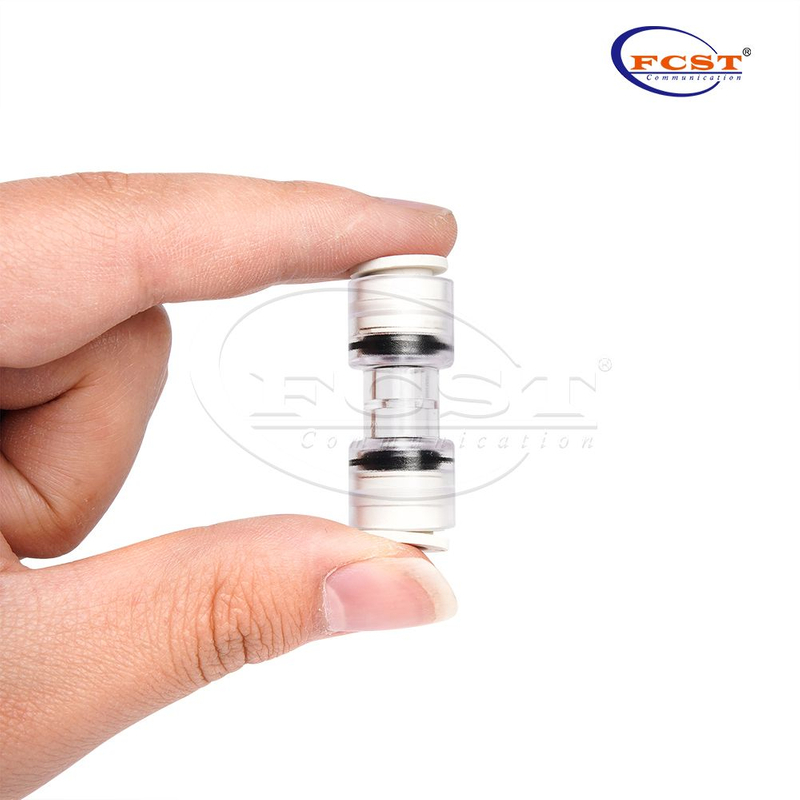

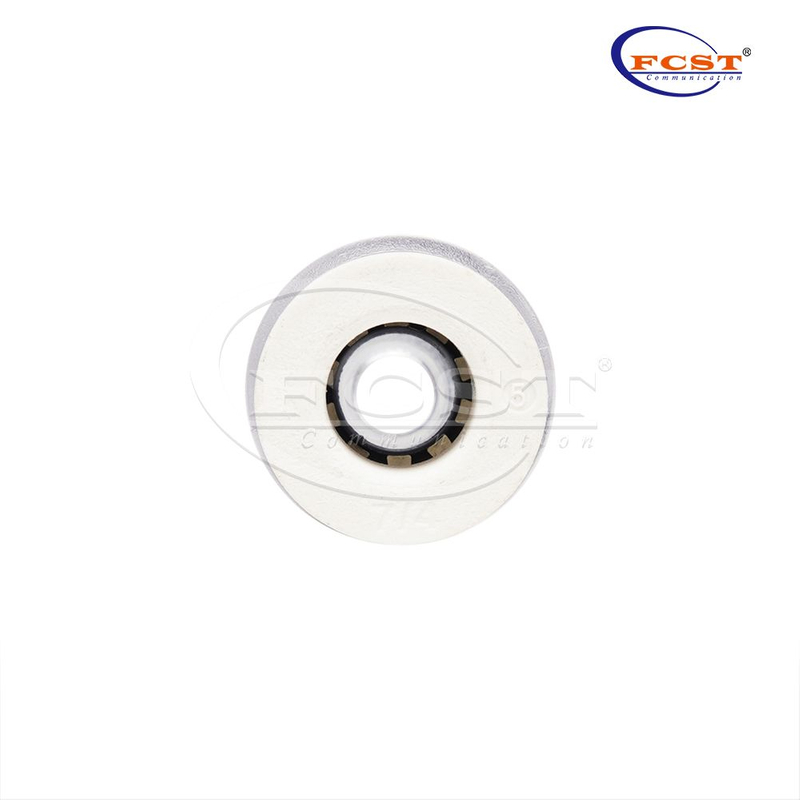

LSZH Microduct Straight Connector Make connections between Microducts quickly and easily in in-building applications, without the need for tools. Transparent design affords greater control when connecting Microducts and enables visual confirmation of the presence of a cable.
Product Advantages
For3-20 mm Microducts.
Easy“push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Locking rings to prevent accidental removal of connector.

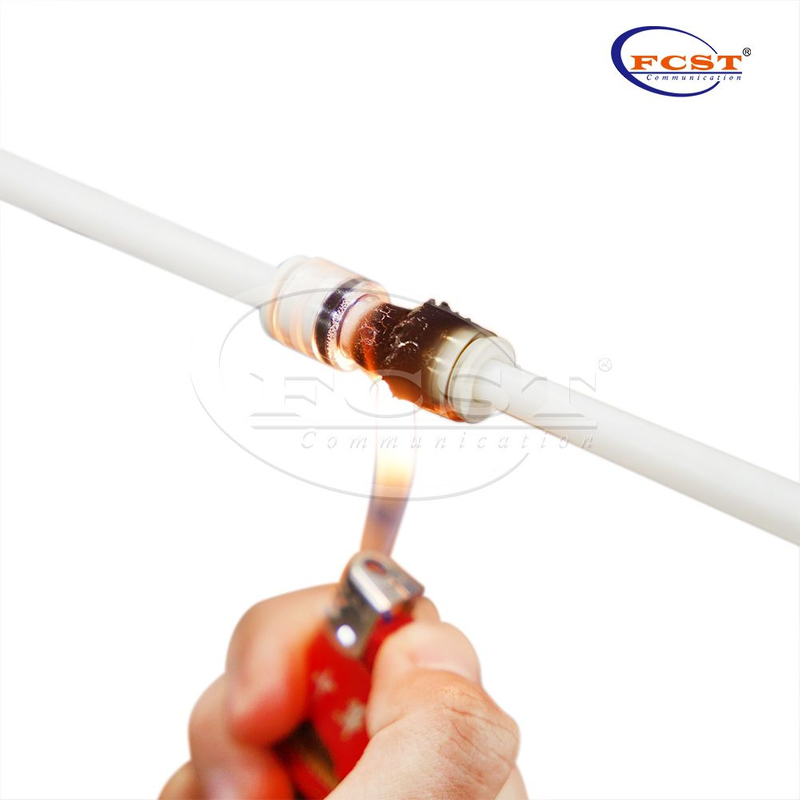

Tested in accordance to UL94 V-0: flame resistance for in-building applications.
Product Specifications
Construction | Description |
Tube To Connector | LSZH Microduct(Indoor) |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
Burst Pressure | 25 bar |
Estimated Life | 25 years |
Protection Class | IP68 |
Water Ingress Test | 0.5 bar during 168 hours |
Installation Temperature | -15°C to +45°C |
Operation Temperature | -15°C to +45°C |
Transport and Storage Temperature | -15°C to +45°C |
Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
Impact Resistance | 1.5J |
According To Standards | UL94 V-0,CEI EN 50411-2-8,EN 50411-2-5 |
Standards
Construction |
EN 60529:IP68 |
EN 61300-2-26: Salt Mist |
EN 61300-2-33: Re-entries |
UL94-V0 Vertical Burning Test |
EN 61300-2-10: Crush Resistance |
EN 61300-3-1: Visual Appearance |
EN 61300-2-4: Microduct Retention |
EN 61300- 2-34: Chemical Resistance |
EN 50411-2-8:Annex E:Insertion Force |
EN 61386-22: Glow Wire Test at 750°C |
EN 60794- 1-2: 2003,Method E4:lmpact |
EN 50411-2-8:Annex D:Installation Test |
EN 61300-2-22: Change of Temperature |
EN60794-1-2 Method E1. Tensile Strength |
EN 61300-2-38: 2006,Method B:Pressure Loss |
EN 50411-2-8:Annex C: High Pressure Resistance |
EN 61300-2-23: 1997,Method 2:Water Immersion |
EN 61386- 24: Conduit Systems Buried Underground |
EN 61300-2-38:2006, Method A:Sealing Performance |

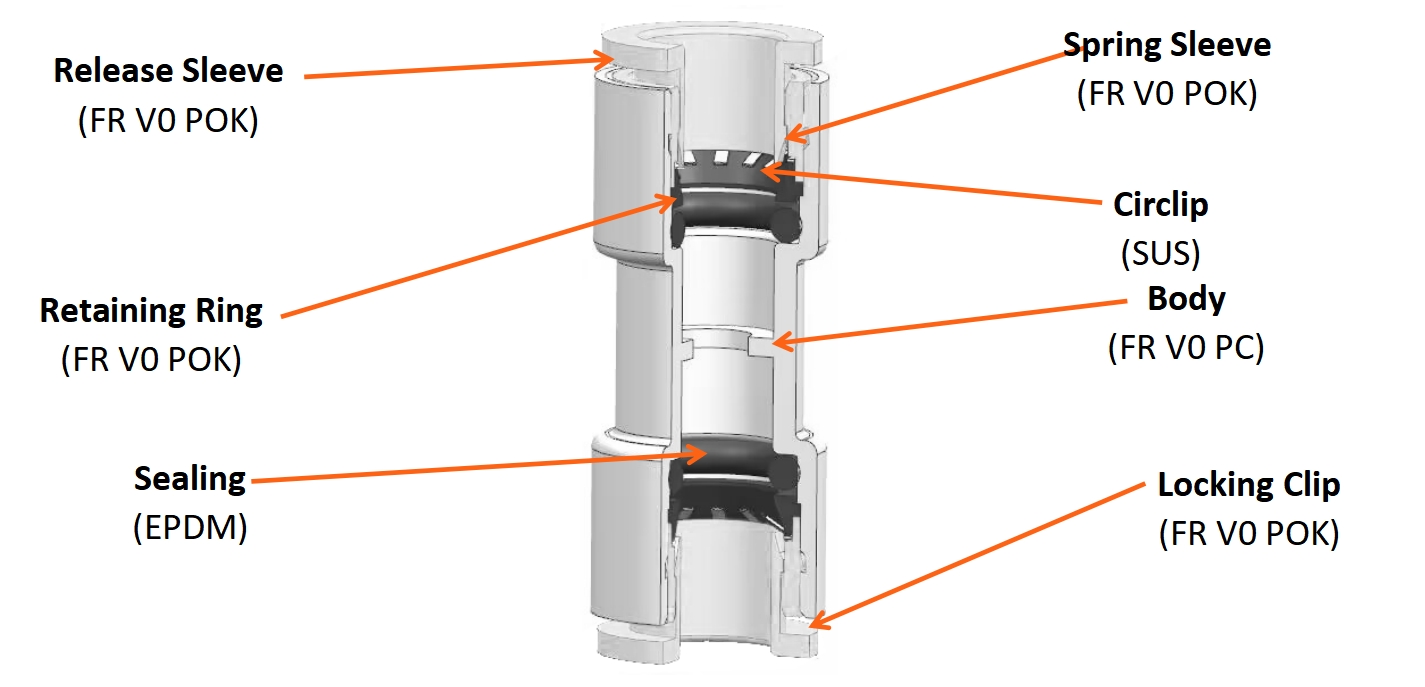

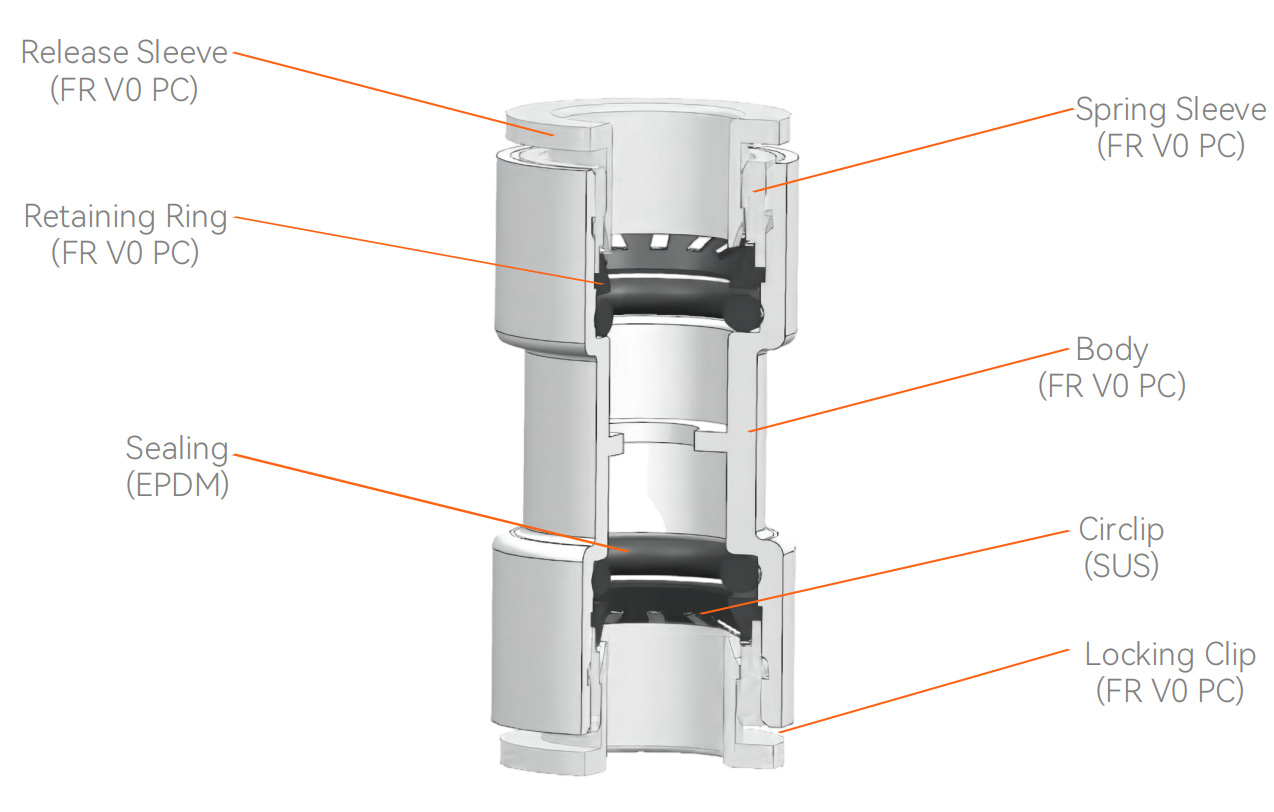

Product Material
Ordering Information

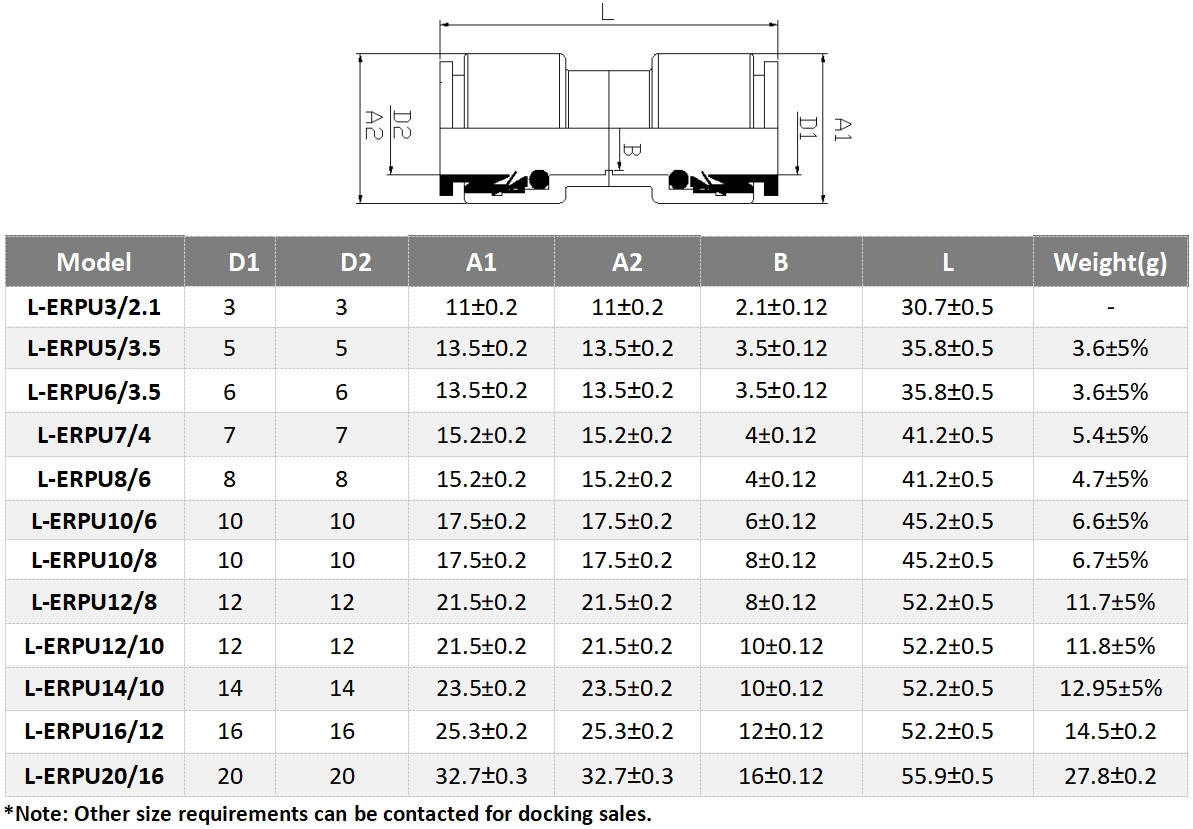

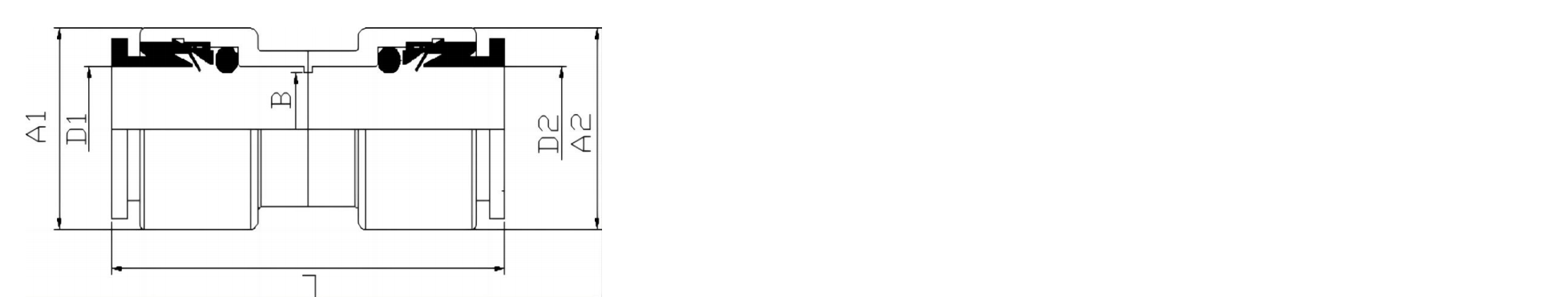

| Model | D1 (mm) | D2 (mm) | A1 (mm) | A2 (mm) | B (mm) | L (mm) | Weight(g) |
| L-ERPU3/2.1 | 3 | 3 | 11±0.2 | 11±0.2 | 2.1±0.12 | 30.7±0.5 | - |
| L-ERPU5/3.5 | 5 | 5 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±5% |
| L-ERPU6/3.5 | 6 | 6 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±5% |
| L-ERPU7/4 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 4±0.12 | 41.2±0.5 | 5.4±5% |
| L-ERPU8/6 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 4±0.12 | 41.2±0.5 | 4.7±5% |
| L-ERPU10/6 | 10 | 10 | 17.5±0.2 | 17.5±0.2 | 6±0.12 | 45.2±0.5 | 6.6±5% |
| L-ERPU10/8 | 10 | 10 | 17.5±0.2 | 17.5±0.2 | 8±0.12 | 45.2±0.5 | 6.7±5% |
| L-ERPU12/8 | 12 | 12 | 21.5±0.2 | 21.5±0.2 | 8±0.12 | 52.2±0.5 | 11.7±5% |
| L-ERPU12/10 | 12 | 12 | 21.5±0.2 | 21.5±0.2 | 10±0.12 | 52.2±0.5 | 11.8±5% |
| L-ERPU14/10 | 14 | 14 | 23.5±0.2 | 23.5±0.2 | 10±0.12 | 52.2±0.5 | 12.95±5% |
| L-ERPU16/12 | 16 | 16 | 25.3±0.2 | 25.3±0.2 | 12±0.12 | 52.2±0.5 | 14.5±0.2 |
| L-ERPU20/16 | 20 | 20 | 32.7±0.3 | 32.7±0.3 | 16±0.12 | 55.9±0.5 | 27.8±0.2 |
*Note: For other sizes, please contact the sales department.
Q&A
1.What is the production capacity of Microduct Connector?
14/10mm
Daily production capacity: 23,000 pcs.
Monthly production capacity: 780,000 pcs.
2.How many production facilities and employees does FCST have?
1.Factory area: 12,000 square meters.
2.Number of employees: 150 people.
3.High-speed punching machines: 10 sets.
4.Plastic injection molding machines: 43 sets.
5.Sealing ring compression molding machines: 4 sets.
6.CNC machine tools: 60 sets.
7.Automated parts assembly production lines: 40 sets.
8.Manual assembly presses: 20 sets.
9.Semi-automated Microduct Connector assembly machines: 2 sets.
10.Product testing equipment: 10 sets.
3.Which parts of Microduct Coupler can be customized in color?

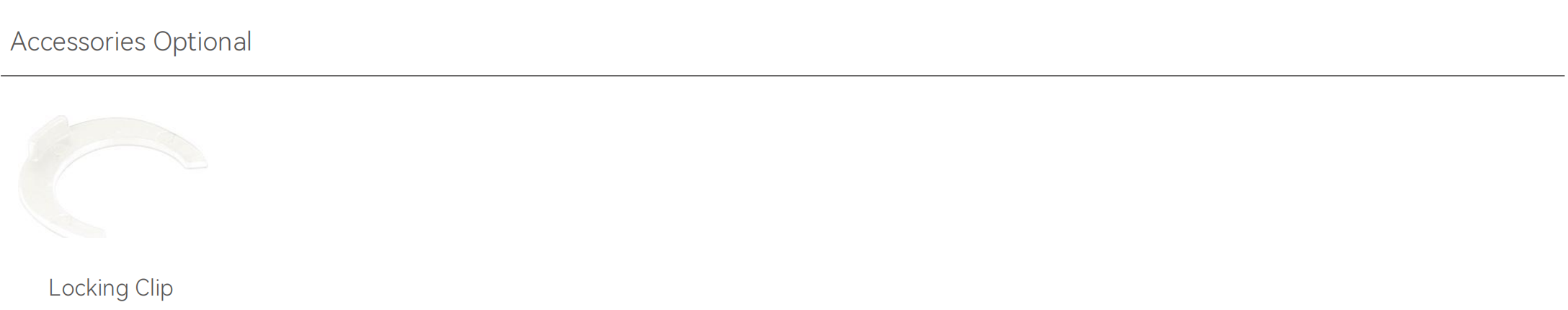

Customizable Parts:Retaining Ring,Spring Sleeve,Release Sleeve,Locking Clip
Customizable Color: The colors can refer to RAL color card and PANTONE color card.
4.What processes are required for customizing Blown Fibre Tube Connector?
5.What environmental certifications do telecom duct connector comply with?
Rhos、Reach
