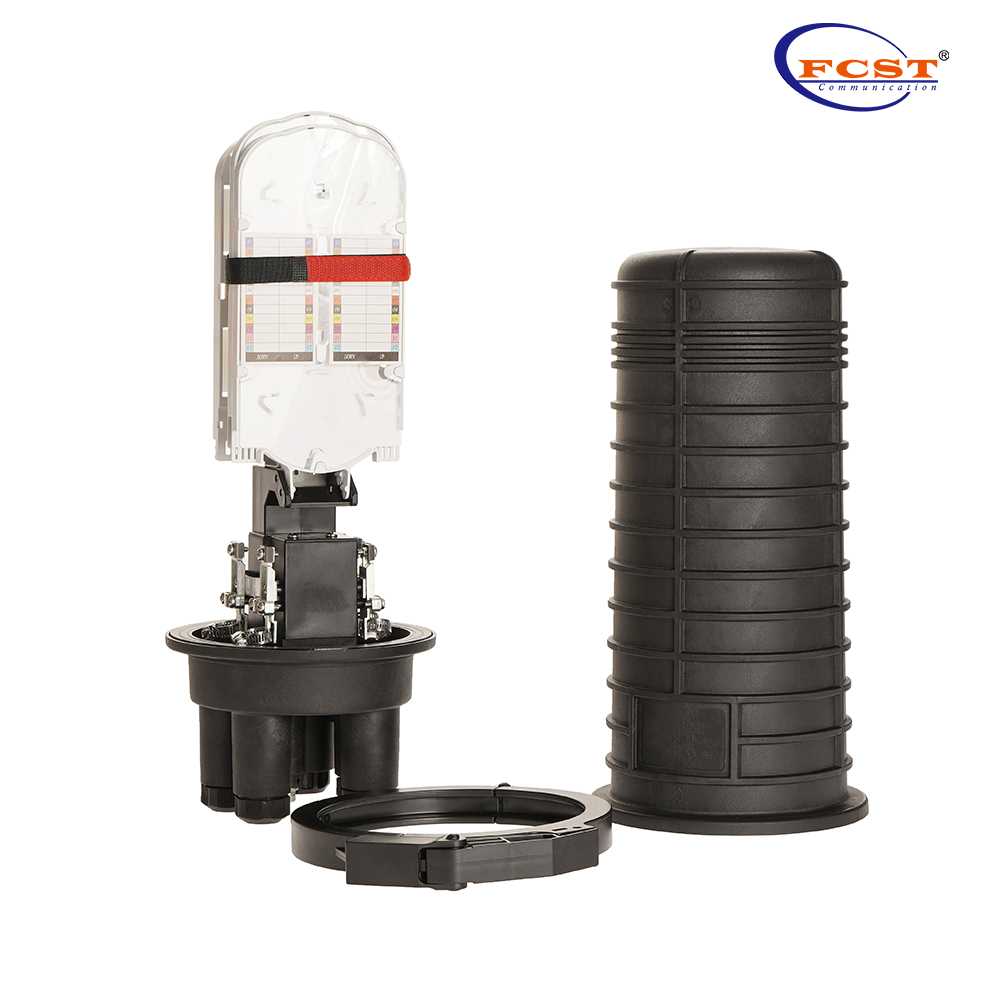

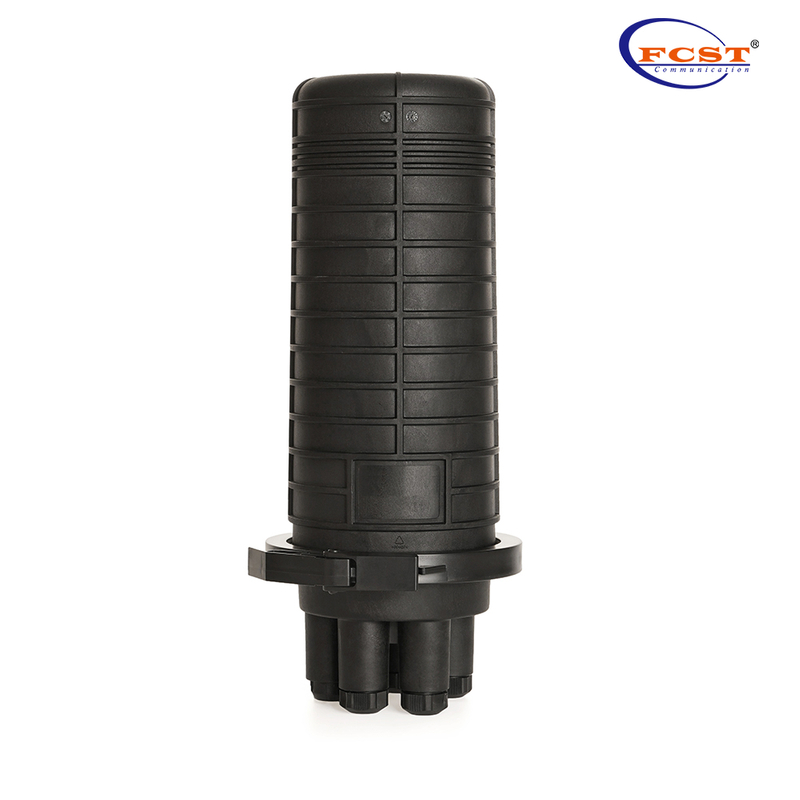

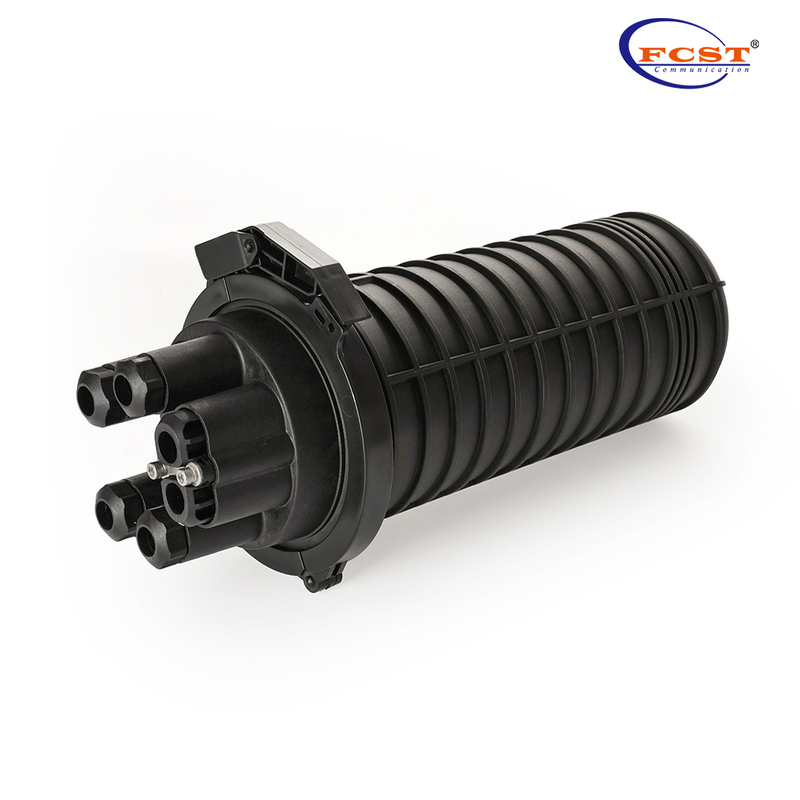

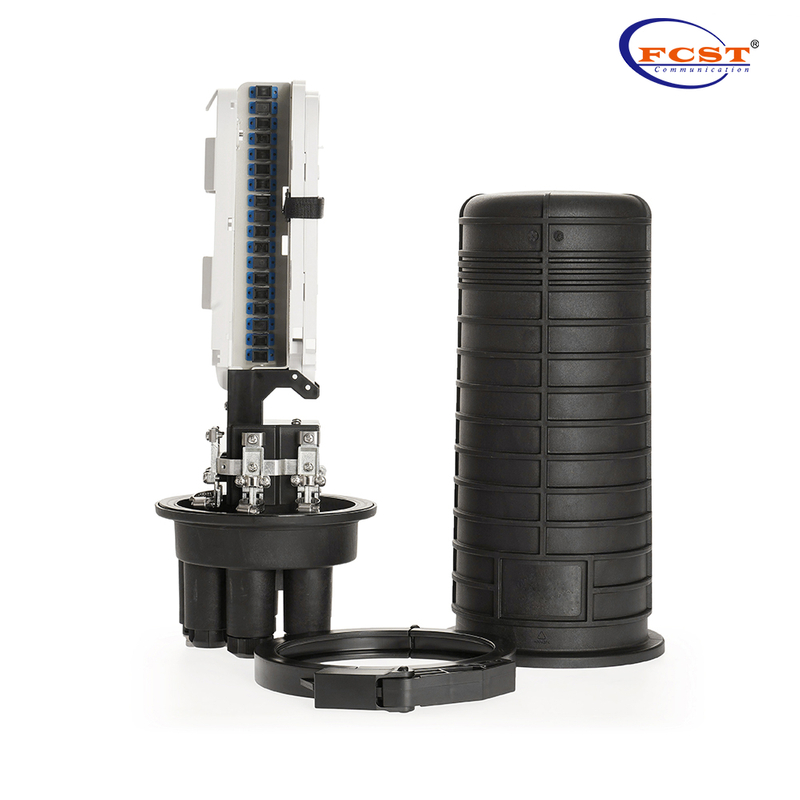

FCST012107 Fiber Optical Fiber Closure

  • With protection grade of IP68.
  • Easy installation with no specialtoolrequired.
  • Good corrosion resistance, compressive resistance and tensile strength.
Availability:
Quantity:
  • FCST012107

  • FCST

  • FCST012107

Product Overview

FCST012107 Fiber Optical Fiber Optical Closure is used for FTTH solution. It’s easy and fast to fix fiber cable. The protection level of connector box is IP68, which can be used in all kinds of environments.

Product Specifications

Construction

Description

Capacity

12/24/48Fibers

Material

HDPP

Dimension(mm)

450×φ230

Inlets/Outlets

1/4

Installation

Pole-mounting/Wall-mounted

Optional Accessories

PigtailAdapter,Splitter

Protection Level

IP68

Sealing Type

Mechanical

Suitable Cable Diameter(mm)

Φ8~18

Net Weightg

4500

Packing

6pcs/cnt  29.7kg  740×490×450mm

Product Advantages

5 ports used for Φ 8 to 18 mm cable, 1 uncut ports and 4 branch ports.

Splitter can be installed 1:8, 1:16 or 2:16, and maximum 18 SC adapters can be assembled.

Installation method: pole-mounting, wall-mounting, manhole.

There are two capacities to choose, 12cores24 cores and 48 cores.

Protection grade: IP68

Product Structure

0REWQSJBVB3TG5_V`L)LT

Ordering Information

FXV8M`NX00Q7QOJBHP_6W

Design And Customization Services

Provide service with whole process from blueprint to product to the customer.

Meet customers requirement to customize logo in suitable place for existing product.

Meet customers requirement to make reasonable modify and customization for existing product.

Provide free design according to the requirement of customer after signed cooperative agreement.
