FCST-CR50 50mm Open-Style Fiber Raceway for Data Centers

Product Overview

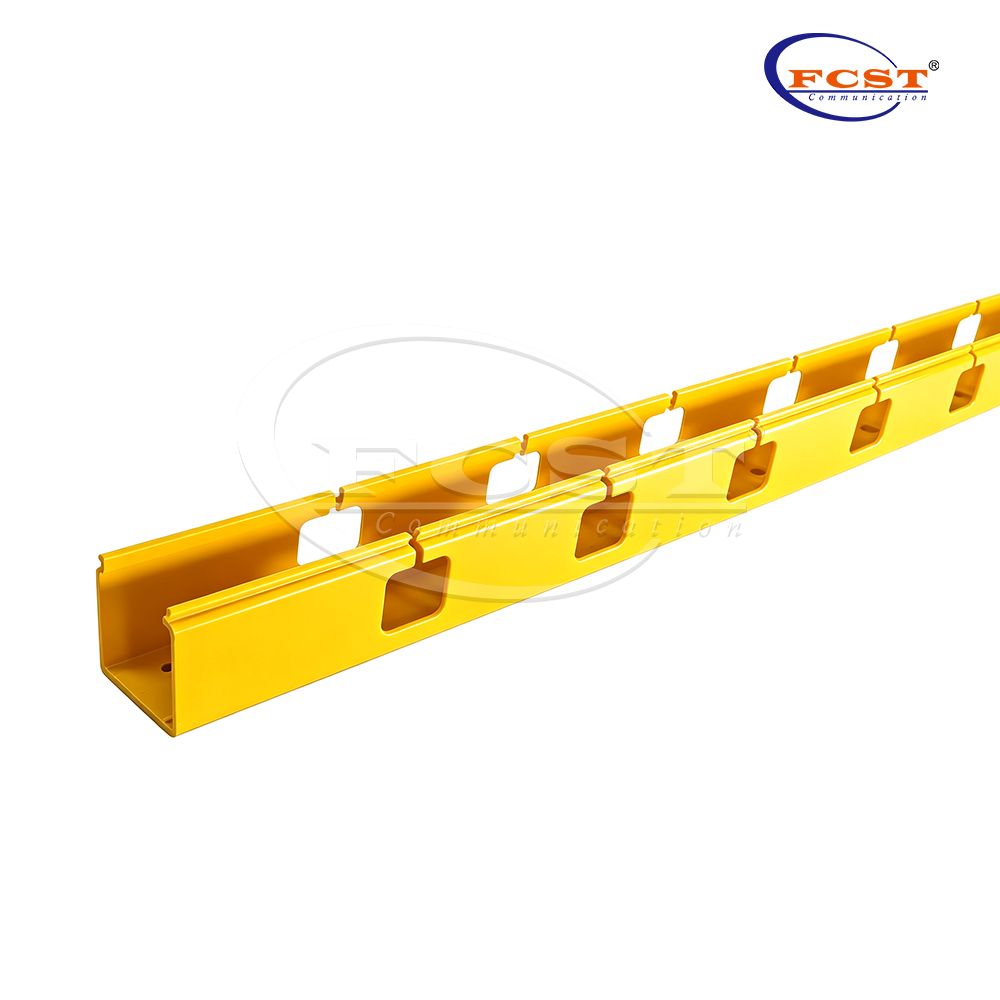

The FCST-CR50 Fiber Raceway is a 50mm wide, 2000mm long open-style cabling channel designed for data centers and equipment rooms. It routes, manages, and protects fiber optic patch cords and pigtails above cabinets or between racks. The modular system supports straight runs, elbows, tees, and crosses, making it suitable for complex fiber routing layouts. It is available in PVC or PC+ABS and meets UL94-V0 flame-retardant requirements.

Key Features

• Modular raceway system – Compatible with straight sections, elbows, tees, and crosses for flexible layout design.

• UL94-V0 flame-retardant material – Available in PVC or PC+ABS to meet fire safety requirements in equipment rooms.

• Open-style access – Supports organized routing and layered management of fiber patch cords and pigtails.

• 50mm width, 100mm height – Provides a defined pathway for high-density fiber cabling above cabinets and between racks.

• 2000mm standard length – Reduces the number of joints and simplifies installation across long runs.

• Fiber routing capacity – Routing capacity is specified at 50%, 75%, and 100% fill rates. For normal installation, 50%–75% fill is recommended to allow for cable movement, maintenance, and future changes. The 100% figure represents a theoretical maximum only and is not recommended for standard deployment.

• ISO 9001 manufacturing – Produced under an ISO 9001 quality management system.

Product Specifications

Applications

• Data center fiber cabling above cabinets

• Equipment room fiber routing between racks

• Open-style pathway for fiber patch cords and pigtails

• Modular fiber management layouts requiring straight sections, bends, tees, or crosses

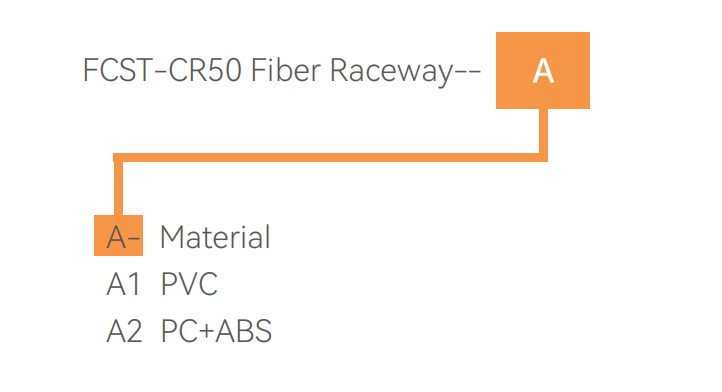

Ordering Information

*Note: The specified model is determined based on optional configurations. For example: FCST-CR50 Fiber Raceway--A1.

FAQ

Q1: What is the FCST-CR50 Fiber Raceway used for?

A: It is an open-style cabling carrier used in data centers and equipment rooms to route, manage, and protect fiber optic patch cords and pigtails, typically installed above cabinets or between racks.

Q2: What material options are available?

A: The raceway is available in PVC (A1) or PC+ABS (A2), both with a V0 flame-retardant rating.

Q3: Does it support different layout directions?

A: Yes. The modular design allows assembly with straight sections, elbows, tees, and crosses to accommodate complex layouts.

Q4: How many fibers can it hold?

A: The routing capacity table lists 50%, 75%, and 100% fill rates. For practical installation, 50%–75% fill is recommended. At 50% fill, the raceway supports 395 × 2mm fibers or 175 × 3mm fibers. At 75% fill, it supports 593 × 2mm fibers or 262 × 3mm fibers. The 100% fill figure is a theoretical maximum and is not recommended for normal use.

Q5: Is the cover included?

A: The specification mentions that the raceway is often equipped with hinged covers, but it does not confirm whether the cover is included as standard. Please confirm with FCST before ordering. Needs verification

Q6: What is the standard length?

A: The standard length is 2000mm per section.
