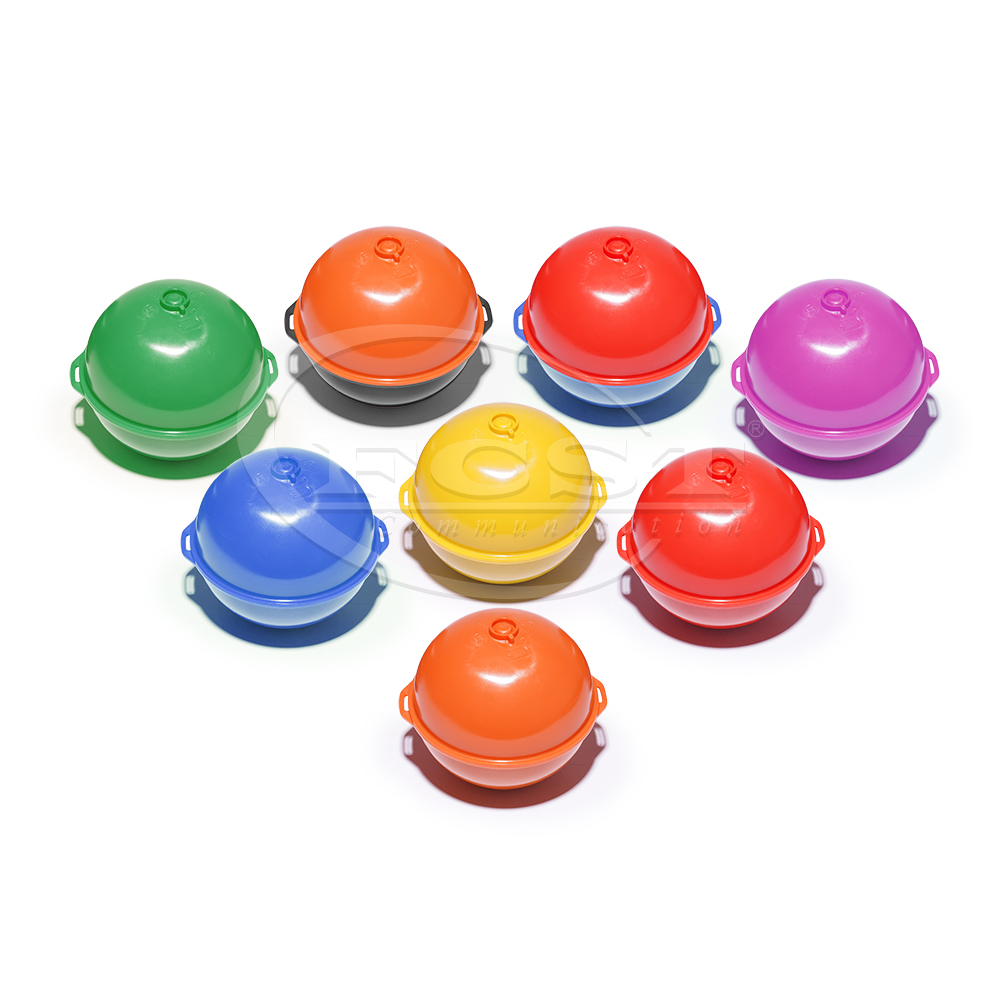

What Is A Fiber Cable Locate Ball?

Have you ever wondered how workers find buried fiber optic cables without digging everywhere? A fiber cable locate ball helps you do just that. This small device marks the spot where fiber cables run underground. You see it used in many industries, like telecommunications, electricity, and water. Companies trust these markers because they make underground detection fast and accurate. Some models, like the FCST-MB101.4kHZ Marker Ball, use advanced technology and are safe for the environment. You might find them even in tough spots, near high-voltage lines or busy roads.

• No harmful fluid inside.

• Detection range up to <1.5m.

• High location precision marker ball.

• For manholes or direct buried installation.

• Self orientation RF reflector ensures best detection range and accuracy.

• The induction coil is suspended on the built-in antifreeze and can be kept horizontally upward.

What Is a Fiber Cable Locate Ball

Purpose and Function

You might wonder what a underground utility marker ball actually does. This small device acts like a hidden marker for underground fiber optic cables. When you place a fiber cable locate ball near a cable, it helps you find the exact spot later using a special detector. You don't have to guess or dig up the whole area. The ball sends out a signal that makes locating buried cables quick and easy.

Here’s why you need it:

•  Prevents accidental damage: You avoid cutting or breaking cables when you know exactly where they are.

•  Speeds up repairs: You can find the cable fast if something goes wrong.

•  Improves safety: Workers stay safe because they don't hit dangerous lines by mistake.

 If you work with underground utilities, using a fiber cable locate ball can save you time and money. You won't have to worry about missing cables or causing outages.

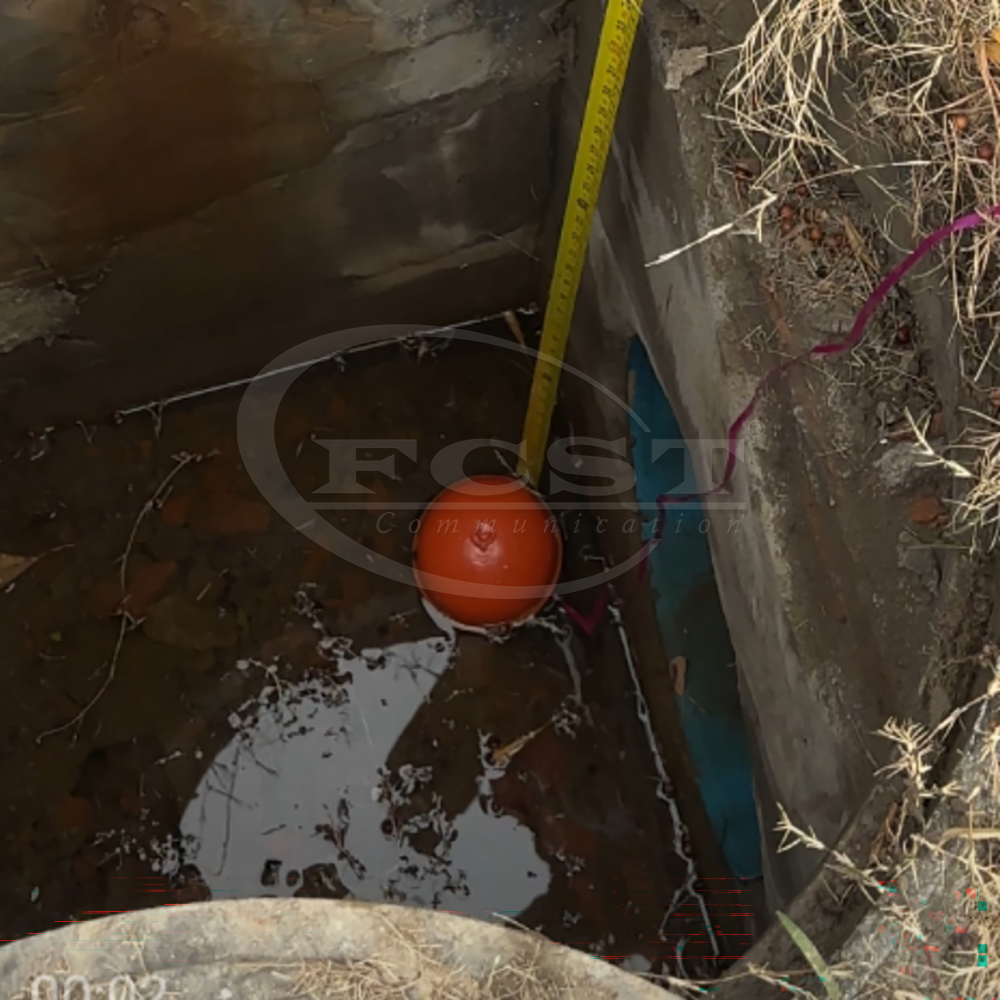

Where and When to Use

You usually use a buried utility marker ball during the installation of fiber optic cables. When you first bury the cable,you can place it with the cable. Then, you mark the location right from the start. You can also add one later if you need to highlight a repair or a junction.

These balls work best in underground environments. You see them most often in places where cables run under streets, sidewalks, or fields. Construction crews and utility workers rely on them to keep track of buried lines. If you need to dig or do maintenance, the locate ball helps you find the cable without any guesswork.

Here’s a quick table to show common use cases:

Situation	Why Use a Locate Ball?
New cable installation	Mark the exact cable location
Repairs or splices	Highlight changes or fixes
High-traffic areas	Prevent accidental damage
Near other utilities	Improve safety and accuracy

You’ll find that a fiber cable locate ball is essential for marking buried cables. It keeps your work safe and organized, especially when you deal with busy or challenging environments.

How Fiber Cable Locate Balls Work

Detection Technology

You might wonder how an optical cable round marker ball actually helps you find buried cables. The secret is in the detection technology. These marker balls use special frequencies that electronic locating devices can pick up. When you walk over the spot with a detector, the ball sends out a signal. You hear a beep or see a reading on your device. That’s how you know you’re right above the cable.

Field Application

You use a fiber cable locate ball in real-world situations where you need to find cables quickly. Utility workers, surveyors, and construction crews rely on these markers every day. You can spot the exact location of a cable, even if it’s under a busy street or deep in the ground.

Digital mapping and asset management systems make things even easier. You can connect your locator to a mobile device and map the spot right away. Some systems use RTK GNSS technology for super-precise mapping. Others let you upload data in real time, so everyone on your team knows where the cables are.

Here’s a table showing how different systems work with marker balls:

System Name	What It Does
Geolantis.360	Uses RTK GNSS for centimeter-level mapping. Uploads data to a central platform.
TL9000 RFID Route Locator	Connects with Bluetooth and GIS mapping. Works with buried RFID markers.
MRX SG Survey Grade Locator	Combines line locating and survey-grade accuracy. Maps utilities and marker balls.

You get real-time access to data with Geolantis.360. The TL9000 makes asset tracking easy by detecting buried markers. The MRX SG helps you map and locate utilities with high accuracy.

Note: If you use digital mapping tools, you can share cable locations with your whole team. This helps everyone avoid mistakes and keeps your work safe.

You see how a fiber cable locate ball, paired with smart technology, makes underground cable management simple and reliable.

Benefits of Locate Balls

Accuracy and Reliability

You want to find buried cables quickly and without mistakes. A telecom cable marker ball makes this possible. It uses advanced RF technology, so you get a strong and clear signal every time you search. You do not have to guess or rely on old maps. The marker ball sits right next to the cable, so you always know the exact spot.

Check out this table to see how the FCST-MB101.4kHZ Marker Ball compares to traditional markers:

Feature	FCST-MB101.4kHZ Marker Ball	Traditional Markers
Detection Range	Up to 1.5 meters	Varies, often less precise
Accuracy Deviation	Less than 2%	Often higher, prone to errors
Technology	RF technology	Outdated methods
Installation Time	Faster	Slower, more labor-intensive
Risk of Excavation Errors	Minimized	Higher risk

You can see that the marker ball gives you better accuracy and saves you time. It also lowers the chance of making mistakes during excavation. You do not waste hours searching or risk damaging cables. This tool helps you work smarter, not harder.

Safety and Utility Management

Safety matters when you dig or repair underground cables. Marker balls help you avoid accidents. They show you exactly where cables run, even before you start digging. You can estimate the depth of the cable, which means fewer surprises and less risk of hitting something important.

Here are some ways locate balls keep you safe and organized:

•  They mark the cable route above ground, so you know where to dig.

•  They help you check the cable’s position during installation.

•  They make it easy to track changes and repairs.

Utility management gets easier, too. You can track cable locations in real time and update your records fast. This means fewer mistakes and lower costs for your team.

Benefit	Impact on Utility Management
Precise location tracking	Minimizes unnecessary excavation
Reduces errors in locating assets	Decreases operational mistakes and costs
Real-time data updates	Enhances decision-making and responsiveness

Tip: Use a fiber cable locate ball to keep your team safe, save money, and make your work more efficient.

Choosing and Installing Locate Balls

Types and Selection

You want to pick the right fiber cable locate ball for your project. Not every ball works for every cable or soil type. Some models, like the Omni Marker II, fit most jobs. This ball is lightweight and tough. It works well in many soil conditions and can mark cables, pipes, or ducts. The outer shell uses high-density polyethylene, so it stands up to rough environments. You can reuse it and recycle it when you finish the job.

Here’s a quick table to help you compare features:

Model	Size	Depth Range	Shell Material	Benefits	Applications
Omni Marker II	5”	5 ft	HDPE	Durable, reusable, safe	Fiber cables, pipes, ducts

If you work in rocky or wet soil, choose a ball with a strong shell. For small cables, make sure the ball fits the space. Always check if the ball meets local rules and standards.

Installation Steps

• You want to install a locate ball the right way. Follow these steps to make sure you get it done safely:

•  Plan the spot. Mark where the cable runs underground.

•  Dig a small hole. Make it deep enough for the ball, but not too wide.

•  Place the ball. Put it next to the cable, not on top. This keeps the signal clear.

•  Check alignment. Make sure the ball faces up so the detector can find it.

•  Cover the hole. Fill it with soil and pack it down gently.

Wear gloves and eye protection when you dig. Watch out for other buried utilities. Never rush the job.

Common mistakes include placing the ball too far from the cable or burying it too deep. If you do this, you might miss the signal later.

Maintenance Tips

You don't need to do much to keep a fiber optic cable burial markerworking. If you install it right, it can last over 40 years. Still, you should check the spot during regular inspections. If you notice weak signals, use a locator to test the ball. Sometimes, soil shifts or heavy rain can move the ball. If this happens, mark the new spot.

Training helps you use and maintain these balls. Many technicians learn with hands-on practice. They use tools like the EXFO-635 or Dynatel 965DSP to find faults and test signals.

Training Focus	Description
OSP Fault Locating and Cable Troubleshooting	Teaches you to use test equipment and find buried cables.
Equipment Used	EXFO-635, Viavi ONX580, Dynatel 965DSP.
Real-World Experience	Practice with actual cables and markers in the field.

Note: If you keep good records and train your team, you’ll avoid problems and keep your cables safe.

You see how fiber cable locate balls make underground cable management easier and safer. When you pick the right ball, install it correctly, and check it often, you protect your cables and your team.

Mark cables with confidence

Avoid costly mistakes

Keep your work organized

Remember: Good habits lead to long-lasting results. Stick to best practices, and you’ll keep your utility projects running smoothly.

FAQ

•  How deep can you bury a fiber cable locate ball?

•  You can bury most locate balls up to 5 feet deep. Always check the product guide for the exact depth. Some models work best at shallower depths.




•  Do locate balls need batteries or power?

•  No, you never need to add batteries. Locate balls use passive technology. They work without any power source and last for decades.




•  Can you reuse a fiber cable locate ball?

•  Yes, you can reuse some models. If you remove the ball carefully, you can install it again. Always check for damage before reusing.




•  What tools do you need to find a locate ball?

•  You need a compatible electronic locator. These devices pick up the signal from the ball. Popular models include the Tempo EML100 and Dynatel locators.




•  Are fiber cable locate balls safe for the environment?

•  Yes! Most locate balls use non-toxic, recyclable materials. They do not leak chemicals or harm soil and water.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
