The Auxiliary Role of Marker Balls in Underground Cable Installation

Views: 500     Author: Curry     Publish Time: 2025-07-25      Origin: www.fcst.com

The exponential growth in data demand drives the continuous expansion of underground fiber optic networks. Ensuring the efficient installation and long-term integrity of these critical assets relies heavily on robust methodologies like cable jetting and supporting technologies, including the unassuming yet vital marker ball. While the cable blowing machine takes center stage in deploying cable into ducts, marker balls play a crucial auxiliary role throughout the cable lifecycle.


Cable jetting, the primary method for installing fiber optic cables into pre-installed ducts, utilizes a specialized cable blowing machine. This machine combines controlled pushing forces with powerful jets of compressed air. The air flow reduces friction dramatically, allowing the blowing fiber cable to be propelled over distances of several kilometers efficiently and with minimal risk of damage compared to traditional pulling methods. Speed and protection of the delicate glass fiber are key advantages.


However, once the cable is blown underground and the installation crew departs, a new challenge emerges: precisely locating the buried asset in the future, be it for maintenance, upgrades, or to prevent accidental damage during excavation works. This is where marker balls provide indispensable auxiliary support.

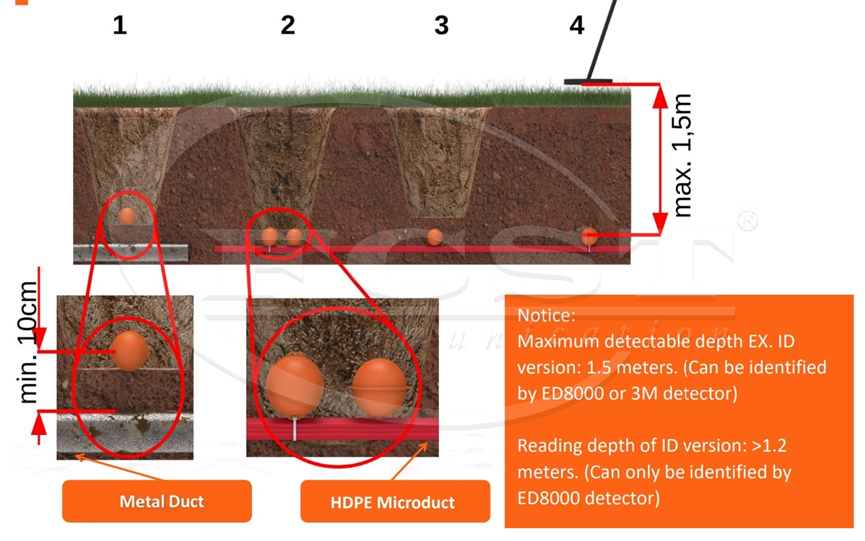

The Auxiliary Role of Marker Balls in Underground Cable Installation Works(1)

These passive devices, typically bright-colored (often orange or yellow) plastic spheres containing a reflector, are attached to the cable jacket or sheath at predetermined intervals – frequently at every splice point and approximately every 300-500 meters along straight runs. Buried within the backfill above the duct, they serve three primary auxiliary functions:


1. Above-Ground Route Marking: They provide a clear, durable, and cost-effective visual indicator of the cable's path. This is critical for utility locators conducting surveys before any digging activities commence near the cable route. Spotting marker balls alerts excavators to the presence of underground infrastructure directly below.


2. Depth Estimation Aid: While not always perfectly precise, the presence of a marker ball gives locators a significant starting point for estimating the cable depth using electromagnetic locating tools or careful manual probing around the ball, reducing the risk of direct strikes.


3. Installation Reference Point: During the blowing fiber process itself, especially in complex routes with bends or changes in elevation, knowing the positions of installed marker balls (usually added just before or after cable entry into the duct) can help crews verify the cable's progress and relative position within the duct system.


Therefore, while the cable blowing machine performs the physically demanding task of installing the blown fiber using compressed air, the humble marker ball acts as a silent guardian. It provides an ongoing, passive, yet critical line of defense against accidental damage. It ensures the buried cable, deployed efficiently by modern blowing techniques, remains locatable and protected long after the installation crews have moved on, safeguarding vital communication infrastructure. This auxiliary role is fundamental to the overall safety, resilience, and manageability of underground fiber networks.

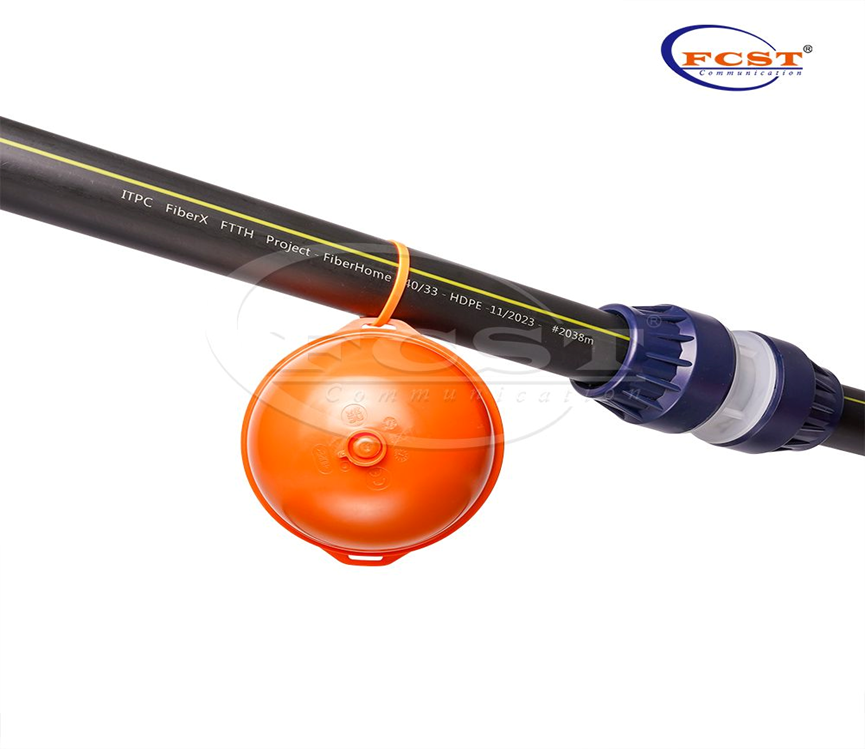

The Auxiliary Role of Marker Balls in Underground Cable Installation Works(2)

-----------------------------------------------------------------------------------------------------------------------------------------
