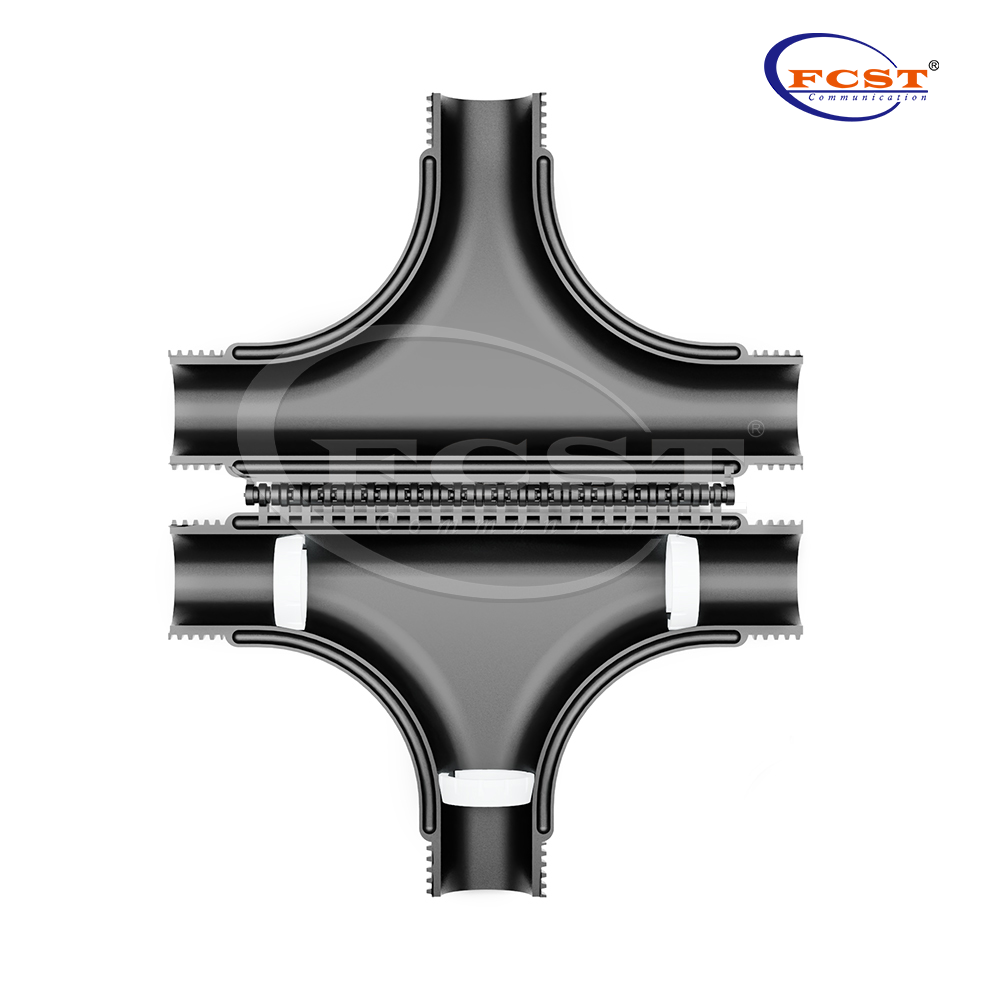

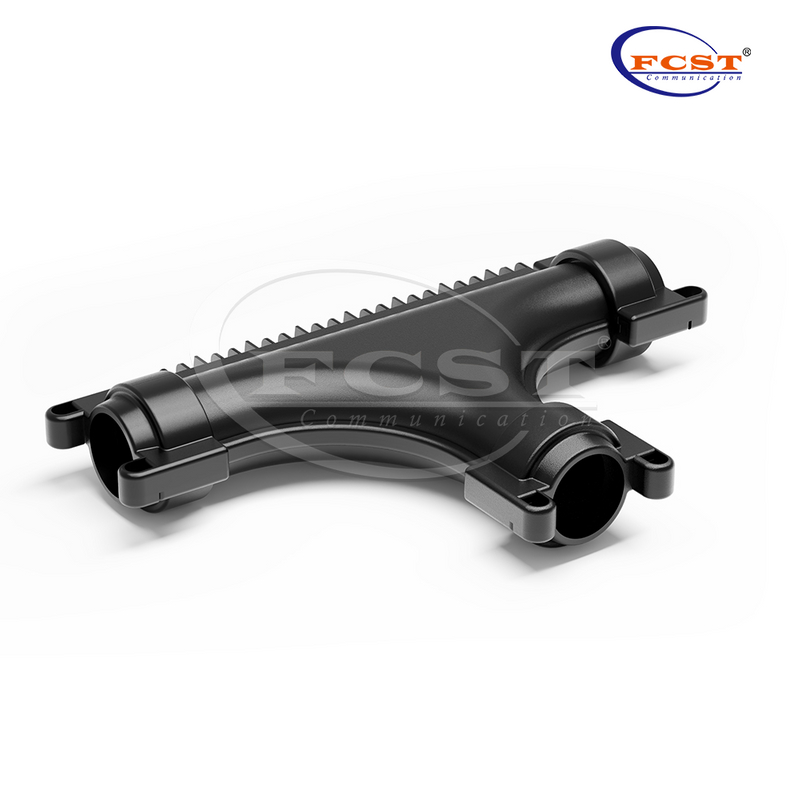

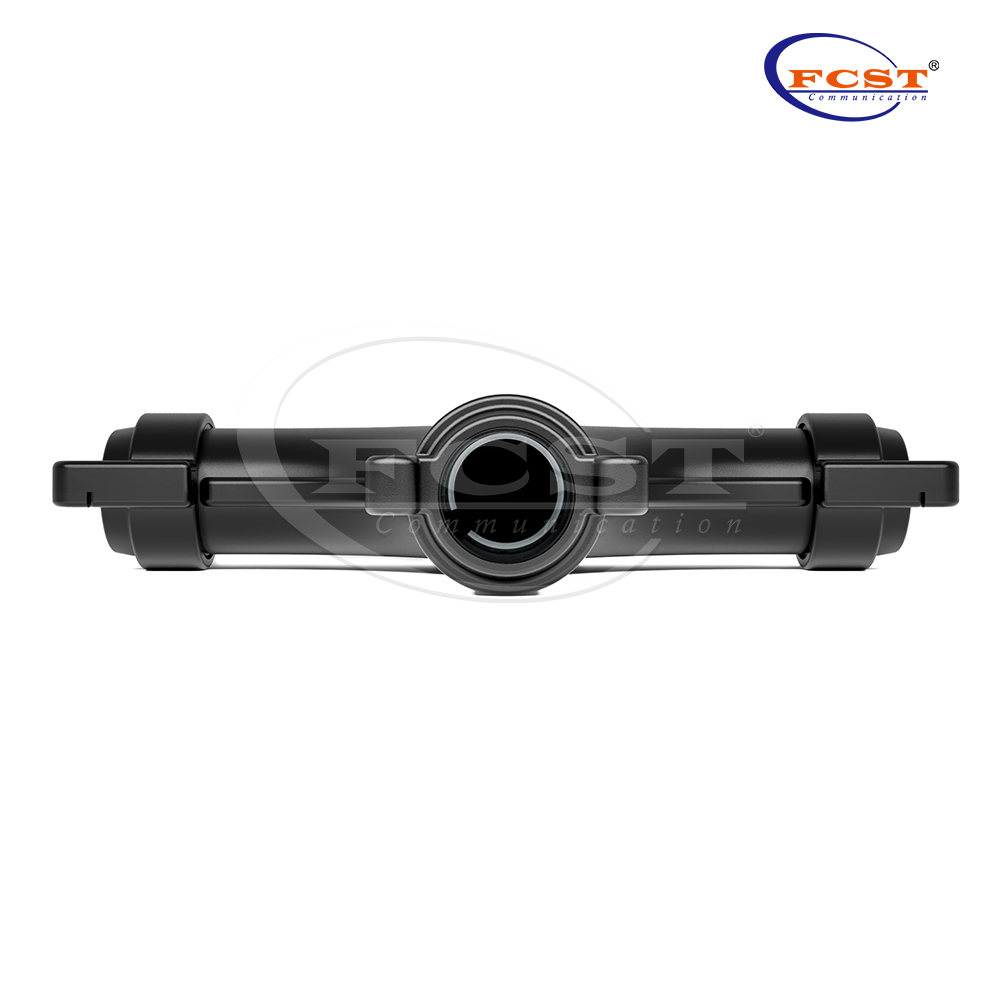

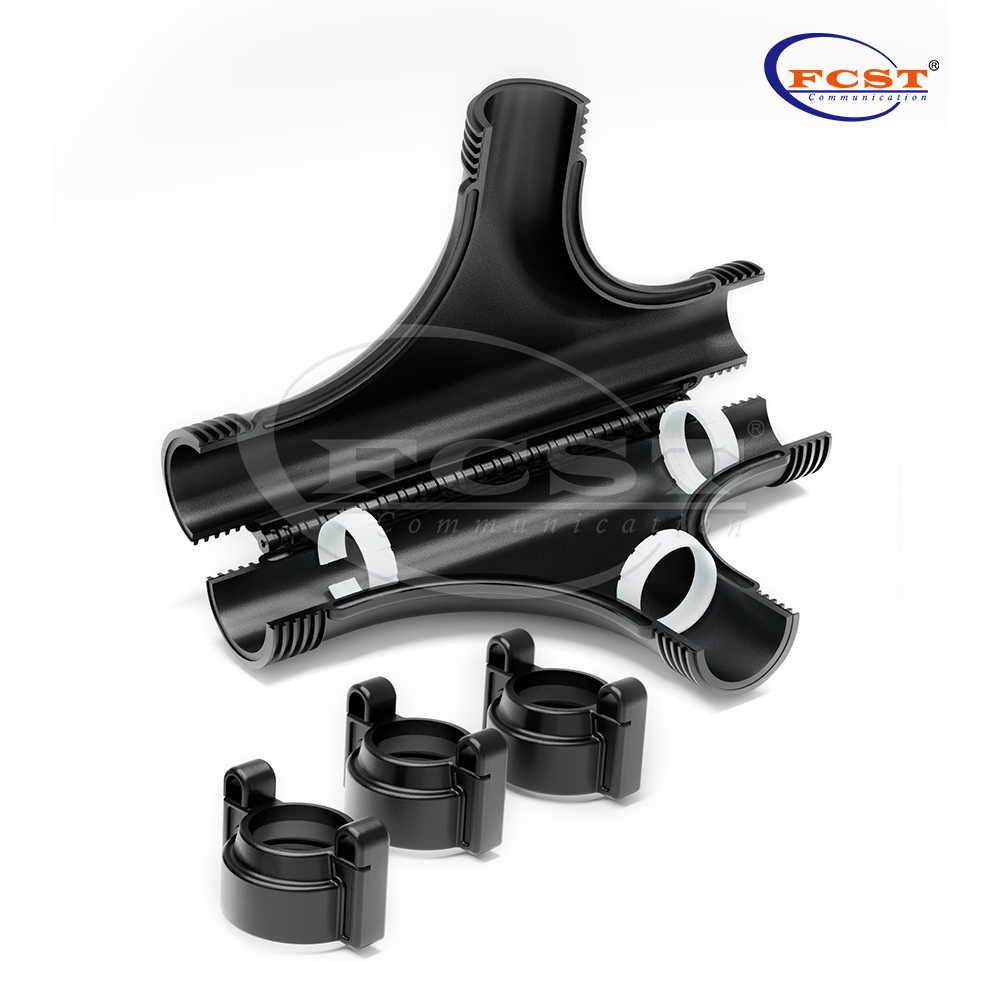

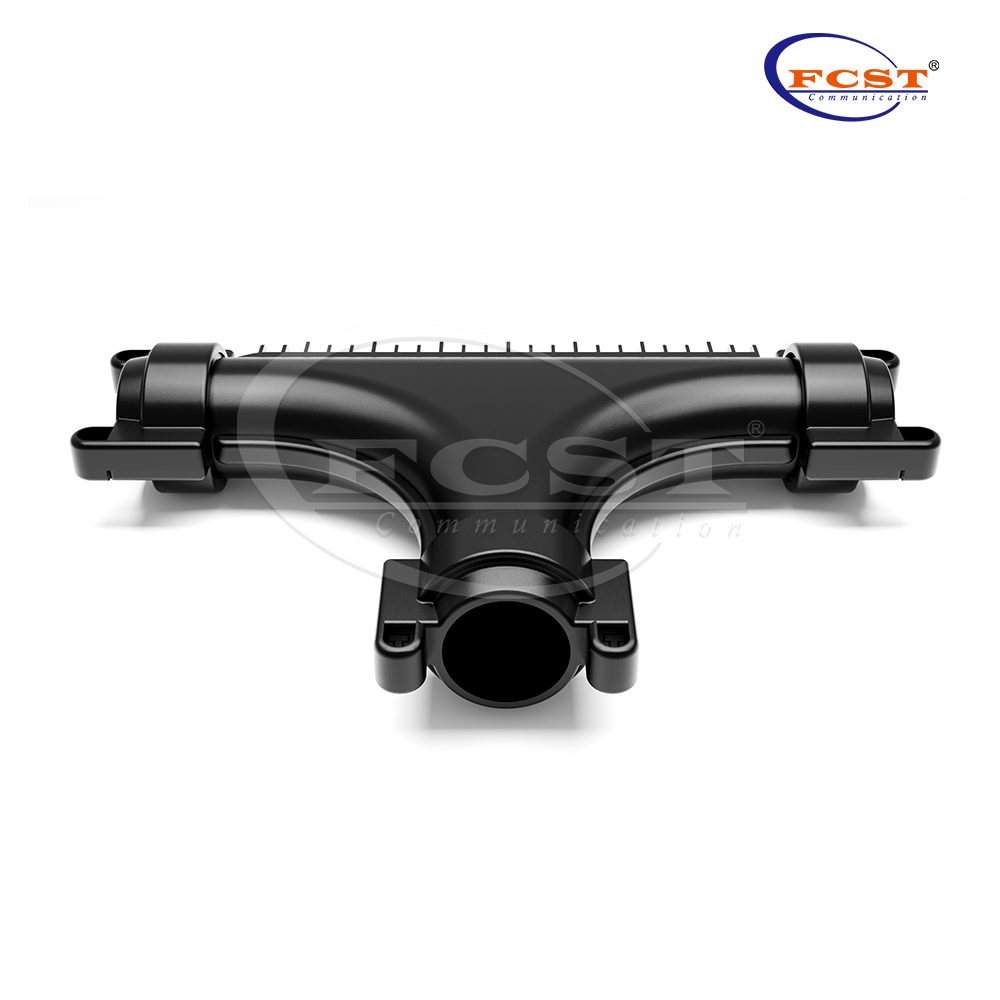

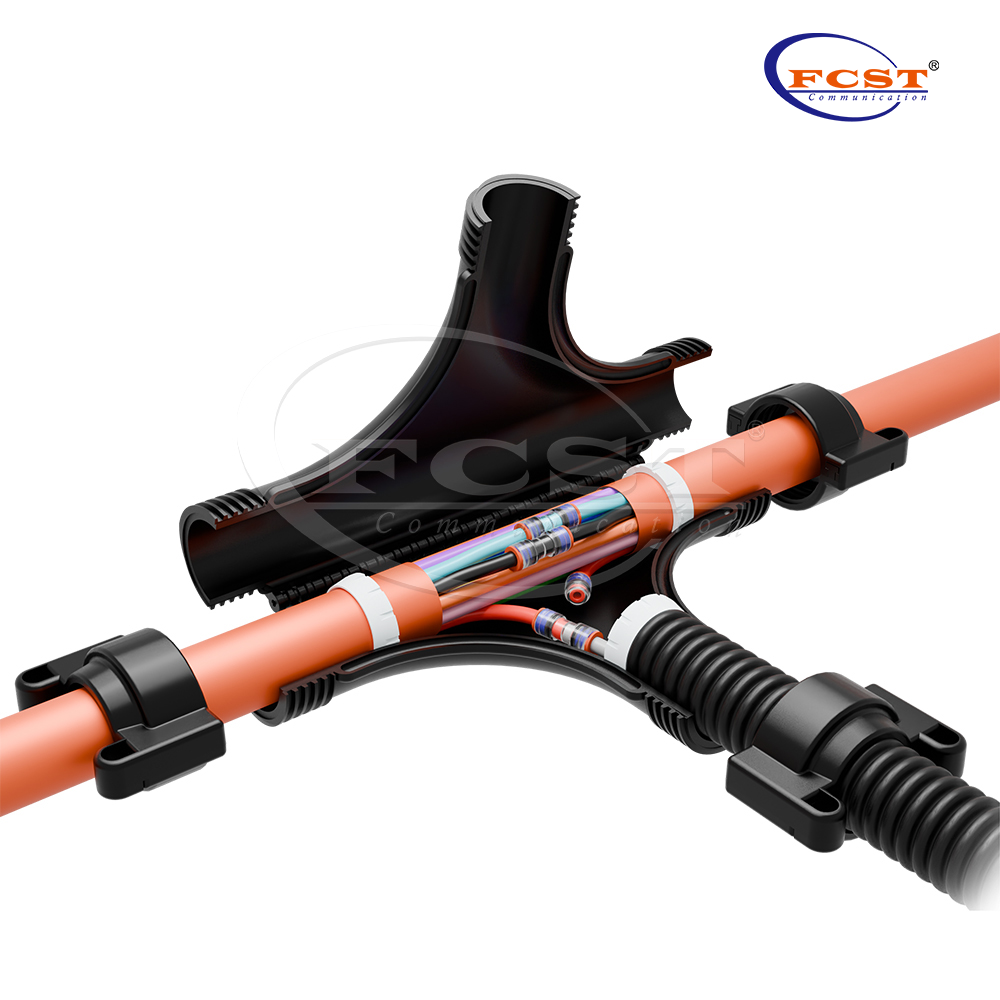

FCST16313-L T-Type Closure

  • It has simple structure and easy operation.
  • High cost performance and long service life.
  • Small size, light weight, easy to carry and install.
  • The connection is reliable and the sealing is good.
Availability:
  • FCST16313-L

  • FCST

  • 500

Product Overview

FCST16313-L T-Type Closure can be used to connect micro tube of different diameters and can also be used to connect different types of micro tube. T-Type Closure are widely used in microfluidic systems.


Product Advantages

lIt has simple structure and easy operation.

lHigh cost performance and long service life.

lSmall size, light weight, easy to carry and install.

lThe connection is reliable and the sealing is good.


Product Specifications

Construction

Description

Duct Size

Max.40mm

Material

Shell: ABS

Claw: POM

Cap: ABS

Length

365mm14.370in

Width

235mm9.252in

Height

70mm2.756in

Weight

540 g

Crush

1000N/10mins

Impact

>15 Joule

Pull-out

>1000N

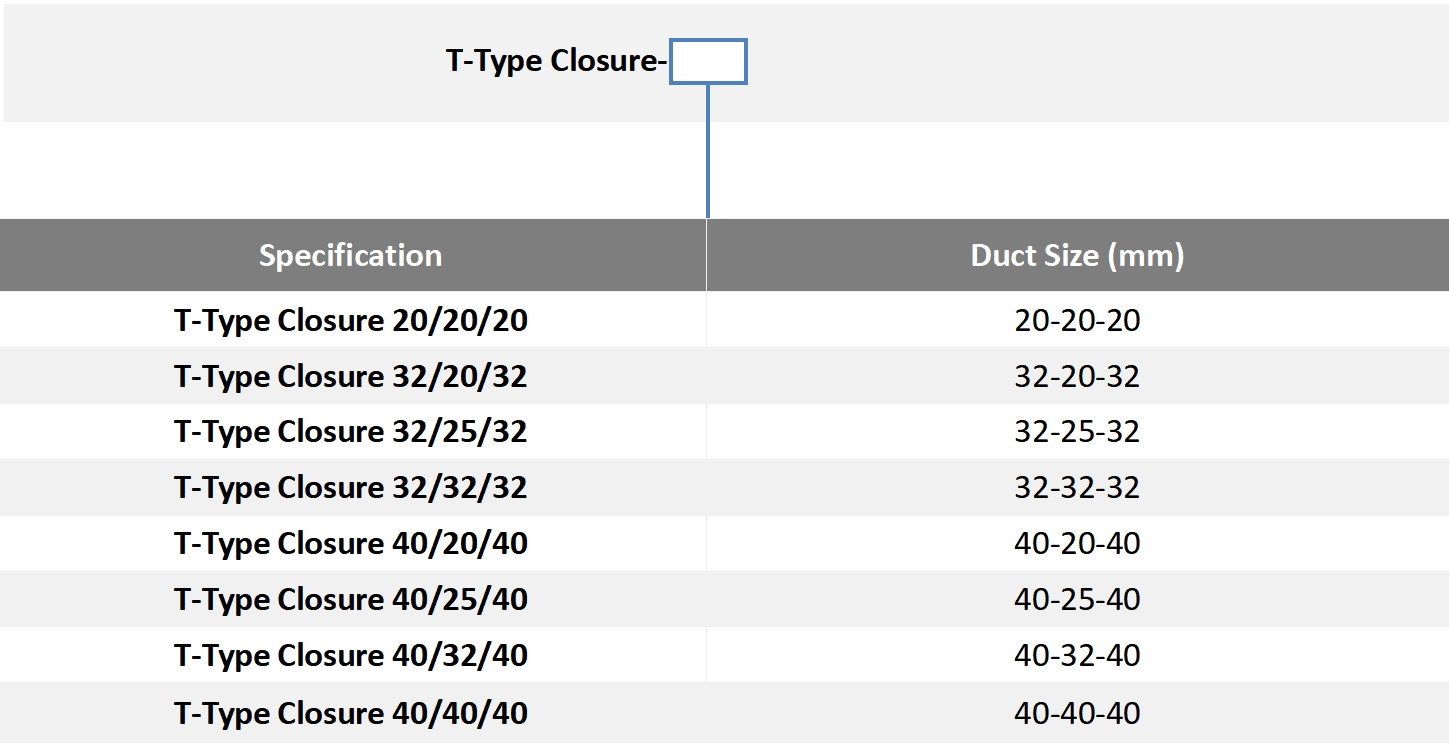

Ordering Information

Ordering Information

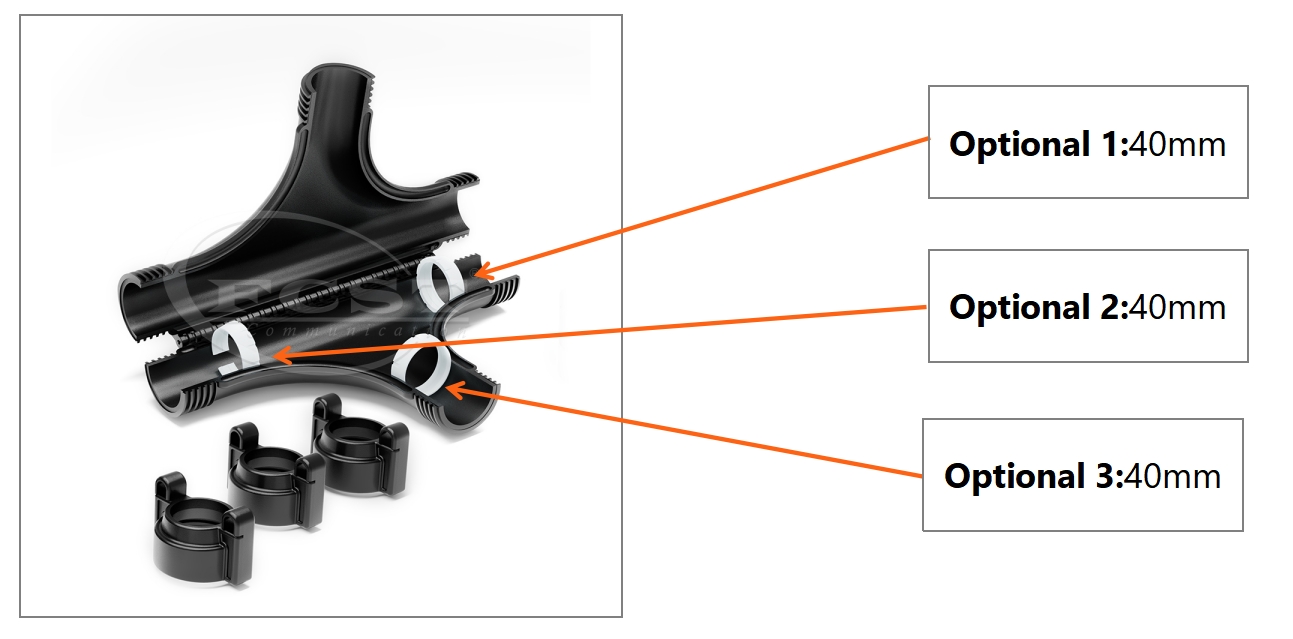

Ordering Information2
