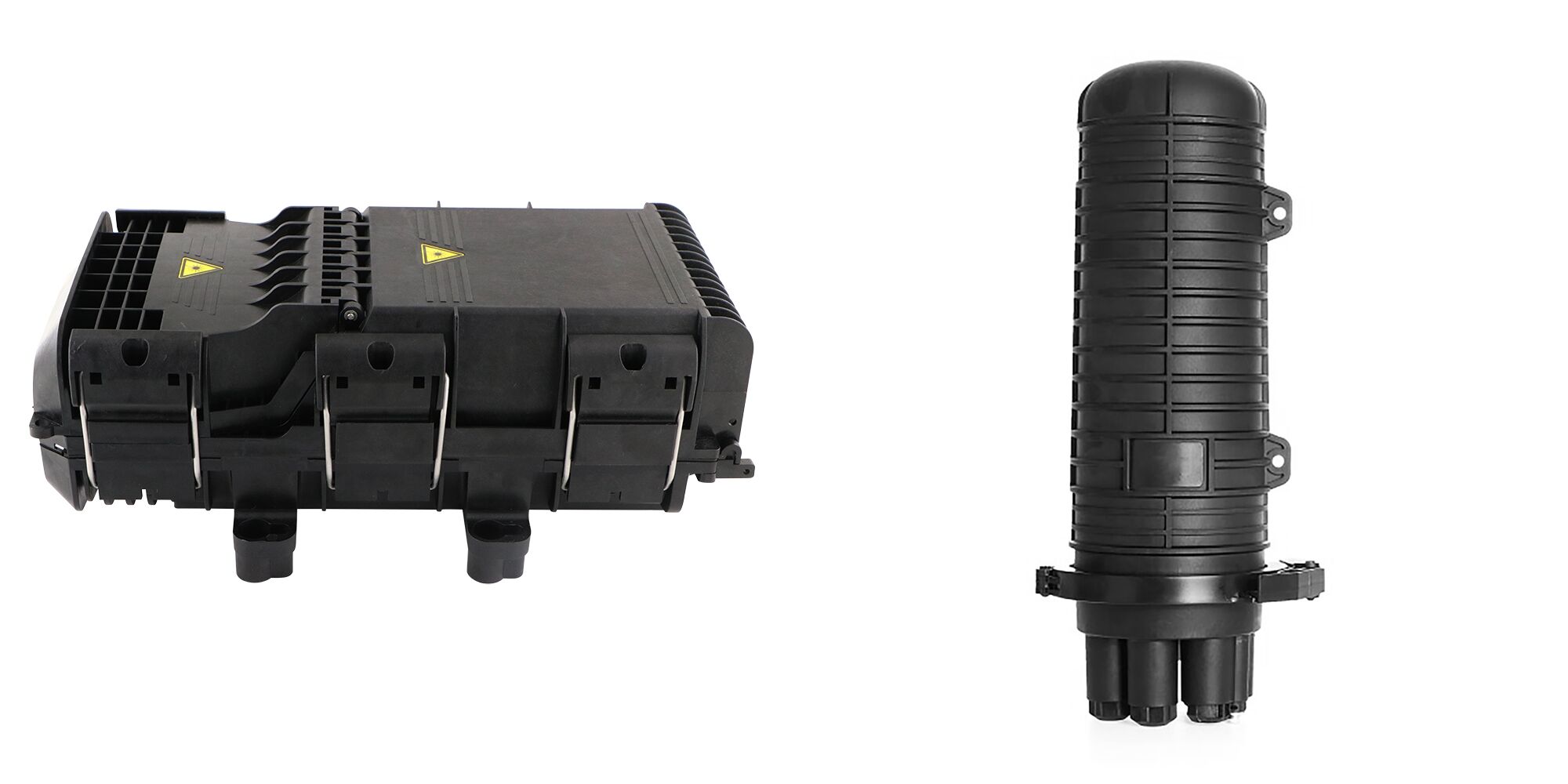

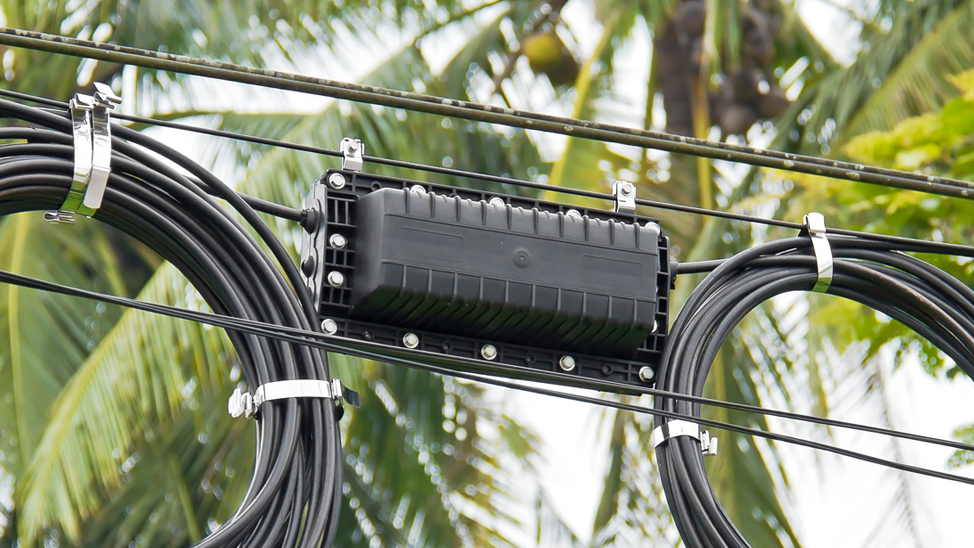

In the field of telecommunications and network infrastructure, fiber splice closures play a crucial role in protecting and maintaining the integrity of fiber optic connections. The IP (Ingress Protection) rating system is commonly used to assess the level of protection provided by such closures against the ingress of solid objects and liquids. This article will guide you through the process of testing the IP grade of a fiber splice closure,ensuring its suitability for various environmental conditions.
In the field of telecommunications and network infrastructure, fiber splice closures play a crucial role in protecting and maintaining the integrity of fiber optic connections. The IP (Ingress Protection) rating system is commonly used to assess the level of protection provided by such closures against the ingress of solid objects and liquids. This article will guide you through the process of testing the IP grade of a fiber splice closure, ensuring its suitability for various environmental conditions.
IP Ratings: IP ratings, as defined by the International Electrotechnical Commission (IEC), consist of two digits that represent the degree of protection offered by an enclosure or device. The first digit indicates the level of protection against solid objects, while the second digit represents the level of protection against liquids. The higher the IP rating, the greater the protection.
Testing the IP Grade of a Fiber Splice Closure
1.Visual Inspection: Before testing, visually inspect the fiber splice closure to ensure it is properly installed and sealed. Check for any visible damage, gaps, or compromised sealing elements that could affect its IP rating.
2.Solid Object Protection (First Digit): To evaluate the closure's protection against solid objects, perform a dust test. Use fine dust particles, such as fine sand or dust, and spray or blow them onto the closure's surface. Observe if any dust enters the enclosure or if there are signs of ingress. The absence of dust inside indicates a higher level of solid object protection.
3.Liquid Protection (Second Digit): To assess the closure's resistance to liquids, conduct a water-tightness test. Submerge the fiber splice closure fully in a water tank. After a designated time, remove the closure and inspect the interior for any signs of water ingress. If no water is detected inside, it indicates a higher level of liquid protection.
4.Pressure Water Jet Test: For more stringent evaluations, a pressure water jet test can be conducted to assess the closure's ability to withstand high-pressure water streams. Using a high-pressure water jet device, direct a forceful water stream onto the surface of the closure. Observe if there is any water ingress or a drop in pressure. A reliable fiber splice closure should exhibit resistance to both water ingress and pressure drop.
5.Reference IP Standards: Throughout the testing process, refer to the IP rating standards (e.g., IEC 60529) to understand the specific requirements for each IP grade. Compare the test results with the IP rating specifications to determine the accurate IP grade of the fiber splice closure being tested.Testing the IP grade of a fiber splice closure ensures its suitability for different environmental conditions, providing reliable protection against solid objects and liquids. By following the outlined steps and adhering to IP rating standards, telecommunications professionals can confidently assess the performance of fiber splice closures, contributing to the overall integrity and longevity of network infrastructure.
