Fiber raceway and wire mesh cable tray are both used in data center cable management, but they serve different routing needs. While both can support fiber optic cables, they differ in structure, cable access, pathway organization, and component design.
Understanding these differences helps data center designers, contractors, and network infrastructure teams choose a system that fits their cable routing plans, installation conditions, and maintenance requirements.
A fiber raceway is a dedicated pathway system designed primarily for routing and organizing fiber optic cables, including patch cords and pigtails around racks, fiber optical distribution cabinet, and fiber interconnection areas.

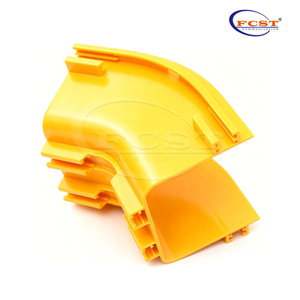

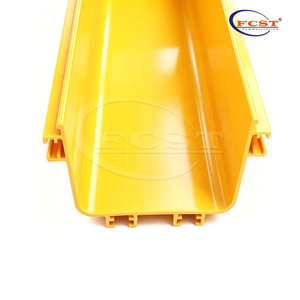

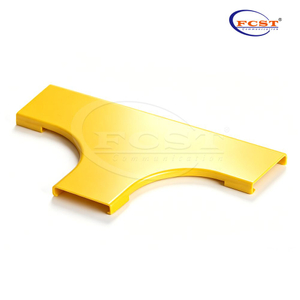

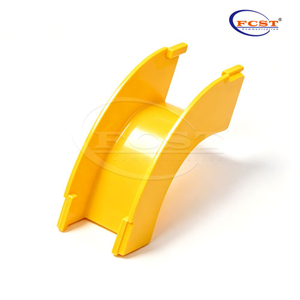

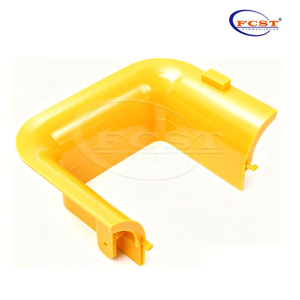

Many modular fiber raceway systems use straight sections, elbows, tees, crosses, drop outlets, and mounting accessories to create continuous routes and branches. Depending on the design, they may be open or fitted with compatible covers.

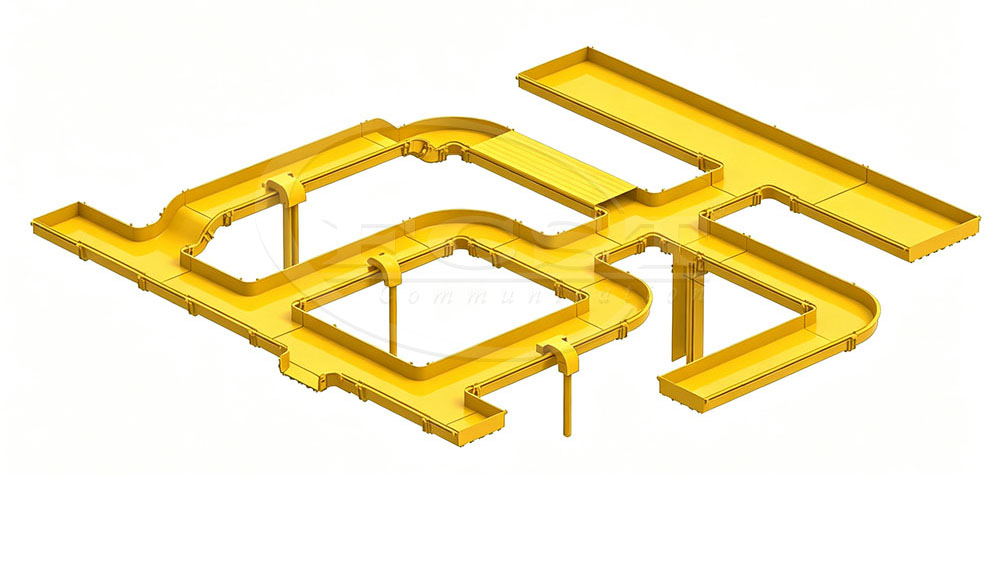

In data centers, fiber raceways can help keep fiber routes organized above racks and cabinets. Their modular components also allow installers to plan direction changes and connections between equipment areas.
When selecting a fiber optic raceway, check its dimensions, compatible fittings, cable capacity, and the bend radius required by the installed cables.
A wire mesh cable tray, also called a basket tray, is an open cable support system typically made from welded metal wire. Its mesh structure supports cable runs while allowing direct visual access to the cables.
Wire mesh trays can carry different types of cables, including fiber optic cables, provided the selected tray and installation arrangement meet the project requirements.
Typical components include straight tray sections, bends, connectors, and mounting supports. Installers can configure the route according to the building layout and available support points.
Because the structure is open, cables are generally easy to see and access. However, cable placement, support, and protection at bends or transitions still need to be considered during installation.
Fiber Raceway vs. Wire Mesh Cable Tray: Key Differences
Comparison factor | Fiber Raceway | Wire Mesh Cable Tray |
Basic structure | Dedicated pathway, with configuration depending on the system | Open metal mesh cable support |
Typical cable routing | Organized fiber routes around racks and cabinets | Fiber and other cable runs along overhead or other planned routes |
Cable coverage | Depends on the raceway design and cover configuration | Typically open |
Route configuration | Straight sections, elbows, tees, crosses, and drop outlets | Tray sections, bends, connectors, and supports |
Cable visibility | Depends on the structure and whether covers are installed | Generally provides direct visual access |
Key selection factors | Raceway dimensions, compatible fittings, cable capacity, and bend radius | Tray dimensions, support requirements, cable arrangement, and bend radius |
Neither system is automatically the better choice for every data center. The right option depends on the intended cable route, installation conditions, access requirements, and the specifications of the selected products.
Start by identifying the cables to be installed, including their dimensions, quantity, and expected future additions.
For a fibre ducting raceway, check the usable internal space and how cables will be arranged through straight sections, branches, and bends. For a wire mesh tray, consider the available tray width, cable arrangement, and applicable support requirements.
Do not select a system based on external dimensions alone. The usable space and planned cable layout determine whether the route can accommodate the installation.
Consider the complete route, including straight runs, horizontal turns, branches, and drops to racks or cabinets.

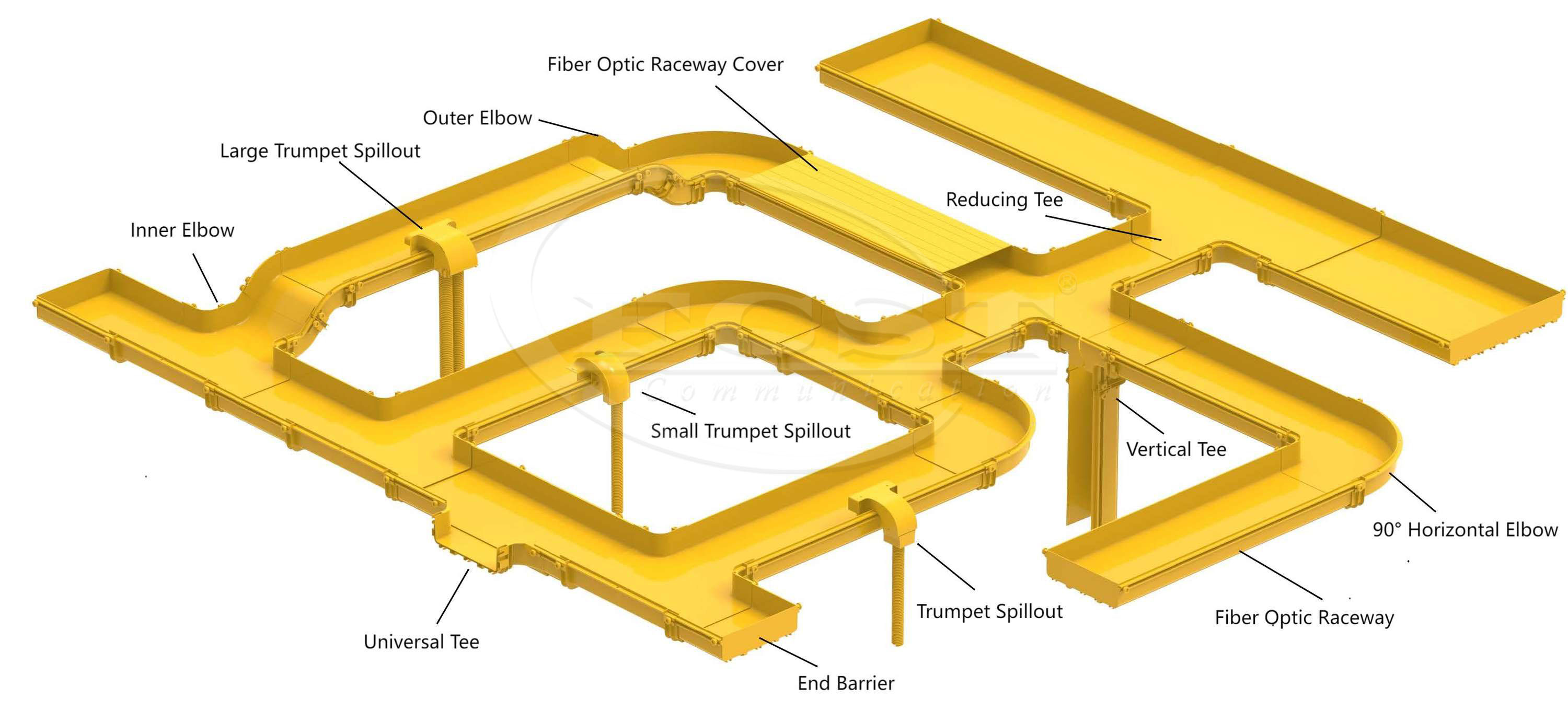

A modular fiber raceway can use compatible elbows, tees, crosses, and drop outlets to create a dedicated fiber routing path. A wire mesh tray uses suitable tray sections and accessories to follow the planned route.
The required components depend on the layout. Check compatibility before combining fittings from different product ranges.
Determine whether the project requires an open pathway or a raceway configuration with covers.
An open wire mesh tray allows direct visual access to the cables. A covered fiber raceway can provide a more enclosed routing arrangement, depending on its design and installation.
Covers do not eliminate the need for proper cable management, and not every raceway provides the same level of enclosure. Review the actual product configuration against the project's requirements.
Fiber optic cables must be routed within the bend-radius limits specified by their manufacturers. Tight turns, crowded pathways, and poorly planned transitions can make compliant cable routing more difficult.
Check the space available at bends, the dimensions of compatible fittings, mounting arrangements, and technician access for installation and maintenance. Neither a raceway nor a tray should be assumed to meet every cable's bend-radius requirements without verification.
Data center cable routes may change as equipment is added, replaced, or relocated.
Consider how technicians will identify, access, add, and remove cables along the pathway. A modular raceway can provide defined routing sections and connection points, while an open mesh tray provides direct access to supported cables.
The practical choice depends on the expected frequency of changes, the route design, and the maintenance procedures used by the data center team.
Yes. The two systems can serve different roles within the same data center.
For example, a wire mesh cable tray may support a main overhead cable route, while a dedicated fiber raceway organizes fiber connections near racks, cabinets, or interconnection areas.
This arrangement can be considered when the project benefits from different pathway configurations in different areas. However, transitions between systems must be planned carefully, with attention to cable support, bend radius, mounting, and access.
The final layout should follow the selected products' installation instructions and the requirements of the cables being routed.
