FCST-CR50-ERS90 50mm 90° Downward Bend for Fiber Optic Raceway Systems

Product Overview

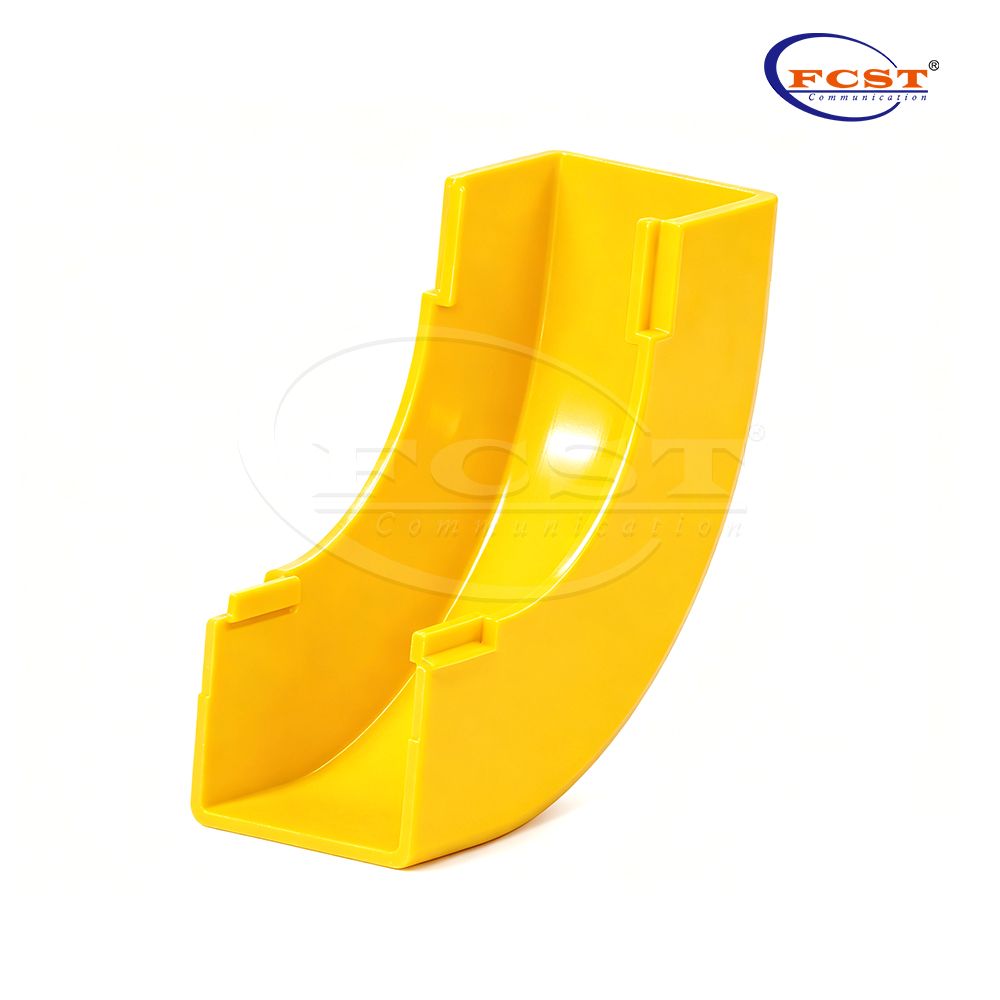

The FCST-CR50-ERS90 is a 90° downward bend for 50mm fiber optic raceway systems. It connects an upper horizontal routing path to a lower vertical path, enabling a smooth transition from horizontal to downward vertical direction. This component is used when routing fiber cables between different levels, such as from overhead cable trays down to the top of a cabinet or to the floor. It is made of ABS and meets UL94-V0 flame-retardant requirements.

Key Features

• 90° downward transition – Connects upper horizontal raceway to a lower vertical path.

• Multi-level routing support – Designed for routing fiber cables between different levels, such as overhead trays to cabinet tops or floor entries.

• Smooth guidance and cable protection – Provides a guided path through the downward bend.

• Large bend radius – Specification states the large bend radius supports low-loss signal transmission.

• Flexible installation – Designed for flexible installation and compatibility with 50mm fiber raceway systems.

• UL94-V0 flame-retardant ABS – Suitable for equipment room and data center environments.

• ISO 9001 manufacturing – Produced under an ISO 9001 quality management system.

Product Specifications

Applications

• Connecting upper horizontal raceway to lower vertical routing paths

• Descending from overhead cable trays to cabinet tops

• Routing fiber cables from overhead paths to floor entries

• 90° downward bend connections in 50mm fiber optic raceway systems

• Data center and equipment room multi-level fiber cable management

FAQ

Q1: What is the FCST-CR50-ERS90 used for?

A: It is a 90° downward bend used to connect an upper horizontal fiber raceway path to a lower vertical path, enabling a smooth transition between different routing levels.

Q2: Where is this downward bend typically installed?

A: It is used when routing fiber cables from overhead cable trays down to the top of a cabinet or to the floor.

Q3: What material is the bend made of?

A: It is made of ABS with a V0 flame-retardant rating.

Q4: Is it compatible with other FCST-CR50 series components?

A: Yes, it is designed for 50mm fiber optic raceway systems.

Q5: How is it packaged?

A: The specified packaging is 60PCS/CNT 8.8KG.
