FCST-CR120-ERS45 120mm 45° Outward Bend

Product Overview

The FCST-CR120-ERS45 is a 45° outer bend for 120mm fiber optic raceway systems. It allows the raceway to extend and turn outward at a 45° angle within the horizontal plane, typically used to route around pillars or obstacles or to create loop-style routing paths in open areas. The bend is made of ABS and meets UL94-V0 flame-retardant requirements.

Key Features

• 45° outward turn – Allows the raceway to extend and turn outward at a 45° angle within the horizontal plane.

• Obstacle avoidance – Specification states outward extension for obstacle avoidance, useful for routing around pillars or obstacles.

• Loop-style routing – Supports creation of loop-style routing paths in open areas.

• Continuous cabling route – Helps ensure a smooth and continuous cabling route at the bend.

• Compatible with 120mm raceway – Designed for 120mm fiber optic raceway systems.

• UL94-V0 flame-retardant ABS – Suitable for equipment room and data center environments.

• ISO 9001 manufacturing – Produced under an ISO 9001 quality management system.

Product Specifications

Applications

• 45° outward turns in 120mm fiber raceway systems

• Routing around pillars or obstacles in equipment rooms

• Creating loop-style routing paths in open areas

• Data center fiber cable management

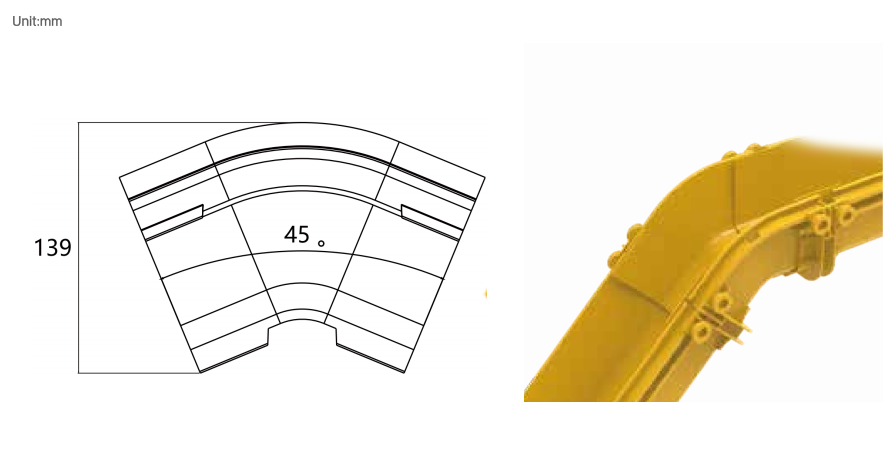

Product Structure

FAQ

Q1: What is the FCST-CR120-ERS45 used for?

A: It is a 45° outer bend used for outward turns within the horizontal plane of a 120mm fiber raceway system. It allows the raceway to extend and turn outward at a 45° angle.

Q2: What material is the bend made of?

A: It is made of ABS with a V0 flame-retardant rating.

Q3: Where is this outer bend typically used?

A: It is typically used to route around pillars or obstacles, or to create loop-style routing paths in open areas.

Q4: How is it packaged?

A: The specified packaging is 56PCS/CNT 13.44KG. 56 × 240g matches the stated carton weight.
