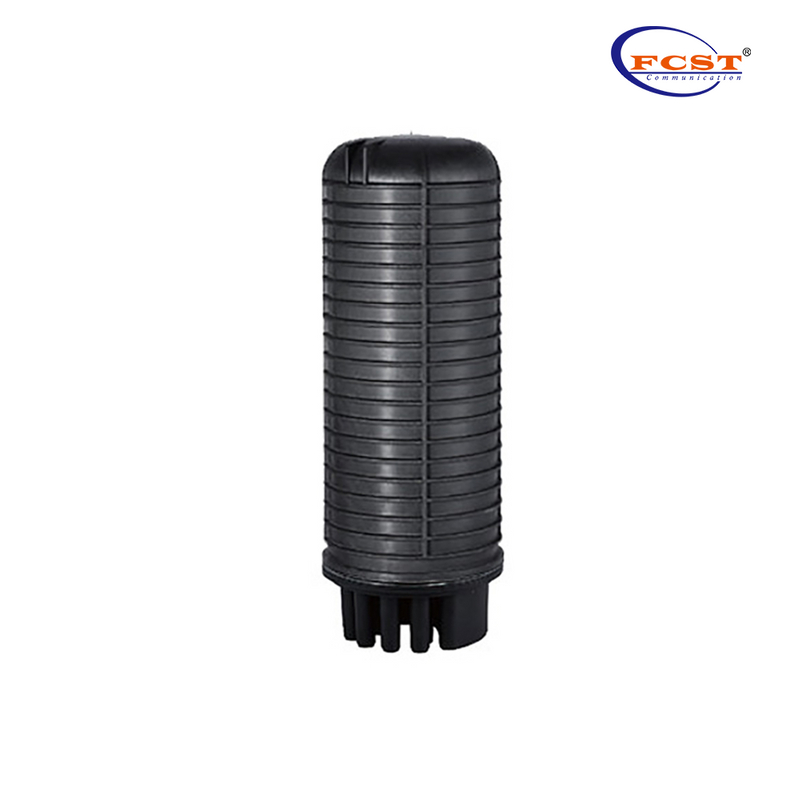

FCST012236-C
FCST
FCST012236-C
Product Overview
FCST012236 Fiber Optic Splice Closure series offer a unique solution for big capacity solution for deployment of fiber to the home. FCST012236 FOSC series of dome closure is a family product line, available in three sizes:the FCST012236-A, FCST012236-B and FCST012236-C. All sizes are designed for use with comment cable construction (loose buffer tube, loose fiber), in any environmental (aerial, pedestal, buried, handhole, manhole).
Product Advantages
l Installation method: Suitable for direct buried, aerial, pole,pipeline,manhole, etc.
l Sealing mode: heat shrink seal is adopted for cable ports, with protection grade of IP68.
l Made of modified engineering plastic with high strength, anti impact and anti corrosion.
l 3 types of splice trays are available for selection, including 12f tray, 6f tray and splitter tray.
Product Specifications
Construction | Description |
Max. Capacity | FCST012236-C:648 cores |
Material | PP+GF |

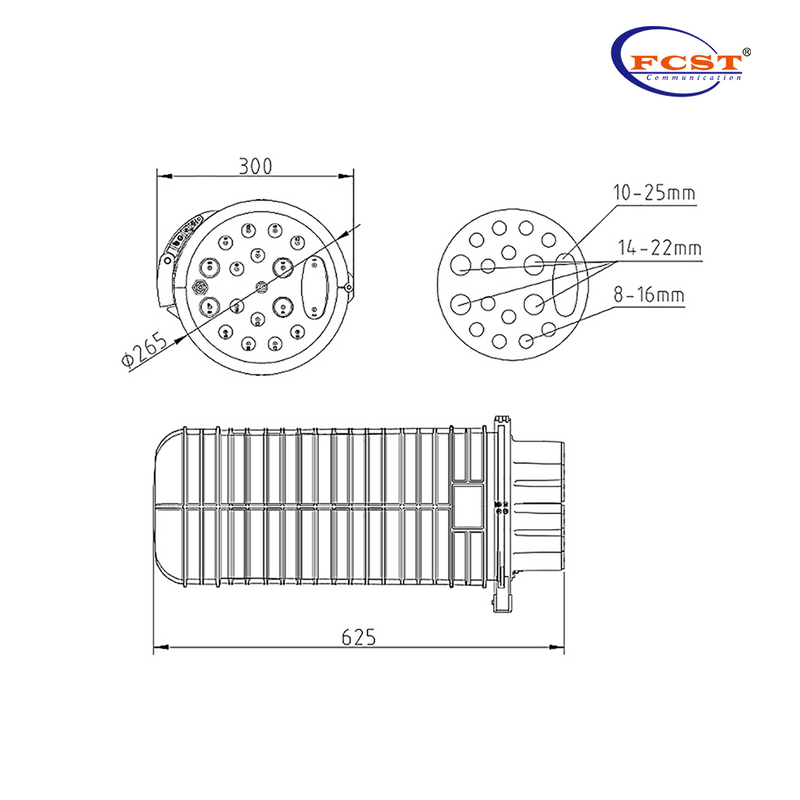

Dimension (mm) | FCST012236-C:625*Φ270 |
Inlets/Outlets | 1/16 |
Installation | Aerial, wall, pole, underground, pipeline etc |
Weight(g) | 7500-8300 |
Protection Level | IP68 |

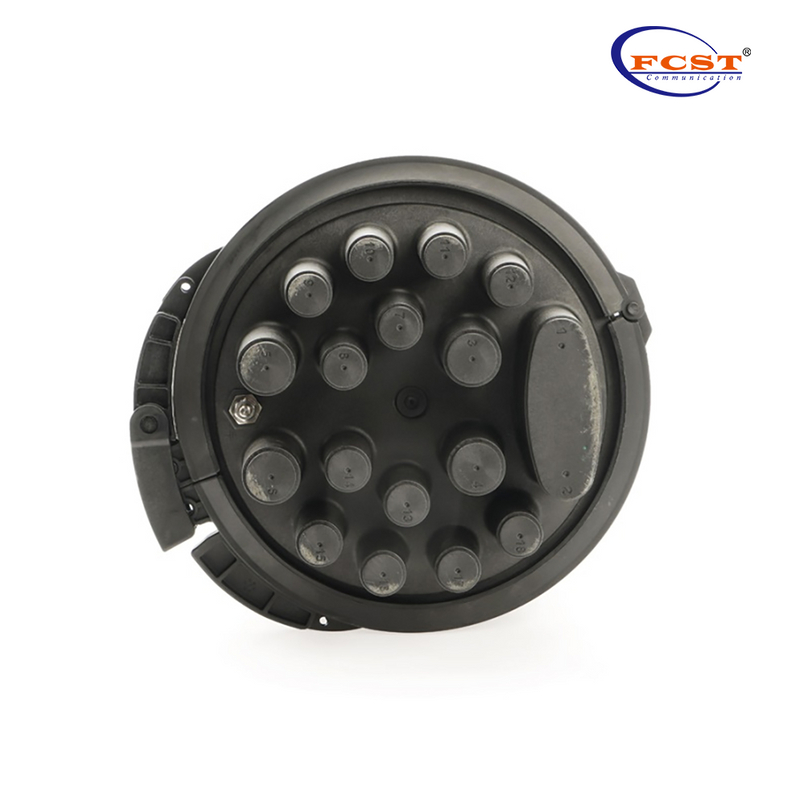

Diameter Of Cable(mm) | 1 Oval port:Φ10-Φ25 4 Branch port:Φ14-Φ22 12 Branch port:Φ8-Φ16 |
Sealing Mode | Heat Shrinkseal |
Number Of Trays(pcs) | FCST012236-C:54 |
Capacity Of Tray(f) | FCST012236-C:12 |
Product Structure
Packing Information
Construction | Description |
Outside Dimension(mm) | - |
Weight/PC（kgs） | 8.3 |
Carton Size L*W*H(mm) | FCST012236-C:775*315*285 |
Qty/CTN（pcs） | 1 |
Weight/CTN（kgs） | 8.5 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
