FCST012128
FCST
FCST012128

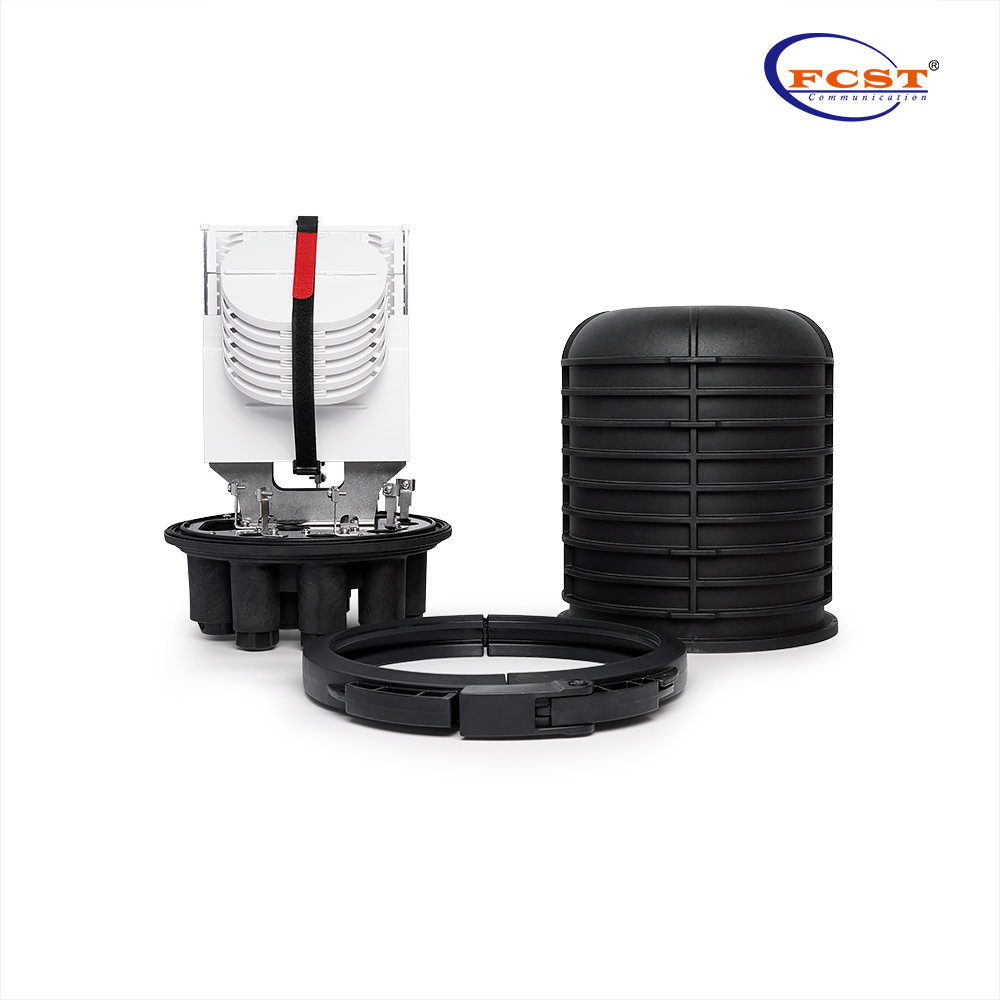

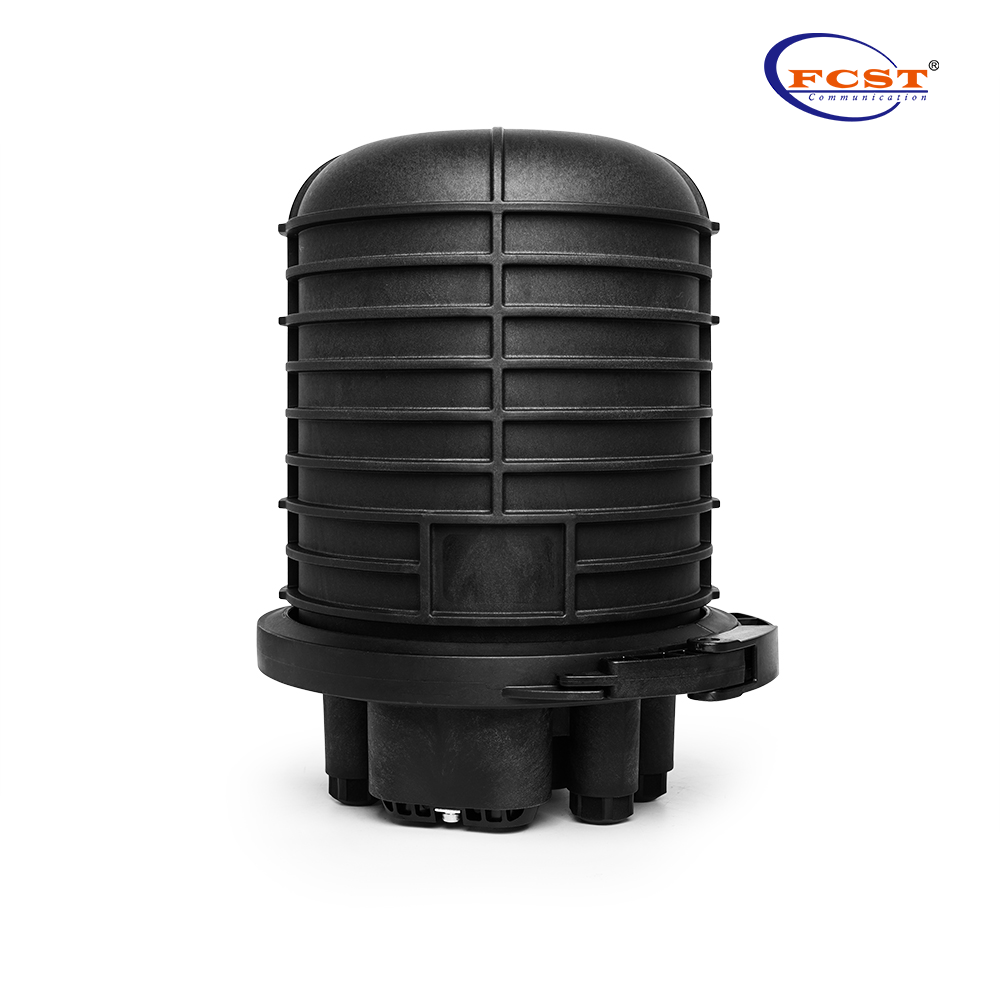

Product Overview

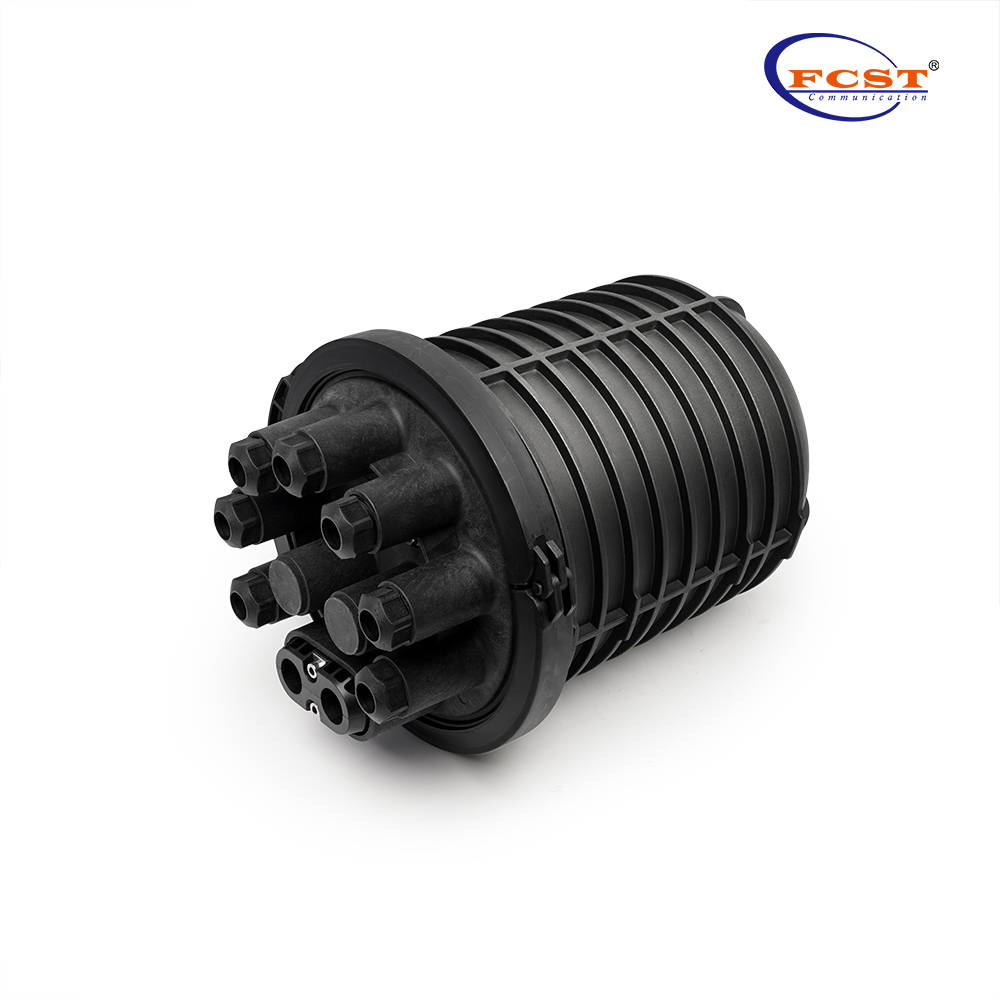

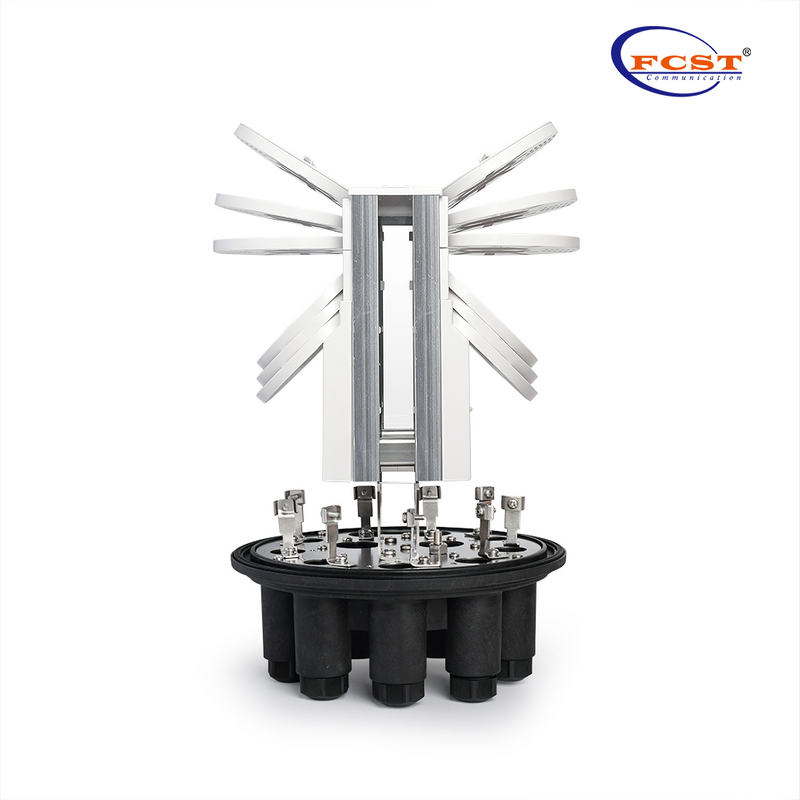

FCST012128 Fiber Optic Splice Closure type of FOSC is designed for connection and protection of fiber cables. This model has one uncut port, seven branch ports, two drop cable ports. Closure dome type can be used for different applications of optical fiber cable splicing & branching and is suitable for aerial, pipe-lined, manhole and direct buried applications. It applies to any sort of cables(loose tube, skeleton, ribbon etc.)
Product Advantages
l Provide logo customization service.
l Installation method: Suitable for direct buried, aerial, pole,pipeline,manhole, etc.
l Sealing: Mechanical seal is adopted for box body and cable mouth, with protection grade of IP68.

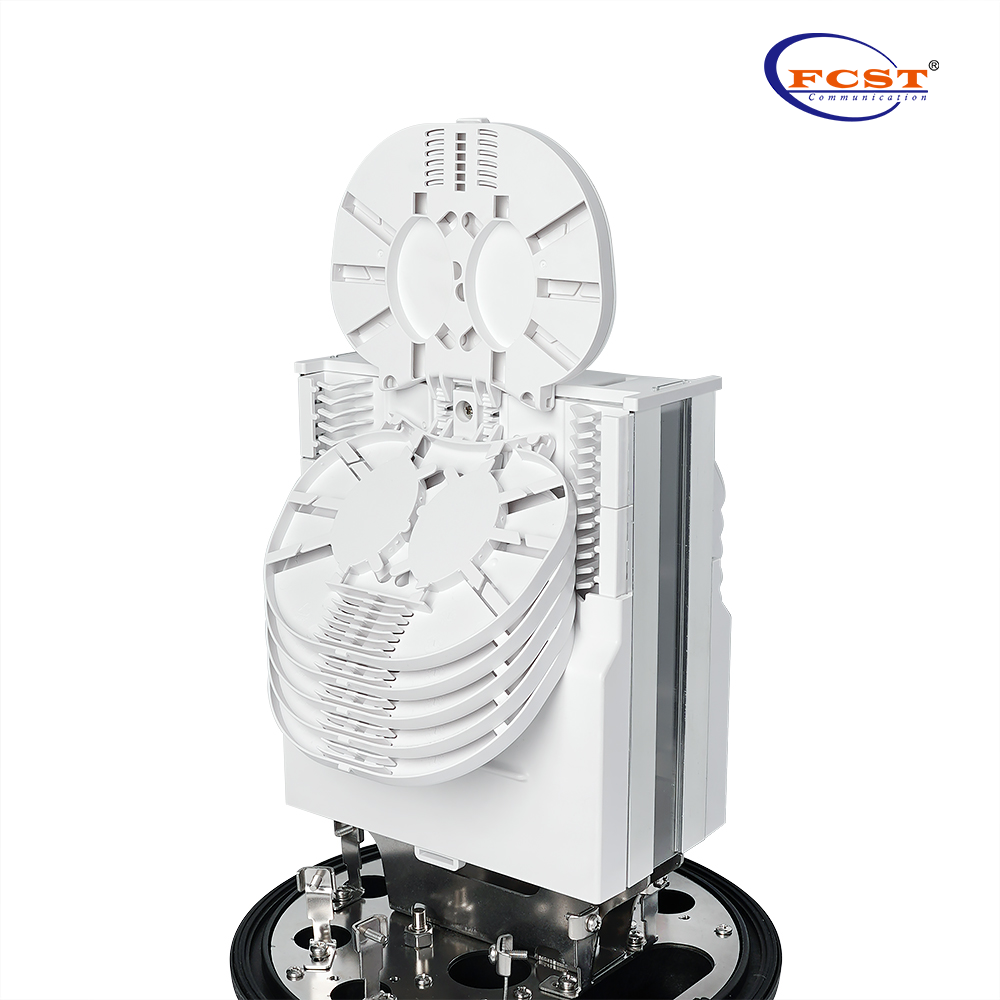

l Capacity: It can install 24 pieces of 6-core fiber trays or 12 pieces of 12-core fiber trays, with the maximum capacity of 144 cores.
l Cable diameter: 1 Uncut port support φ10～22mm cable; 7 branch ports support φ8～18mm cable; 2 drop ports support φ2*3mm soft cable.
Product Specifications
Construction | Description |
Capacity | 144F(single fiber) |
Dimension(mm) | 370*φ300mm |
Weight(kg) | 5.5-6.2 |
Sealing Type | Mechanical type or middle port by heatshrink |
Ports | 1+7+2 |
Cable Diameter | 1*Oval port:Φ10～22mm; |
Capacity Of Tray (Single fiber) | 6/12f |
Maximum Number Of Trays | 6f: 24pcs; 12f: 12pcs |
Material | PP+GF |
Protection Level | IP68 |

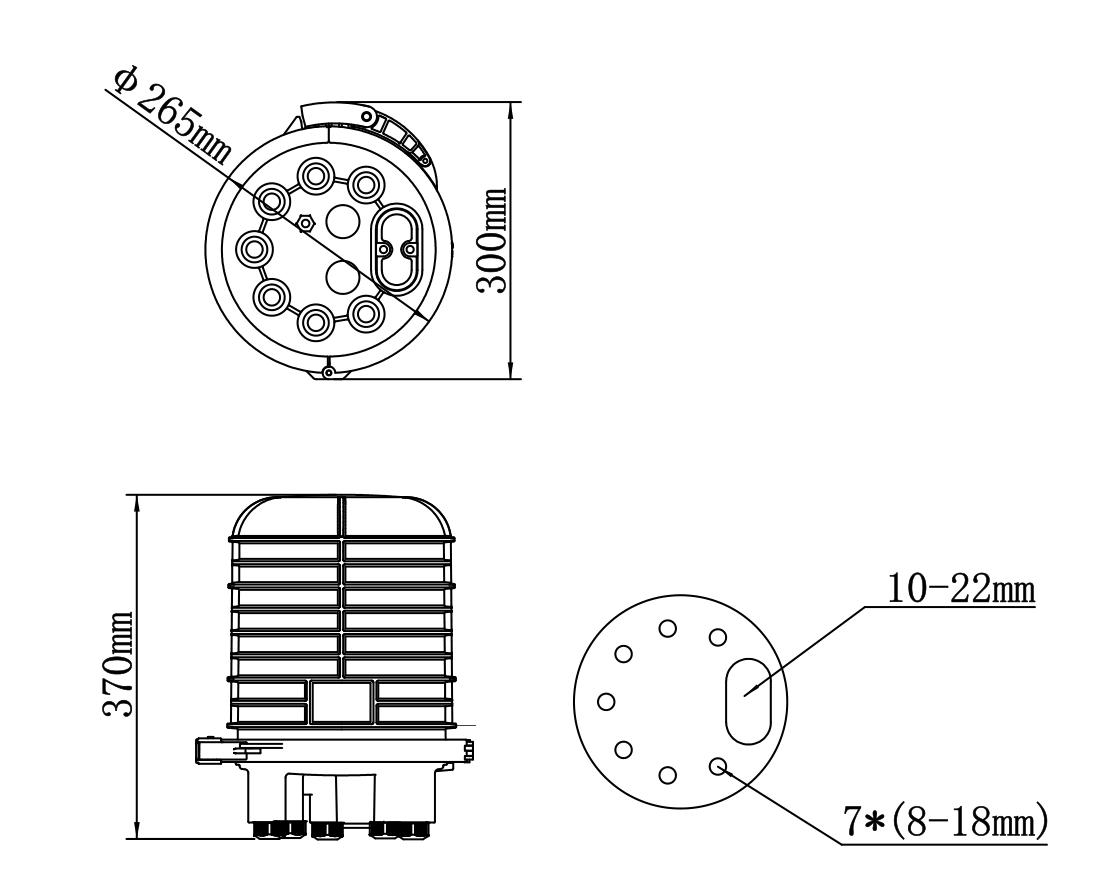

Structure Drawing

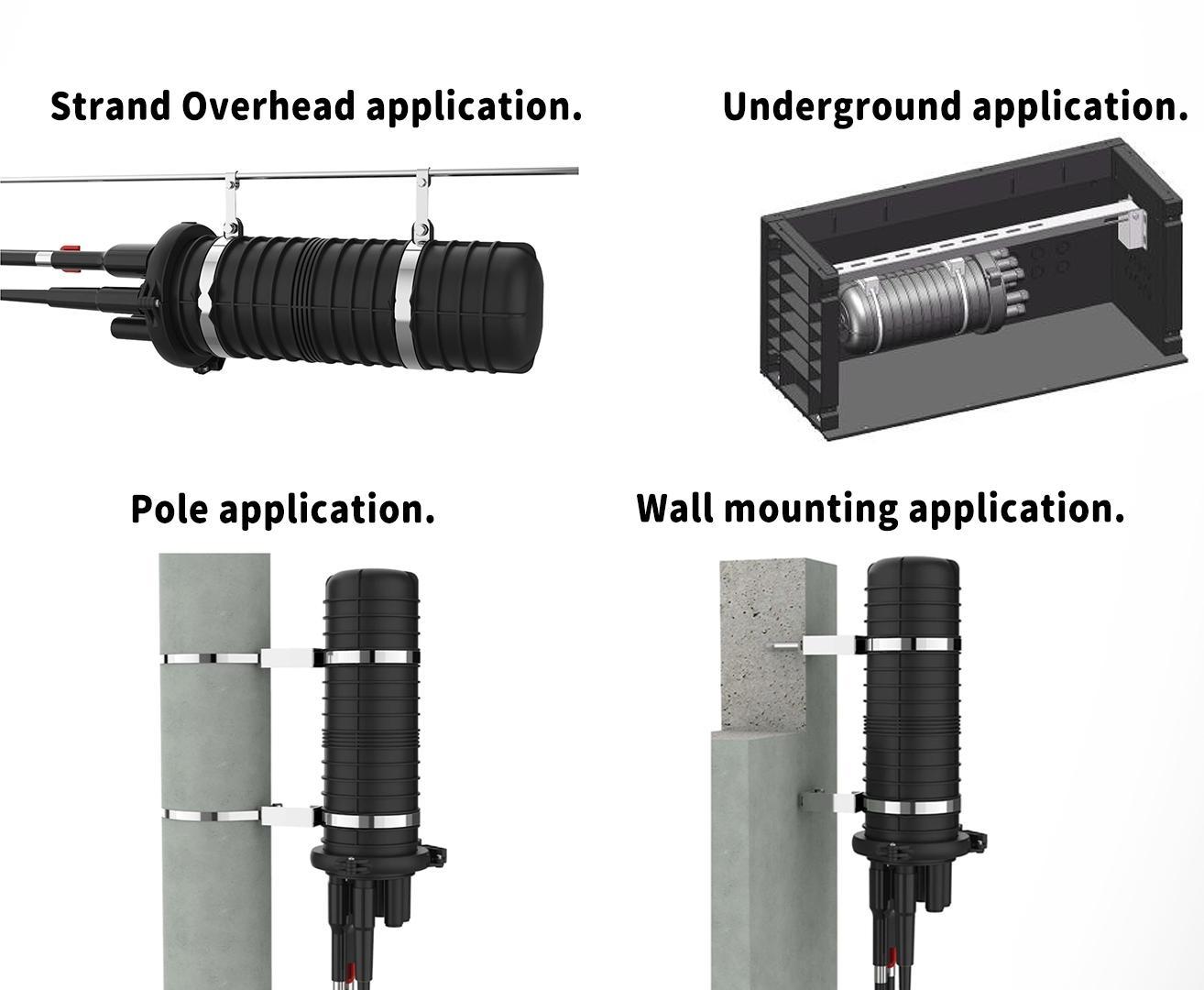

Product Application
Accessory List

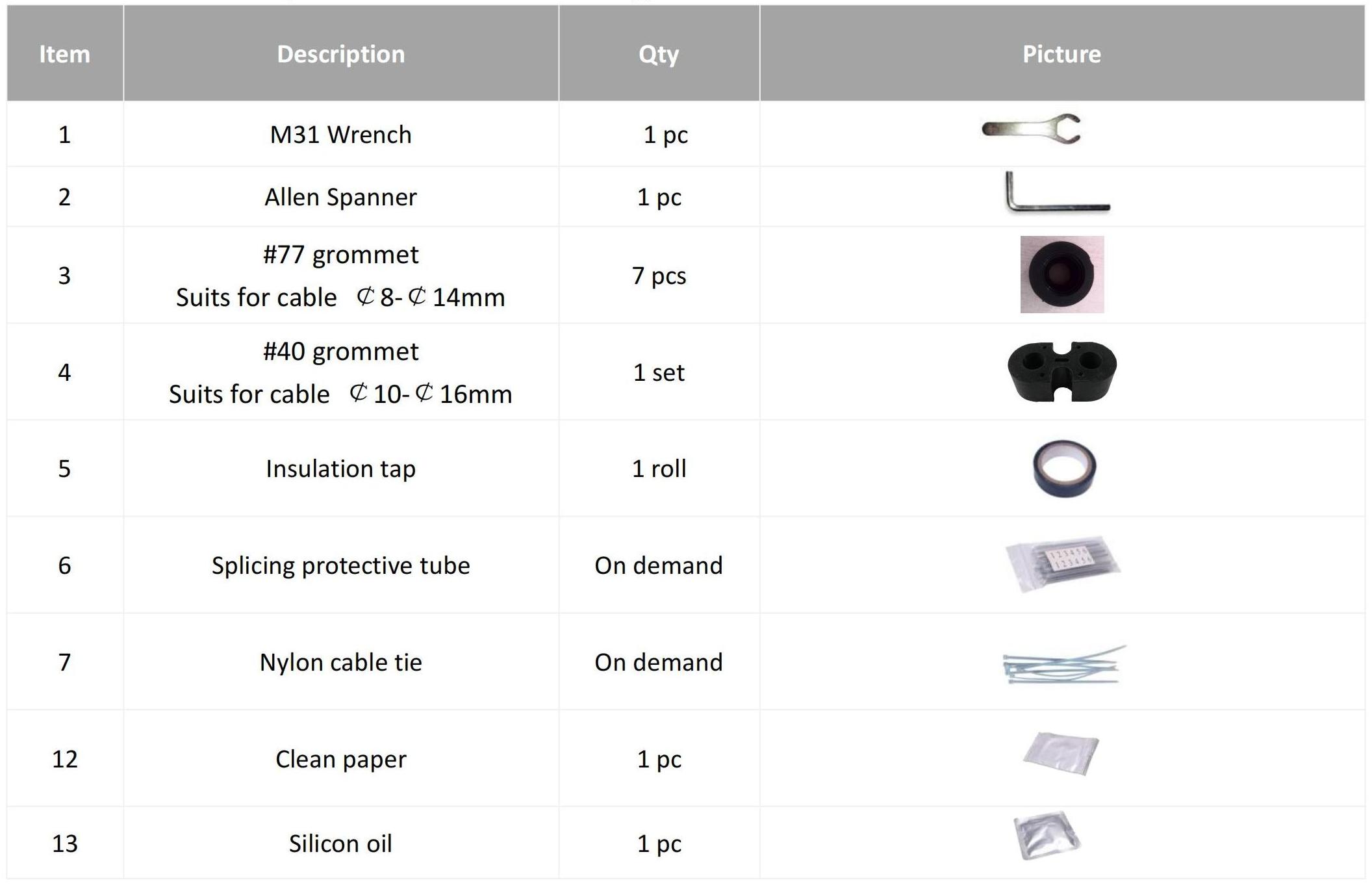

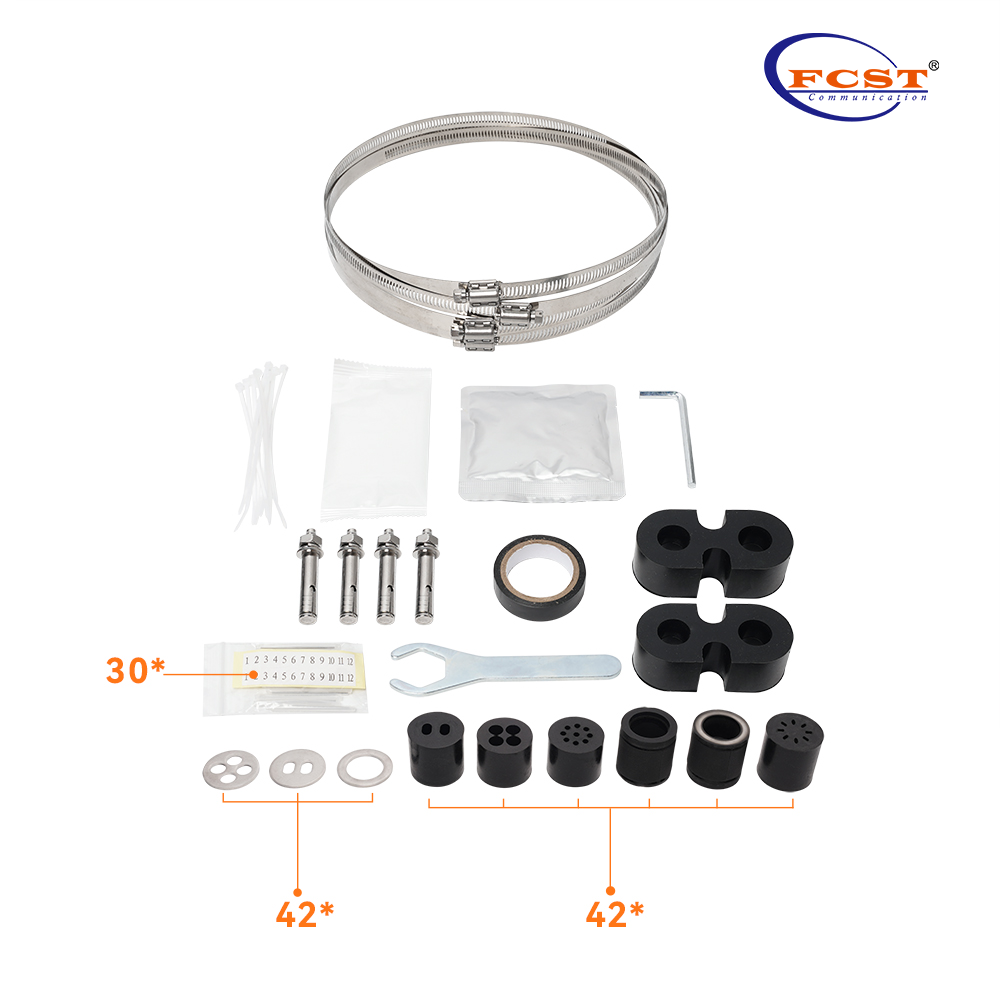

Standard accessories(Pictures for reference only)

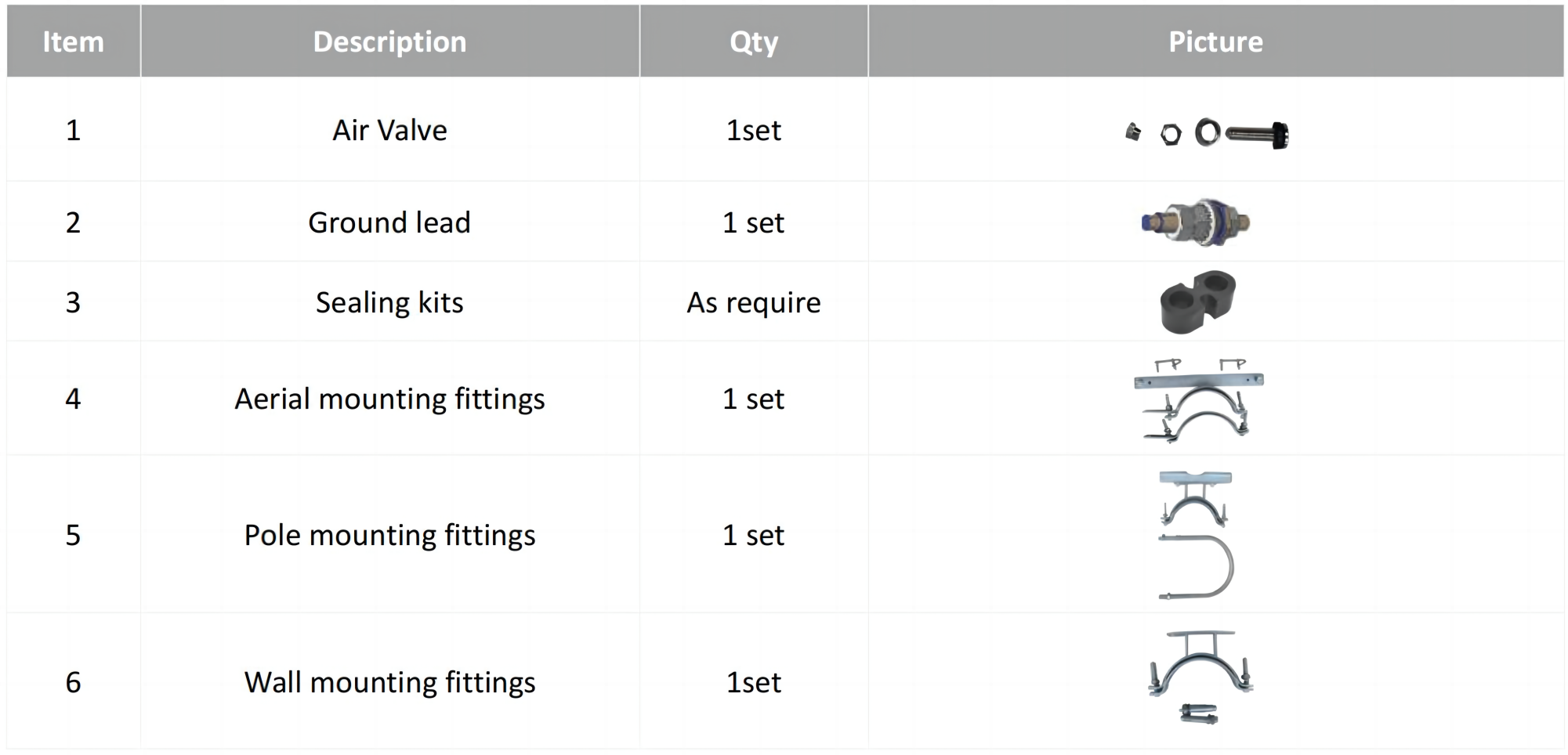

Optional accessory (Pictures for reference only)
Packing Information
Construction | Description |
Outside Dimension（L*W*H）mm | 550*315*285 |
Weight/PC（kgs） | 6.9 |
Carton size（L*W*H）mm | - |
Qty/CTN（pcs） | - |
Weight/CTN（kgs） | - |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
