Product Overview

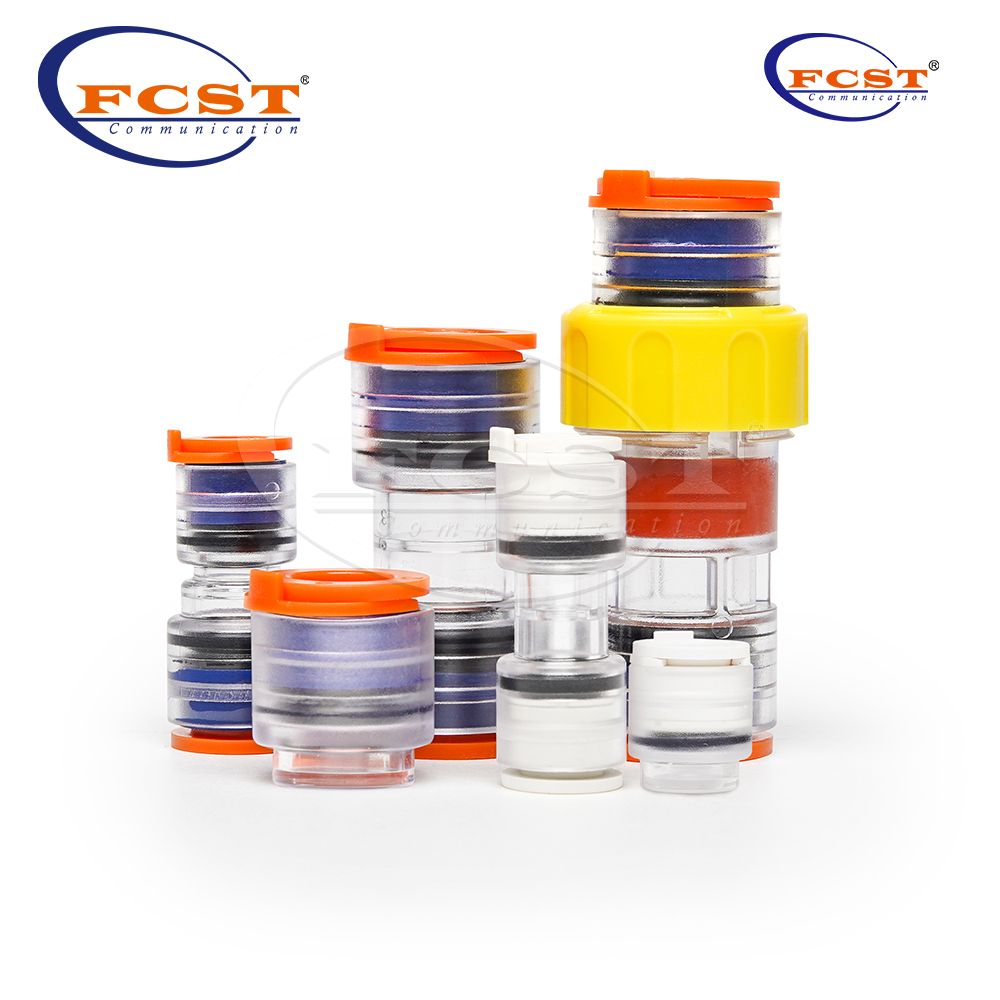

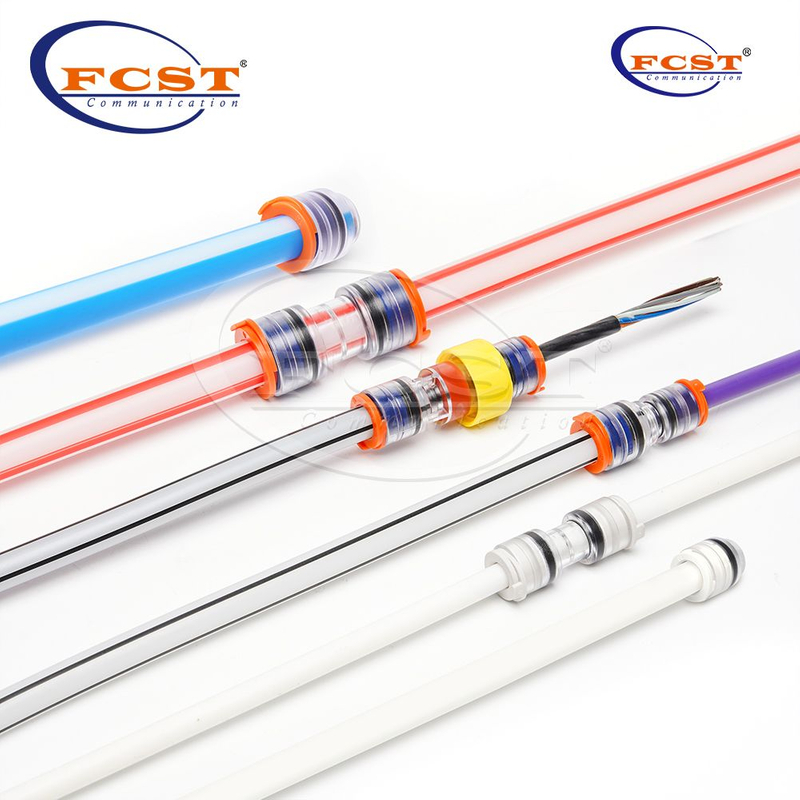

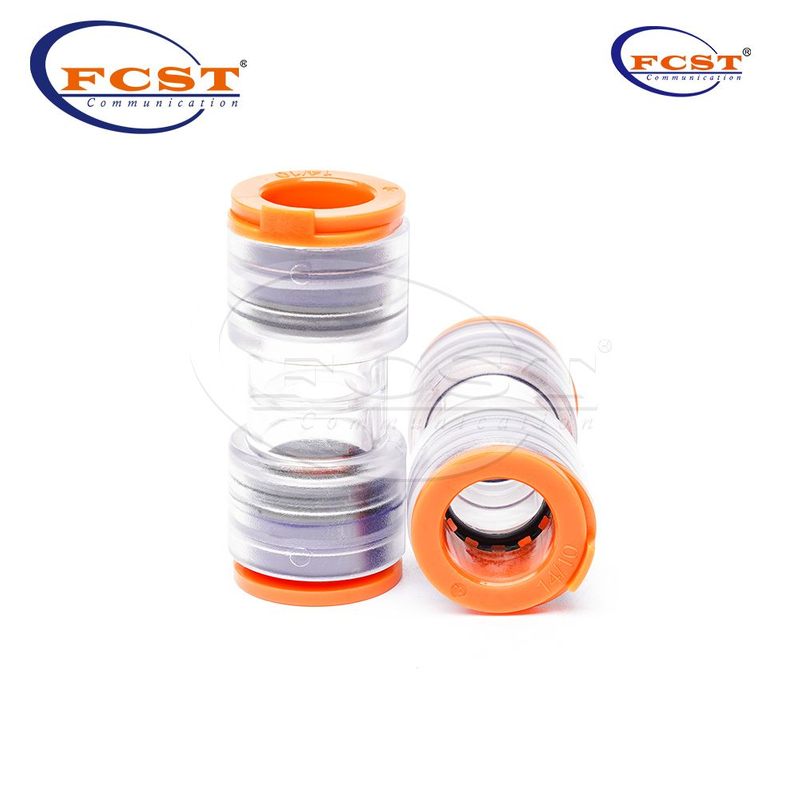

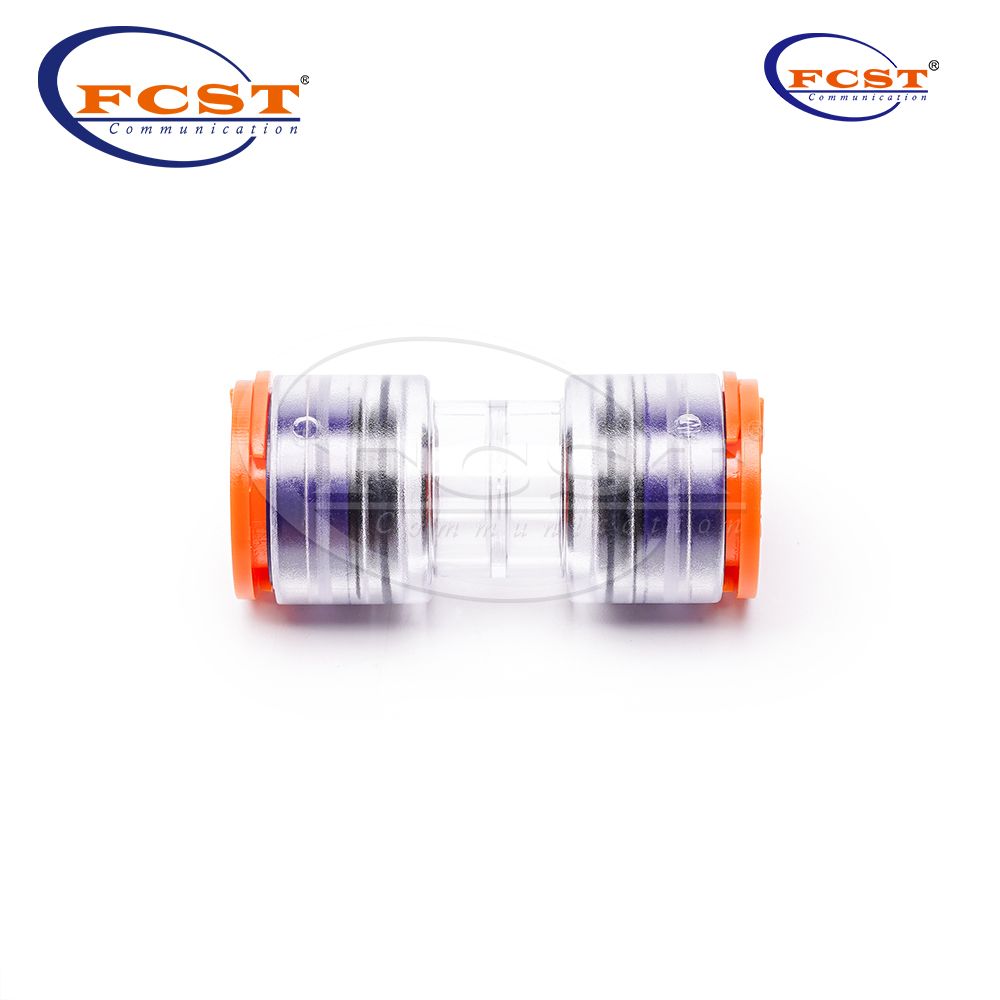

Microduct Straight Connector were developed to connect microducts with each other.Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces, allowing them to be used in direct buried (DB) applications. The transparent body enables easy visual inspection of the cable with in the connector.
Product Advantages
For 3-32 mm Microducts.
Easy 'push-in' installation.
Crystal clear transparent body.
5% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Locking rings to prevent accidental removal of connector.
Product Specification
| Construction | Description |
| Tube To Connector | HDPEMicroduct( DB | DI | TW ) |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
Burst Pressure | 25 bar |
| Estimated Life | 25 years |
| Protection Class | IP68 |
| Water Ingress Test | 0.5 bar during 168 hours |
| Installation Temperature | -15°C to +45°C |
| Operation Temperature | -15°C to +45°C |
| Transport and Storage Temperature | -15°C to +45°C |
| Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
| Impact Resistance | 1.5J |
| According To Standards | CEI EN 50411-2-8,EN 50411-2-5,EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
EN 60529 | IP68 |
| EN 61300-2-26 | Salt Mist |
| EN 61300-2-33 | Re-entries |
| EN 61300-2-10 | Crush Resistance |
| EN 61300-3-1 | Visual Appearance |
| EN 61300-2-4 | Microduct Retention |
| EN 61300- 2-34 | Chemical Resistance |
| EN 50411-2-8 | Annex E:Insertion Force |
| EN 61386-22 | Glow Wire Test at 750°C |
EN 60794- 1-2 | 2003,Method E4:lmpact |
| EN 50411-2-8 | Annex D:Installation Test |
| EN 61300-2-22 | Change of Temperature |
| EN60794-1-2 | Method E1. Tensile Strength |
| EN 61300-2-38 | 2006,Method B:Pressure Loss |
| EN 50411-2-8 | Annex C: High Pressure Resistance |
| EN 61300-2-23 | 1997,Method 2:Water Immersion |
| EN 61386- 24 | Conduit Systems Buried Underground |
| EN 61300-2-38 | 2006, Method A:Sealing Performance |

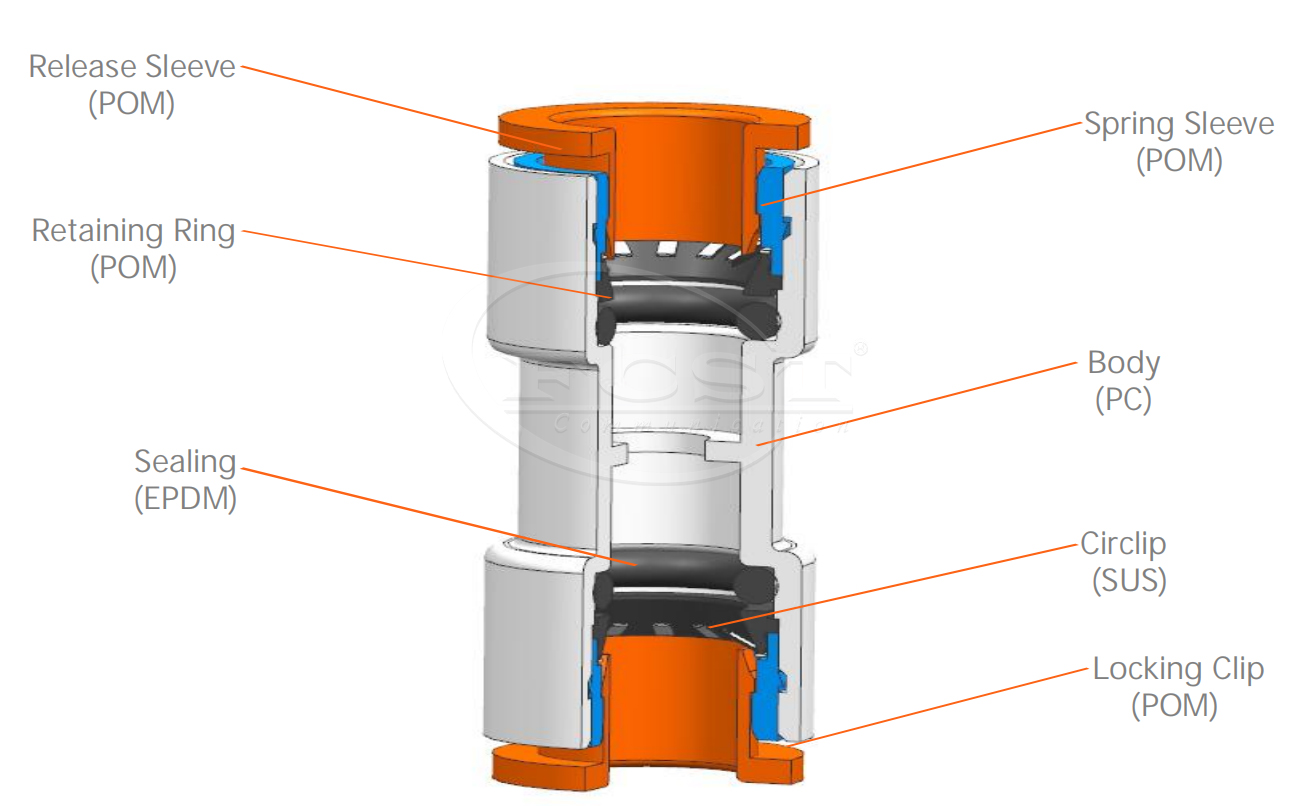

Product Material

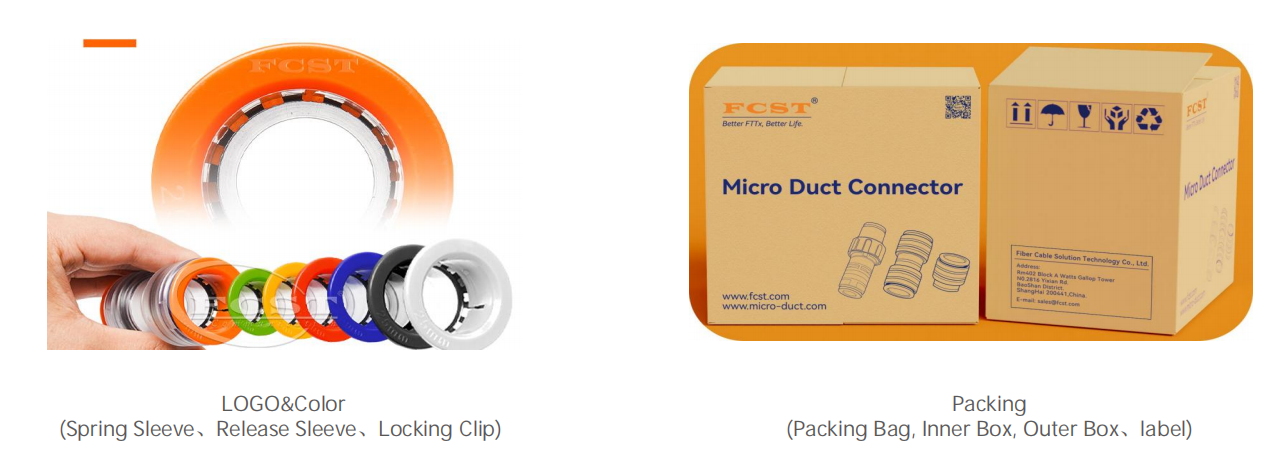

Packing Information

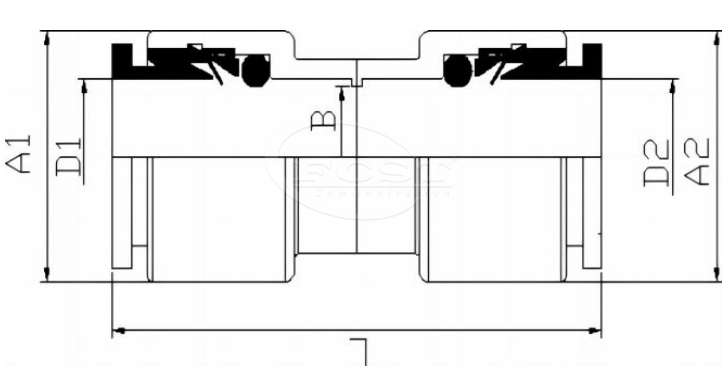

| Model | D1(mm) | D2 (mm) | A1 (mm) | A2 (mm) | B (mm) | L (mm) | Weight(g) |
ERPU3/2.1 | 3+0.4 | 3+0.4 | 11±0.2 | 11±0.2 | 2.1±0.12 | 30.7±0.5 | - |
| ERPU4/2.5 | 4+0.4 | 4+0.4 | 11±0.2 | 11±0.2 | 2.1±0.12 | 30.7±0.5 | - |
| ERPU5/3.5 | 5+0.4 | 5+0.4 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
| ERPU6/3.5 | 6+0.4 | 6+0.4 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
| ERPU7/3.5 | 7+0.4 | 7+0.4 | 15.2±0.2 | 15.2±0.2 | 3.5±0.12 | 41.2±0.5 | 5.2±0.1 |
| ERPU7/5.5 | 7+0.4 | 7+0.4 | 15.2±0.2 | 15.2±0.2 | 5.5±0.12 | 41.2±0.5 | 5.4±0.1 |
| ERPU8/6 | 8+0.4 | 8+0.4 | 15.2±0.2 | 15.2±0.2 | 6±0.12 | 41.2±0.5 | 4.7±0.1 |
| ERPU8.5/6 | 8.5+0.4 | 8.5+0.4 | 15.2±0.2 | 15.2±0.2 | 6±0.12 | 41.2±0.5 | 4.7±0.1 |
ERPU10/6 | 10+0.4 | 10+0.4 | 17.5±0.2 | 17.5±0.2 | 6±0.12 | 45.2±0.5 | 6.6±0.1 |
| ERPU10/8 | 10+0.4 | 10+0.4 | 17.5±0.2 | 17.5±0.2 | 8±0.12 | 45.2±0.5 | 6.7±0.1 |
| ERPU12/10 | 12+0.4 | 12+0.4 | 21.5±0.2 | 21.5±0.2 | 10±0.12 | 52.2±0.5 | 11.8±0.1 |
ERPU1/2(12.7) | 12.7+0.4 | 12.7+0.4 | 21.5±0.2 | 21.5±0.2 | 10±0.12 | 52.2±0.5 | 11.8±0.1 |
| ERPU14/10 | 14+0.4 | 14+0.4 | 23.5±0.2 | 23.5±0.2 | 10±0.12 | 52.2±0.5 | 12.95±0.1 |
| ERPU14/11 | 14+0.4 | 14+0.4 | 23.5±0.2 | 23.5±0.2 | 11±0.12 | 52.2±0.5 | 12.95±0.1 |
| ERPU14/12 | 14+0.4 | 14+0.4 | 23.5±0.2 | 23.5±0.2 | 12±0.12 | 52.2±0.5 | 12.85±0.1 |
| ERPU15/12 | 15+0.4 | 15+0.4 | 25.3±0.2 | 25.3±0.2 | 12±0.12 | 52.2±0.5 | 14.6±0.2 |
ERPU16/12 | 16+0.4 | 16+0.4 | 25.3±0.2 | 25.3±0.2 | 12±0.12 | 52.2±0.5 | 14.5±0.2 |
| ERPU16/14 | 16+0.4 | 16+0.4 | 25.3±0.2 | 25.3±0.2 | 14±0.12 | 52.2±0.5 | 14.5±0.2 |
| ERPU18/12 | 18+0.4 | 18+0.4 | 32.7±0.3 | 32.7±0.3 | 12±0.12 | 55.9±0.5 | 29.8±0.2 |
| ERPU18/14 | 18+0.4 | 18+0.4 | 32.7±0.3 | 32.7±0.3 | 14±0.12 | 55.9±0.5 | 29.8±0.2 |
| ERPU18/15 | 18+0.4 | 18+0.4 | 32.7±0.3 | 32.7±0.3 | 15±0.12 | 55.9±0.5 | 29.8±0.2 |
| ERPU20/16 | 20+0.4 | 20+0.4 | 32.7±0.3 | 32.7±0.3 | 16±0.12 | 55.9±0.5 | 27.8±0.2 |
| ERPU20/17 | 20+0.4 | 20+0.4 | 32.7±0.3 | 32.7±0.3 | 17±0.12 | 55.9±0.5 | 27.8±0.2 |
| ERPU22/16 | 22+0.4 | 22+0.4 | 40±0.3 | 40±0.3 | 16±0.12 | 71±0.5 | 47.7±0.2 |
| ERPU25/22 | 25+0.4 | 25+0.4 | 40±0.3 | 40±0.3 | 22±0.12 | 71±0.5 | 47.7±0.2 |
| ERPU27/20 | 27+0.8 | 27+0.8 | 46.5±0.5 | 46.5±0.5 | 20±0.12 | 80.6±1 | - |
| ERPU27/25 | 27+0.8 | 27+0.8 | 46.5±0.5 | 46.5±0.5 | 25±0.12 | 80.6±1 | - |
| ERPU1/8(2.1) | 1/8+0.4 | 1/8+0.4 | 11±0.2 | 11±0.2 | 2.1±0.12 | 30.7±0.5 | - |
| ERPU3/16(3.5) | 3/16+0.4 | 3/16+0.4 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
| ERPU1/4(3.5) | 1/4+0.4 | 1/4+0.4 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
| ERPU5/16(6) | 5/16+0.4 | 5/16+0.4 | 15.2±0.2 | 15.2±0.2 | 6±0.12 | 41.2±0.5 | 5.4±0.1 |
| ERPU3/8(8) | 3/8+0.4 | 3/8+0.4 | 17.5±0.2 | 17.5±0.2 | 8±0.12 | 45.2±0.5 | 6.7±0.1 |
*Note: For other sizes, please contact the sales department.

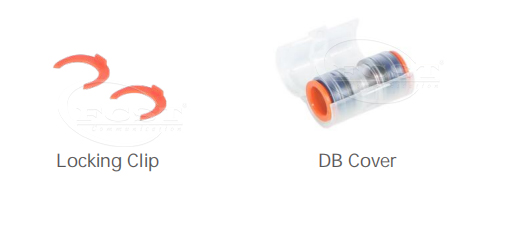

Accessories Optional
Ordering Information
