FCST-CBB-4mm
FCST
Product Overview

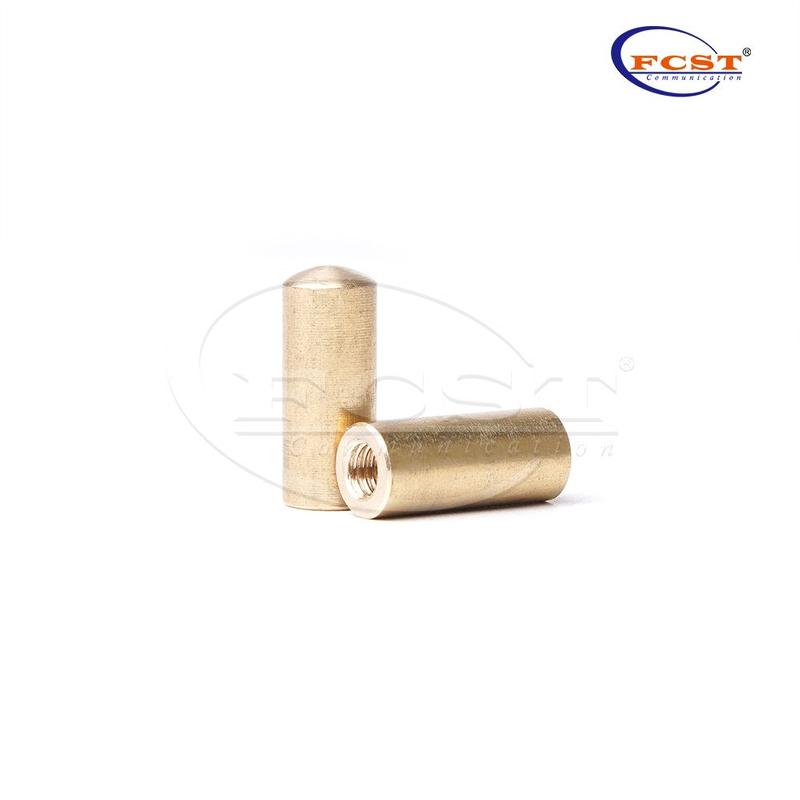

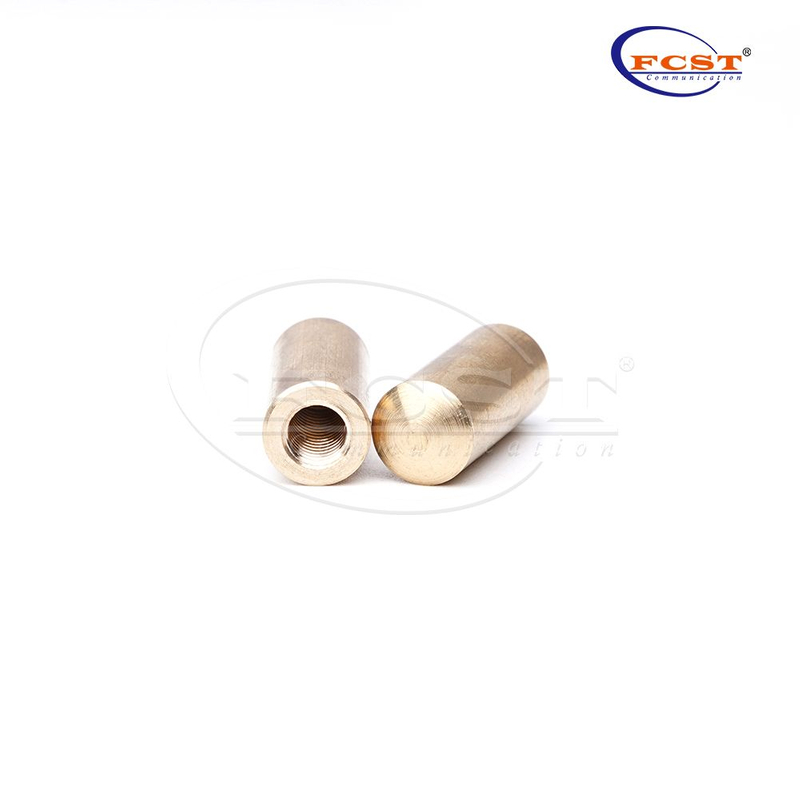

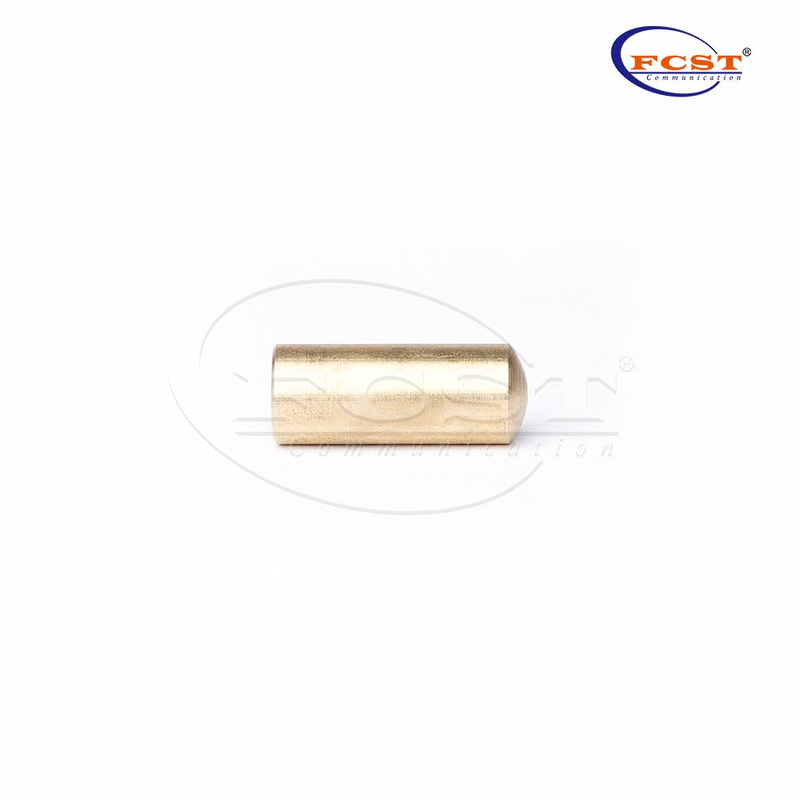

FCST-CBB-4mm Cable Blowing Bullet, brass end caps shall be mounted on the cable end before blowing the micro cable into the micro duct. Micro cable blowing head forms a rounded tip that facilitates blowing trough duct joints. They also prevents air from penetrating trough the open cable end into the cable. These end caps are extra slim to enable blowing into slim micro ducts. An inner thread makes them easy to mount on the cable tip. The end caps can be re-used.
Product Advantages
lFiber cable blowing bullet re-useable.
lPrevents cable damage.
lSafe mounting on cable tip.
lThreaded for easy mounting.
lImproves cable blowing performance.
lRounded tip that facilitates blowing of micro cables.
Product Specifications
Construction | Description |
Material | Brass |
Inner Diameter | Φ4,5,6,8,9,10,12,14,16mm |
Insertion Type | Threaded |
Ordering Information
Specification | Length | Hole Diameter | Weight | Thread Diameter |
Φ4mm | 20.15mm | 4.3-4.4mm | 5.9g | M5 |
Φ5mm | 20.25mm | 5.2-5.4mm | 5.0g | M6 |
Φ6mm | 20.32mm | 6.9-7.1mm | 7.5g | M8 |
Φ8mm | 20.48mm | 8.6-8.9mm | 10.6g | M10 |
Φ9mm | 19.96mm | 8.6-8.9mm | 9.8g | M10 |
Φ10mm | 20.26mm | 10.6-10.8mm | 12.0g | M12 |
Φ12mm | 20.37mm | 12.7-13mm | 14.7g | M14 |
Φ14mm | 20.34mm | 14.7-15mm | 17.7g | M16 |
Φ16mm | 20.22mm | 16.8-17mm | 10.9g | M18 |
