FCST-TH-SMC05
FCST
Product Application
Product Advantages
lStrong corrosion resistance.
lGood resistance to high and low temperature.
lEasy installation.
lConvenient transportation and cost reduction.
lLong service life(30years).
lHeight adjustable.

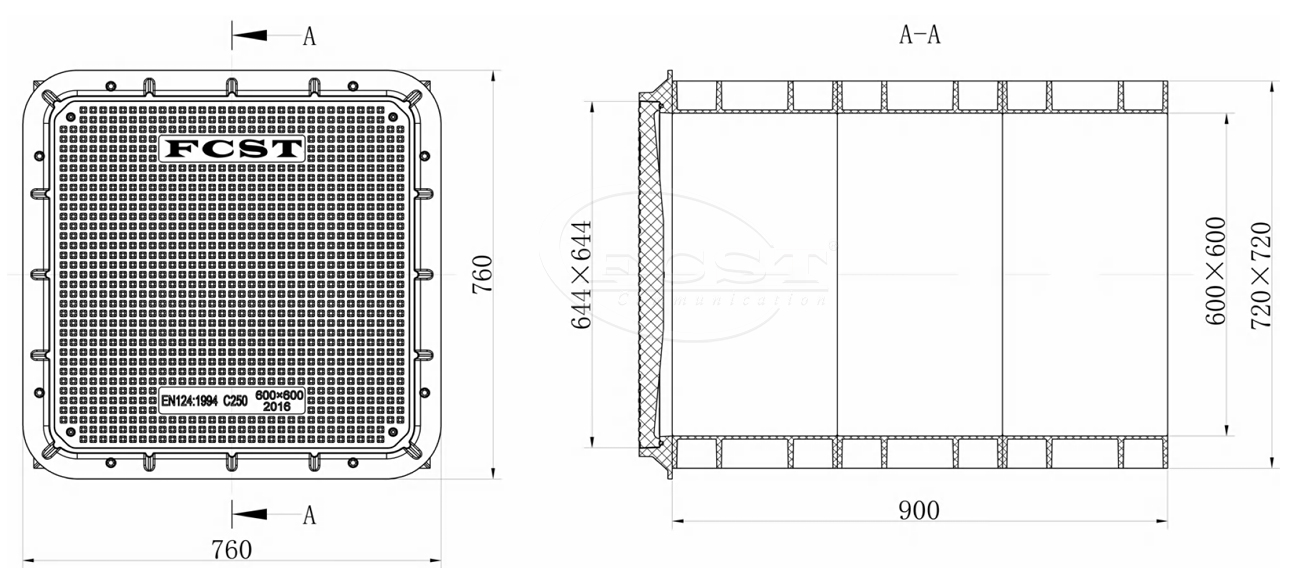

Product Size
Ordering Information
FOSC Fixed Frame Optional
Product Specifications
All products comply with EN124:1994 standards.
Chemical Resistance Performance
Chemicals | Concentrated Sulfuric Acid | Sodium Hydroxide | Sodium Chloride |
Test Conditions | Soaked in the specified solution for 48h | ||
Test results | No obvious corrosion on the surface, qualityloss <1% |
Mechanical Performance
Items | Standard No. | Requirements | Test Results |
Tensile Strength | GB/T1447-2005 | ≥100MPa | 105MPa |
Tensile Modulus | GB/T1447-2005 | ≥10GPa | 11.8GPa |
Bending Strength | GB/T1449-2005 | ≥200MPa | 213MPa |
Flexural Modulus | GB/T1449-2005 | ≥10GPa | 11.3GPa |
Impact Toughness | GB/T1451-2005 | ≥80KJ/㎡ | 90.8KJ/㎡ |
Barr's Hardness | GB/T3854-2005 | ≥50 | 56 |
Chamber Load
Chamber Type | FCST-TH-SMC05 |
Axial Test Load | 100KN |
Lateral Test Load | 40KN |
Thermal Performance
Items | Standard No. | Test Results |
Heat Distortion Temperature | GB/T1634.2-2004 | > 200°C |
Bending Strength | GB/T9979- 2005(-40°C) | 265MPa |
Flexural modulus | GB/T9979- 2005(-40°C) | 1.43x10^(4) MPa |
Bending strength retention rate | GB/T9979- 2005(-40°C) | 124% |
Flexural modulus retention rate | GB/T9979- 2005(-40°C) | 11.16% |
Linear expansion coefficient | B/T2572-205 | 1.66x10^(-5) |
On each side of the product, 6 drill holes are reserved at the factory, and there is a hole opener. The size of the drill hole
can be adjusted at the construction site according to the actual size of the HDPE Silicon Pipe/HDPE Micro-duct.
Packing And Transportation
Packing description
Due to the structural characteristics of the product, the factory packaging can be selected according to the actual needs of customers,transportation distances, and transportation routes.
Disassembly and transportation
The structure of the product is simple and easy to disassemble, and all the components can be split into discrete parts, which are stacked and bundled flat. It occupies small space, low transportation cost, ,disassembly and bundling are more conducive to product stability, it is convenient to transport and goods damage is small.
