Top 10 Factors That Affect Blowing Distance

As fiber-to-the-x (FTTx) deployments accelerate worldwide, cable blowing—or jetting—remains the gold standard for fast,low-damage, high-yield underground microduct installations. However, blowing distance is not determined by air pressure alone. It's the result of a system-level synergy between duct geometry, lubrication, connector integrity, closure design, and environmental conditions.

Leveraging FCST's comprehensive underground installation ecosystem—including the FBL1000 Lubricant, ERPU Straight Connectors, TH-SMC05 Manhole Chambers, HDPE Tube Bundles, FCST16311 Y-Type Distribution Closures and so on—we break down the Top 10 Factors That Affect Blowing Distance, and share actionable optimization strategies proven in field deployments.

1.Friction Coefficient (μ)—The Determinant

The single largest variable is the coefficient of friction between cable jacket and duct wall. Even minor reductions in μ exponentially increase blowing distance.

✅ Optimization:

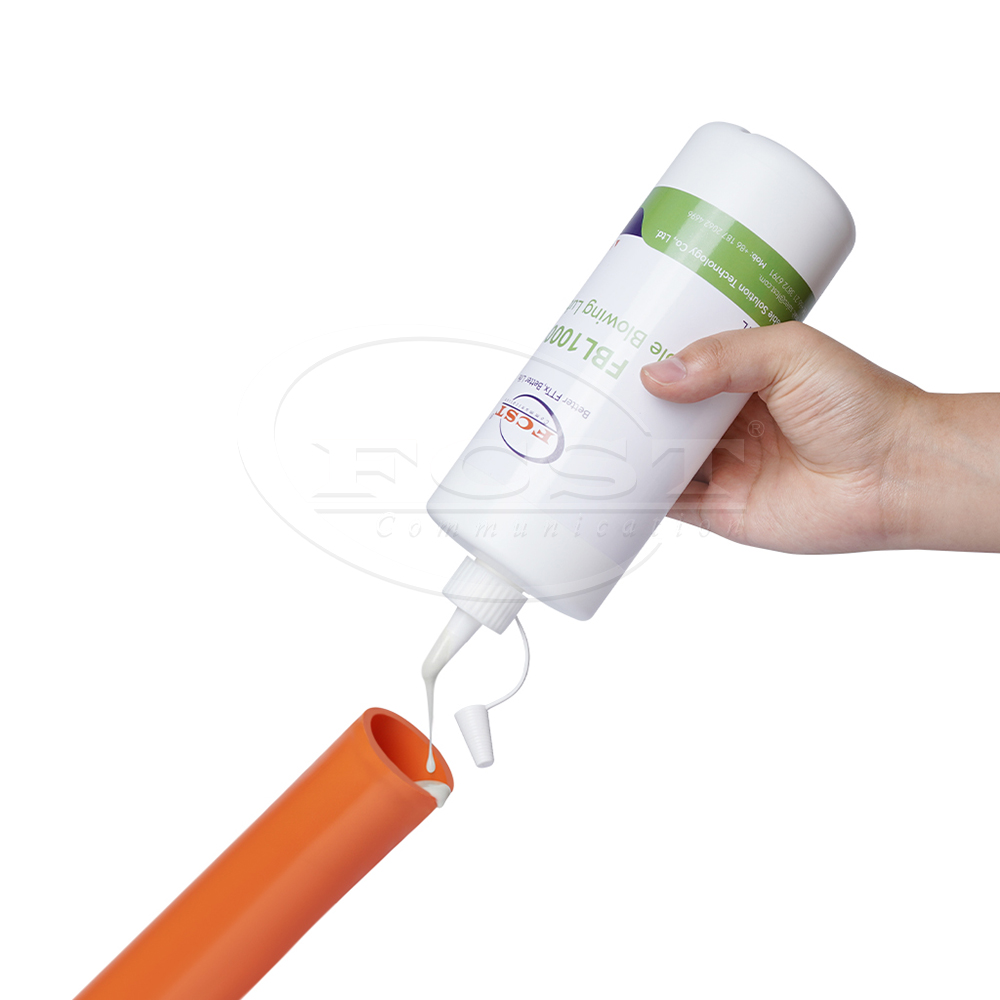

Use FBL1000 Cable Blowing Lubricant—a concentrated, non-corrosive, fast-drying lubricant that forms a durable low-friction film. Field tests confirm 30%+ increase in blowing distance and speed.

► Pro Tip: For 14/10mm microduct, just 13.36 ml per 100m (see Table 1) is sufficient—over-lubrication increases drag.

Microduct ID (mm)	Lubricant Required / 100m
12	23.38 ml
10	16.70 ml
8	13.36 ml
5	10.02 ml

Table 1: FBL1000 dosage guideline

2. Duct Inner Surface Quality & Geometry

Smoothness, ovality, and consistent ID are critical. Ribbed inner surfaces (like FCST's HDPE 14/10mm ducts) enhance airflow—but only if ovality ≤5% (per ISO/IEC standards).

✅ Optimization:

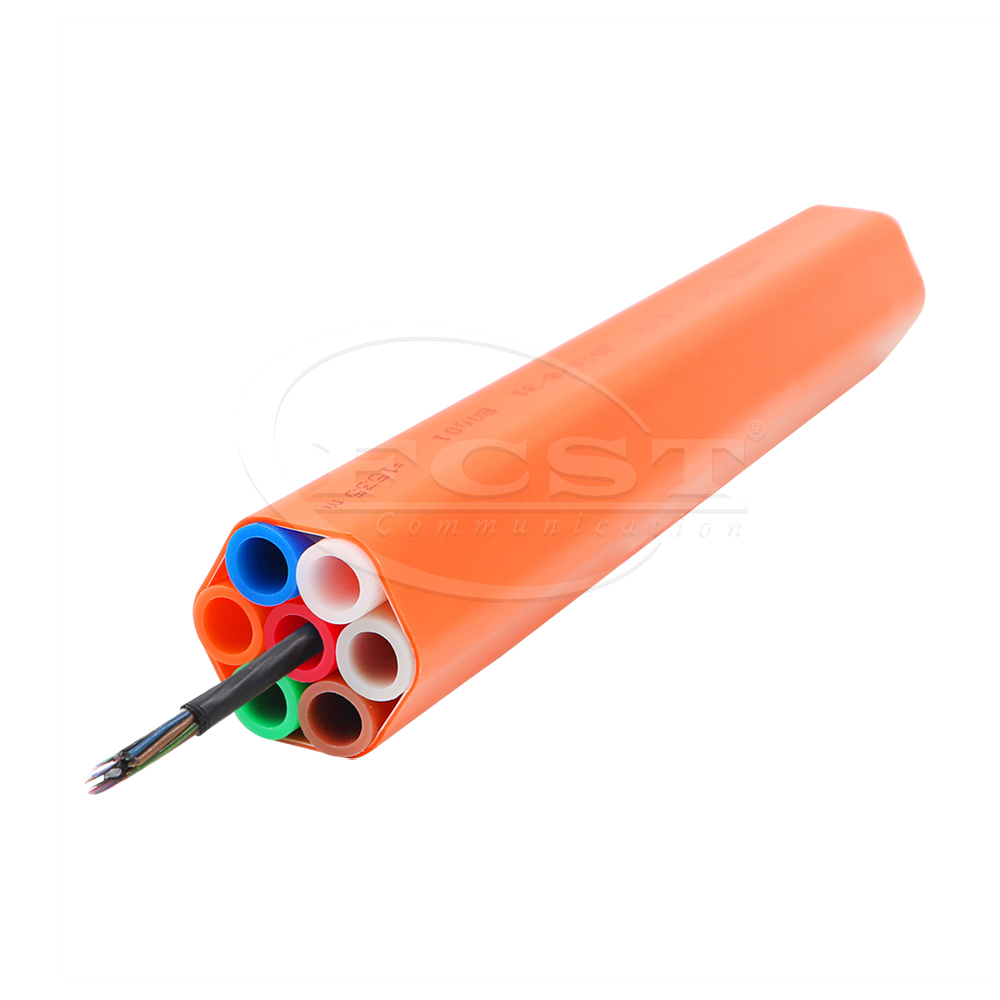

FCST's 7-Way 14/10mm HDPE Tube Bundle is co-extruded with precision tolerances:

·ID clearance verified via 8.5mm steel ball test

·Ovality ≤3.2% (well below 5% max)

·Coefficient of friction ≤0.1

3. Connector Air Leakage & Flow Disruption

Every connector is a potential pressure drop point. Poorly sealed or misaligned joints create turbulence and pressure loss—reducing effective thrust.

✅ Optimization:

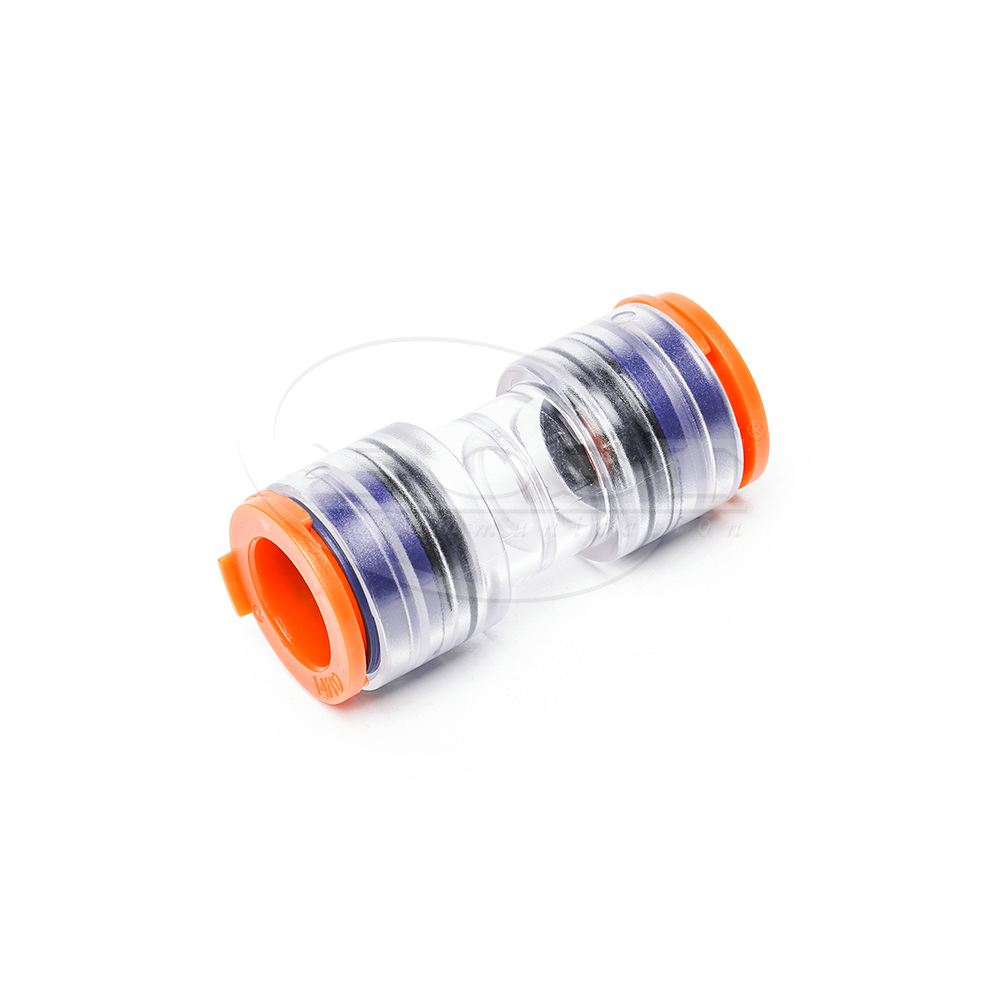

FCST-ERPU Straight Connectors feature:

✔ IP68-rated sealing rings (EPDM)

✔ Crystal-clear PC body for visual inspection

✔ Push-in, tool-less assembly with ≤50N (≤12mm) insertion force

✔ Certified to EN 50411-2-8 for high-pressure retention (25 bar burst pressure, 20 bar working)

Field data shows ERPU connectors maintain >98% airflow continuity vs. traditional couplings.

4. Bend Radius & Route Layout

Each bend introduces drag. A single 90° bend at min. radius (e.g., 820mm for 7-way bundle) can reduce distance by 15–25%.

✅ Optimization:

·Design routes using max. bend radius (≥12× duct OD)

·Install TH-SMC05 Manhole Chambers at critical junctions—their modular depth (1–5 layers) allows smooth cable transition with internal cable racks (Optional-3) to minimize sharp turns.

·Use FCST16311 Y-Type Closures for branch points—tool-less re-entry preserves route geometry over time.

5. Air Pressure & Volume Stability

Blowing relies on consistent airflow—not peak pressure. Compressors must deliver steady ≥16 bar, with minimal pulsation.

✅ Optimization:

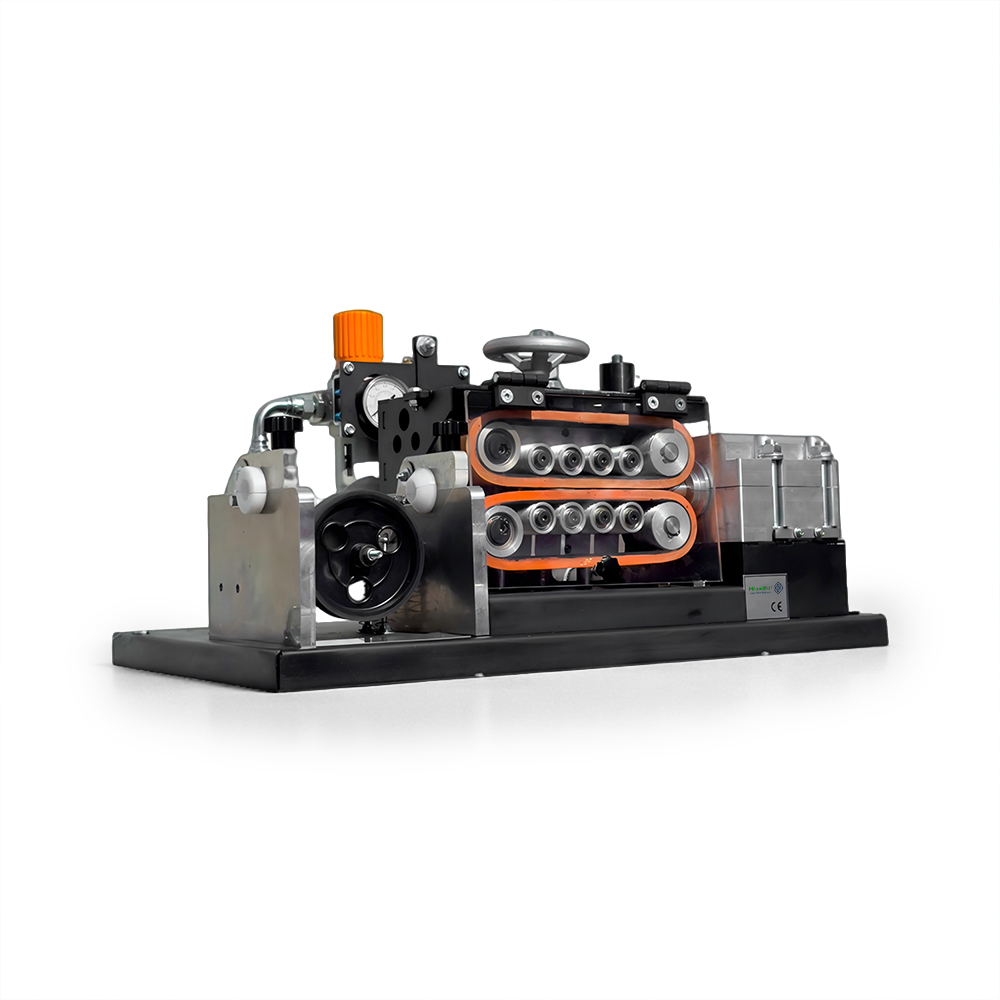

Pair with FCST fiber blowing machines that feature closed-loop pressure control and auto-adjust thrust based on real-time feedback.

6. Cable-to-Duct Fill Ratio

The ideal fill ratio is 35–50%. Too loose → unstable cable movement; too tight → increased friction and risk of jamming.

✅ Optimization:

FCST's modular duct system supports precise matching:

·14/10mm duct → ideal for 2–3mm Ø fiber units

·10/8mm → optimal for single 2mm drop cables

Use FCST16311 with customizable sealing rings to maintain IP67 sealing across varying duct sizes (e.g. trunk: 24×10/6mm → branch: 7×14/10mm).

7. Installation Temperature

Cold temperatures stiffen cables and increase friction; heat softens jackets and promotes adhesion.

✅ Optimization:

All FCST components are rated for –40°C to +65°C operation.

·FBL1000 remains effective down to 0°C

·ERPU connectors: installation from –15°C

·TH-SMC05 chambers: no thermal deformation up to 65°C

Recommendation: Avoid blowing below 5°C unless using pre-warmed cable.

8. Duct Cleanliness & Pre-Blowing Prep

Debris, moisture, or residual pulling lubricants drastically increase μ.

✅ Optimization:

·Flush ducts with dry air before jetting

·Apply FBL1000 immediately before blowing—its fast-drying film prevents dust adhesion

9. Closure & Manhole Integration Quality

Poorly sealed closures leak air; misaligned entries cause cable snagging.

✅ Optimization:

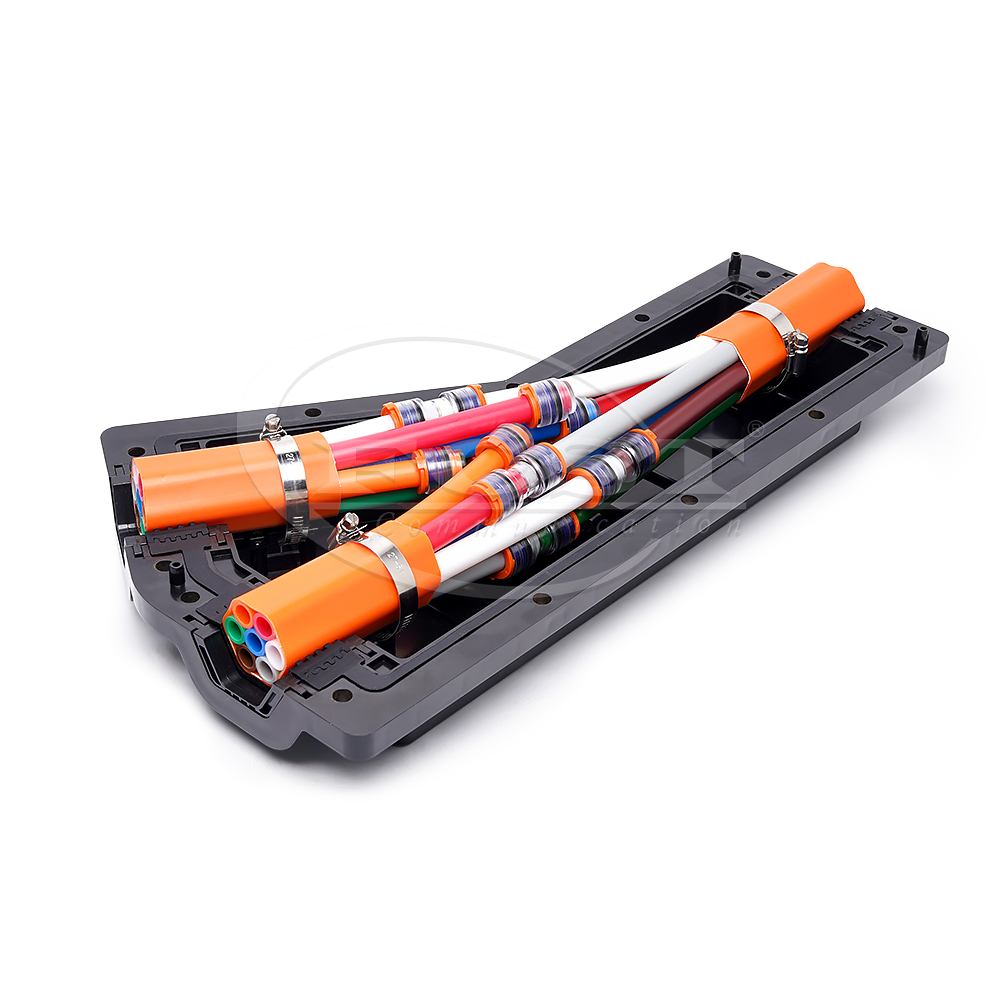

·FCST16311 Y-Closure: IP67, gel-free sealing, 1-in/2-out port support—no pressure relief valve needed

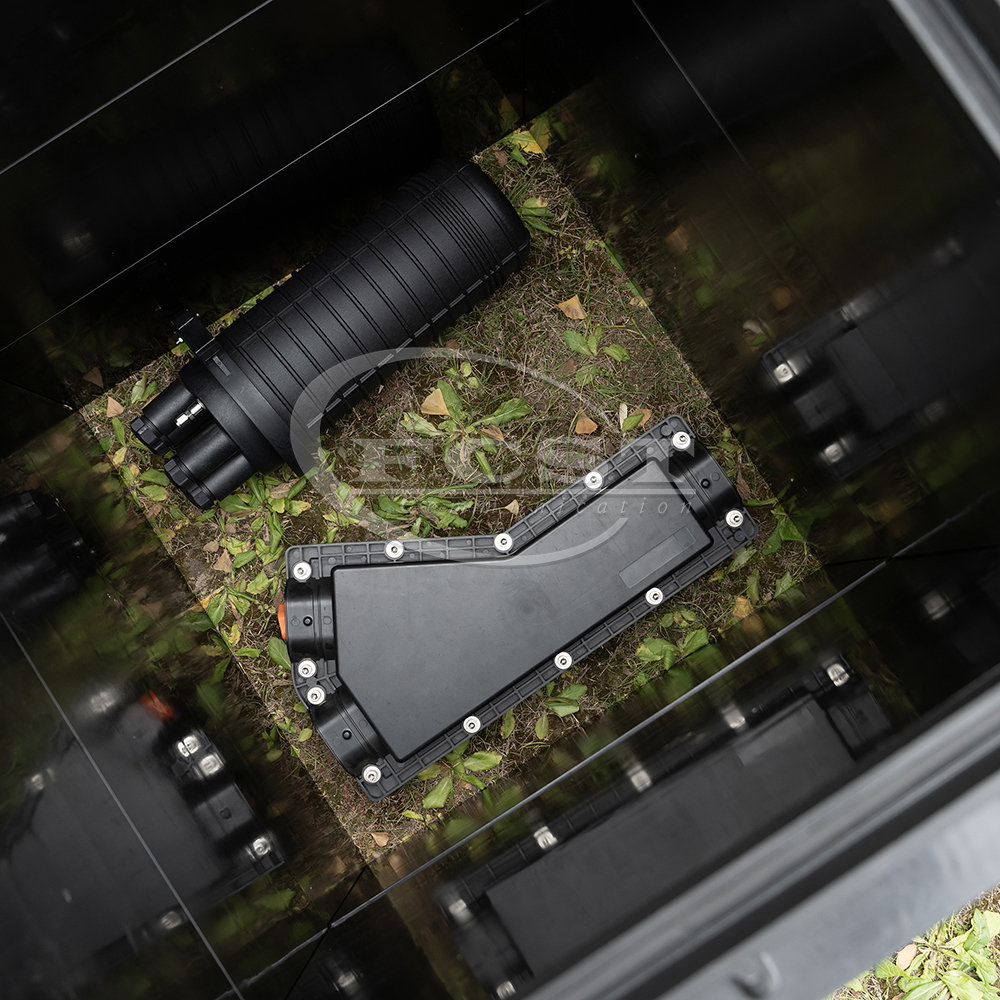

·TH-SMC05 Manhole: SMC composite with cross stiffeners resists soil shift. Optional FOSC frames & ladders ensure vertical cable management—eliminating sag-induced friction.

10. System-Wide Compatibility

Using mismatched third-party components (e.g., non-HDPE ducts with incompatible connectors) introduces micro-leaks and stress points.

✅ Optimization:

FCST’s Integrated Underground Ecosystem is co-engineered for maximum synergy:

Figure: End-to-end compatibility ensures minimal pressure loss and maximum jetting range.

Conclusion: Go Further, Faster—with FCST

Maximizing blowing distance isn't about one ''magic'' product—it's about system intelligence. By optimizing all 10 factors above with FCST's rigorously tested solutions, operators consistently achieve:

·≥1,200m single-shot blowing distance (vs. industry avg. 800m)

·40% faster installation cycles

·Near-zero cable damage rate

·25+ year service life (ERPU & TH-SMC05 rated)

''Better FTTx, Better Life''isn't just our slogan—it's our engineering promise.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
