Microduct Straight Connector
FCST
ERPU
Product Overview
FCST microduct straight connectors are high quality push-fit fittings designed to provide the highest performance for fiber cable blowing(cable jetting)in FTTx Network.

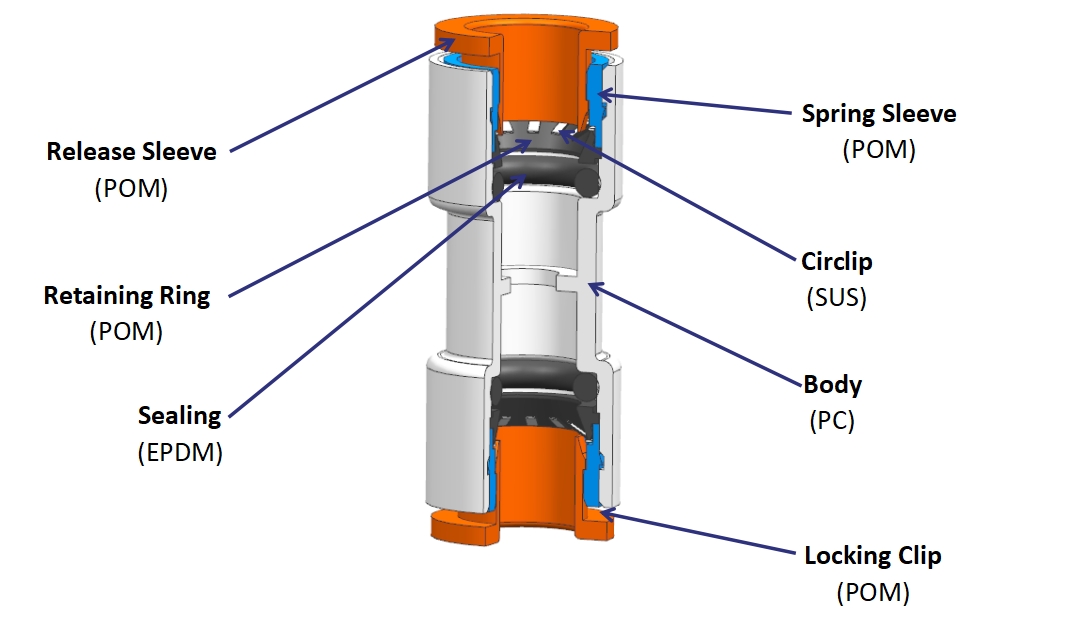

Our telecom duct connectors' design incorporates a same size cassette type collet at either end made from engineering thermoplastic. The microduct couplers were developed to connect the HDPE microducts with multi size from 3mm to 25mm. The micro conduit connectors' robust construction resistance to high pressure forces and transparent body enables easy visual inspection of the cable with in the microduct connector.

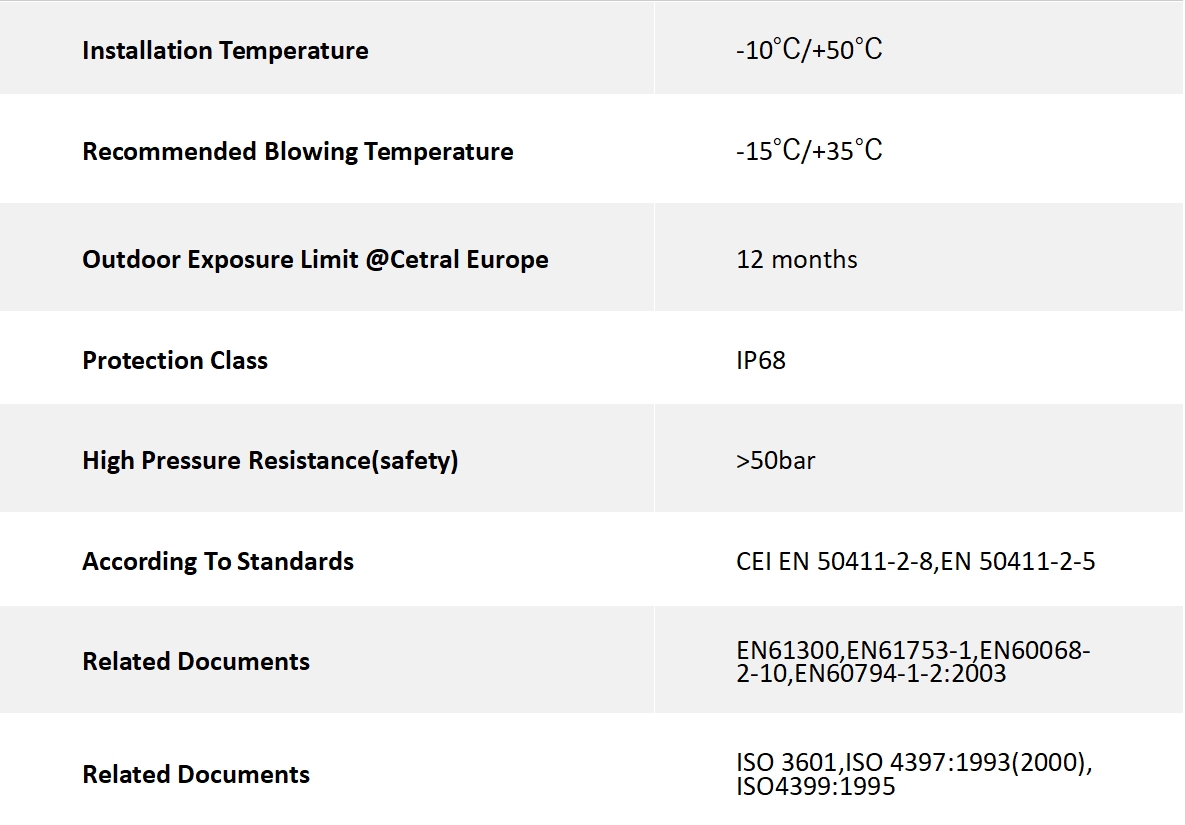

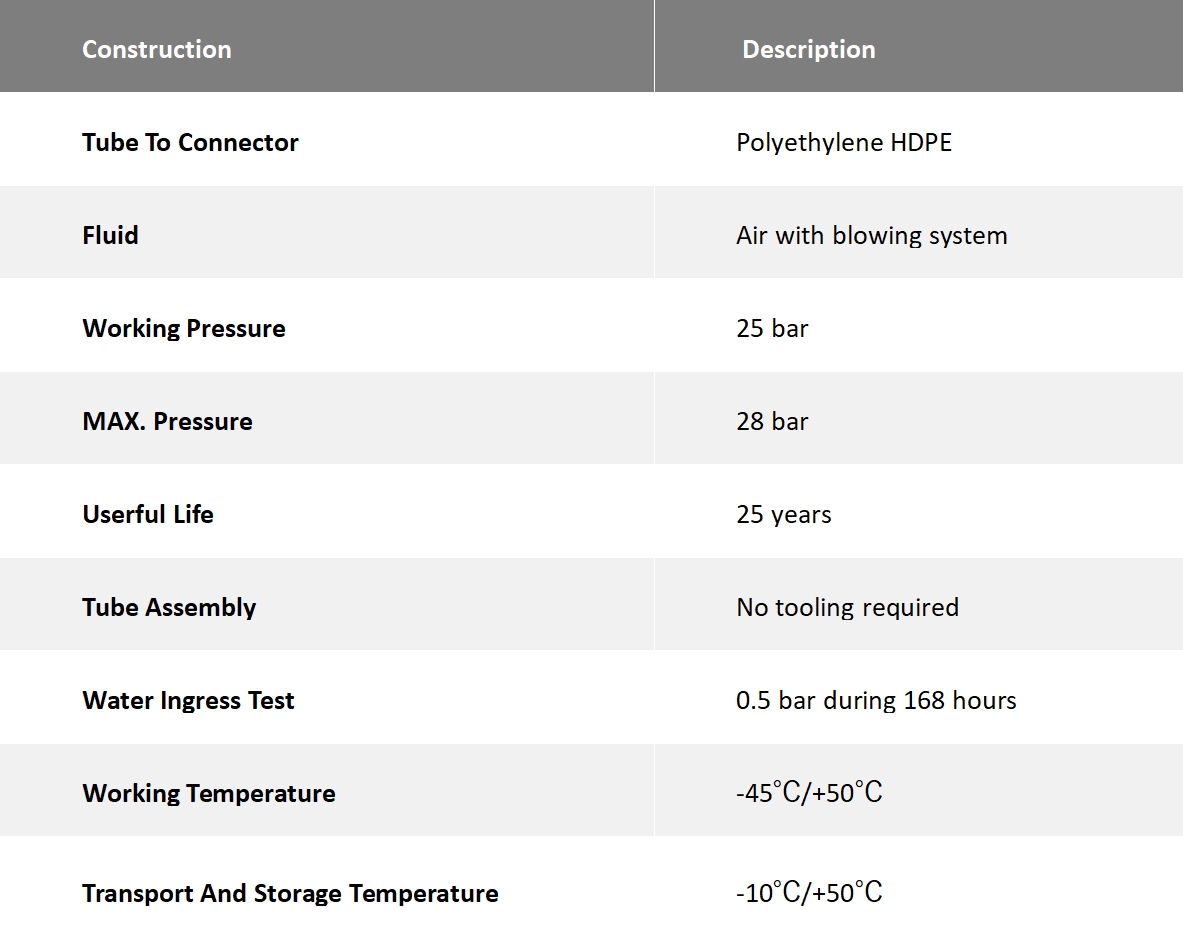

Product Specification

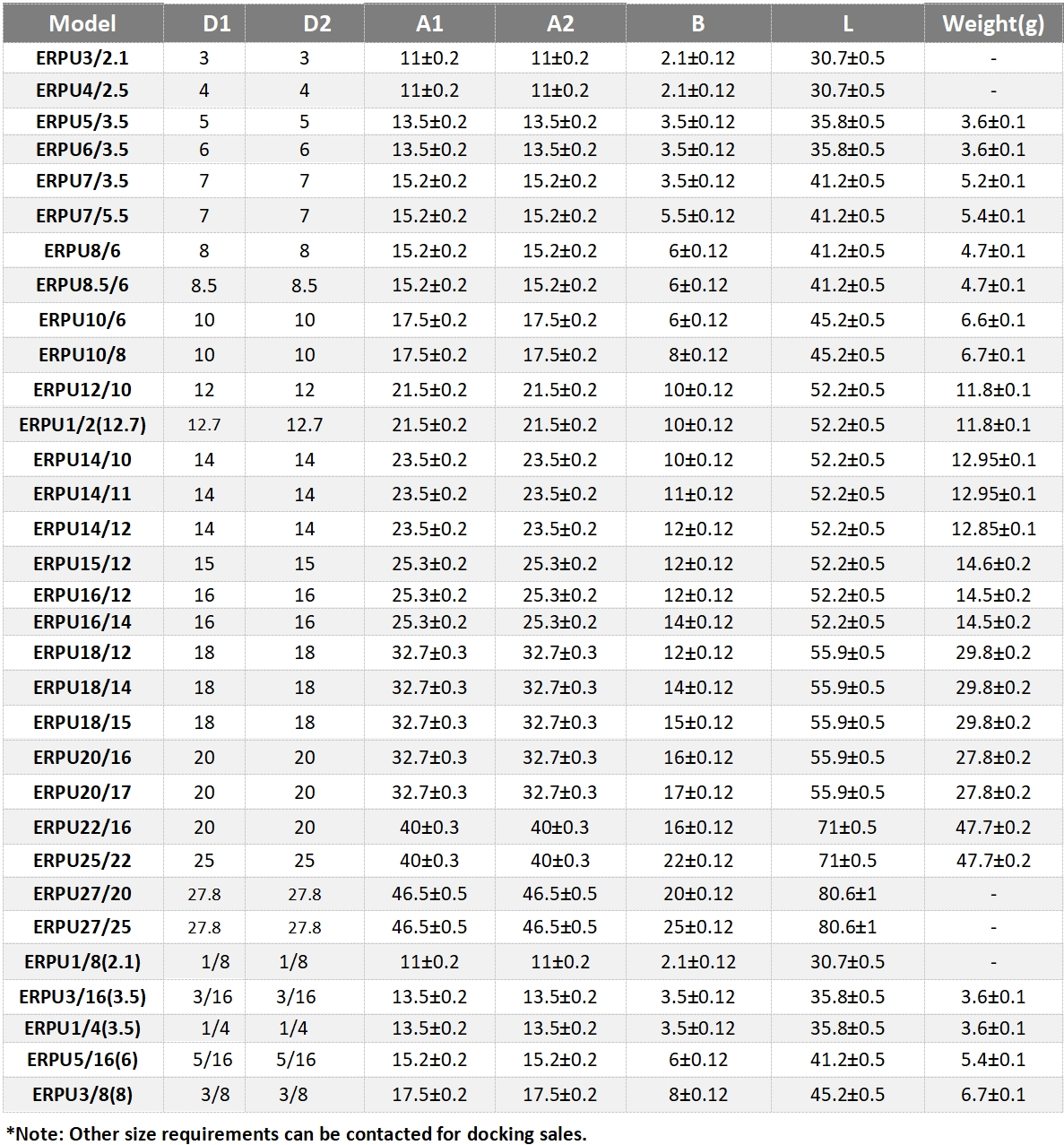

Model | D1 | D2 | A1 | A2 | B | L | Weight(g) |
ERPU3/2.1 | 3 | 3 | 11±0.2 | 11±0.2 | 2.1±0.12 | 30.7±0.5 | - |
ERPU4/2.5 | 4 | 4 | 11±0.2 | 11±0.2 | 2.1±0.12 | 30.7±0.5 | - |
ERPU5/3.5 | 5 | 5 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
ERPU6/3.5 | 6 | 6 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
ERPU7/3.5 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 3.5±0.12 | 41.2±0.5 | 5.2±0.1 |
ERPU7/5.5 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 5.5±0.12 | 41.2±0.5 | 5.4±0.1 |
ERPU8/6 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 6±0.12 | 41.2±0.5 | 4.7±0.1 |
ERPU8.5/6 | 8.5 | 8.5 | 15.2±0.2 | 15.2±0.2 | 6±0.12 | 41.2±0.5 | 4.7±0.1 |
ERPU10/8 | 10 | 10 | 17.5±0.2 | 17.5±0.2 | 8±0.12 | 45.2±0.5 | 6.7±0.1 |
ERPU12/10 | 12 | 12 | 21.5±0.2 | 21.5±0.2 | 10±0.12 | 52.2±0.5 | 11.8±0.1 |
ERPU14/11 | 14 | 14 | 23.5±0.2 | 23.5±0.2 | 11±0.12 | 52.2±0.5 | 12.95±0.1 |
ERPU14/12 | 14 | 14 | 23.5±0.2 | 23.5±0.2 | 12±0.12 | 52.2±0.5 | 12.85±0.1 |
ERPU15/12 | 15 | 15 | 25.3±0.2 | 25.3±0.2 | 12±0.12 | 52.2±0.5 | 14.6±0.2 |
ERPU16/14 | 16 | 16 | 25.3±0.2 | 25.3±0.2 | 14±0.12 | 52.2±0.5 | 14.5±0.2 |
ERPU18/15 | 18 | 18 | 32.7±0.3 | 32.7±0.3 | 15±0.12 | 55.9±0.5 | 29.8±0.2 |
ERPU20/17 | 20 | 20 | 32.7±0.3 | 32.7±0.3 | 17±0.12 | 55.9±0.5 | 27.8±0.2 |
ERPU22/16 | 20 | 20 | 40±0.3 | 40±0.3 | 16±0.12 | 71±0.5 | 47.7±0.2 |
ERPU25/22 | 25 | 25 | 40±0.3 | 40±0.3 | 22±0.12 | 71±0.5 | 47.7±0.2 |
ERPU1/8(2.1) | 1/8 | 1/8 | - | - | 2.1±0.12 | - | - |
ERPU3/16(3.5) | 3/16 | 3/16 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
ERPU1/4(3.5) | 1/4 | 1/4 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
ERPU5/16(6) | 5/16 | 5/16 | 15.2±0.2 | 15.2±0.2 | 6±0.12 | 41.2±0.5 | 5.4±0.1 |
ERPU3/8(8) | 3/8 | 3/8 | 17.5±0.2 | 17.5±0.2 | 8±0.12 | 45.2±0.5 | 6.7±0.1 |
ERPU1/2(10) | 1/2 | 1/2 | 21.5±0.2 | 21.5±0.2 | 10±0.12 | 52.2±0.5 | 11.8±0.1 |
