FCST-FDP01
FCST
Product Overview

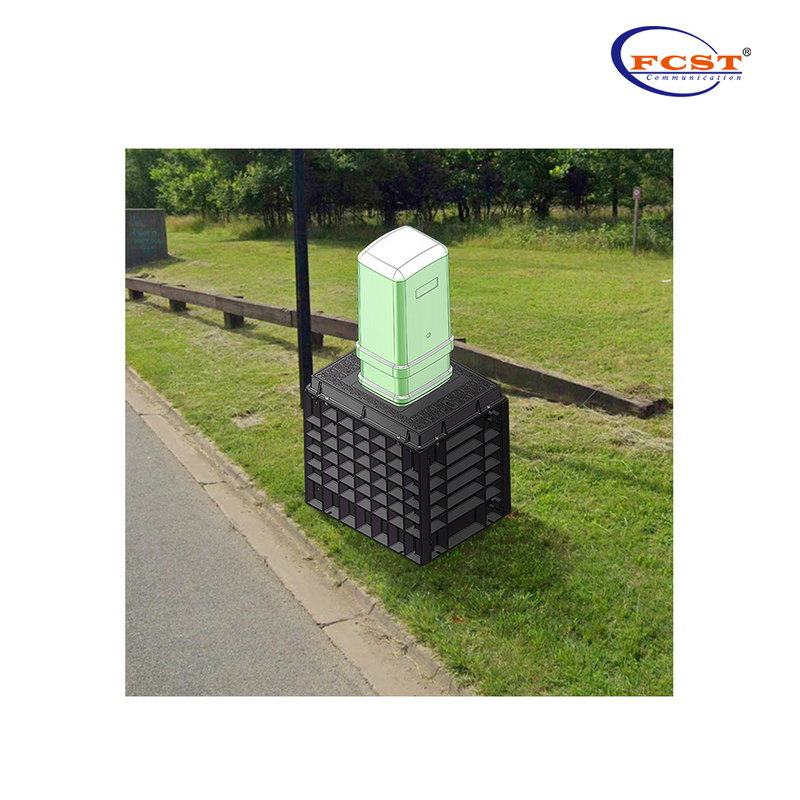

The FCST-FDP Multifunction FTTH Fiber Delivery Point Pedestal provides splice or interconnect functionality, in industry standard FCST pedestals and vaults, for drops to the home in the last mile of the access network. Additionally, Multifunction FTTH Fiber Delivery Point Pedestal provides for a maximum capacity of 144-homes served, and is configured for PON environments.
Product Advantages
lFiber manhole pedestal patch only or patch and splice configurations supported.
lFuture proof with drop only to PON distributed migration.
lAll manhole chamber series of non-metallic material, anti-static, anti-corrosion.
lFlexible integration into a variety of RUS listed pedestals with simple bracket kits.
lScalable with Clearview Multiplied design for cost alignment to subscriber revenue.
lThere is a separate space for distributing optical fibers and placing dedicated optical fiber equipment.
Product Specifications

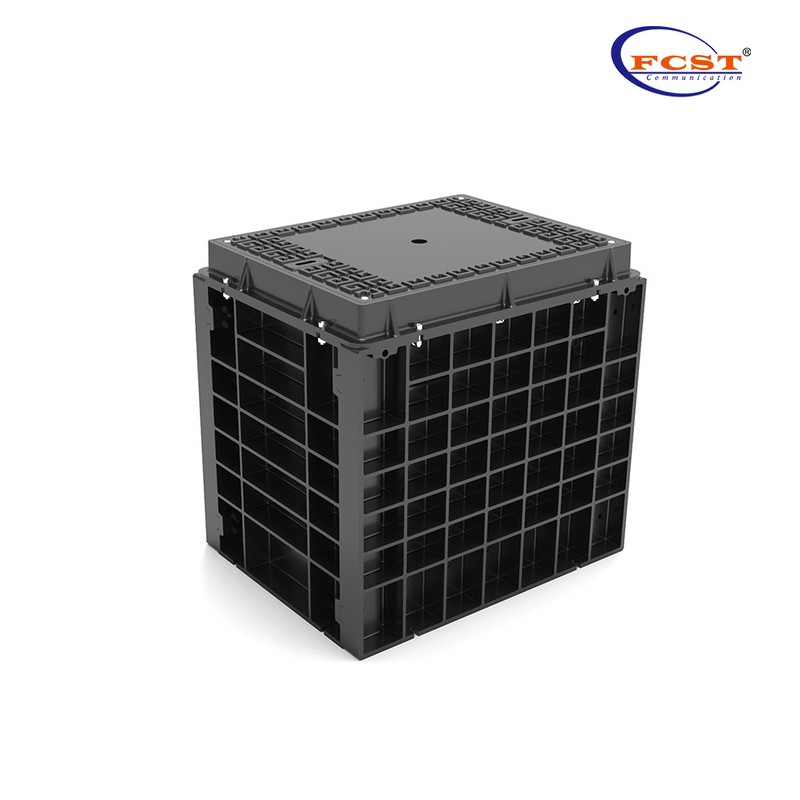

Telecom Manhole Chamber Section (Model Number:FCST-TH-SMC01)
Construction | Description |
External Size | 660*520*642mm |
Internal Dimensions | 540*400*583mm |
Material | SMC |
Net Weight | 65.9KG |
Manhole Cover Load Grade | B125(12.5T)/C250(25T) |
Standard No. | EN124:1994、GB/T1447-2005、GB/T1451-2005、GB/T9979- 2005 |
Axial Test Load | 100KN |
Lateral Test Load | 40KN |

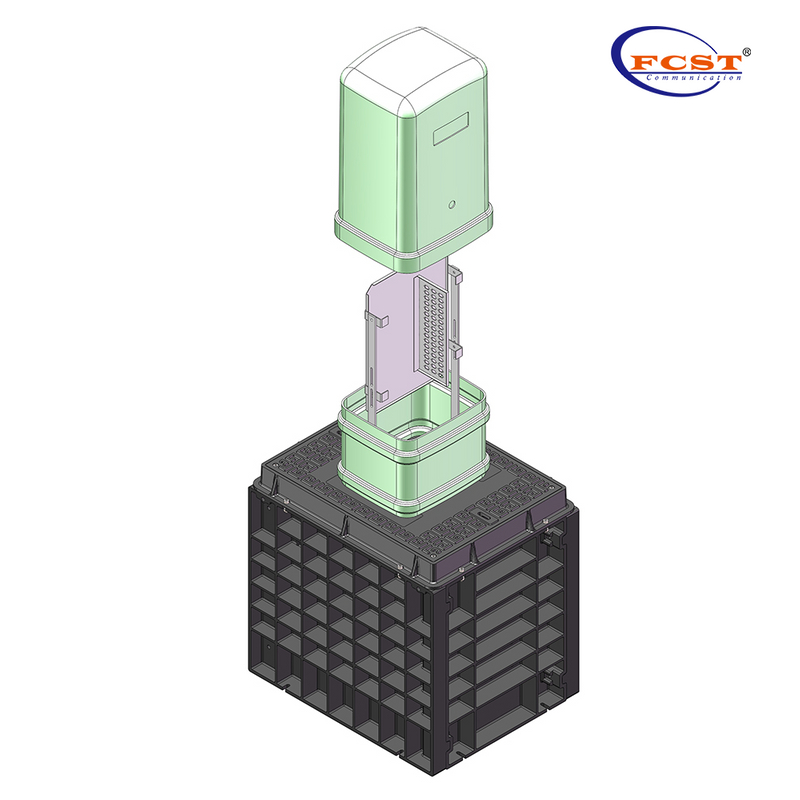

Pedestal Section (FCST090104)
Construction | Description |
Max. Capacity | 144 cores |
Dimension | 346*298*681mm |
Material | PE(Uv resistance) |
Weight | 7.4KG |
Fiber Radius Of Curvature | ≥ 40mm |
Fiber Optic Disk Additional Loss | ≤0.01dB |
Floor Mounting Hole Distance | 260mm |
Built-in Pedestal Optional
