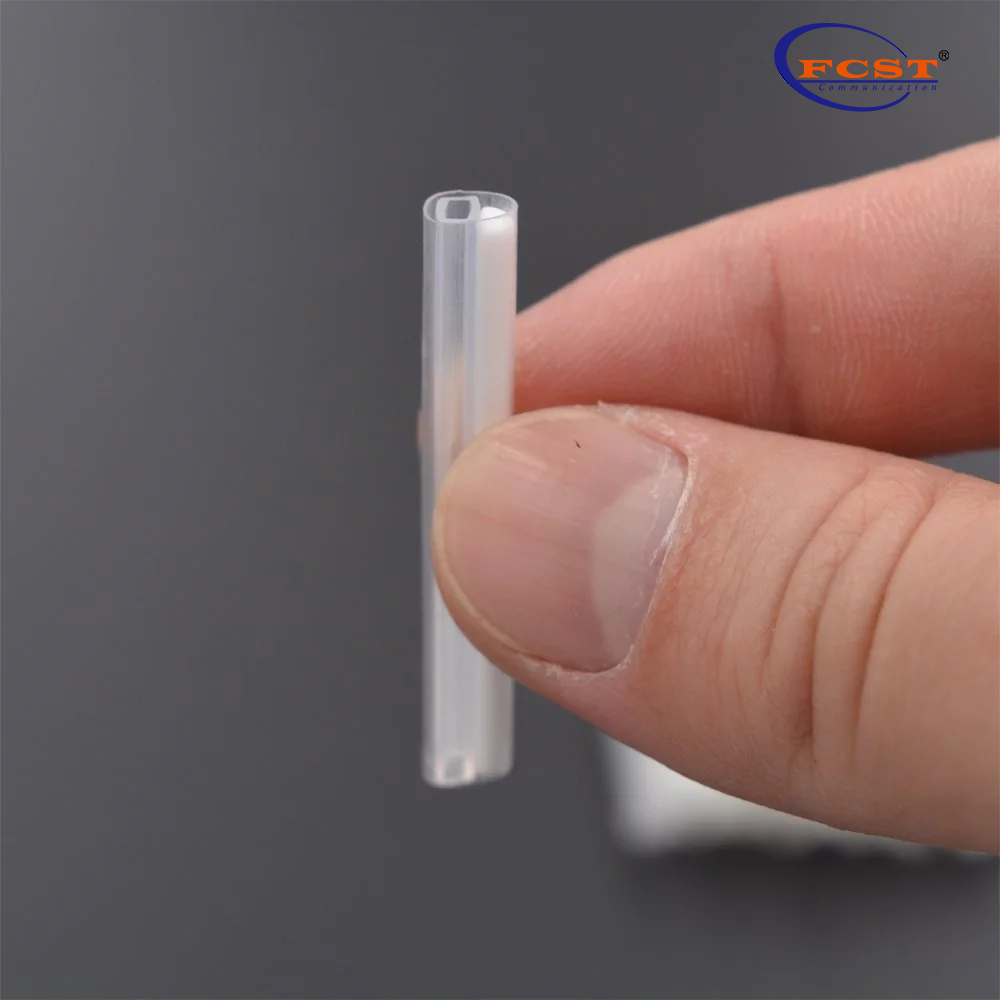

FFS-02 Ribbon Splice Protection Sleeve
FCST
FFS-02 Ribbon Splice Protection Sleeve
Product Overview
FFS-02Ribbon Fiber Fiber Optic Protection Sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing. The sleeve can be divided into two types (single sleeve and ribbon sleeve) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Ribbon sleeve means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12 cores (for types).
Product Advantages
lSingle holed(preshrunk)ends eliminates improper fiber threading
lSmooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
lExtended liner length prevents contact between the fiber and ther backbone
lClear sleeve design persgin permits easy centering of splice before heating
lSealing structure makes the splice free from effect of temperature and humidity from environment
lSimple operation, reducing the risk of fiber damage during installation
lDoes not affect the optical characteristics of the optical fiber
lSealing structure to have good resistance of temperature and humidity performance
Product Application
lFusion splicing
lFiber cable protecting
lFTTH system
lRack-mount & Wall-mount terminal box
lFiber Optic Splice Closure
loptical fiber switch box and so on continue protection
Product Diameter
lDual Member 40mm 25EA/bag
lSingle Member 40mm,25EA/bag
lSlim Single Member 40mm,25EA/bag
Product Specifications
Construction | Description |
Shrinking Temperature (°C) | 150 |
Radial Shrinking Rate (%) | >50 |
Axial Shrinking Rate (%) | <10 |
Low Temperature Property | No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) | -55°C ~ + 135°C |
Normal Operature Relative Humidity | ≤95% |
Spark- over Strength (kV/mm) | ≥20 |
Tensile Strength (Mpa) | 20 |
Loss at -40°C | 0.03dB |
Loss at +60°C RH95% | 0.02dB |
