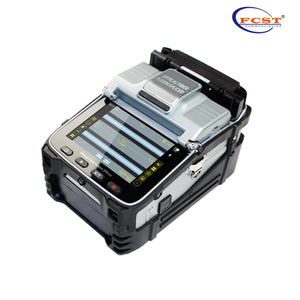

AI-90 Optical Fiber Fusion Splicer

  • Built-In Power Meter And VFL.
  • 10 Languages To Switch Freely.
  • AI-9 fiber fusion splicer Splicing Time:5s,Heating Time:15s.
  • Comes With A Stool To Facilitate The Construction Workers.
  • 7800mAh Large Capacity Battery,continuous splicing and heating about 260 times.
  • AI-90

  • FCST

  • AI-90

Product Overview

AI-90 Optical Fiber Fusion Splicer use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The AI-90 Optical Fiber Fusion Splicer uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high- resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.

Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.

Product Specifications



Fiber Alignment

Core/cladding alignment / Manual alignment

Splicing Time


Heating Time


Heating Mode

Automatic heating(Preheating)

Focus Mode

Six motors Auto focus

Applicable Fibers

SM(G.652&G.657);MM(G.651);DS(G.657); NZDS(G.655)

Splice Loss


Control Technology

Real-time control and calibration of fusion ARC

Return Loss

Better than 60DB

Fiber Diameter

Cladding Diameter80-150μm

Coating Diameter100-1000μm

Fiber Cleave Length

Coating less than 250µm8-16mm

Coating less than 250-1000µm:16mm

Software Updates Length

Automatically update; Update by a key

Boot Time

1 second

Language Setting

10 languages to switch freely(Chinese, English, French, Russian, Italian, Portuguese,

Polish, Spanish, Thai, Arabic)

Tension Test

Standard 2N

Fiber Holders

3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable


300 for X or Y view, 150 for X or Y view


5 inch TFT color display

Splicing Mode

Normal / high precision splicing

Splicing Method

Fully automatic;Step by step splicing

Splicing Record Storage

Synchronize to the phone, the server to cloud storage unlimited

Built-in battery

7800 mA high-capacity lithium battery, charging time 3.5 hours, continuous splicing and heating about 260 times

Power Supply

Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power

Operating Conditions

Temperature -15 ~ +50 , humidity: <95% RH (no condensation) Working altitude: 0 5000m. Resist max. wind speed: 15m / s

Shrinkable Tube


Product Protection

Waterproof, dust proof, shock-resistant

Product Advantages

AI-9产品详情页专用图 (14)

Ordering Information

AI-90 Optical Fiber Fusion Splicer-For FTTx_06


AI-90 Optical Fiber Fusion Splicer-For FTTx_02


AI-90 Optical Fiber Fusion Splicer-For FTTx_05
