FCST01135
FCST
FCST01135
Product Overview

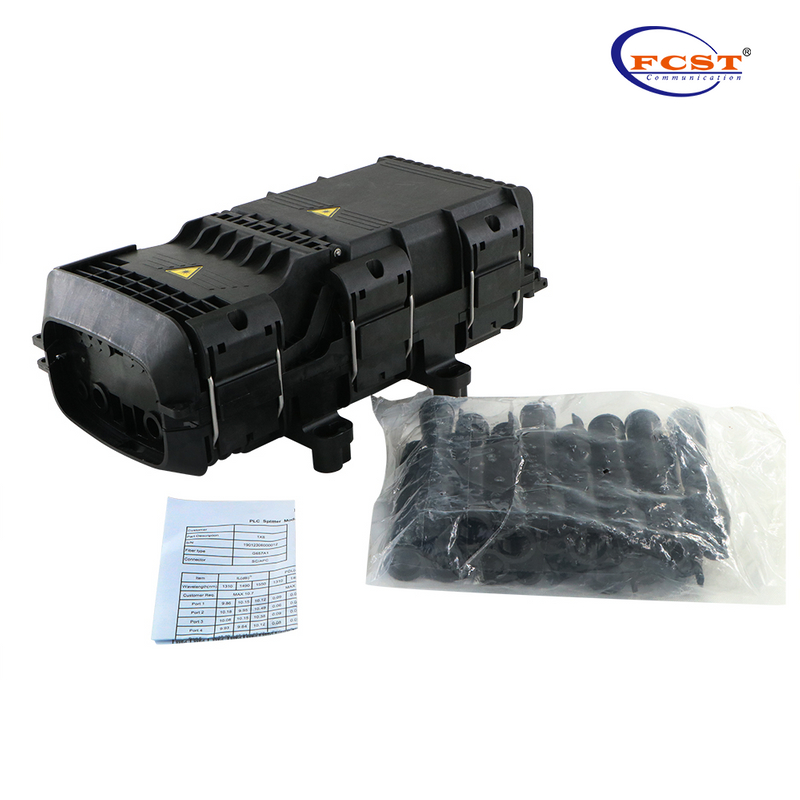

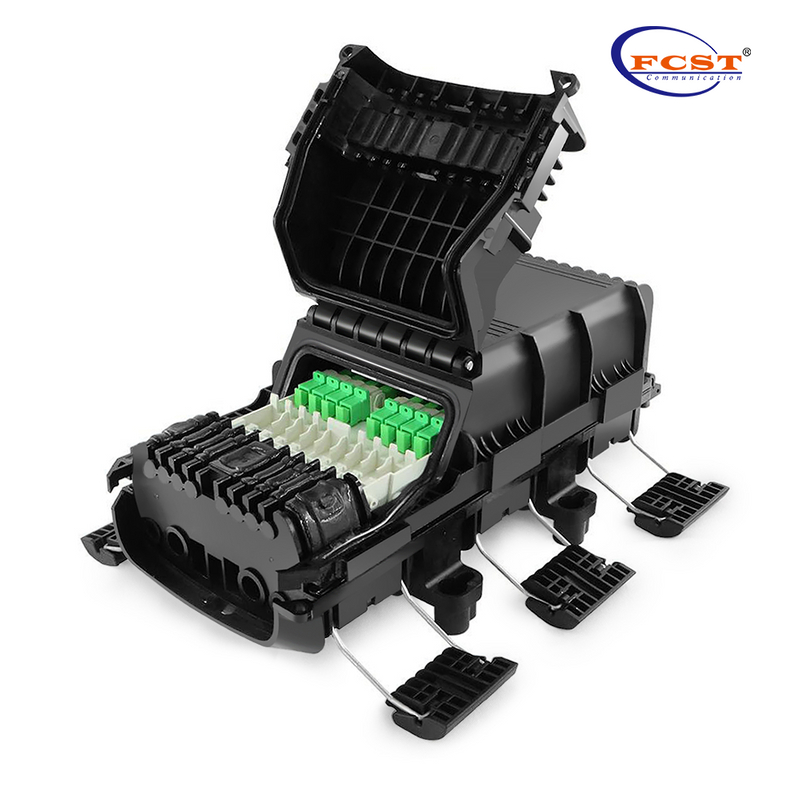

FCST01135 Fiber Access Terminal Closure is a wiring line device of user distributions in FTTH system, it provides protection and management for fiber cable, and be used for terminating, cable branching, cross connection.It is mainly used for user access point in FTTH-ODN network , it can be divided into indoor and outdoor type according to the installation scenario, and can be divided into distribution type and optic-split type according to the function.
Fiber optic closure is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.
Product Advantages
l Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance, sturdiness and durability.
l Suitable for indoor or outdoor ,wall-mounted , pole installation.

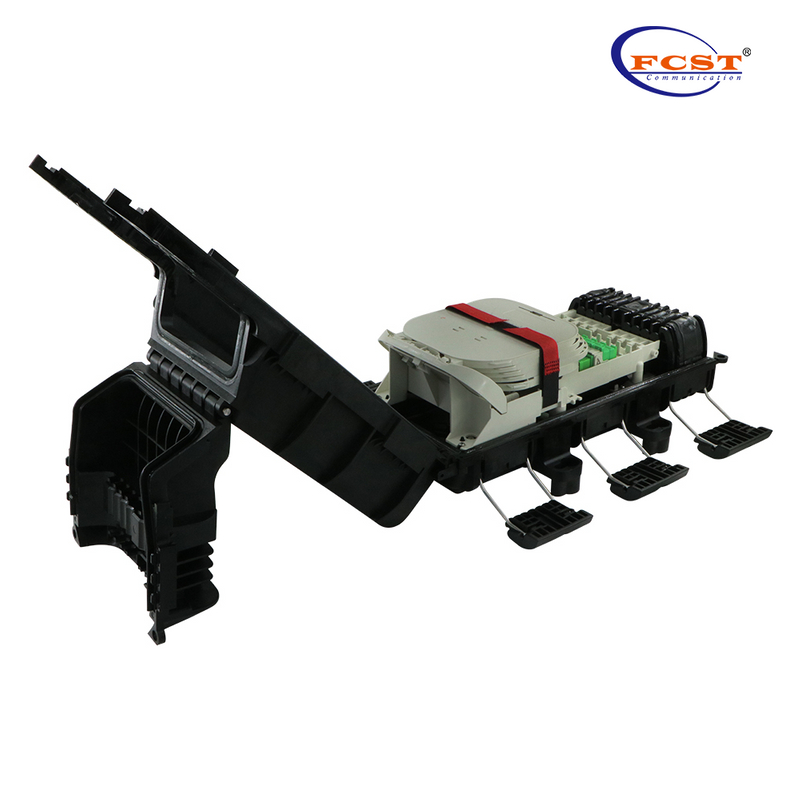

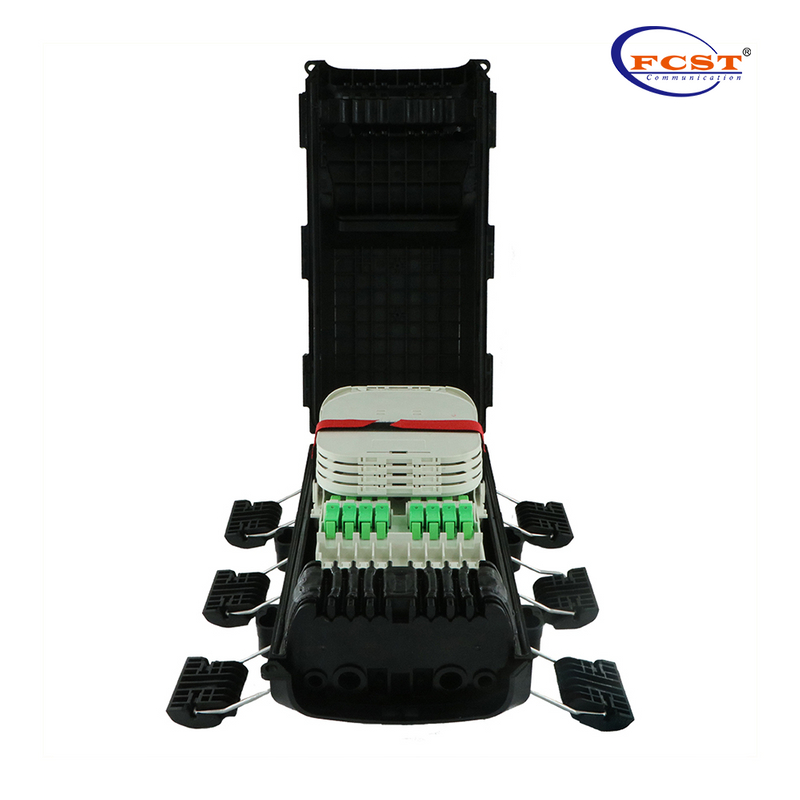

l Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
l Fiber routing is reasonable.
l Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Product Specifications
Construction | Description |
Capacity Of FOSC(Bunchy) | 66 cores |
Max Capacity | 8(SC/APC) |
Material | PP |
Dimension (mm) | 336.5*195*128 |
Inlets/Outlets | 4/8 |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Net Weight（g） | 2050 |
Protection Level | IP67 |
Diameter Of Fiber Cable | Φ11mm~φ16mm |
Operating Temperature | -40℃～+65℃ |
Product Structure
A:336.5mm B:195mm C:128mm D:174mm F:110.5mm
Fiber Routing Diagram

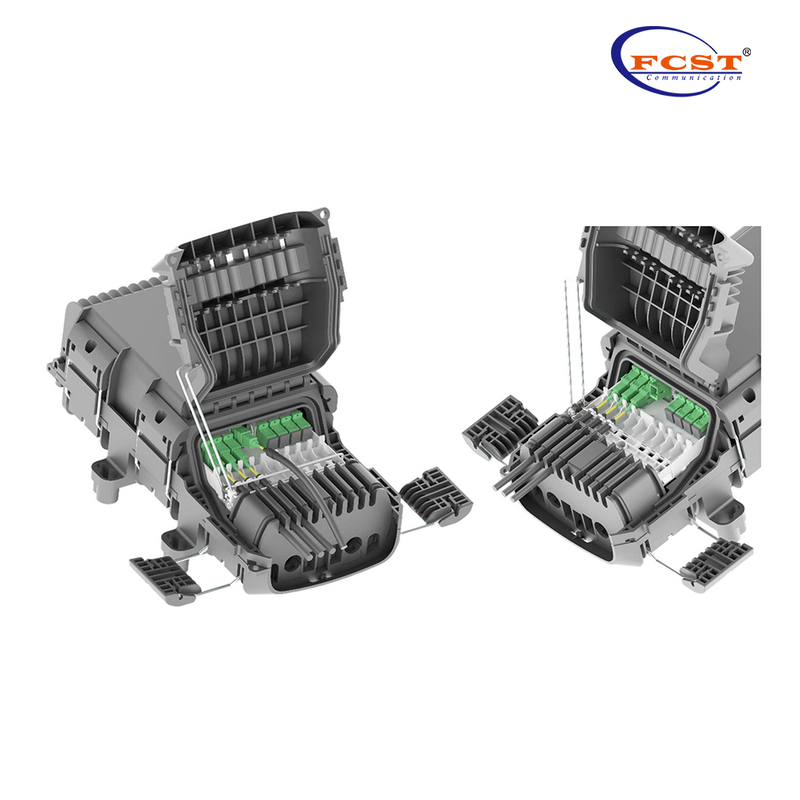

Quick Plug Cover
A. open the lid B. Press the lock button C. Rotate the metal rod to secure the lid D. Insert connector
Installation
Wall-mounted installation
Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten.
Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole, as below.
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
