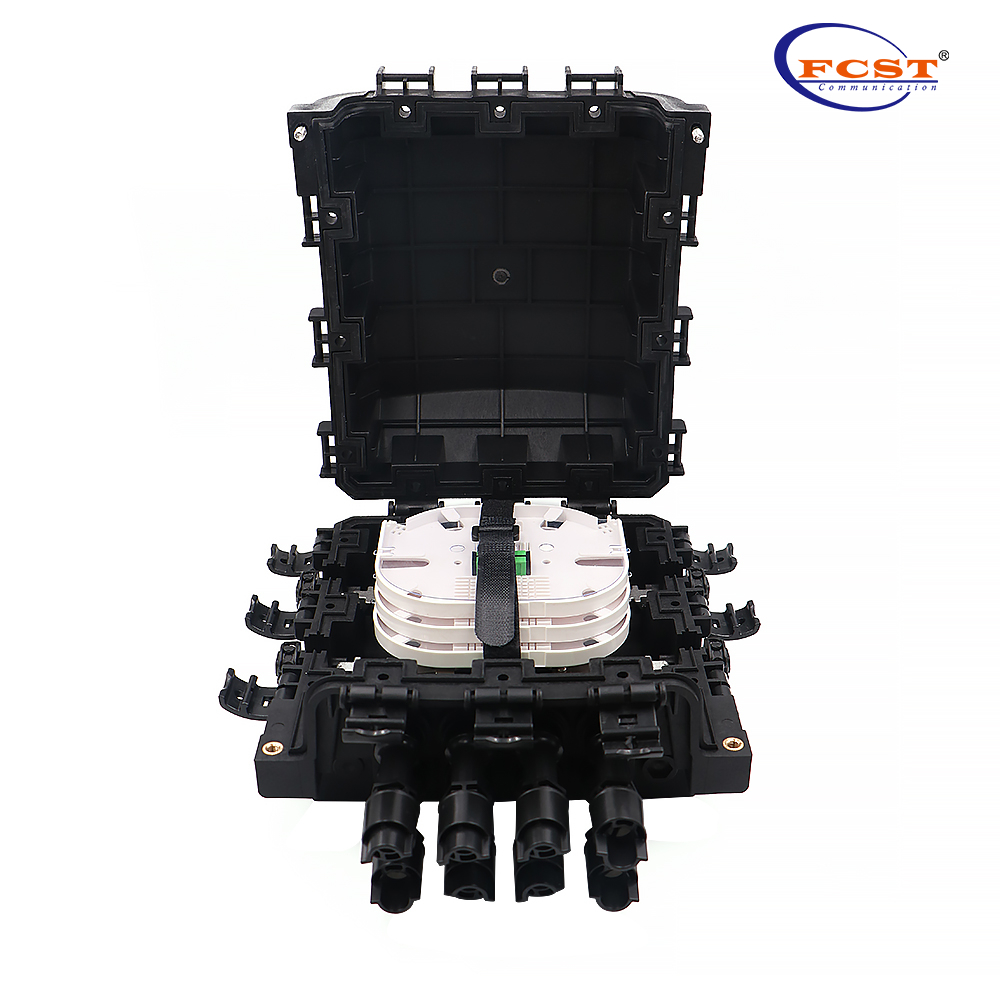

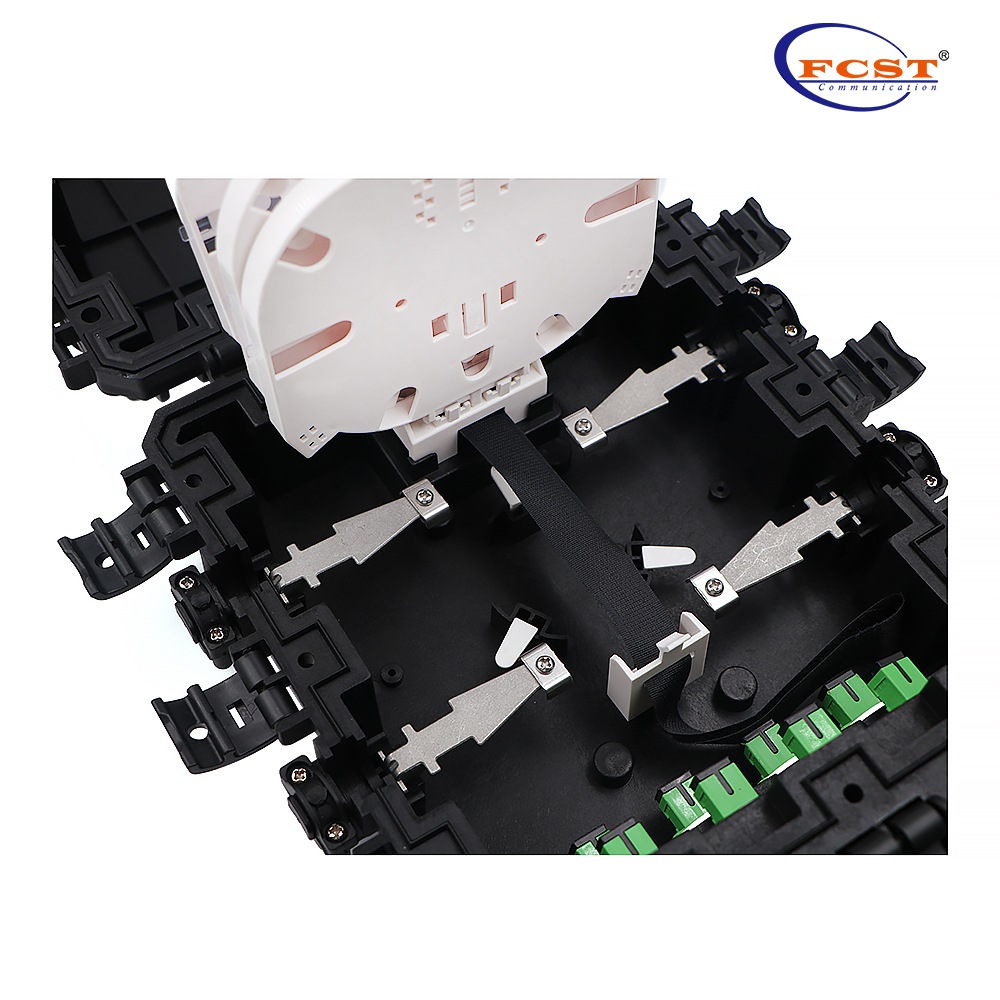

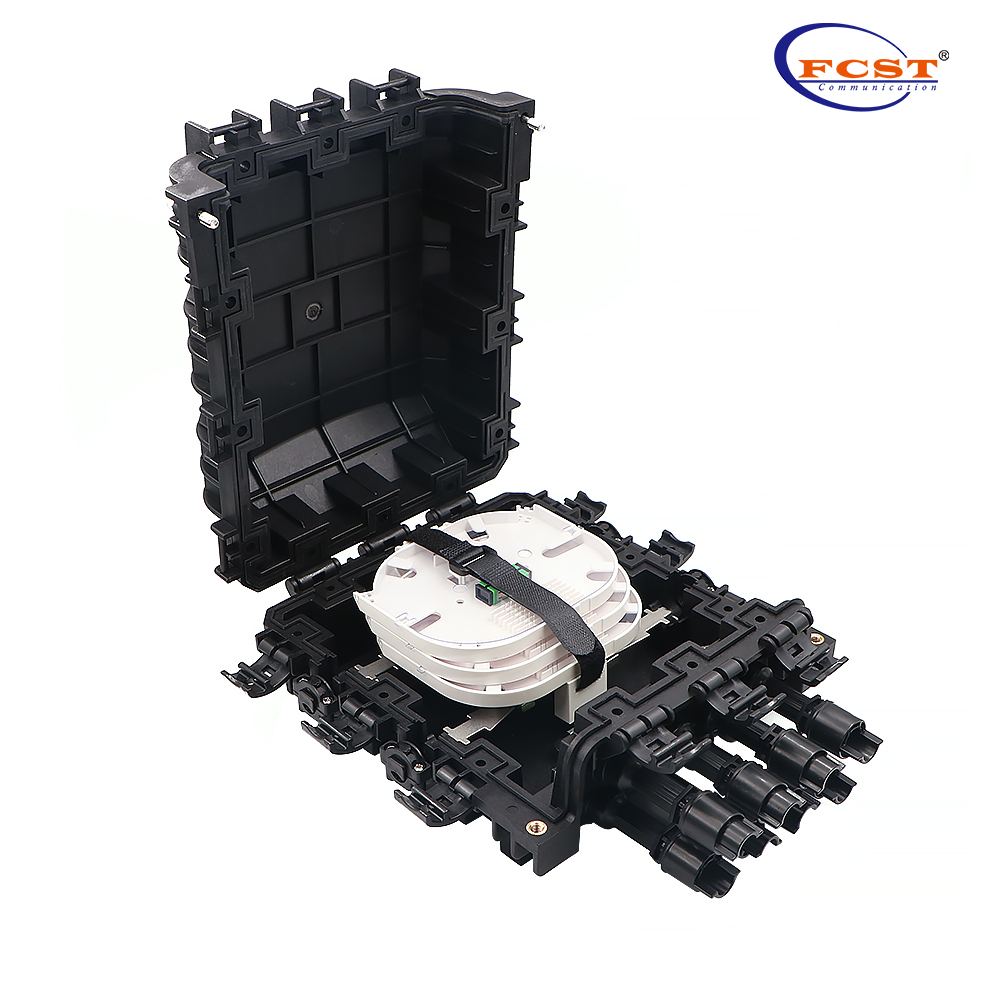

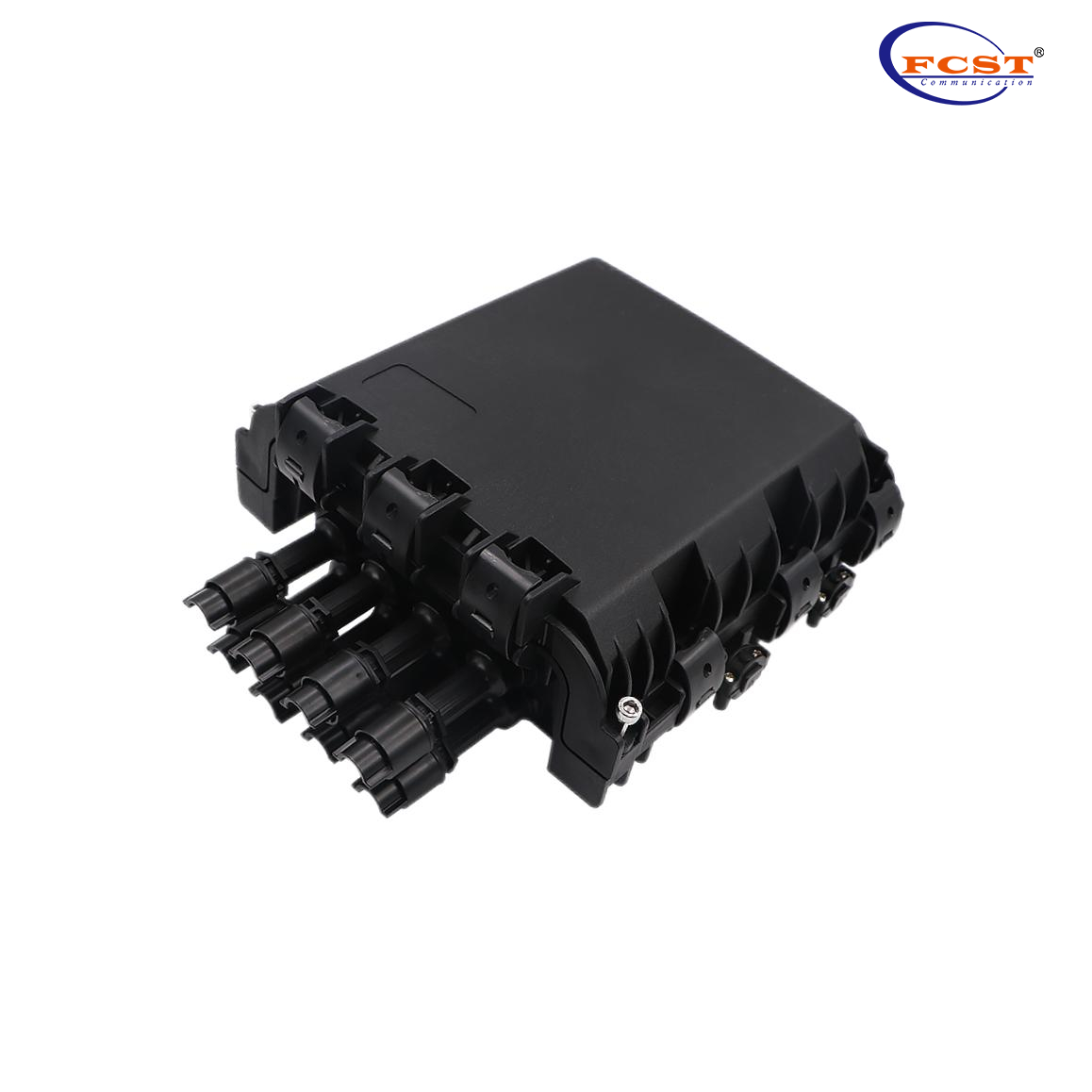

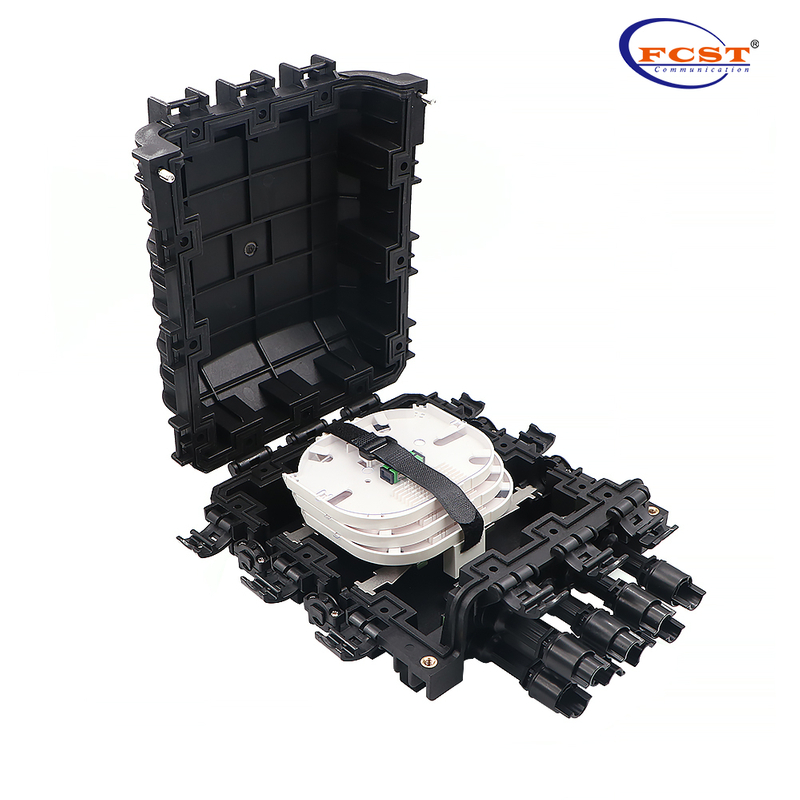

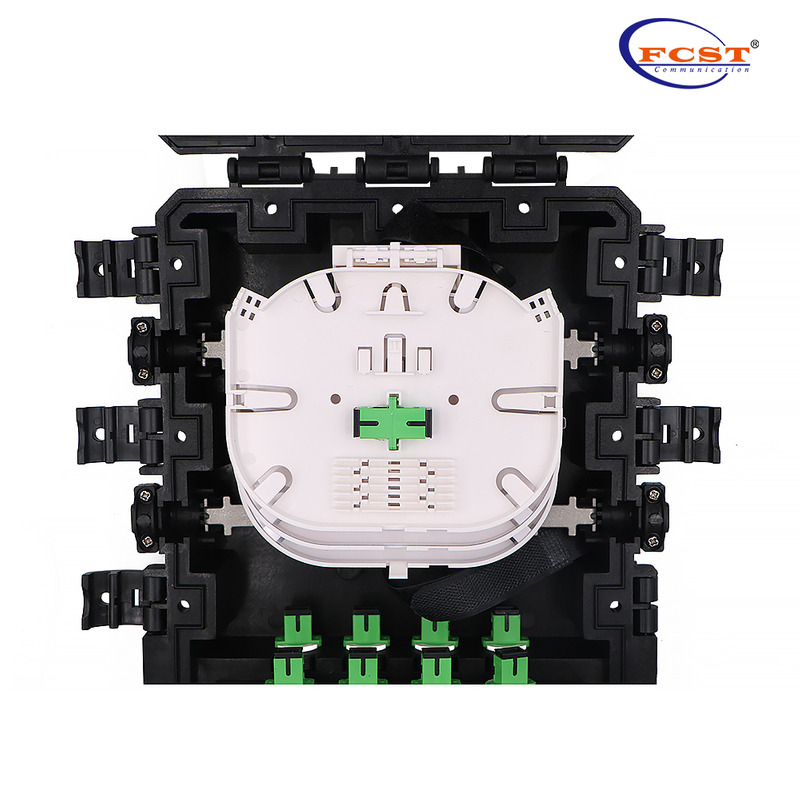

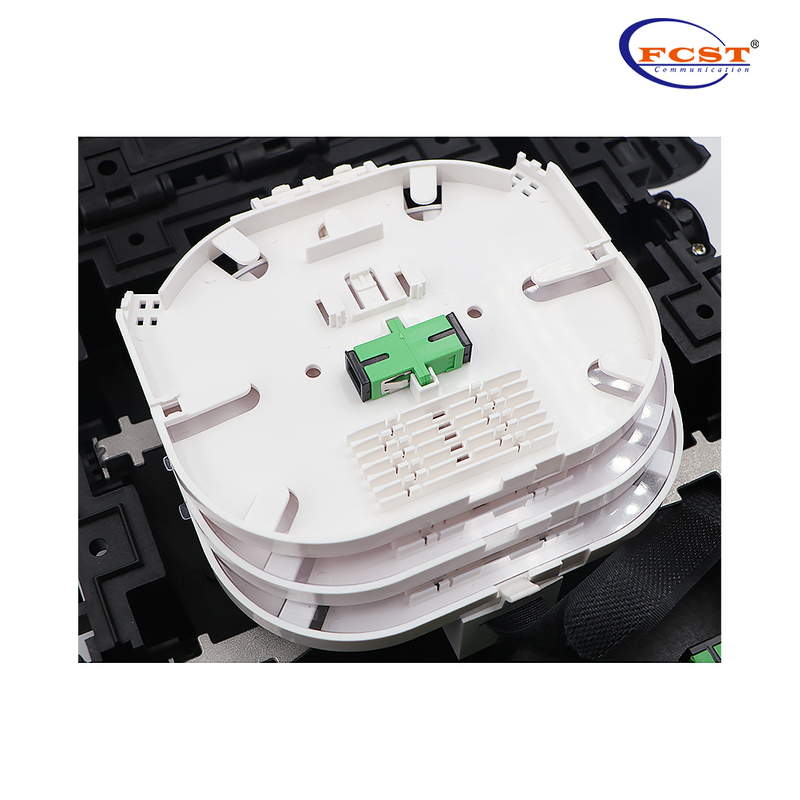

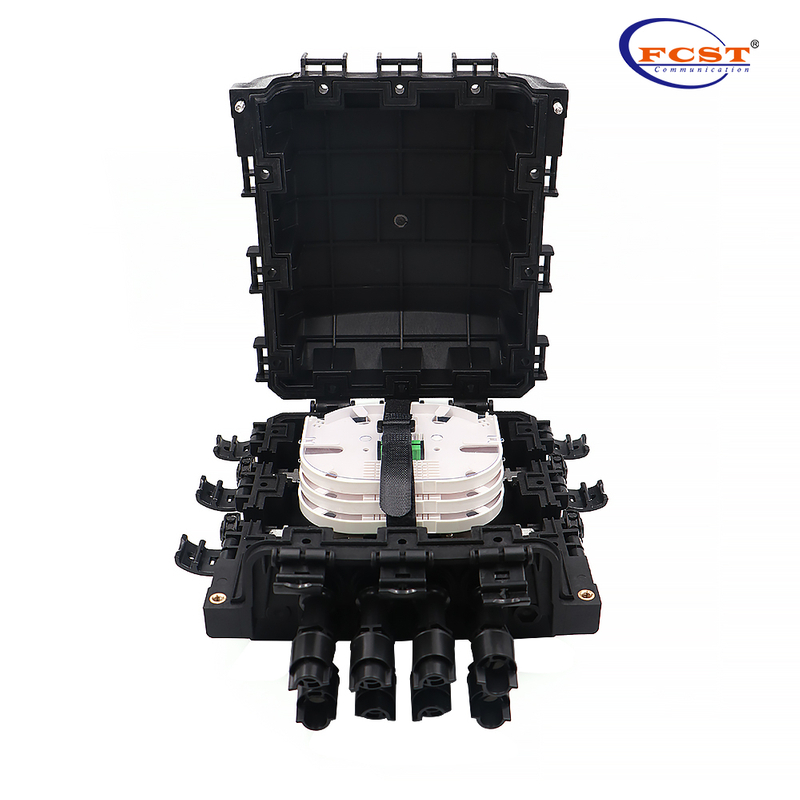

FCST01170 Fiber Optic Splice Closure

5 0 Reviews
FCST01170 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 3 trays to splice total 72 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.
Availability:
Quantity:
  • FCST01170
  • FCST
  • FCST01170

Product Overview

      FCST01170 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 3 trays to splice total 72 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.

Product Advantages

  • lExcessive fibers can be stored in storage baskets. Easy in fiber management.

  • Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.

  • Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

  • The splice trays are hinged for access to any splice tray, without disturbing other trays.

  • The inner parts and fixing parts are made of stainless steel

  • With a earthing device protect it from damage by lightning

  • Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)

Product Specifications

Construction

Description

Max. Capacity

36F

Material

PP+GF

Dimension (mm)

248*276*124.5

Inlets/Outlets

4/8

Installation

Pole/Aerial/Manhole

Net Weightg

1800

Protection Level

IP65

Diameter Of Fiber Cable

Φ7mm~φ18mm

Sealing Mode

Mechanical and heat-shrinkable seals

Number Of Trays

3

Capacity Of Tray

12F

Built-in Adapter

8 pcs SC/UPC or SC/APC

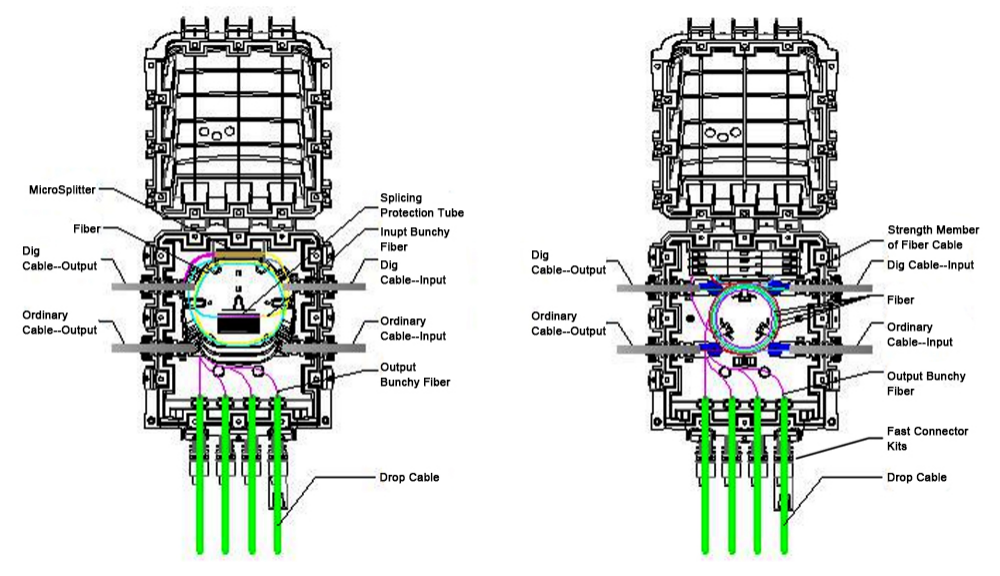

Product Structure

FCST01170(8)

Packing Information

FCST01170(10)
