FCST01111
FCST
FCST01111
Product Overview

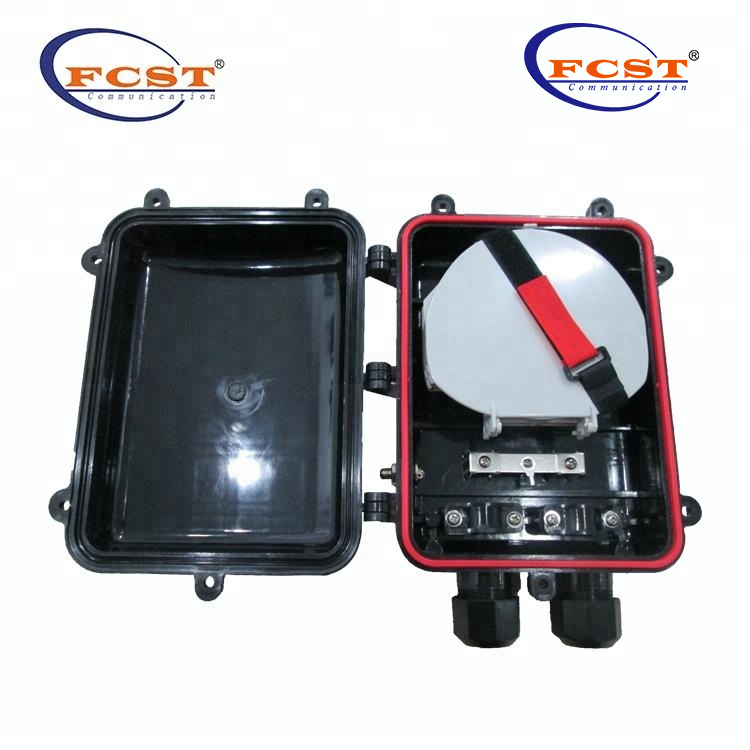

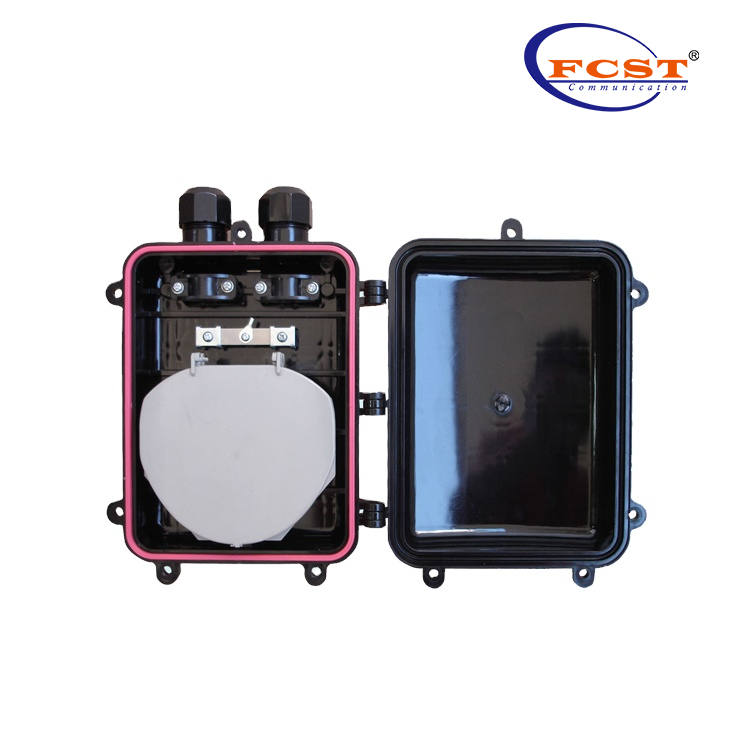

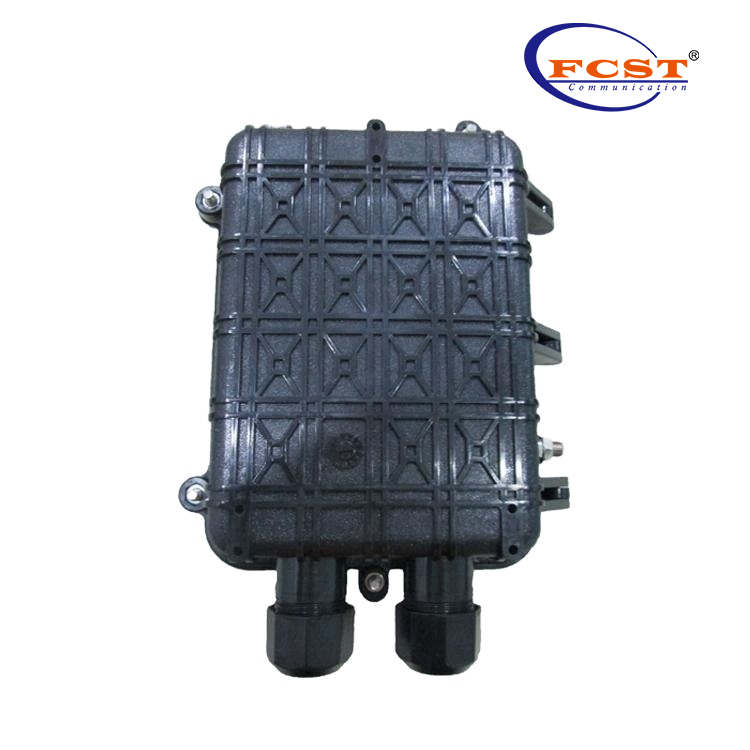

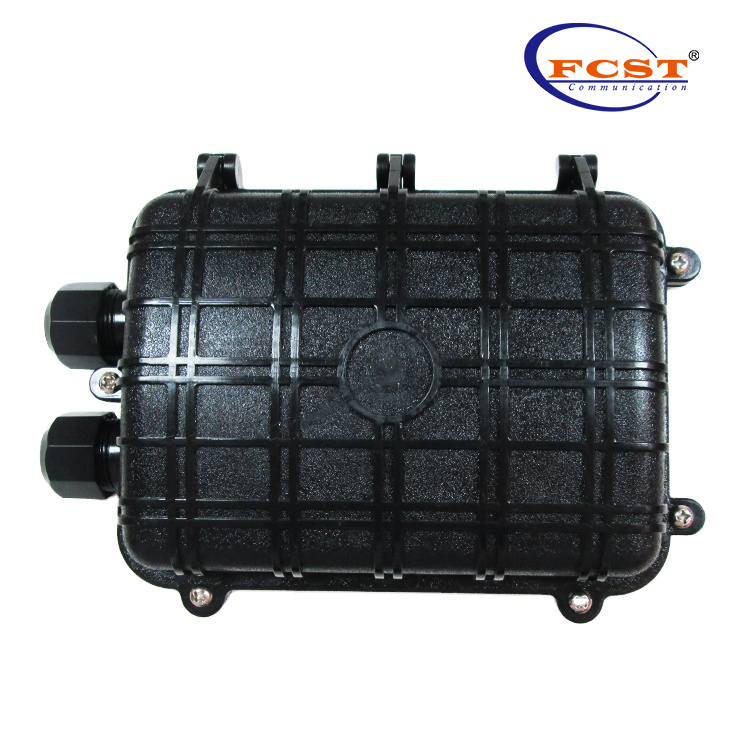

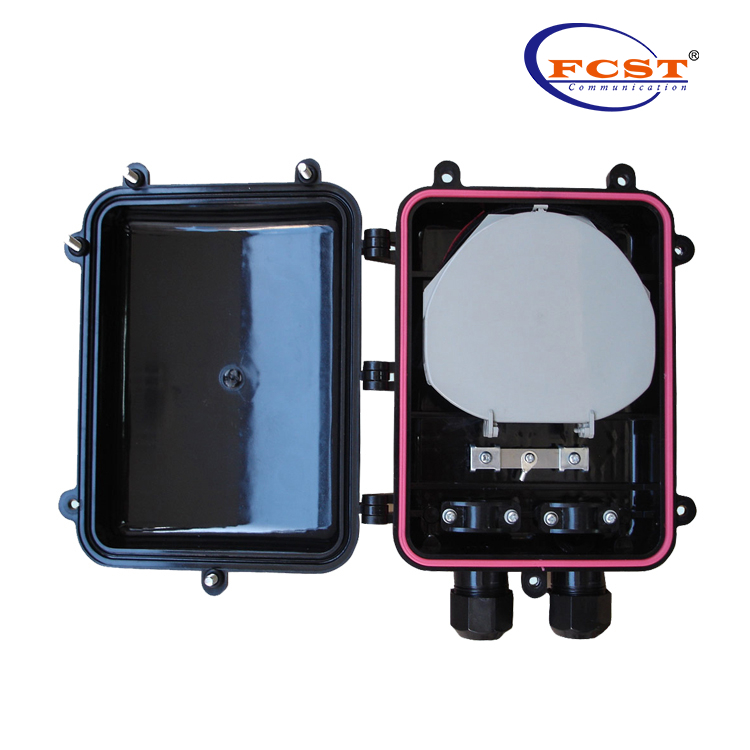

FCST01111 Fiber Optic Splice Closure provides space and protection for the fiber optic cable splicing and joint.Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.
Product Advantages
l Advanced internal structure design, thus fiber suffering no attenuation.
l The closure is spacious enough for winding and storing fibers.
l Flip style fiber splice trays are designed.
l The curved radius meets with international standard.
l Easy and fast to increase and reduce splice tray.
l Innovative elastic integrated seal fitting.
l With the function of reuse and capacity expansion for many times.
l With the function of electric connection and disconnection for electrical for the fiber optic cables.
Product Specifications
Construction | Description |
Max. Capacity | Bunchy:12-96(cores) Ribbon:up to 144(cores) |
Material | PP+GF |
Dimension (mm) | 280*200*90 |
Inlets/Outlets | 2 or 4 pieces |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Net Weight（g） | 1100 |
Protection Level | IP67 |
Diameter Of Fiber Cable | Φ8mm~φ14mm |
Sealing Mode | Mechanical |
Packing Information
Construction | Description |
Outside Dimension（L*M*H）mm | 295*200*100 |
Weight/PC（kgs） | 1.3 |
Carton size（L*W*H）mm | 610*330*425 |
Qty/CTN（pcs） | 12 |
Weight/CTN（kgs） | 16.7 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
