FCST-TH-SMC04
FCST
Application Of SMC Telecom Manhole Chamber in ODNODN architecture (Optical Distribution Network), optical distribution network is an FTTH optical cable network based on PON equipment. Its role is to provide an optical transmission channel between the OLT and the ONU.

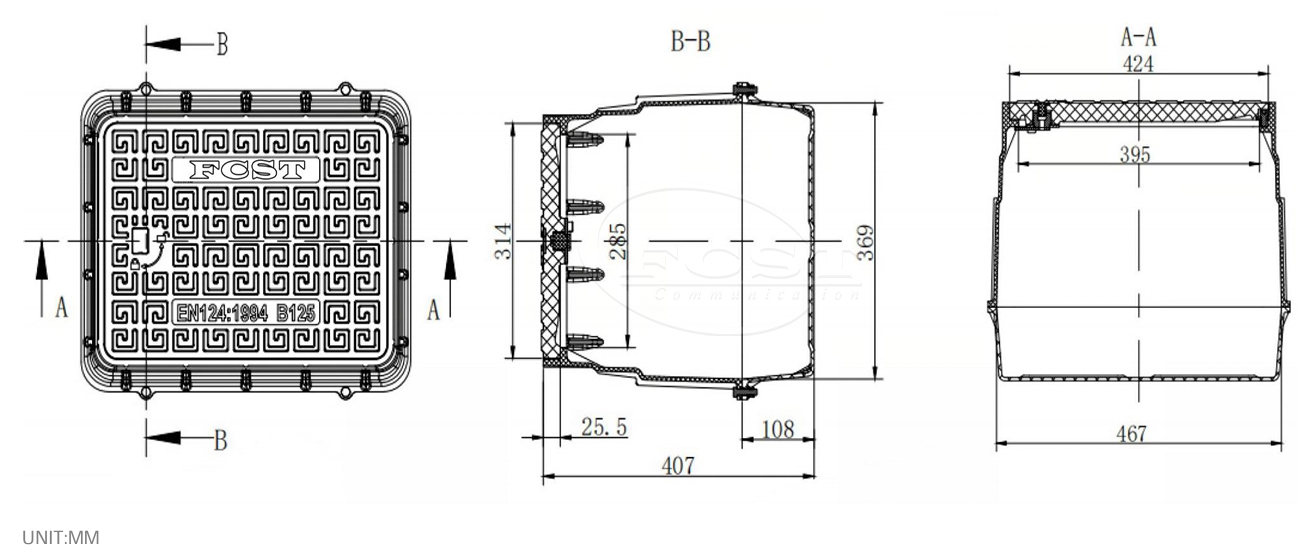

Product Size
Enclosure Model | Enclosure Size | Manhole Cover Size | Maximum Error | Manhole Cover Load Grade | |||||||||
L | I | W | w | H | h | C | D | E | A | B | ±3 | B125(12.5T) applies to sidewalk, bicyclelane,small car parks and underground parking. | |
FCST-TH-SMC04 | 442 | 395 | 22.5 | 108 | 369 | 314 | 407 | 467 | 2φ5 | 424 | 314 | ||
Product Advantages
lBearing capacity:
The cable access chamber uses high-strength and high-modulus thermosetting SMC composite material, which has good mechanical
properties, stable structure, and deformation resistance. The axial load can reach 100 KN, and the lateral load can reach 40 KN.
lCorrosion resistance:
The telecom chamber has good chemical corrosion resistance (acid, alkali, salt, organic solvent, etc.), long-term use in the underground environment.
lResistance to high and low temperature:
The access chamber not only has a high heat distortion temperature, but also maintains good performance at low temperatures. Telecom chamber can be used for a long time at the temperature of -40~100C.
lNon-conductive:
The product has excellent insulation, can maintain good dielectric properties and high reliability at high frequencies.
lEasy installation:
The installation process is simple, and it can be completed by referring to the installation manual. Product installation won't be
affected by climate, and can be constructed all day.
lLow logistics cost:
The product has a simple structure and can be split into parts, which occupies a smaller space during transportation and storage,
which is convenient for container transportation.
lLong service life:
The product has excellent anti-aging properties, and the buried service life is more than 30 years.
Product Structure
Product Specifications
Products comply with EN124:1994 standards.
Chemical Resistance Performance
Chemicals | Concentrated Sulfuric Acid | Sodium Hydroxide | Sodium Chloride |
Test Conditions | Soaked in the specified solution for 48h | ||
Test results | No obvious corrosion on the surface, qualityloss <1% | ||
Mechanical Performance
Items | Standard No. | Requirements | Test Results |
Tensile Strength | GB/T1447-2005 | ≥100MPa | 105MPa |
Tensile Modulus | GB/T1447-2005 | ≥10GPa | 11.8GPa |
Bending Strength | GB/T1449-2005 | ≥200MPa | 213MPa |
Flexural Modulus | GB/T1449-2005 | ≥10GPa | 11.3GPa |
Impact Toughness | GB/T1451-2005 | ≥80KJ/㎡ | 90.8KJ/㎡ |
Barr's Hardness | GB/T3854-2005 | ≥50 | 56 |
Chamber Load
Chamber Type | FCST-TH-SMC01 | FCST-TH-SMC02 | FCST-TH-SMC03 | FCST-TH-SMC04 |
Axial Test Load | 100KN | 100KN | 100KN | 100KN |
Lateral Test Load | 40KN | 40KN | 40KN | 40KN |
Thermal Performance
Items | Standard No. | Test Results |
Heat Distortion Temperature | GB/T1634.2-2004 | > 200℃ |
Bending Strength | GB/T9979- 2005(-40°C) | 265MPa |
Flexural modulus | GB/T9979- 2005(-40°C) | 1.43x10^(4)MPa |
Bending strength retention rate | GB/T9979- 2005(-40°C) | 124% |
Flexural modulus retention rate | GB/T9979- 2005(-40°C) | 11.16% |
Linear expansion coefficient | B/T2572-205(26℃~100℃) | 1.66x10^(-5) |
Production Line Show
Production Line Show
Comprehensive Performance Comparison
Comparison Category | Items | Manual Stacking Manhole | SMC Telecom Manhole Chamber | Comparative Analysis |
Engineering Performance Comparison | Craftsmanship | Hand-made on site, uncontrollable quality | Macromolecule resin is used as raw material, factory prefabricated production, one-time injection molding, stable and controllable quality. | The production process of SMC Manhole is more advanced, and the quality is more stable and reliable. |
Construction Conditions | Artificial brickwork, affected by climate and environment Construction period (as rain, high temperature, severe cold) | Not affected by any climate or environment | SMC Manhole can be constructed all day | |
Material Performance | Not resistant to acid and alkali corrosion | Resistant to acid and alkali corrosion | SMC material has better resistance to acid, alkali and salt. | |
Connection Method | Rigid connection, easy to fall off and leak. | Flexible connection, uniform settlement with the pipeline. | The SMC Manhole connection method is more conducive to keeping the well room clean and not easy to leak. | |
Maintain | Irregular maintenance and frequent blockage. | Simple maintenance | The SMC Manhole is easy to maintain, no need to clean up brittle stones, bricks, debris, etc. | |
Service Life | Average service life 5-10 years | Not easy to collapse, construction is safe, and the service life is at least 30 years | The life of SMC material itself is ≥30 years | |
Economic Performance Comparison (take 10 wells as an example) | Number of construction workers | 20 | 2 | SMC Manhole saves labor |
Days spent | 2 days | half of the day | SMC Manhole saves time | |
Comprehensive cost | High | Low | The construction period of the SMC Manhole is short, which saves a lot of labor | |
Prospect | resource utilization | Consuming resources, water resources, and fertile land polluting the environment | Environmental protection and energy saving, land saving, water saving, material saving, recyclable | SMC Manhole energy saving and environmental protection |
development trend | Destroy the environment, waste resources, exit the market | The state focuses on promoting new energy-saving and environmentally-friendly building materials | SMC Manhole conforms to the country's sustainable development | |
Overview | The construction of SMC buried manual wells is flexible and efficient, with simple construction technology, environmental protection and energy saving, low cost and long service life. | |||
Packing And Transportation
Packing description
Due to the structural characteristics of the product, the factory packaging can be selected according to the actual needs of customers,transportation distances, and transportation routes.
Disassembly and transportation
The structure of the product is simple and easy to disassemble, and all the components can be split into discrete parts, which are stacked and bundled flat. It occupies small space, low transportation cost, ,disassembly and bundling are more conducive to product stability, it is convenient to transport and goods damage is small.
Product Application
