NF-PA-7-A PA Wedge Clamp

  • Good anti-corrosion performance.
  • The material is light and easy to carry.
  • It can fixed the wire firmly and doesn'teffect the insulation.
  • FOBshanghai Price:1.518USD/pcs
Availability:
Quantity:
  • NF-PA-7-A
  • FCST
  • NF-PA-7-A

Product Overview

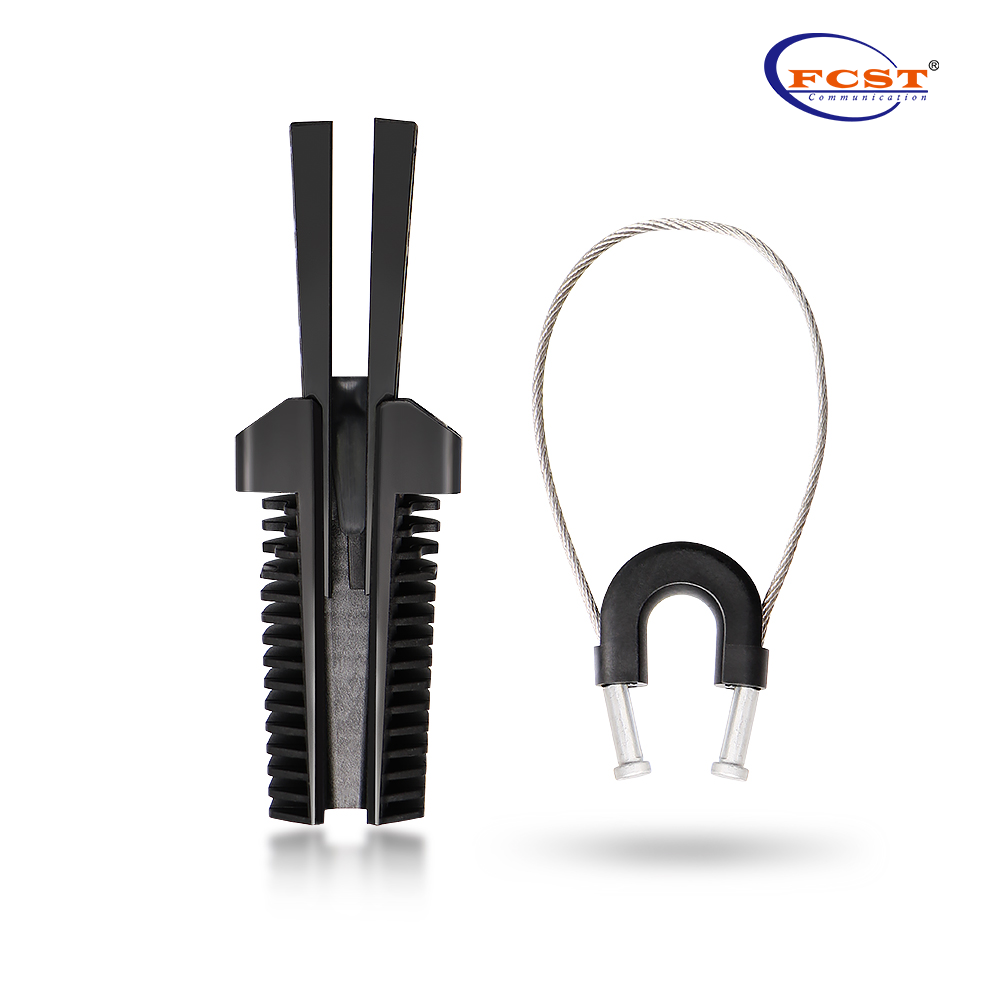

NF-PA-7-A PA Wedge Clamp composed of an opened thermoplastic body with very high mechanical and climatic resistance, an inner sheath consisting one or two insulating plastic wedges ensuring the clamping of the neutral messenger without damaging cable insulation.Two stainless bail ends are compressed on it to lock into clamp. Simple assembling because the wedges open by pulling them back. The flexible steel loop can be fixed into a closed eye bracket.

Product Specifications

Construction

Description

Product Name

NF-PA-7-A PA Wedge Clamp

Cable Type

Figure 8 Nonmetal Lightning Protection Optical CableADSS cable

Cable Diameter

4.5-7mm

Material

Wedge groovePA66 + 50% fiberglass

Steel cableSUS304 material 7*7 strand twisted steel wire rope

Max Spanm

70

Stretching ResistanceN

3000

Salt Spray Test(h)

1000

Product Application

NF-PA-7-A (8)

Packing Information

NF-PA-7-A (7)

Construction

Description

Outside DimensionL*M*Hmm

-

Weight/PCkgs

-

Carton sizeL*W*Hmm

495*245*220

Qty/CTNpcs

60

Weight/CTNkgs

13.1
