NF-PYN-5mm
FCST
NF-PYN-5mm
Product Overview

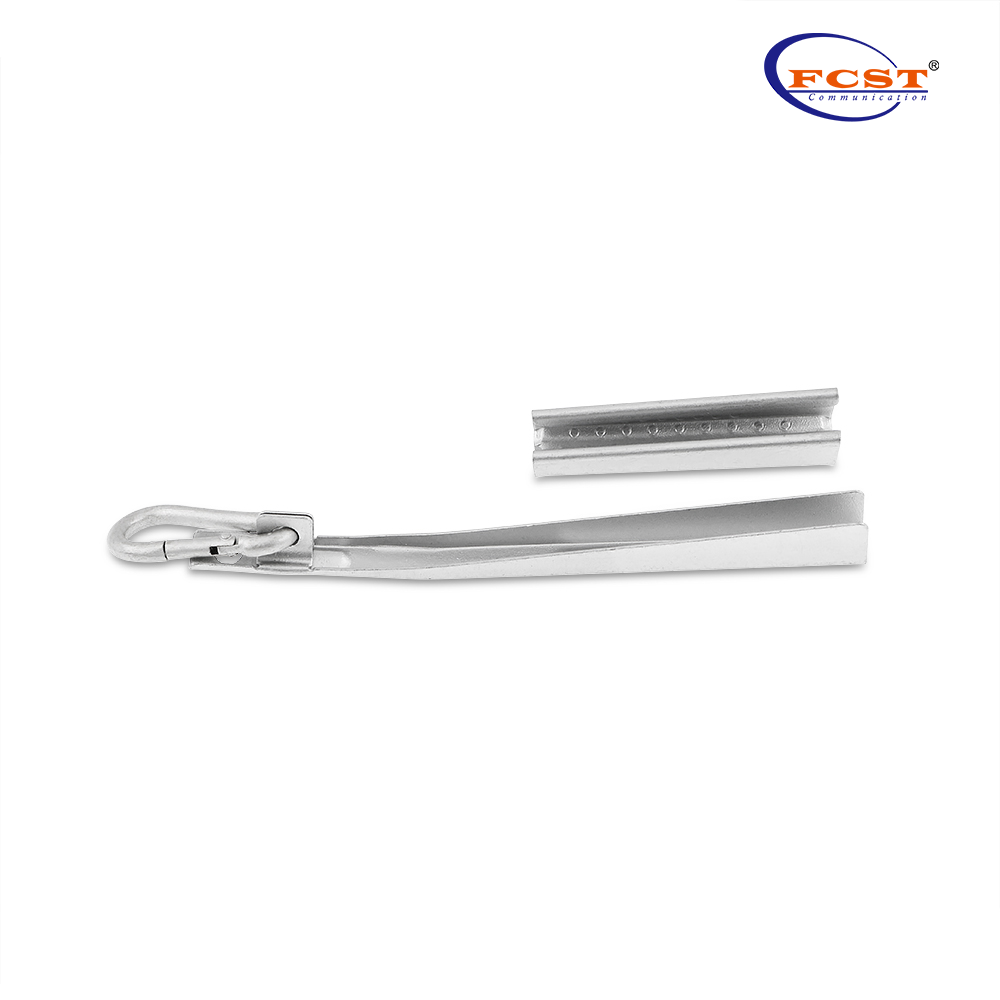

NF-PYN-5 mm Round Optical Cable Clamp is a kind of optical fiber cabling fitting, and it is only used to hold the round drop cable 5mm diameter. In ODN aerial cable installation, the fiber optic wedge clamp is widely used in overhead FTTH installation.
Product Advantages
l Easy to install and uninstall.
l Complete shape, smooth surface and no other defects.
l The aerial drop cable clamp is made of 1.0mm cold stamping galvanized sheet steel with organic coating.
Product Specifications
Construction | Description |
Product Name | NF-PYN-5 mm Round Optical Cable Clamp |
Material | The product is made of 1.0mm cold stamping galvanized sheet steel with organic coating |
Cable Diameter（mm） | Φ5 |
Max Span（m） | 50 |
Stretching Resistance（N） | 1000 |
Salt Spray Test(h) | 720 |
Weight（g） | 64 |
Product Size
Unit:mm
Product Application
Packing Information
Construction | Description |
Outside Dimension（L*M*H）mm | - |
Weight/PC（kgs） | - |
Carton size（L*W*H）mm | 330*220*180 |
Qty/CTN（pcs） | 200 |
Weight/CTN（kgs） | 13.35 |
Inner packing: plastic bag and paper carton. The plastic bag can protect the product from moist and prevent corrosion. The paper carton can protect the product suffering from the squeeze and destruction.
