FCST02216
FCST
FCST02216
Product Overview

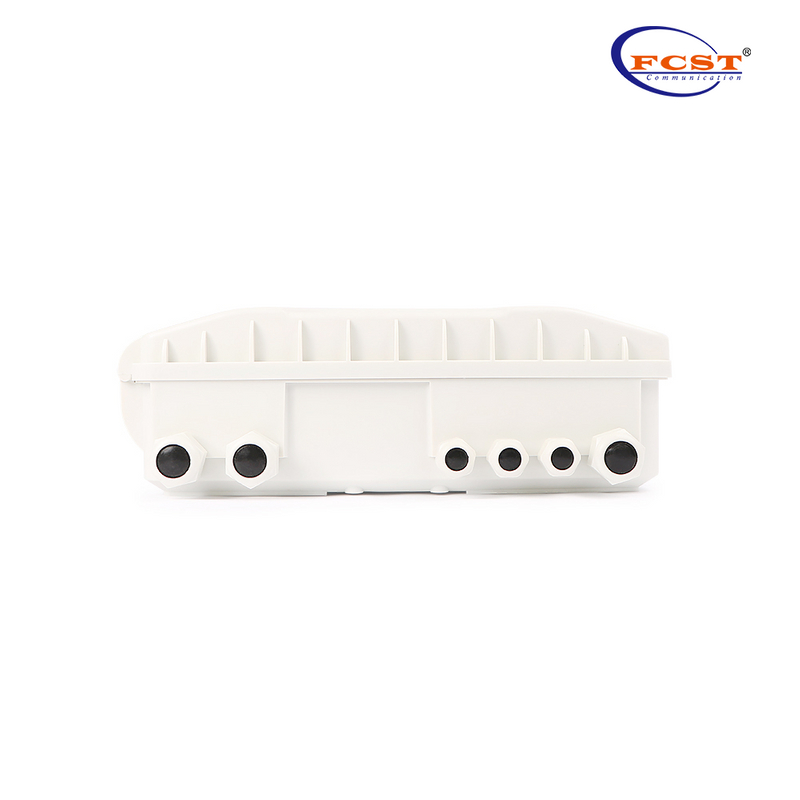

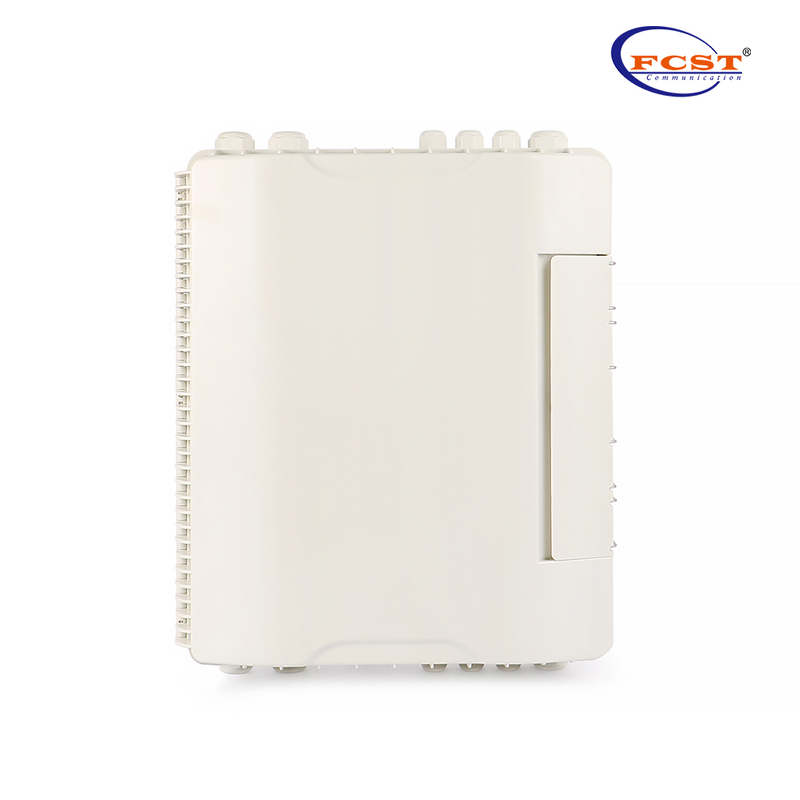

FCST02216 series of fiber optic distribution box is applicable to fiber connection and distribution in fiber distribution network. The material is engineering plastic, good appearance and safe lock-structure, easy installation.
Product Advantages
l Adapter/Optical Splitting: Insertable optical splitter, 4 1:4 and 1:8, 2 1:16, 1 1:32), 48 FC or SC adapters can be installed;
l Installation method: pole, wall-mounted; there is a set of reliable optical cable and leather cable fixing device inside;
l The hasp type can both fasten the sealed box body and protect the lock.

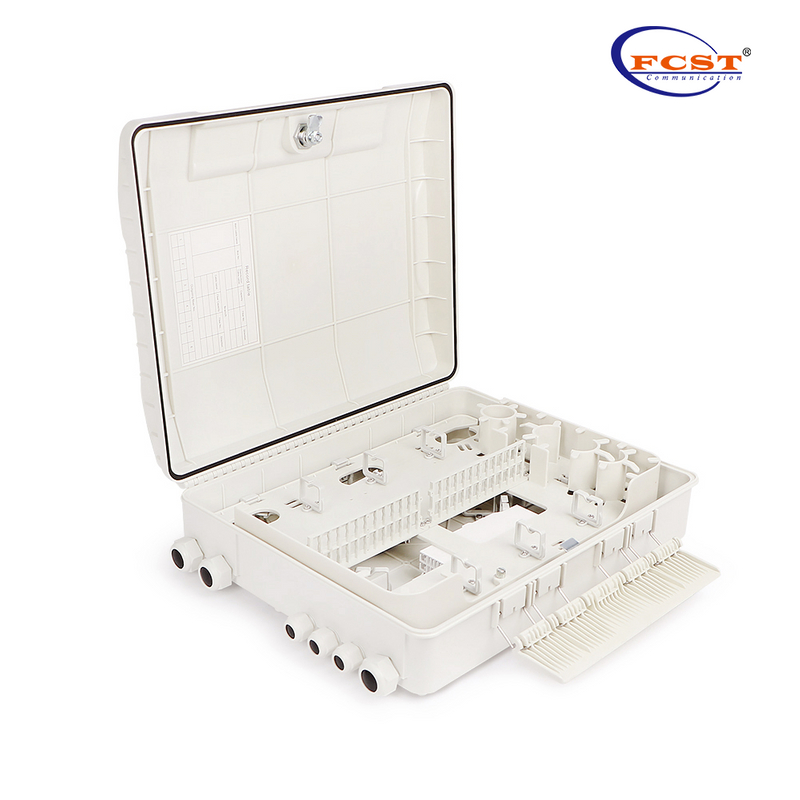

l There are optical fiber fusion splicer protection device and plug-in optical splitter fixing device inside;
Product Specifications
Construction | Description |
Model | FCST02216-A:adopts adapter type FCST02216-B:adopts optical splitter type FCST02216-C:adopts adapter type |
Max. Capacity | 48 Cores |
Dimension (mm) | 504*374*134 |

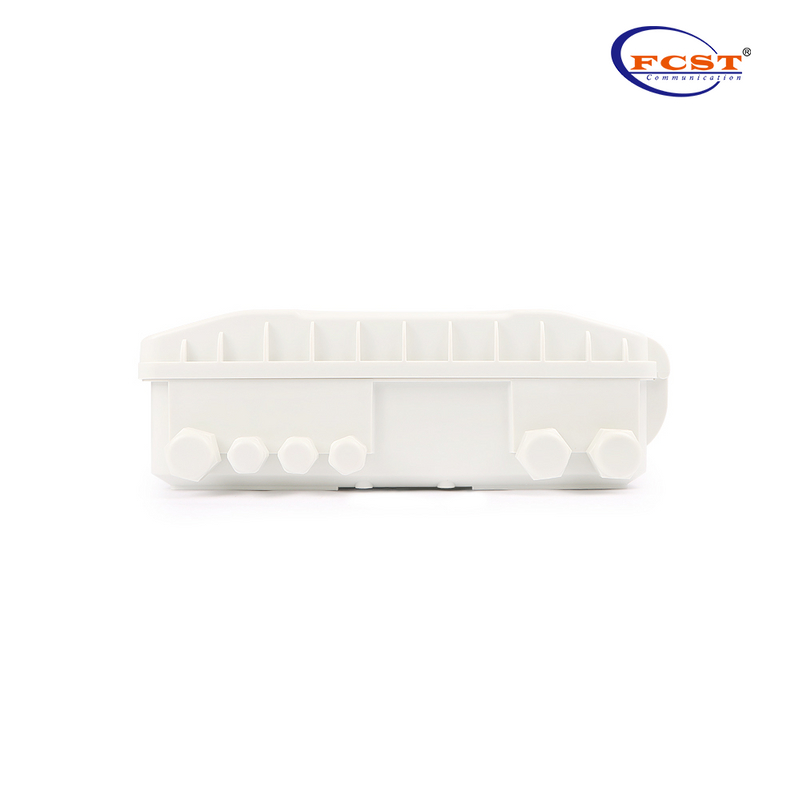

Inlets/Outlets | 2/4 |
Installation | Pole mounting,Wall-mounting |
Net Weight(g) | 5300 |
Protection Level | IP55 |
Diameter Of Fiber Cable | Φ10mm~φ15mm |
Satisfy | Protective connection of figure 8 or Φ3 leather cable |
Packing Information
Construction | Description |
Outside Dimension(L*W*H)mm | 565*420*540 |
Weight/PC(kgs) | 5.4 |
Carton size(L*W*H)mm | 550*405*160 |
Qty/CTN(pcs) | 3 |
Weight/CTN(kgs) | 16.5 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
