Product Overview

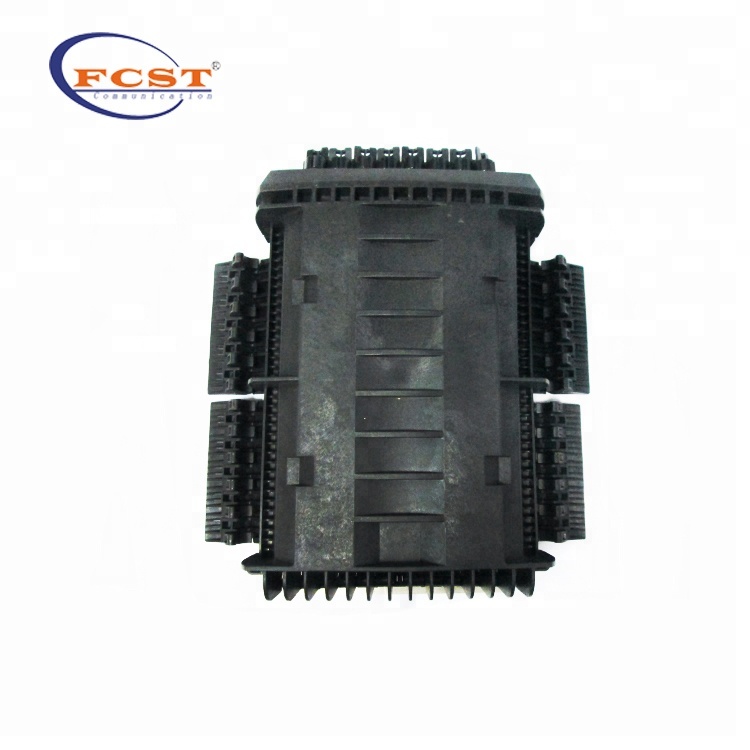

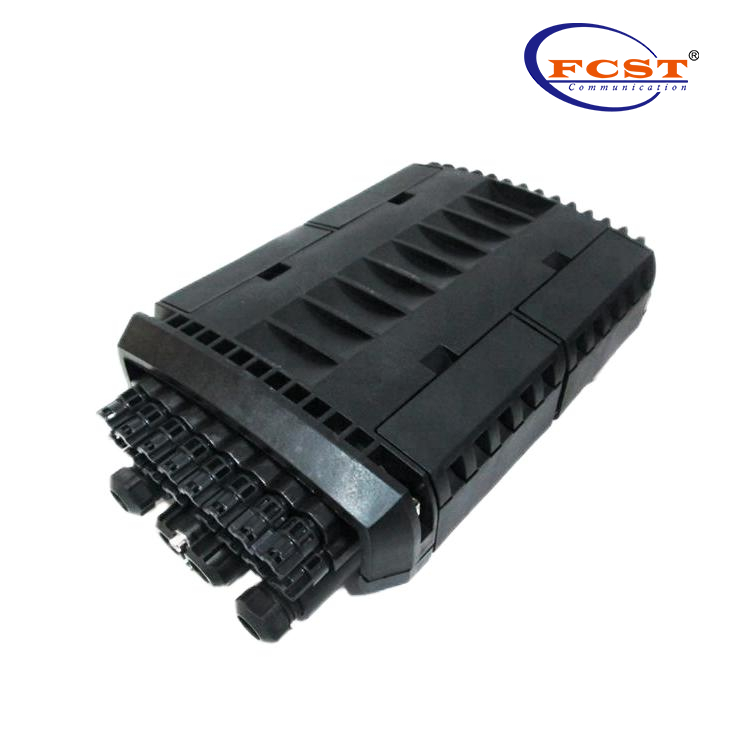

FCST01127 Fiber termination closure is able to hold up 16 subscribers and 96 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution storage and cable connection in one solid protection box.
Product Advantages
l Water-proof design with IP-68 protection standard.

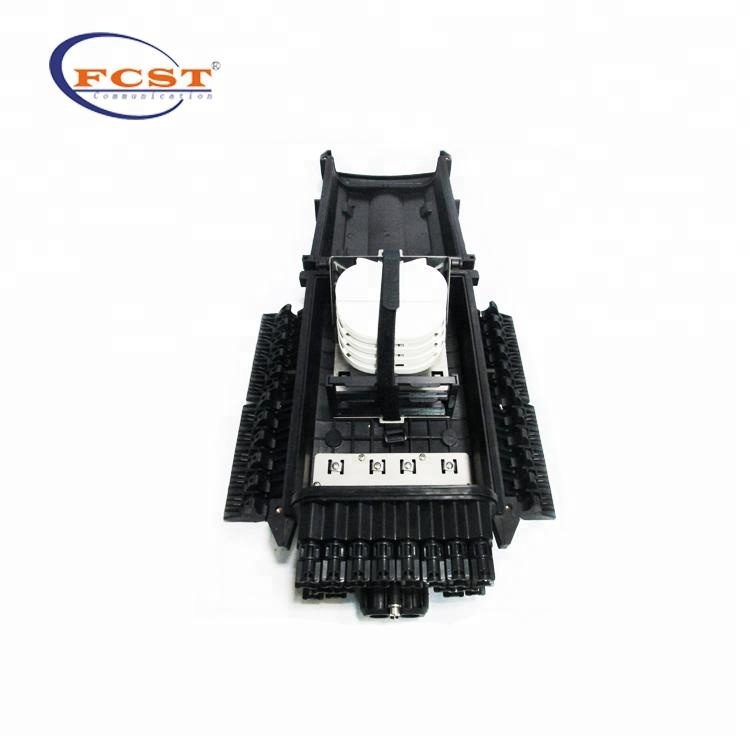

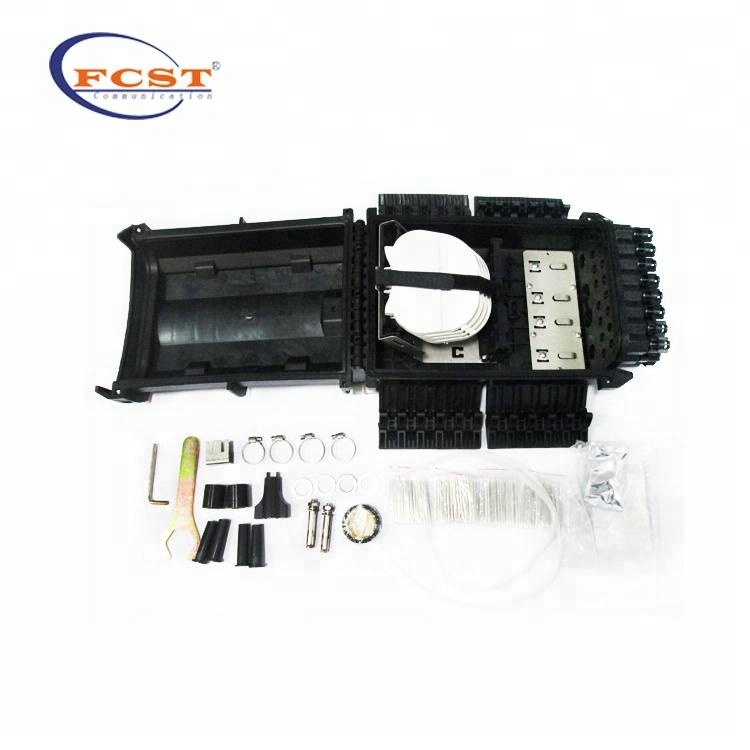

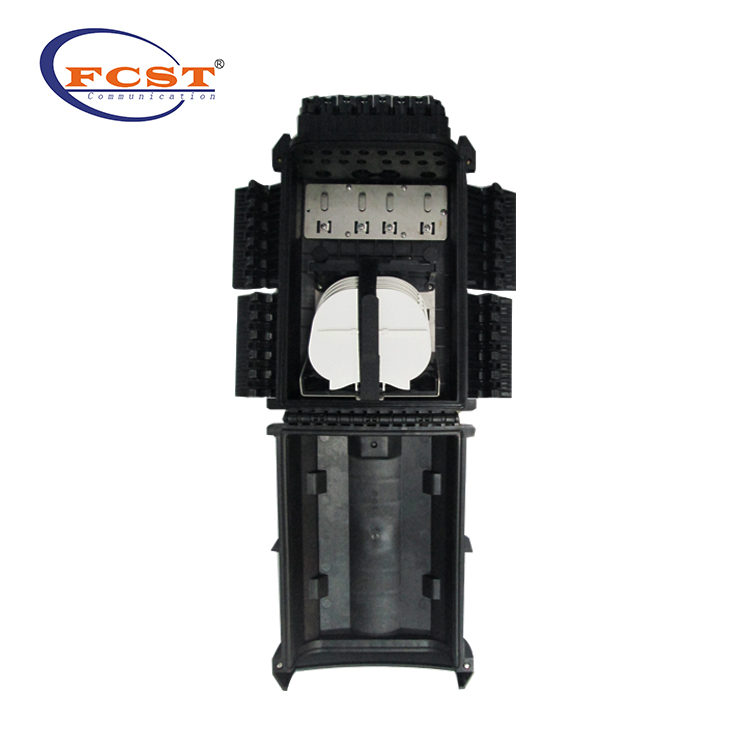

l Integrated with flap-up splice cassette and adaptor holder.
l Impact test: IK10, Pull Force: 100N Full rugged design.
l All stainless metal plate and anti-rusting bolts nuts,
l Fiber bend radius control more than 40mm.
l Suitable for the fusion splice or mechanical splice.
l 2pcs of 1*8 splitter can be installed as an option.
l Mechanical sealing structure and mid-span cable entry.
l 16ports cable entrance for drop cable.
l 24 adaptors for drop cable patching.
Product Applications
l Wall mounting and pole mounting installation.
l FTTH pre-installation and field installation.
l 4-7mm cable ports suitable for 2*3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-support.
Product Specifications
Construction | Description |
Max. Capacity | Single:16Cores |
Material | PP+GF |
Dimension (mm) | 385*245*130 |
Inlets/Outlets | 4/16 |
Installation | Pole-mounting/Wall-mounted |
Net Weight（g） | 4500 |
Protection Level | IP68 |
Optional Accessories | Pigtail，Adapter |
Input Cable Method | Cutting |
PLC Splitter Available | Yes |
PLC Splitter Type | Tube splitter |

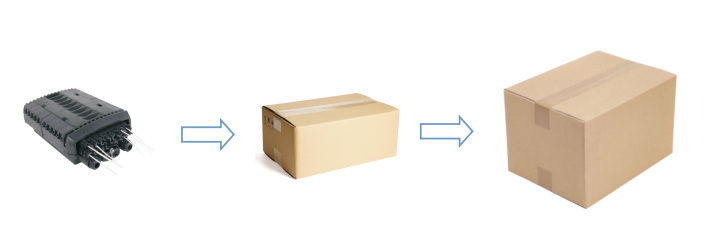

Packing Information
Construction | Description |
Outside Dimension（L*W*H）mm | - |
Weight/PC（kgs） | 4.6 |
Carton size（L*W*H）mm | 530*430*340 |
Qty/CTN（pcs） | 4 |
Weight/CTN（kgs） | 18.5 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
