FCST01105
FCST
FCST01105
Product Overview

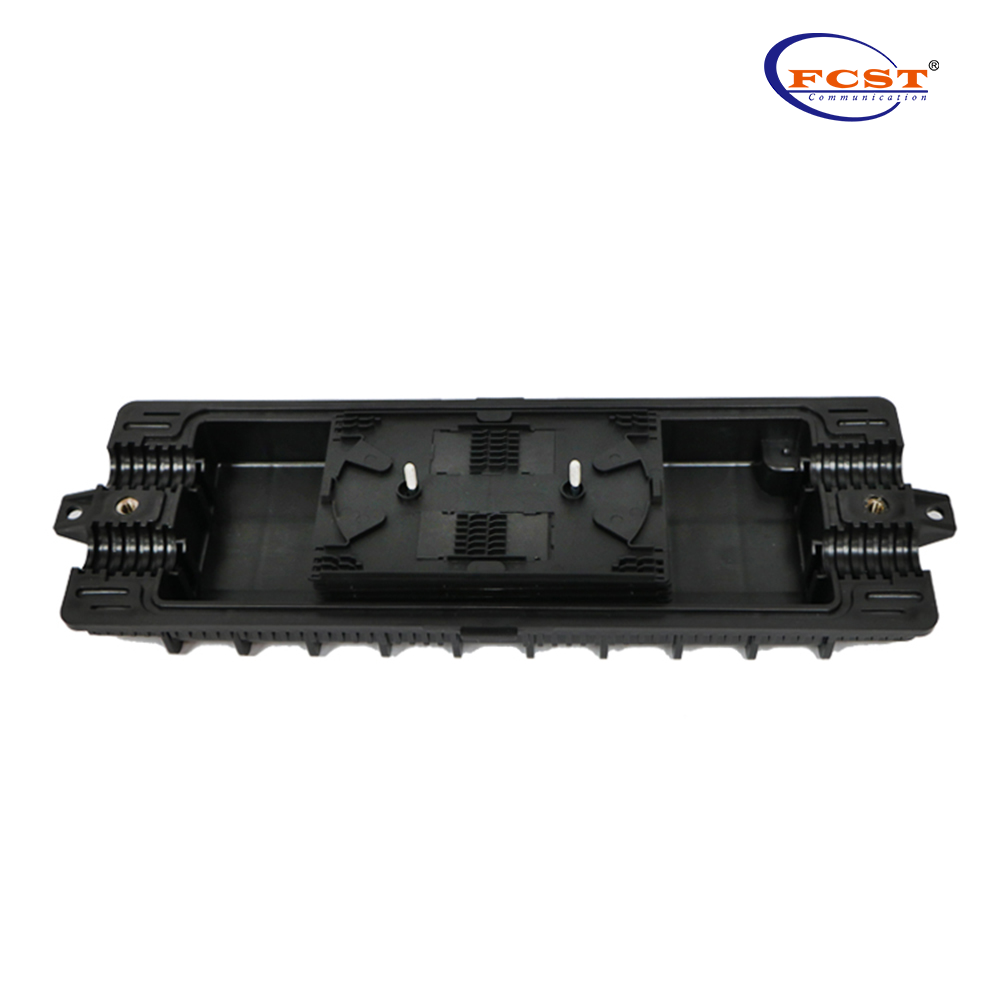

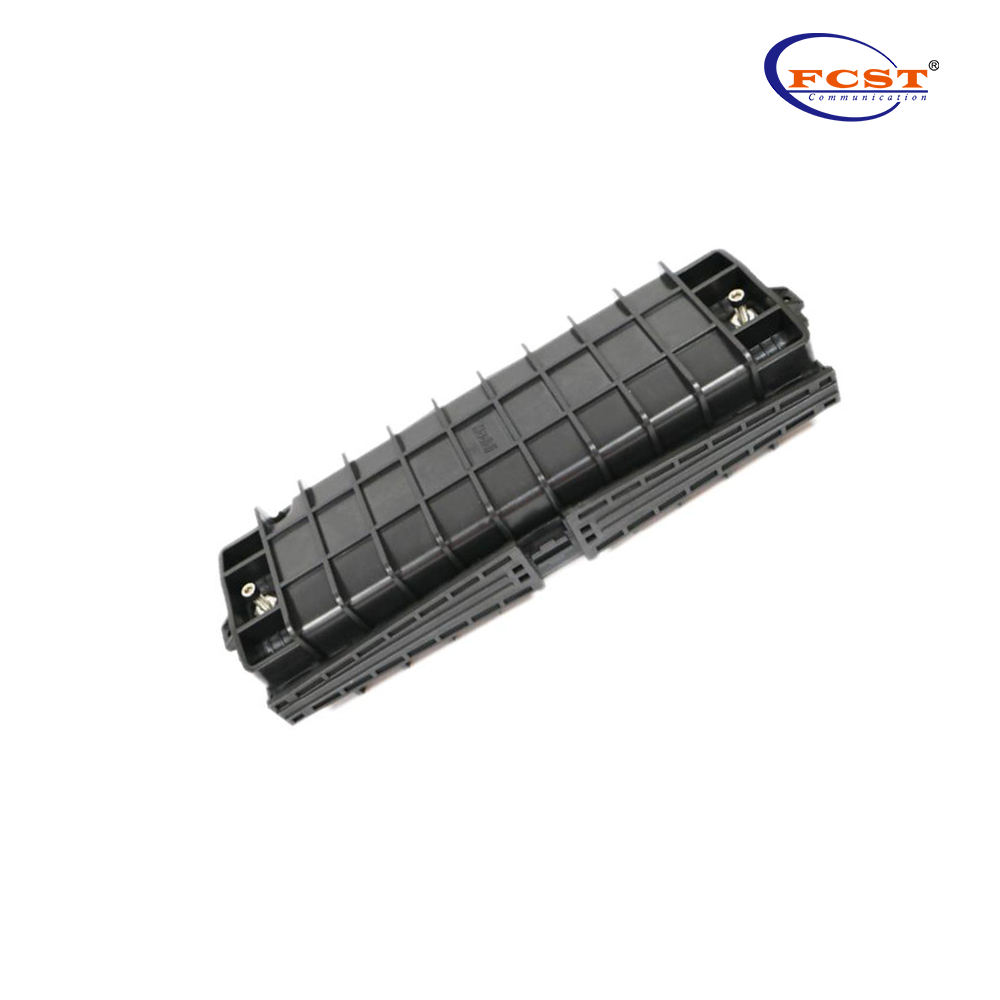

FCST01105 Optic Fiber Splice Closures is another new member of FCL-L Series fiber optic splice case family. It can be used in outside plant, underground, aerial, pedestal and direct buried applications. The Fiber Optical Splice Closures inherit the good features of FCL-L Series fiber optic splice case family. At the same time, it decreases the manufacturing cost, which make the product more cost effective and guarantees high quality.
Product Advantages
l Use in outside plant, underground, aerial, pedestal and direct buried applications.
l Prevents cable sheath movement with temperature changes.
l Expandable system to fit capacity and space requirements.
l No compound required; easy installation and reentry; easy reentry and reusable seal.
l Accommodates all common trunk, feeder cable sizes, and many types of splices.
Product Specifications
Construction | Description |
Max. Capacity | 12-48cores |
Material | PP+GF |
Dimension (mm) | 485*171*108 |
Inlets/Outlets | 2/2 |
Installation | Pole/Aerial/Manhole |
Net Weight（g） | 3000 |
Protection Level | IP67 |
Diameter Of Fiber Cable | Φ10mm~φ25mm |
Sealing Mode | Mechanical |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
Product Advantages

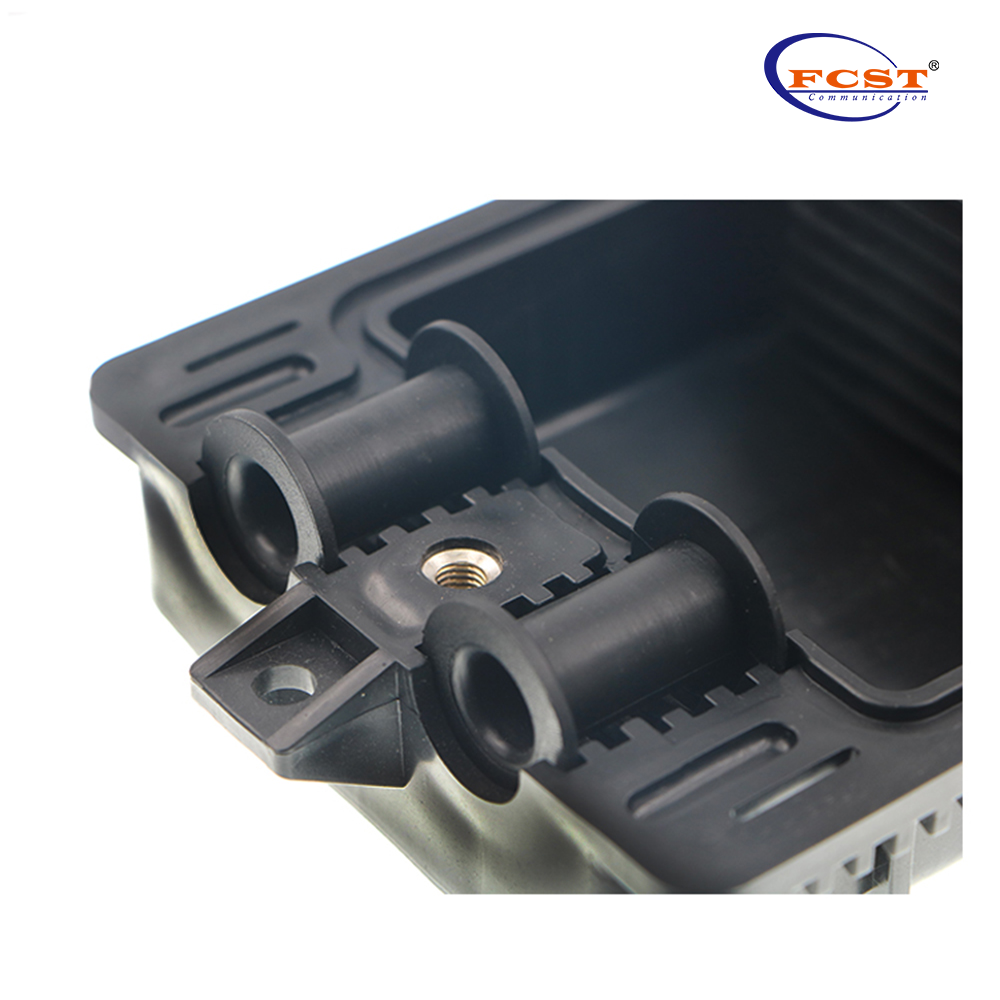

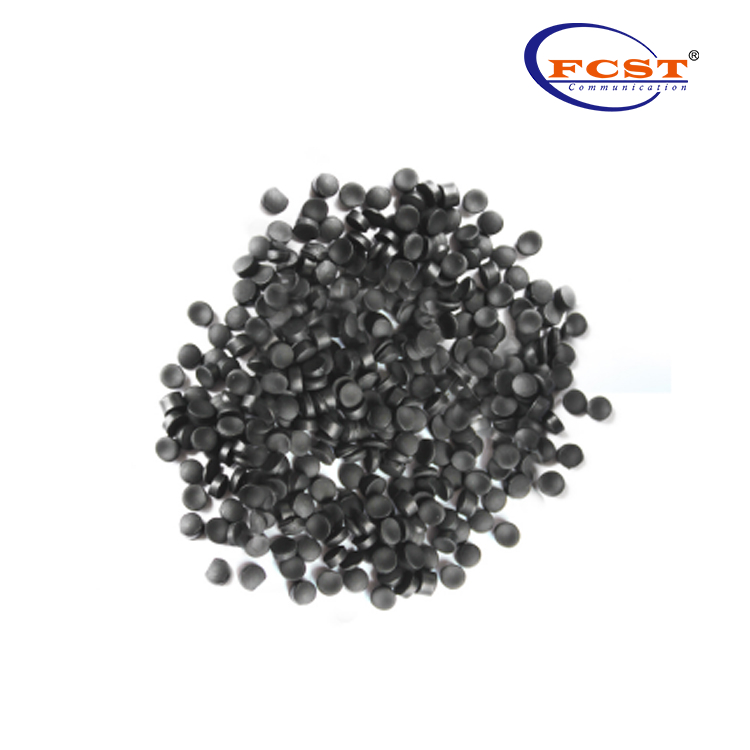

Using high-strength PP engineering plastics, anti-aging and anti-oxidation, increase service life.

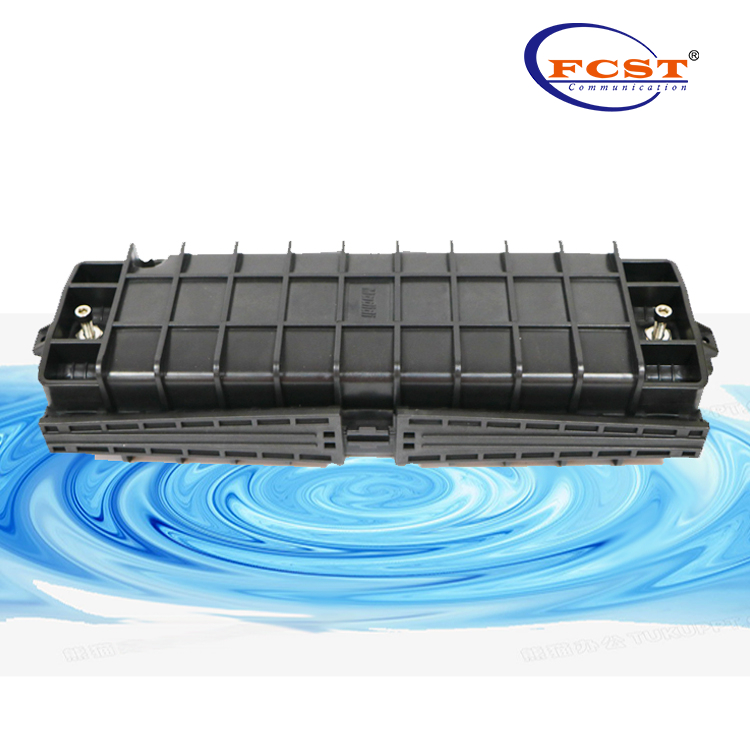

Super waterproof, reliable sealing performance.

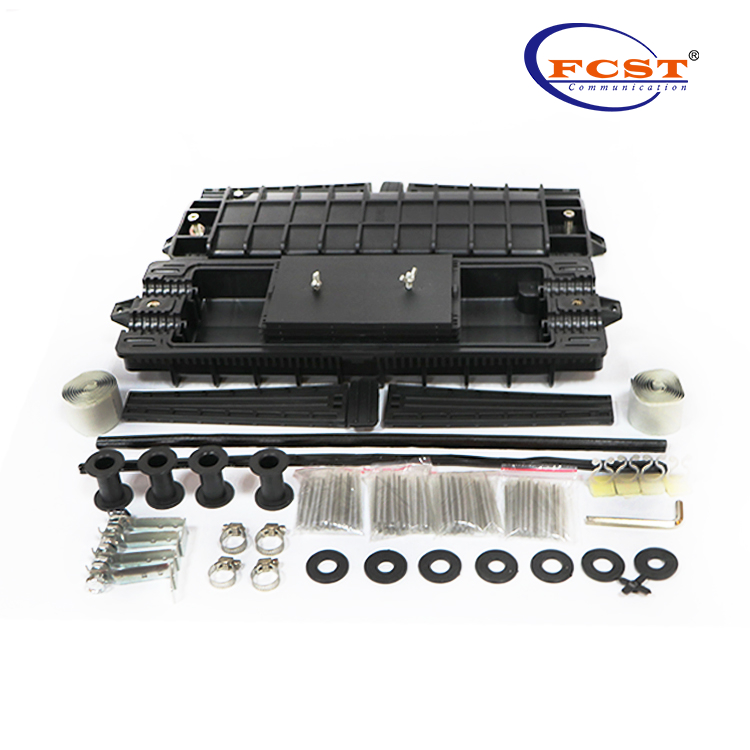

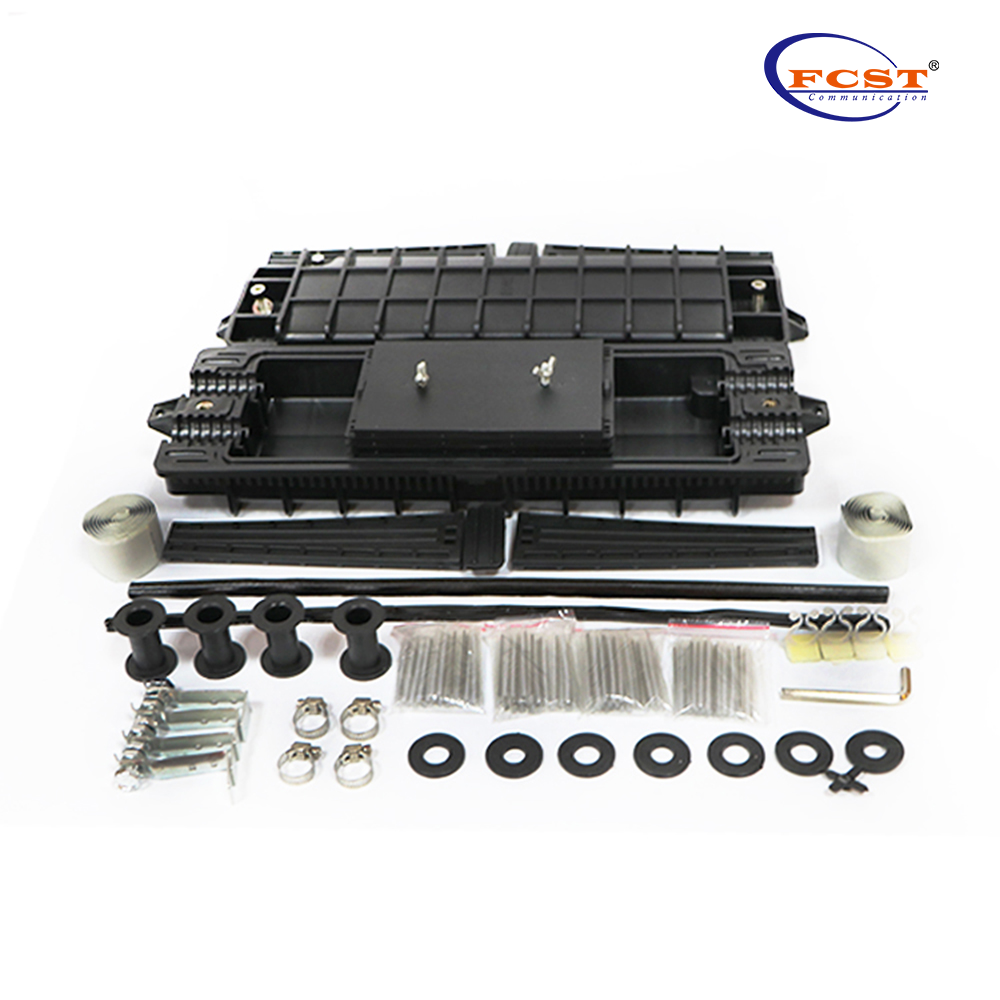

Complete Accessories
Small size, large capacity, complete accessories make your maintenance more convenient.
Product Application
It is suitable for telecommunications, railways, video surveillance, new energy, cable television and many other fields.
