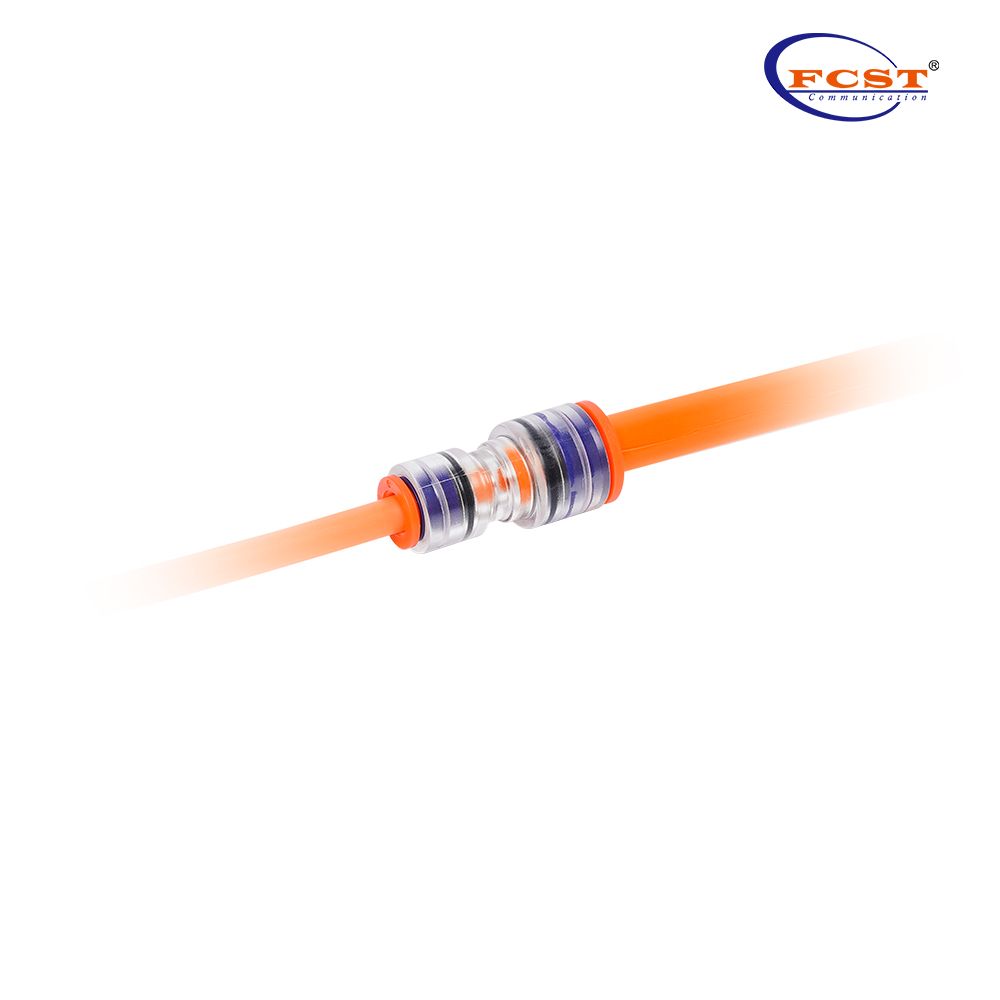

14mm to 10mm Micro Duct Push-fit Reducer For Blown Fibre

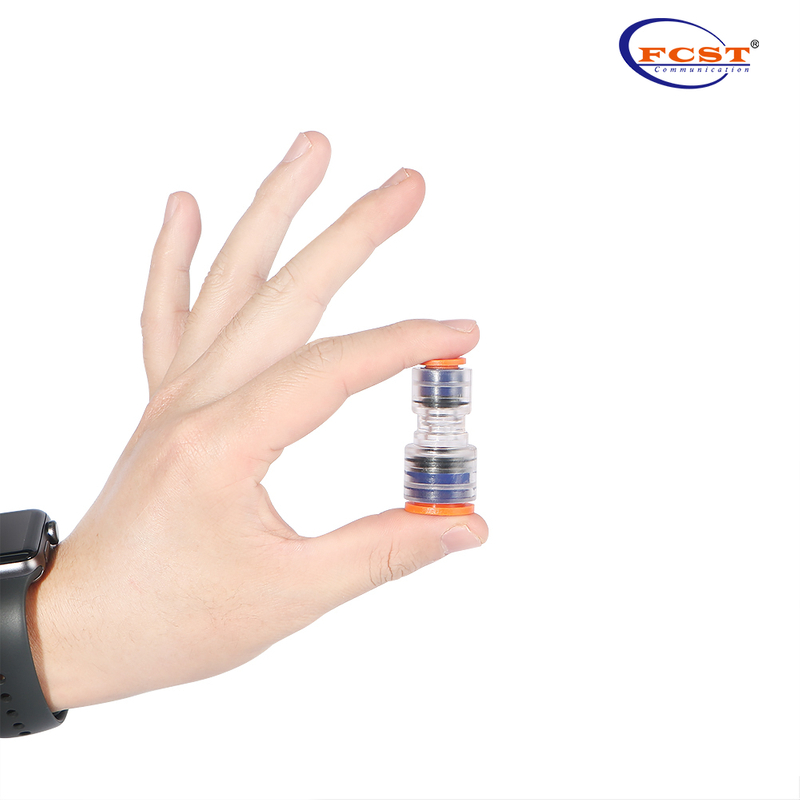

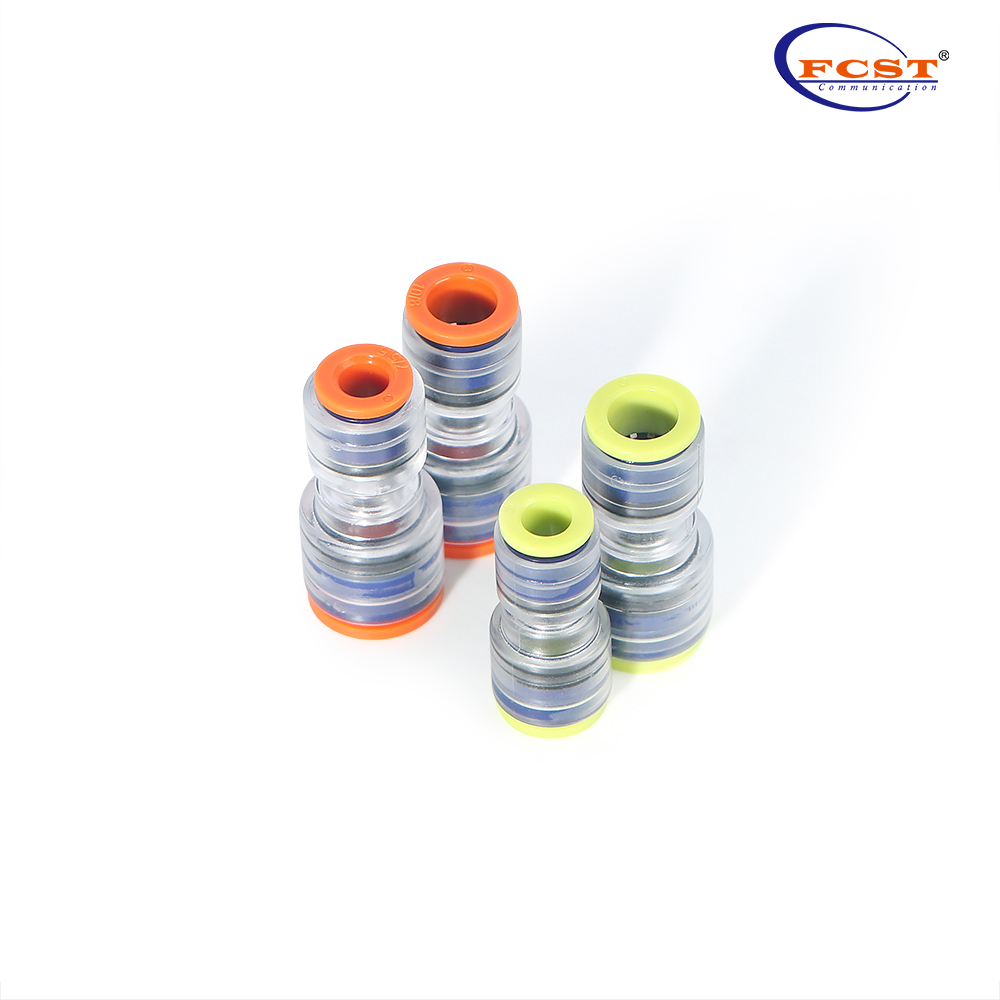

Push-fit Reducer for Blown Fibre in Crystal clear transparent body.
The microduct connector is easy “push-in” installation.
Fiber microduct reducer for 3 to 20 mm microducts.

Availability:

Model:
14mm to 10mm Micro Duct Push-fit Reducer For Blown Fibre
Brand:
FCST
Code:
14mm to 10mm Micro Duct Push-fit Reducer For Blown Fibre

Product Description

Product Overview

These Microduct Connector Reducer were developed to connect microducts with each other. Our system enables an easy, fast connection and disconnection of the microduct. Microduct Connector Reducer ’ robust construction resistance to high pressure forces, allowing microduct reducer to be used in direct buried (DB) applications. Micro duct connector transparent body enables easy visual inspection of the cable with in the micro duct connector.

Product Advantage

lFor 3-20 mm Microducts.

lMicroduct reducer with easy “push-in” installation.

lCrystal clear transparent body.

l95% of the material is made of non-metal.

lLocking rings to prevent accidental removal of microduct connector.

Product Specification

alt Micro duct reducer structure

Model	D1	D2	A1	A2	B1	B2	L
ERPG5-3/2.1	3	5	13.5±0.2	13.5±0.2	2.1±0.12	2.1±0.12	35.8±0.5
ERPG5/3.5-3/2.1	3	5	13.5±0.2	13.5±0.2	2.1±0.12	3.5±0.12	35.8±0.5
ERPG6-4/3.5	4	6	11±0.2	13.5±0.2	3.5±0.12	3.5±0.12	33±0.5
ERPG7/4-3/2.1	3	7	15.2±0.2	15.2±0.2	2.1±0.12	4.0±0.12	41.2±0.5
ERPG7/4-4/3.5	4	7	15.2±0.2	15.2±0.2	3.5±0.12	4.0±0.12	41.2±0.5
ERPG7/5-4/3.5	4	7	15.2±0.2	15.2±0.2	3.5±0.12	5.0±0.12	41.2±0.5
ERPG7-5/3.5	5	7	15.2±0.2	15.2±0.2	3.5±0.12	3.5±0.12	41.2±0.5
ERPG7/4-5/3.5	5	7	15.2±0.2	15.2±0.2	3.5±0.12	4.0±0.12	41.2±0.5
ERPG8-6/5	8	6	13.5±0.2	15.2±0.2	5.0±0.12	5.0±0.12	35±0.5
ERPG10/6-7/4	7	10	15.2±0.2	17.5±0.2	4.0±0.12	6.0±0.12	38±0.5
ERPG10/7-6/4	6	10	15.2±0.2	17.5±0.2	4.0±0.12	7.0±0.12	38±0.5
ERPG10-7/5	7	10	15.2±0.2	17.5±0.2	5.0±0.12	5.0±0.12	38±0.5
ERPG10/8-7/5.5	7	10	15.2±0.2	17.5±0.2	5.5±0.12	8.0±0.12	38±0.5
ERPG10/5.5-8/5	8	10	15.2±0.2	17.5±0.2	5.0±0.12	5.5±0.12	38±0.5
ERPG12/8-7/4	7	12	15.2±0.2	21.5±0.2	4.0±0.12	8.0±0.12	45±0.5
ERPG12/8-8/5.5	8	12	15.2±0.2	21.5±0.2	5.5±0.12	8.0±0.12	45±0.5
ERPG12/8-10/6	10	12	17.5±0.2	21.5±0.2	6.0±0.12	8.0±0.12	44.4±0.5
ERPG12/8-10/8	10	12	17.5±0.2	21.5±0.2	8.0±0.12	8.0±0.12	44.4±0.5
ERPG12-10/8	10	12	17.5±0.2	21.5±0.2	8.0±0.12	8.0±0.12	44.4±0.5
ERPG12/10-10/8	10	12	17.5±0.2	21.5±0.2	8.0±0.12	10±0.12	44.4±0.5
ERPG14/10-10/6	10	14	17.5±0.2	23.5±0.2	6.0±0.12	10±0.12	48.5±0.5
ERPG14/10-10/8	10	14	17.5±0.2	23.5±0.2	8.0±0.12	10±0.12	48.5±0.5
ERPG14/10-12/8	12	14	21.5±0.2	23.5±0.2	8.0±0.12	10±0.12	48.5±0.5
ERPG14/10-12/10	12	14	21.5±0.2	23.5±0.2	10±0.12	10±0.12	48.5±0.5
ERPG14/11-12/10	12	14	21.5±0.2	23.5±0.2	10±0.12	11±0.12	48.5±0.5
ERPG16/12-12/8	12	16	23.5±0.2	25.3±0.2	8±0.12	12±0.12	50.5±0.5
ERPG16/12-12/10	12	16	23.5±0.2	25.3±0.2	10±0.12	12±0.12	50.5±0.5
ERPG16/12-14/10	14	16	23.5±0.2	25.3±0.2	10±0.12	12±0.12	50.5±0.5
ERPG18/14-14/10	14	18	25.3±0.2	32.7±0.2	10±0.12	14±0.12	55.8±0.5
ERPG18/14-16/12	16	18	25.3±0.2	32.7±0.2	12±0.12	14±0.12	55.8±0.5
ERPG20/16-14/10	14	20	25.3±0.2	32.7±0.2	10±0.12	16±0.12	55.8±0.5
ERPG20-16/12	16	20	25.3±0.2	32.7±0.2	12±0.12	12±0.12	55.8±0.5
ERPG20/16-16/12	16	20	25.3±0.2	32.7±0.2	12±0.12	16±0.12	55.8±0.5
