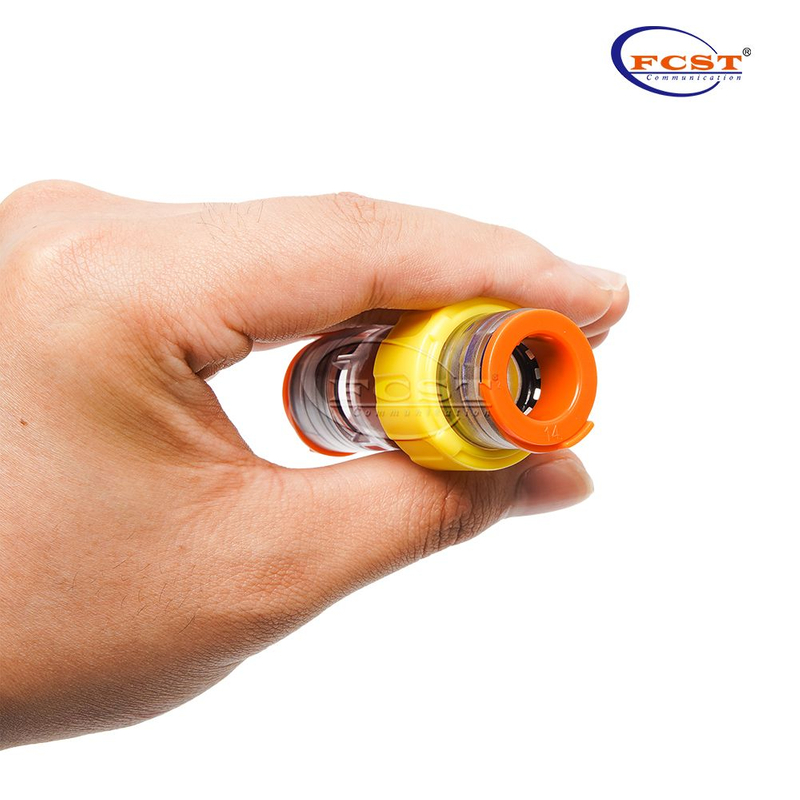

Micro Duct Gas Block Connector 14mm
FCST
Micro Duct Gas Block Connector 14mm
Product Overview
This Gas-Water Block Micro Duct Connector is used to prevent the liquid flowing between the connected micro ducts at transformation point. Thus, avoid fluid(gas) entering the micro ducts, and damage the equipment.
Product Advantages
lFor 5 to 20 mm microducts.
lTube connector gas-block with easy “push-in” installation.
lCrystal clear transparent body.
l95% of the material is made of non-metal.
lRugged design for direct buried and above ground use.
Product Specification
Model | D1 | D2 | A1 | A2 | B | L | Weight(g) |
GSA5 | 5 | 5 | 13.5±0.2 | 13.5±0.2 | 2.5±0.12 | 44±0.5 | - |
GSA6 | 6 | 6 | 13.5±0.2 | 13.5±0.2 | 2.5±0.12 | 44±0.5 | - |
GSA7 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 4±0.12 | 50.5±0.5 | 8.6±0.1 |
GSA7 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 4.5±0.12 | 50.5±0.5 | 8.6±0.1 |
GSA8 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 4±0.12 | 50.5±0.5 | 8.6±0.1 |
GSA8 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 4.5±0.12 | 50.5±0.5 | 8.6±0.1 |
GSA10 | 10 | 10 | 17.5±0.2 | 17.5±0.2 | 8±0.12 | 59.5±0.5 | 11.6±0.1 |
GSA12 | 12 | 12 | 21.5±0.2 | 21.5±0.2 | 8±0.12 | 64.5±0.5 | 18.6±0.1 |
GSA14 | 14 | 14 | 23.5±0.2 | 23.5±0.2 | 10±0.12 | 69.5±0.5 | 23.6±0.1 |
GSA16 | 16 | 16 | 25.3±0.2 | 25.3±0.2 | 10±0.12 | 73.5±0.5 | 35.5±0.1 |
GSA18 | 18 | 18 | 32.7±0.3 | 32.7±0.3 | 12±0.12 | 76.5±0.5 | 57.1±0.1 |
GSA20 | 20 | 20 | 32.7±0.3 | 32.7±0.3 | 13±0.12 | 76.5±0.5 | 52.6±0.1 |
Packing Information
