FCST-SDC1-60/50mm
FCST
FCST-SDC1-60/50mm
Product Advantages
lConnect two microducts which are the same outer diameter.
lA HDPE coupler joint design for quick and easy installation.
Product Specifications
Construction | Description |

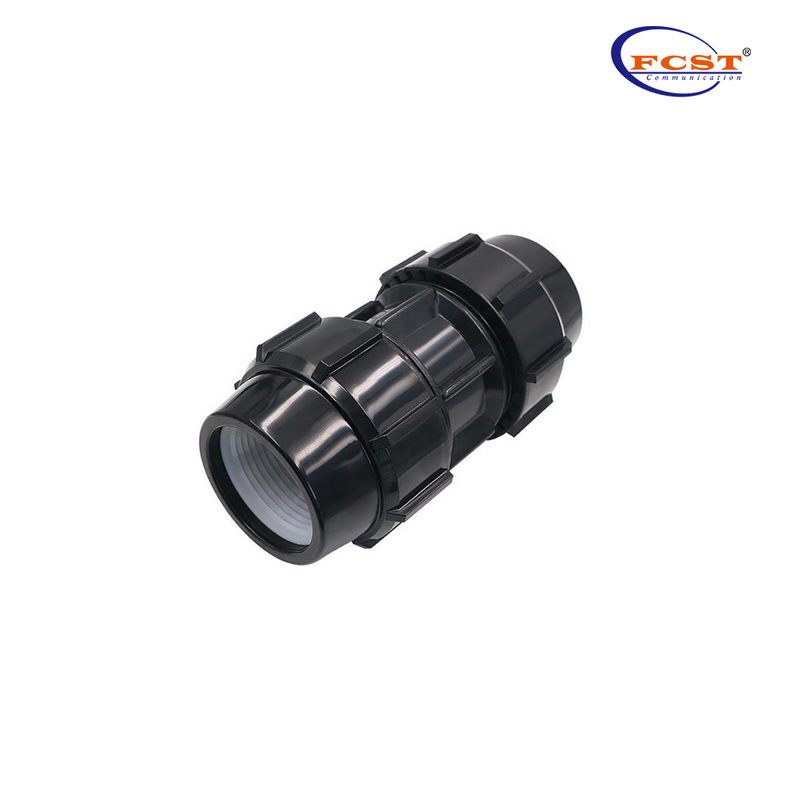

Product Name | FCST-SDC1 HDPE Silicon Core Pipe Connector |
Material | FCST-FDS-G-A/B Body:PE FCST-FDS-G-C/FCST-SDC Body:ABS |
Product Color | Black, white, blue (support custom colors) |
Product Size | 32/26、40/33、46/38、50/42、60/50、63/54 |
Reference Standard | JT/T496-2004、Q/KL020-2005 |
Appearance | Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread. |
Connection Force (under tightened state) | 32/26mm：≥4300N 32/28mm：≥4300N 40/33mm：≥6700N 46/38mm：≥8000N |
Weight（g） | 194（40/33mm） |
High Temperature Resistance | -40℃~+65℃ |
Product Size
Product Structure
Connection sequence:

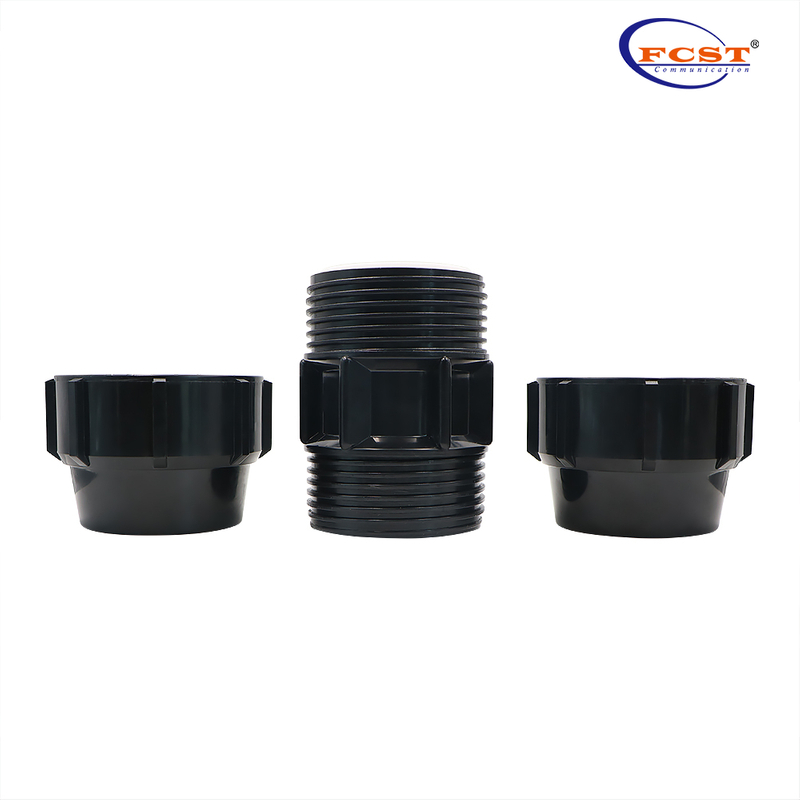

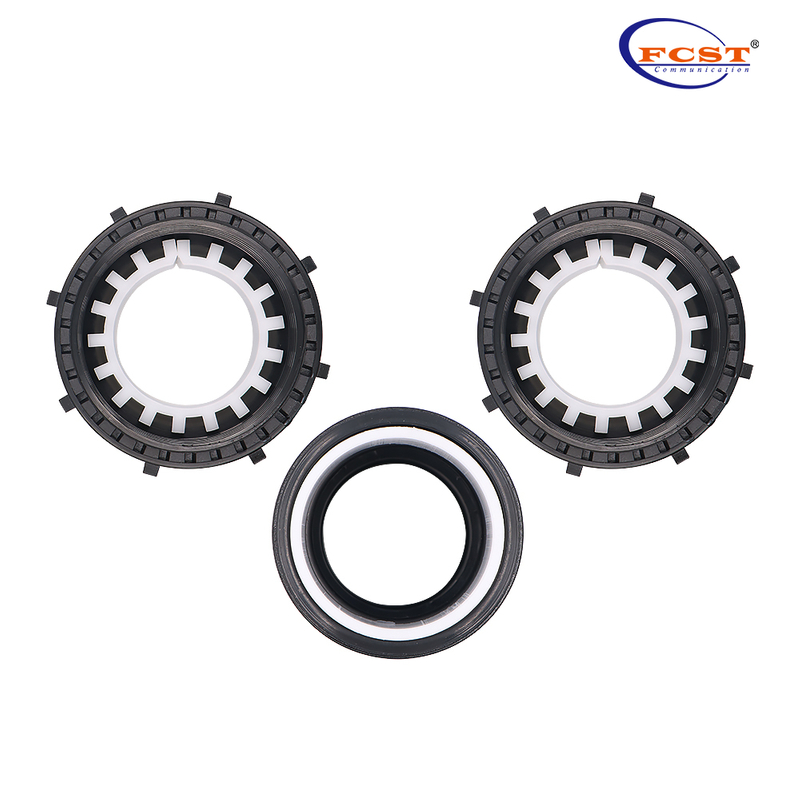

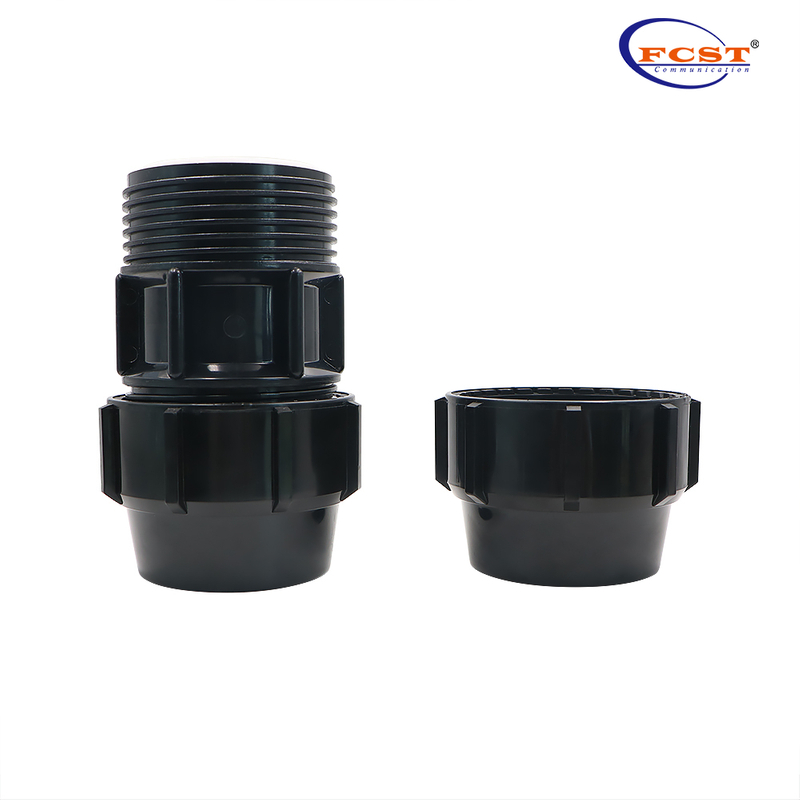

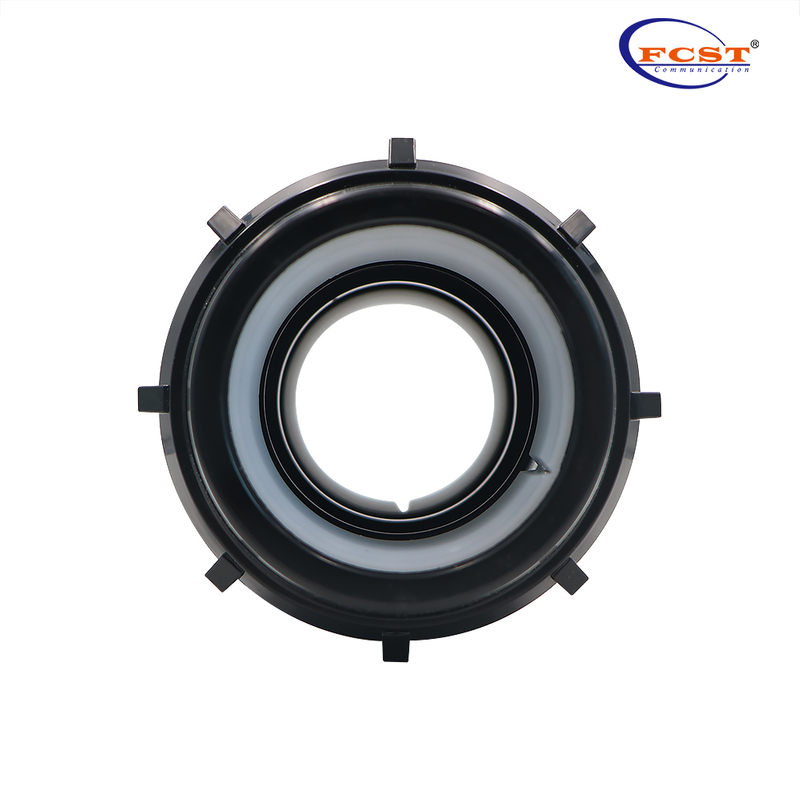

End cap, elastic collar, gasket, rubber sealing ring, connecting screw, rubber sealing ring, gasket, elastic collar, end cap
Installation
l1.Cut both ends of the silicon core tube flat and clean;
l2.Assemble the HDPE couplings in the order of connection;
l3.Tighten with the special tools provided with this HDPE pipe connector to ensure that the assembly sequence is correct, and when the tightening is in place (Note: No need to use after burning tools in the tightening process), the joint sealing performance reaches a good condition;
l4.The joint can be disassembled and assembled many times. After a long time use, disassemble the joint and reinstall it, please carefully check the effectiveness of the sealing ring Sex. If damage is found, it should be replaced.
