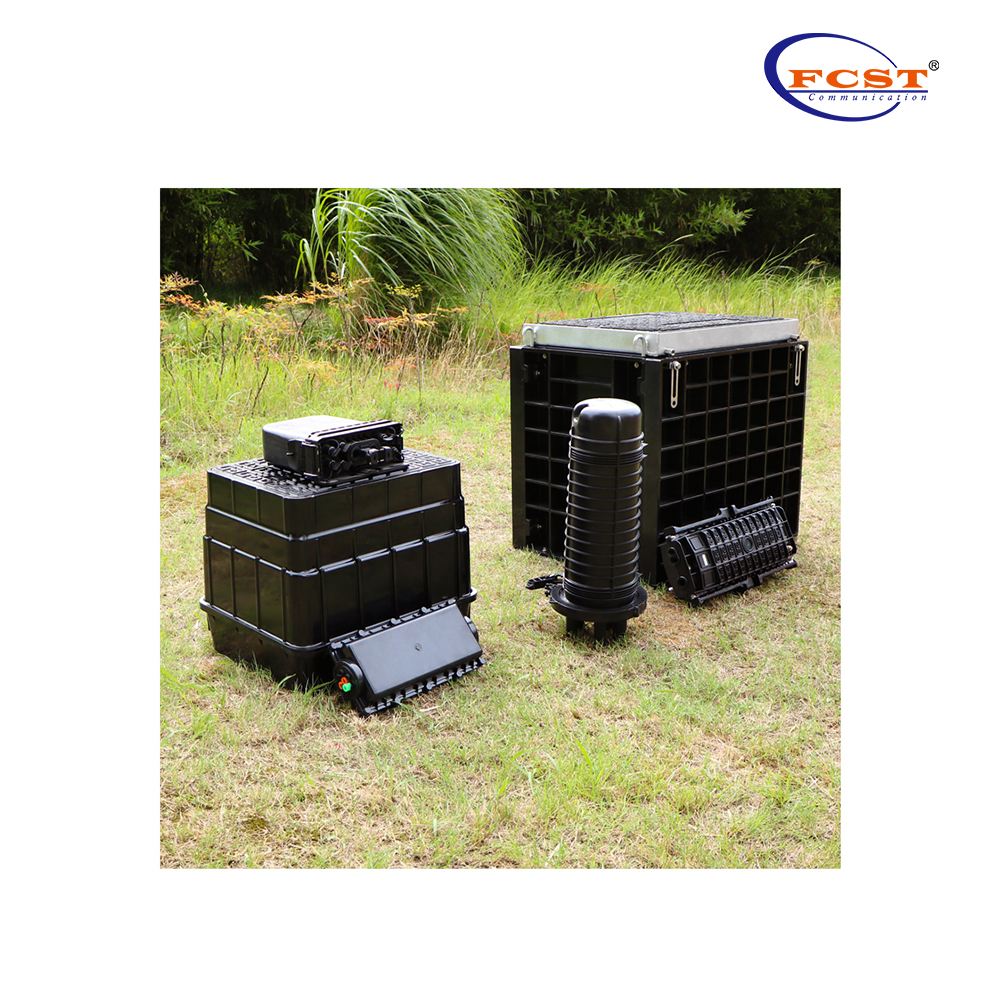

FCST-TH-SMC04
FCST
FCST-TH-SMC04
Product Application
Note：The practical application of this Composite Manhole Chamber, covering many fields such as municipal administration, electric power,electricity, water, road administration,and drainage.
Product Advantages
lStrong corrosion resistance
lGood resistance to high and low temperature
lEasy installation for this manhole chamber
lConvenient transportation and cost reduction
lThe chamber box with long service life
lCable cahmber' height adjustable
Product Size
Product Specifications
All products comply with EN124:1994 standards.
Chemical Resistance Performance
Chemicals | Concentrated Sulfuric Acid | Sodium Hydroxide | Sodium Chloride |
Test Conditions | Soaked in the specified solution for 48h | ||
Test results | No obvious corrosion on the surface, qualityloss <1% | ||
Mechanical Performance
Items | Standard No. | Requirements | Test Results |
Tensile Strength | GB/T1447-2005 | ≥100MPa | 105MPa |
Tensile Modulus | GB/T1447-2005 | ≥10GPa | 11.8GPa |
Bending Strength | GB/T1449-2005 | ≥200MPa | 213MPa |
Flexural Modulus | GB/T1449-2005 | ≥10GPa | 11.3GPa |
Impact Toughness | GB/T1451-2005 | ≥80KJ/㎡ | 90.8KJ/㎡ |
Barr's Hardness | GB/T3854-2005 | ≥50 | 56 |
Chamber Load
Chamber Type | FCST-TH-SMC04 |
Axial Test Load | 100KN |
Lateral Test Load | 40KN |
Thermal Performance
Items | Standard No. | Test Results |
Heat Distortion Temperature | GB/T1634.2-2004 | > 200°C |
Bending Strength | GB/T9979- 2005(-40°C) | 265MPa |
Flexural modulus | GB/T9979- 2005(-40°C) | 1.43x10^(4) MPa |
Bending strength retention rate | GB/T9979- 2005(-40°C) | 124% |
Flexural modulus retention rate | GB/T9979- 2005(-40°C) | 11.16% |
Linear expansion coefficient | B/T2572-205 | 1.66x10^(-5) |
Packing And Transportation
Packing description
Due to the structural characteristics of the product, the factory packaging can be selected according to the actual needs of customers,transportation distances, and transportation routes.
Disassembly and transportation
The structure of the cable access chamber is simple and easy to disassemble, and all the components can be split into discrete parts, which are stacked and bundled flat. It occupies small space, low transportation cost, ,disassembly and bundling are more conducive to product stability, it is convenient to transport and goods damage is small.
Pallet Size | Product Weight（KG） | Pallet Capacity | Container Loading Capacity (40GP container，Weight limit 26 tons) |
FCST-TH-SMC04 (1100mmx1300mmx2200mm) | 15 | 48sets | 432sets |
