FCST-FBM06 Fiber Blowing Machine

5 0 Reviews
  • Blowing Range Max 2500 m.
  • Tube Diameter 32mm, 40mm, 50mm.
  • Solid and simple construction ensures easy operation and a longevity of the unit.
  • FOBEurope Price:11350EUR/pcs
Availability:
Quantity:
  • FCST-FBM06 Fiber Blowing Machine
  • FCST
  • FCST-FBM06 Fiber Blowing Machine

Product Overview

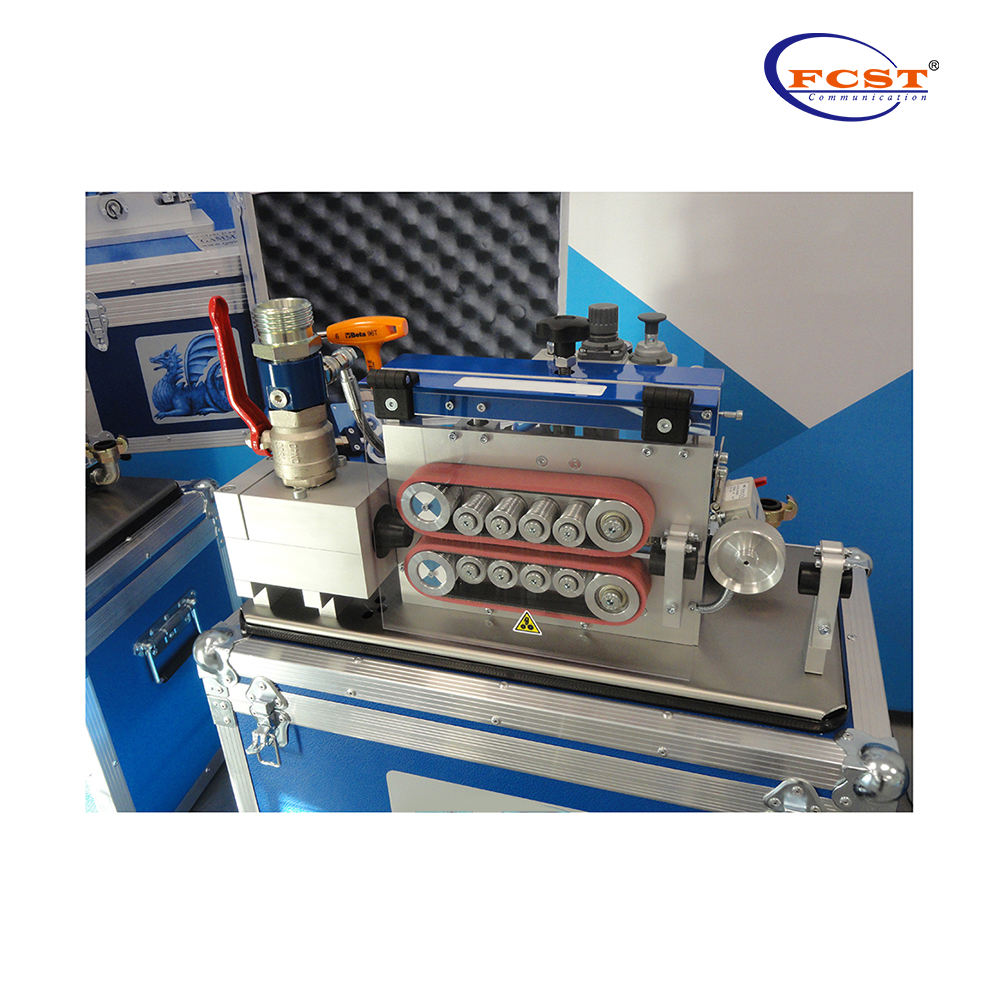

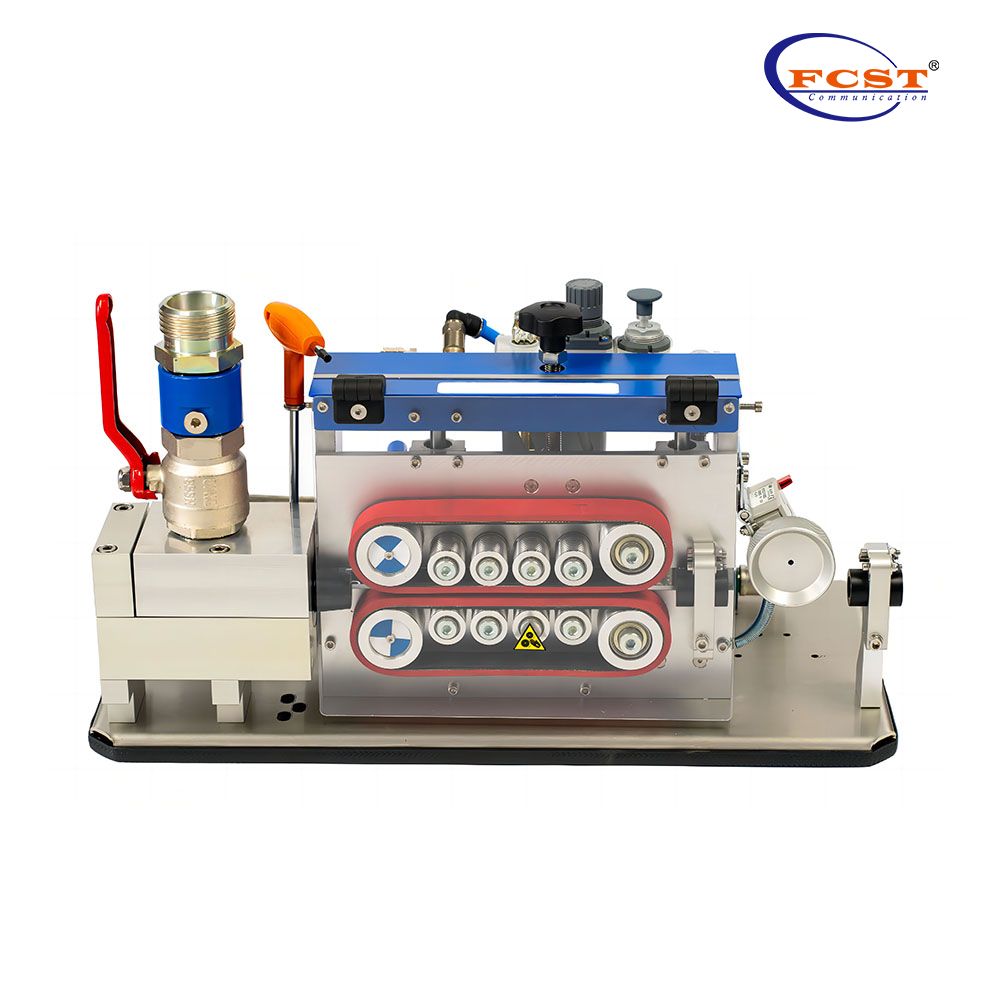

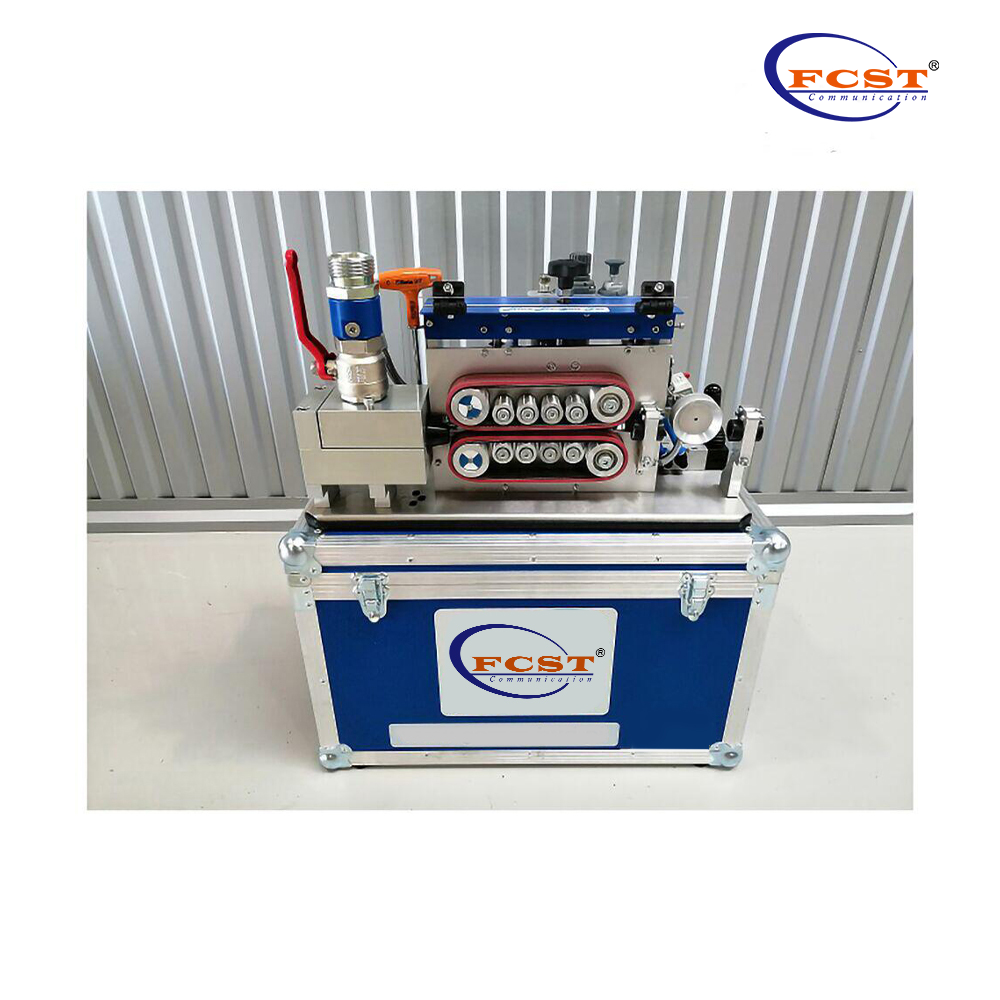

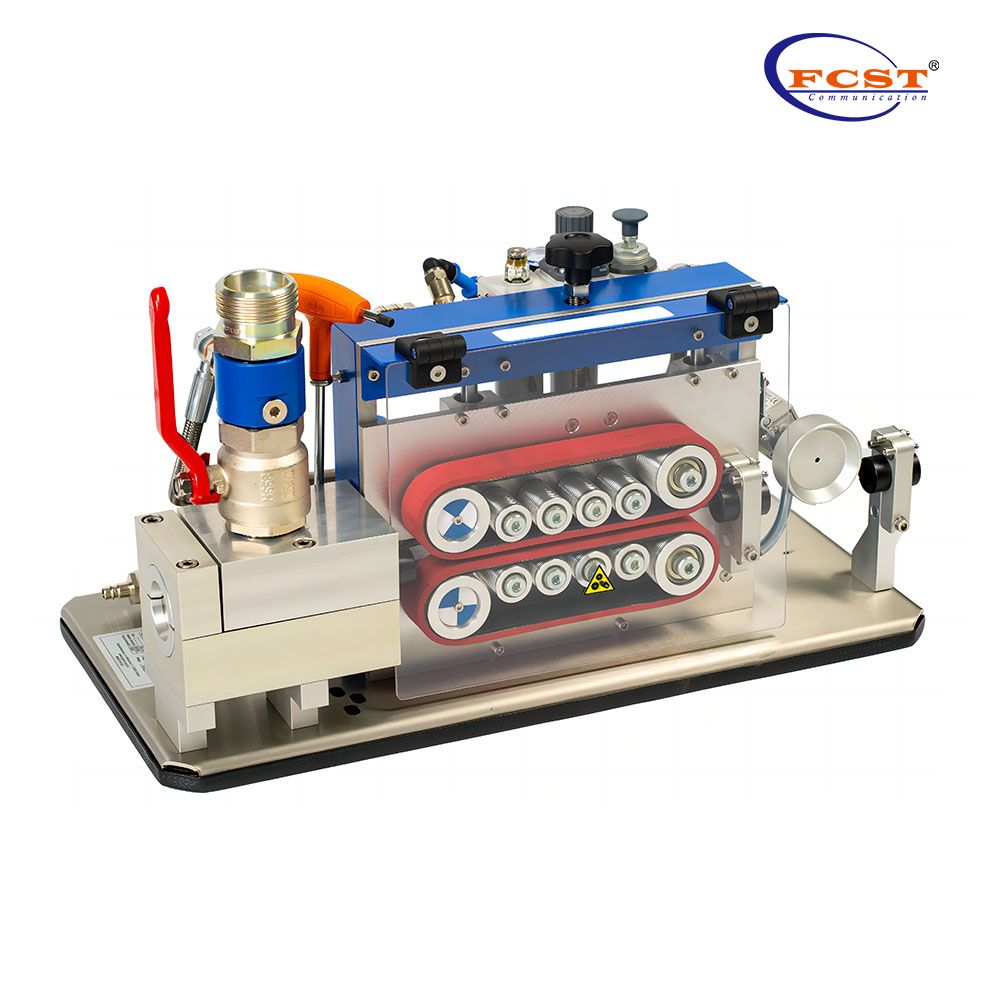

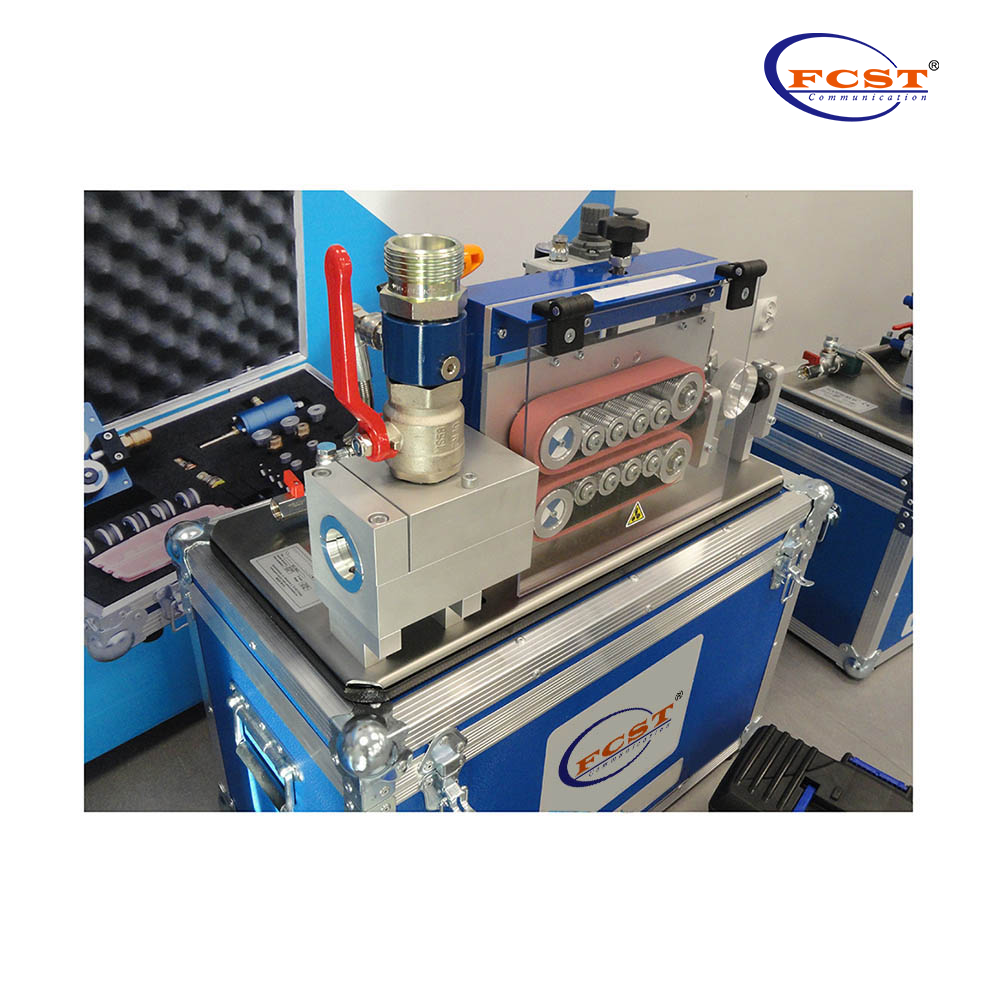

FCST-FBM06 is a professional cable blowing machine designed for blowing cables within 6-15mm range. Available accessories for ducts diameters: 32, 40 and 50mm. Solid and simple construction ensures easy operation and a longevity of the unit. Machine is equipped with a high quality belt feeder and pneumatic motors. Basic version has a mechanical counter meter preinstalled.

Also available: a direction switch to retract the cable or change the blowing direction.

Additionally, together with FCST-FBM06, we can provide another blowing head suitable for blowing cables with a diameter of 4 mm-10mm (or optionally 2.5-12 mm) /into micro ducts of diameter between 5mm to 16mm/ (or optionally 5-20 mm).

FCST-FBM06 accessories set includes seals and bushings for every diameter of cable within machine's range (6.0,7.0,8.0,8.5,9.0, 9.5,11,12,13,14, 15 mm), as well as seals and bushings for HDPE ducts (32, 40, 50 mm)

Product Specifications

Construction

Description

Technical Data

FCST-FBM06

Cable Diameter

6,0 15,0 mm

Tube Diameter

32 mm, 40mm, 50mm

Blowing Distance /Max

2500 m

Blowing Speed / Max

110 m/min

Operating Pressure / Max

10 bar

Machines Dimensions /L x W x H/

620 x 300 x 380mm /weight approx. 30kg

Dimensions Of The Transport Box

690 x 430 x 440mm /weight approx. 43kg

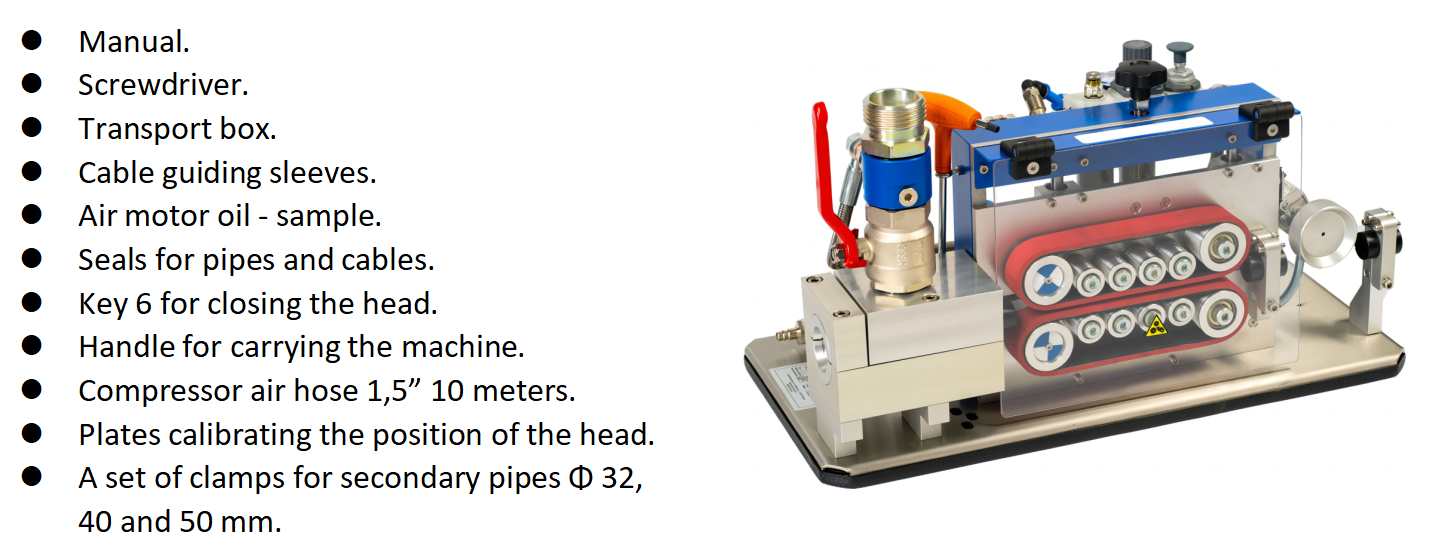

Available Accessories Inside The Set

Calibrating plates

Set of handles for HDPE ducts

Set of seals for HDPE ducts

Set of cable seals

Set of Allen keys

Socket wrench

Air hose

Pneumatic oil sample

Required Compressors Efficiency

micro ducts up till 8mm -0,8m3/min

micro ducts 8-12mm -1,0m3/min

micro ducts 12-16mm -1,5m3/min

micro ducts 15-20mm -3,5m3/min

ducts 32-40-50 mm 8 10 m3/min

Available Models:FCST-FBM06
