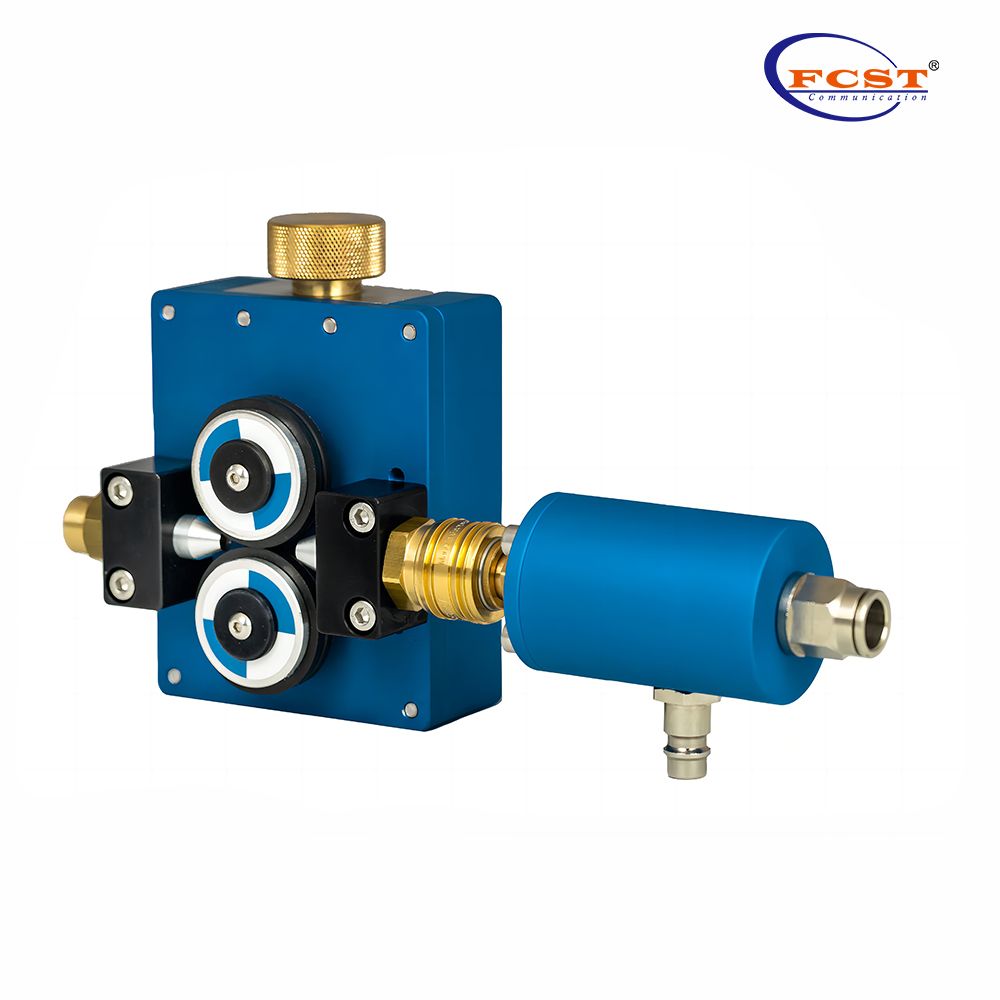

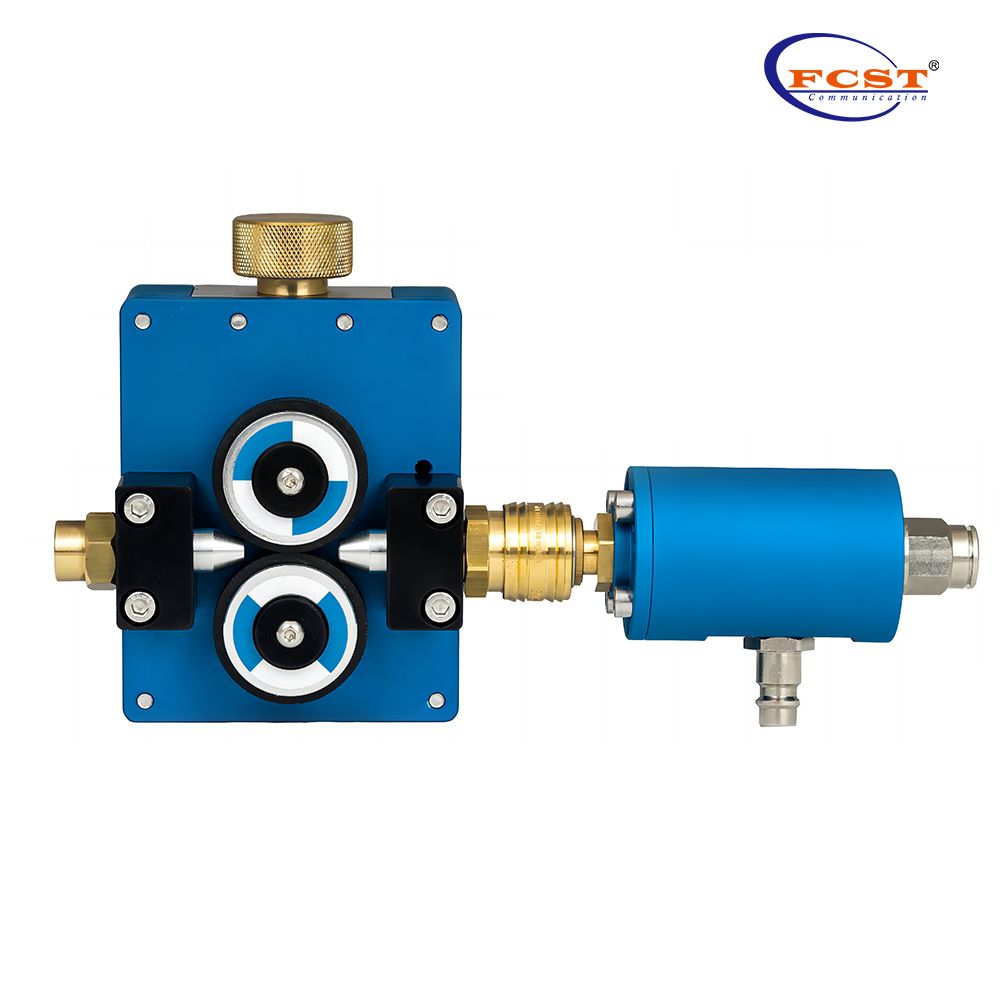

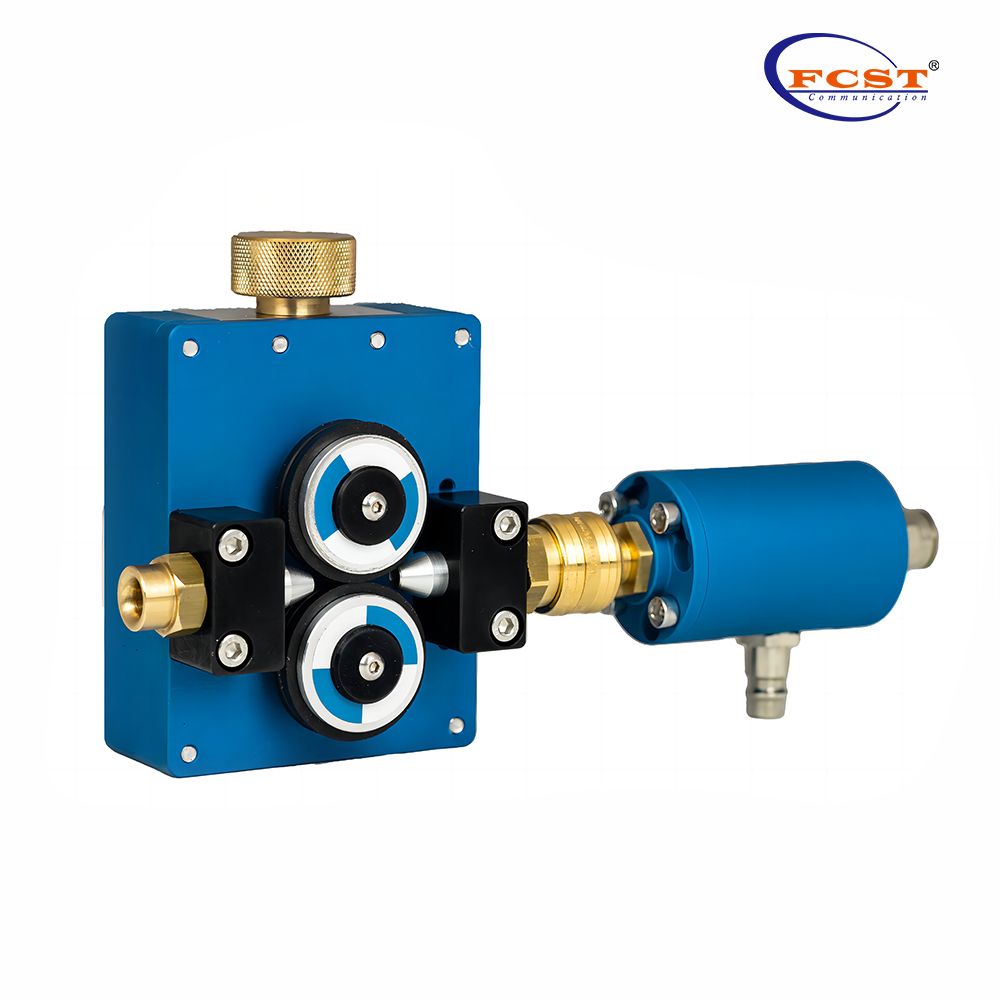

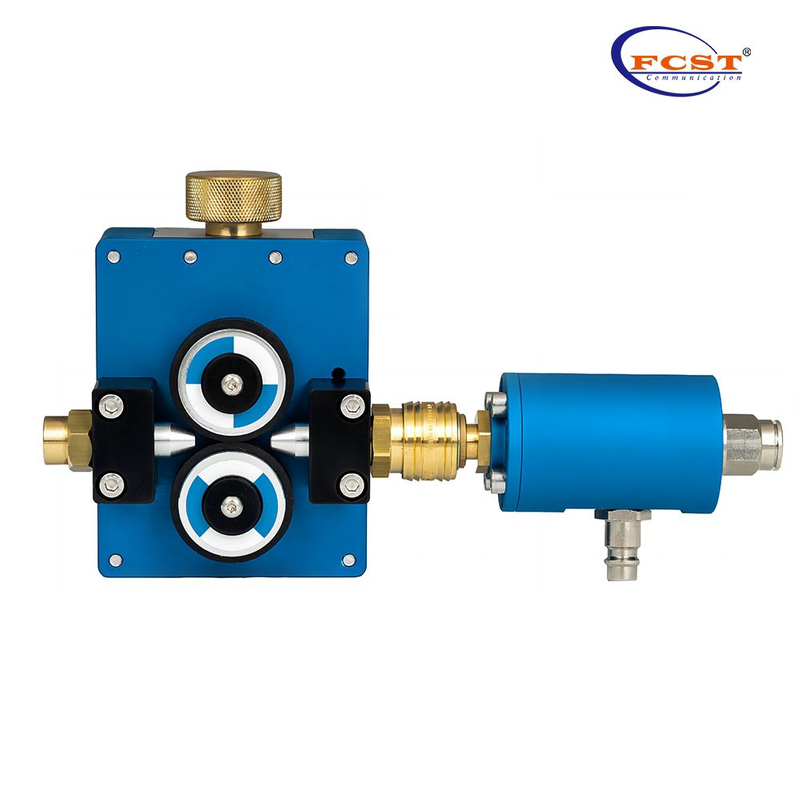

FCST-FBM01 Micro Fiber Jetting Equipment

build the last sections of the FTTH network.
Delivered with special bushings facilitating blowing fiber optic cables from Φ 0.5~6 mm diameter.

Availability:



Get a Quote Add to Quote Cart

Model:
FCST-FBM01 Fiber Blowing Machine
Brand:
FCST

Product Description

Product Overview

FCST-FBM01 Micro Fiber Jetting Equipment is our smallest micro cable blowing unit designed to build the last sections of the FTTH network. Delivered with special bushings facilitating blowing fiber optic cables from Φ 0.5~6 mm diameter.

Product Specifications

Construction	Description
Micro Cable Diameter	Φ 0.5~6 mm
Micro Tube Diameter	Φ 5,7,10,12,14,16 mm
Blowing Distance / Max	700m
Blowing Speed / Max	60 m/min
Work Pressure / Max	15 bar
Dimensions of The Unit *(LWH)*	260100140mm (10.236"x3.937"x5.512") weight approx 2kg
Dimensions of The Transport Box	465400155mm (weight approx 8kg)

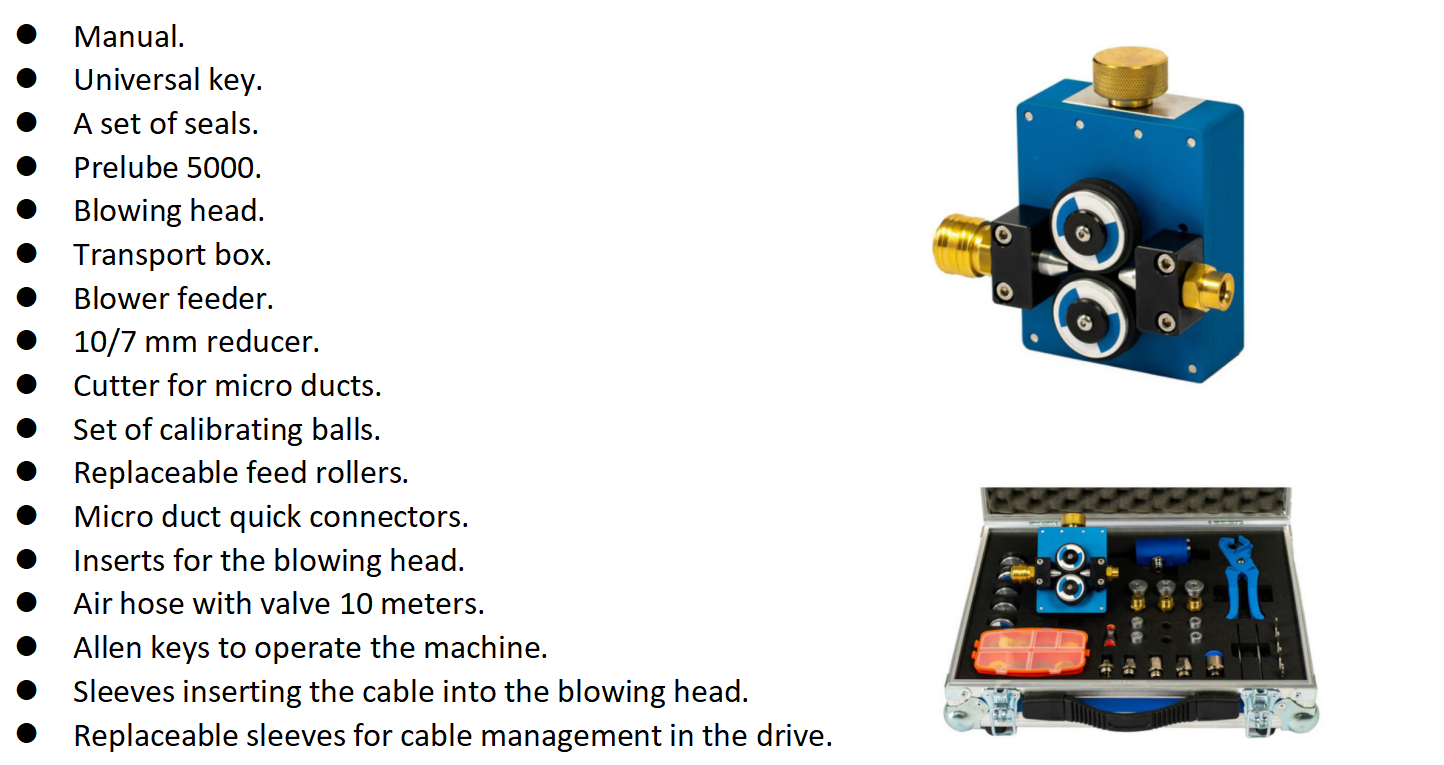

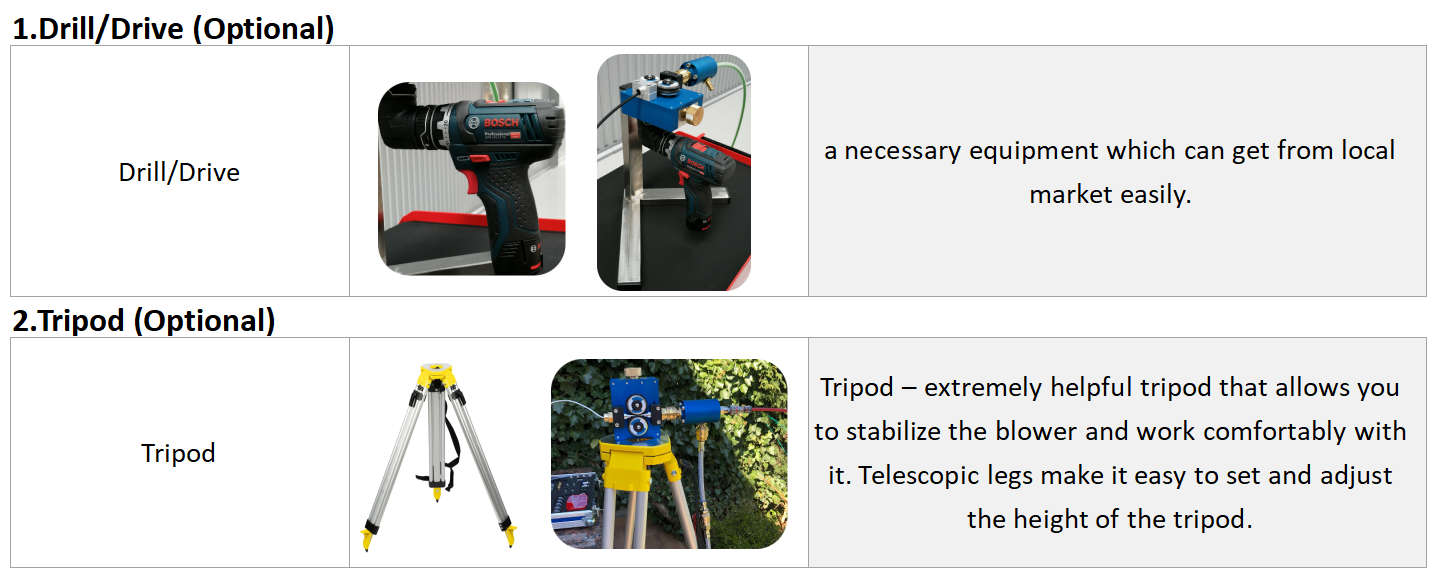

Available Accessories	air hose set of gaskets additional tools micro duct cutter set of bushings and micro duct connectors spare wheels with removable rubber bands
Required Compressor's Efficiency	micro ducts up till 8mm:0.8mᶾ/min micro ducts between 8-12mm:1.0mᶾ/min micro ducts between 12-15mm:1.5mᶾ/min
Warranty Period	36 Months Warranty
