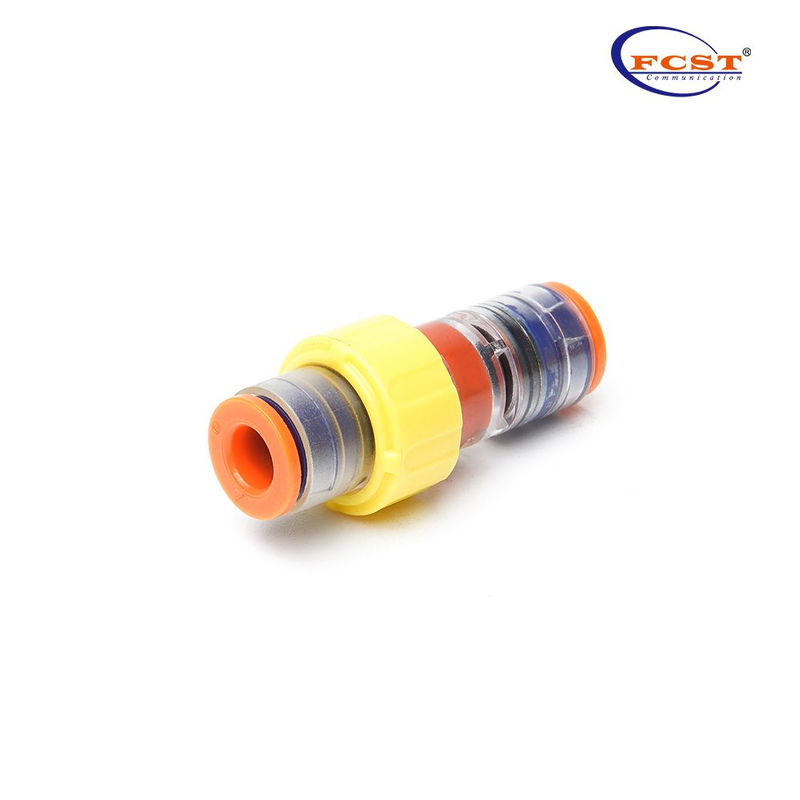

16mm Gas & Water Block Connector

  • Micro-duct gas block connector is easy installation, without any special tools.
  • Gas Block Connector have a transparent plastic body, easy to observe the situation.
  • Avoid fluid(gas) entering the fiber duct connector and damage the equipment.
Availability:
Quantity:
  • 16mm Gas & Water Block Connector

  • FCST

  • 16mm Gas & Water Block Connector

Product Overview

This Gas-Water Block Micro Duct Connector is used to prevent the liquid flowing between the connected micro ducts at transformation point. Thus, avoid fluid(gas) entering the micro ducts, and damage the equipment.


Product Advantages

lFor 5 to 20 mm microducts.

lTube connector gas-block with easy “push-in” installation.

lCrystal clear transparent body.

l95% of the material is made of non-metal.

lRugged design for direct buried and above ground use.


Product Specification

alt Gas-Water Block Micro Duct Connector Structure

Model

D1

D2

A1

A2

B

L

Weight(g)

GSA5

5

5

13.5±0.2

13.5±0.2

2.5±0.12

44±0.5

-

GSA6

6

6

13.5±0.2

13.5±0.2

2.5±0.12

44±0.5

-

GSA7

7

7

15.2±0.2

15.2±0.2

4±0.12

50.5±0.5

8.6±0.1

GSA7

7

7

15.2±0.2

15.2±0.2

4.5±0.12

50.5±0.5

8.6±0.1

GSA8

8

8

15.2±0.2

15.2±0.2

4±0.12

50.5±0.5

8.6±0.1

GSA8

8

8

15.2±0.2

15.2±0.2

4.5±0.12

50.5±0.5

8.6±0.1

GSA10

10

10

17.5±0.2

17.5±0.2

8±0.12

59.5±0.5

11.6±0.1

GSA12

12

12

21.5±0.2

21.5±0.2

8±0.12

64.5±0.5

18.6±0.1

GSA14

14

14

23.5±0.2

23.5±0.2

10±0.12

69.5±0.5

23.6±0.1

GSA16

16

16

25.3±0.2

25.3±0.2

10±0.12

73.5±0.5

35.5±0.1

GSA18

18

18

32.7±0.3

32.7±0.3

12±0.12

76.5±0.5

57.1±0.1

GSA20

20

20

32.7±0.3

32.7±0.3

13±0.12

76.5±0.5

52.6±0.1


alt Gas Block Connector Product details01

alt Gas Block Connector Product details02

alt Water Block Connector Raw Material03

alt Water Block Connector Maximum Pressure04

alt Water Block Connector Pull Test05

alt Water Block Connector Test06

alt Gas Block Connector Sealing Performance07

alt Gas Block Connector Customized Service08

alt Gas Block Connector Various Sizes09

Packing Information

alt Microduct Gas Block Pcaking
