Why Are Optical Cable Markers Necessary In Fiber Optic Networks?

As fiber optic networks expand beneath our streets and landscapes, an invisible infrastructure crisis looms: how do we protect and locate cables we cannot see? Every year, accidental cable strikes cause millions of dollars in damage, service disruptions affecting thousands of users, and potential safety hazards. The solution lies in a sophisticated multi-layered marking system that creates a protective shield around buried fiber optic assets.

Optical Cable Markers Are Essential
1. Prevention of Accidental Damage

The primary function of cable markers is preventing third-party damage during excavation activities. Whether it's construction work, landscaping, or utility maintenance, any ground disturbance poses a risk to buried fiber cables. A comprehensive marking system provides multiple warning levels, giving excavators advance notice before they reach critical infrastructure.

2. Asset Management and Maintenance

Telecommunications companies manage vast networks spanning thousands of miles. Without proper marking systems, locating specific cables for maintenance, upgrades, or repairs becomes a time-consuming and expensive endeavor. Strategic marker placement enables rapid identification and access to network segments.

3. Regulatory Compliance

Many jurisdictions require underground utilities to be marked according to specific standards. Proper cable identification ensures compliance with local regulations and industry best practices, protecting network operators from liability.

4. Network Documentation

Physical markers serve as ground-truth verification for network maps and GIS databases. They provide tangible reference points that can outlast digital records and remain accessible even when electronic systems fail.

The Multi-Layered Marking Strategy

A robust fiber optic marking system employs multiple identification products at different burial depths, creating redundant protection layers. Here's how each component works together:

Layer 1: Surface Warning (0.3-0.45m / 12-18in)

FCST-DWT Detectable Warning Tape

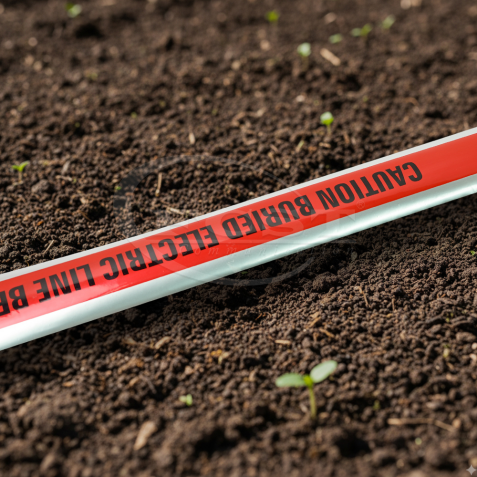

The first line of defense sits just below the surface. Detectable warning tape is a brightly colored (typically orange for telecommunications) ribbon embedded with metallic elements. When excavators begin digging, they encounter this tape first, providing immediate visual warning that utilities lie below. The metallic components allow the tape to be detected by electronic locating equipment, even after years of burial.

Layer 2: Near-Surface Markers (0.7-1m / 27.56-39.37in)

FCST-PUEM3 Near-Surface Markers

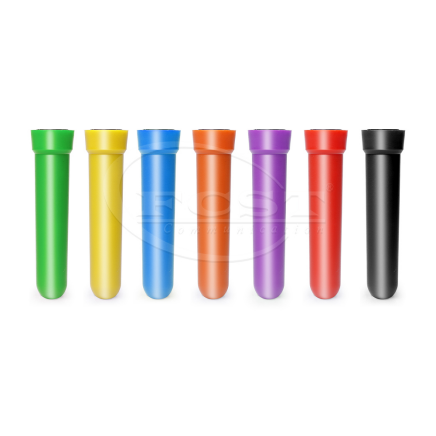

These cylindrical markers provide an additional warning layer for deeper excavation. Positioned in the mid-range burial depth, they offer a crucial buffer zone between surface disturbance and the actual cable. Their tubular design makes them easily detectable during careful excavation, giving workers a final warning before reaching the cable level.

Layer 3: Cable-Level Protection (1.5-1.7m / 59.06-66.93in)

FCST-MB Marker Ball and FCST-PUEM4 Extended Range Disk Markers

At the cable burial depth, two types of markers provide direct protection and identification:

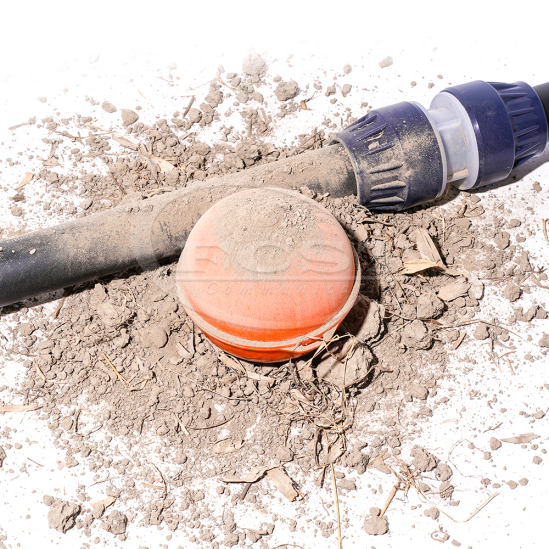

Marker Balls: Spherical markers that can be placed directly on or near cables, particularly useful at splice points, junction boxes, or direction changes. Their three-dimensional shape makes them detectable from any excavation angle.

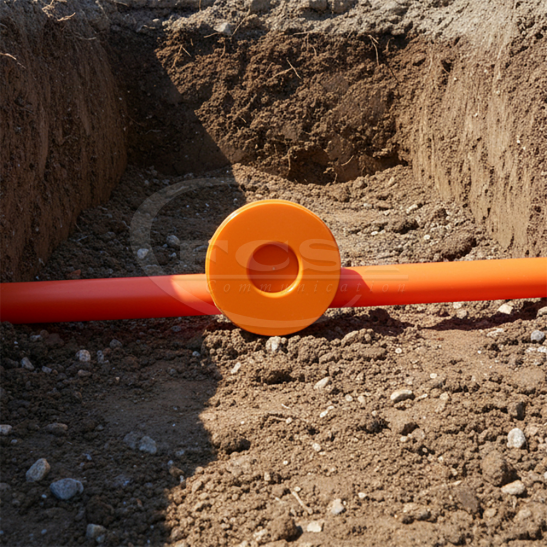

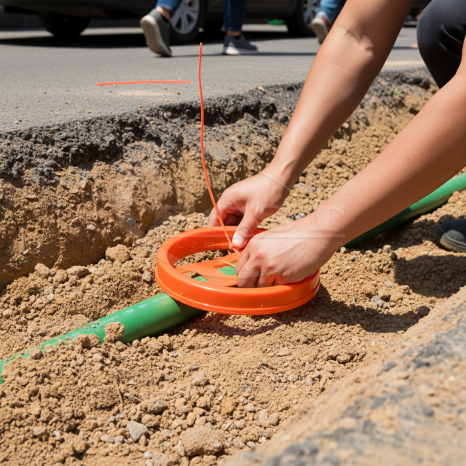

Extended Range Disk Markers: Flat, disc-shaped markers with larger surface areas that provide maximum detectability for electronic locating equipment. These markers often contain detailed information about the cable route, owner, and contact information.

Layer 4: Deep Underground Identification (2.25-2.8m / 88.58-110.24in)

FCST-PUEM1 and FCST-PUEM2 Passive Underground Electronic Markers

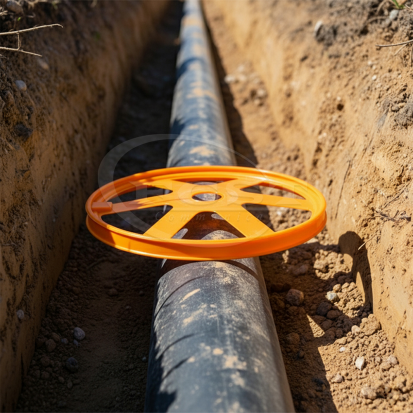

The most sophisticated layer consists of passive electronic markers buried at various depths. These devices contain electronic circuits that respond to specific frequencies from locating equipment:

PUEM1 (2.25-2.5m): Positioned below the cable level, these markers serve as reference points for network mapping and provide verification that locators have identified the correct utility corridor.

PUEM2 (2.4-2.8m): The deepest markers in the system, offering long-term network documentation that survives even if shallower markers are disturbed or removed during previous excavations.

Passive electronic markers don't require batteries or power. They use electromagnetic induction principles, activating only when interrogated by compatible locating equipment. Each marker can be encoded with specific information about the cable type, installation date, owner, and network segment, creating a permanent underground database.

Detection and Location: FCST-UML9000 Underground Marker Locator

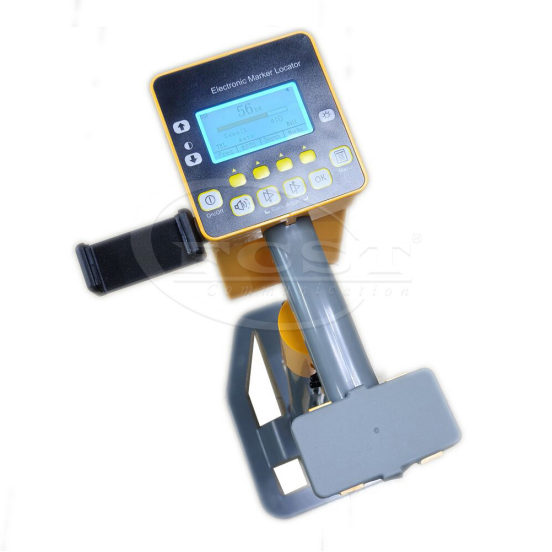

The entire marking system would be useless without reliable detection equipment. The FCST-UML9000 Underground Marker Locator is a handheld device that communicates with buried markers through electromagnetic signals. Operators sweep the device over the ground surface, and it alerts them to the presence, depth, and encoded information of markers below.

This technology enables:

· Pre-excavation surveys to map utility locations

· Verification of network records

· Rapid location of specific network segments

· Reduced excavation time and costs

· Enhanced worker safety

Real-World Applications and Benefits
Urban Infrastructure Projects
In dense urban environments where multiple utilities share narrow corridors, precise cable location is critical. The multi-layered marking system allows excavators to distinguish telecommunications cables fromwater, gas, and electrical lines, reducing the risk of misidentification.

Rural Network Expansion

As fiber networks expand into rural areas, the challenge of relocating cables installed years earlier becomes significant. Passive electronic markers provide long-term reliability, remaining detectable decades after installation when surface markers may have been disturbed by agricultural activities.

Emergency Response

During natural disasters or emergency repairs, rapid cable location can mean the difference between hours and days of service restoration. Electronic markers enable response teams to quickly identify and access critical network segments without extensive excavation.

Cost Savings

While the initial investment in comprehensive marking systems may seem substantial, the cost of a single fiber cable strike often exceeds the marking cost for an entire project segment. Beyond repair costs, service interruptions can result in substantial liability and lost revenue.

Installation Best Practices

For maximum effectiveness, marker installation should follow these principles:

Redundancy: Never rely on a single marker type. Combine surface, physical, and electronic markers.

Strategic Placement: Install markers at regular intervals (typically 150-300 feet), at all direction changes, splice points, and road crossings.

Proper Depth: Ensure each marker type is installed at its specified depth to create distinct warning layers.

Documentation: Record marker locations and encoded information in network databases, but recognize that physical markers serve as backup when records are incomplete or inaccurate.

Quality Materials: Use markers designed for long-term underground survival, resistant to moisture, chemicals, and physical stress.

Future Developments

Marker technology continues to evolve. Emerging developments include:

GPS-encoded markers that provide precise geographic coordinates.

Markers with extended data storage for detailed network information.

Integration with GIS and network management systems.

Improved detection ranges and depth capabilities.

Environmentally sustainable marker materials.

Conclusion

Optical cable markers represent a critical but often overlooked component of fiber optic infrastructure. By implementing a comprehensive multi-layered marking system—from surface warning tape to deep electronic markers—network operators protect their substantial investments, ensure service reliability, and promote safe excavation practices.

As our dependence on high-speed telecommunications grows, so does the importance of protecting the physical infrastructure that makes connectivity possible. The modest cost of proper cable marking is an insurance policy against catastrophic failures, ensuring that the invisible networks beneath our feet remain safely invisible until we need to find them.

In an increasingly connected world, these silent guardians buried beneath the surface perform an essential role: protecting the cables that connect us all.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
