Product Overview

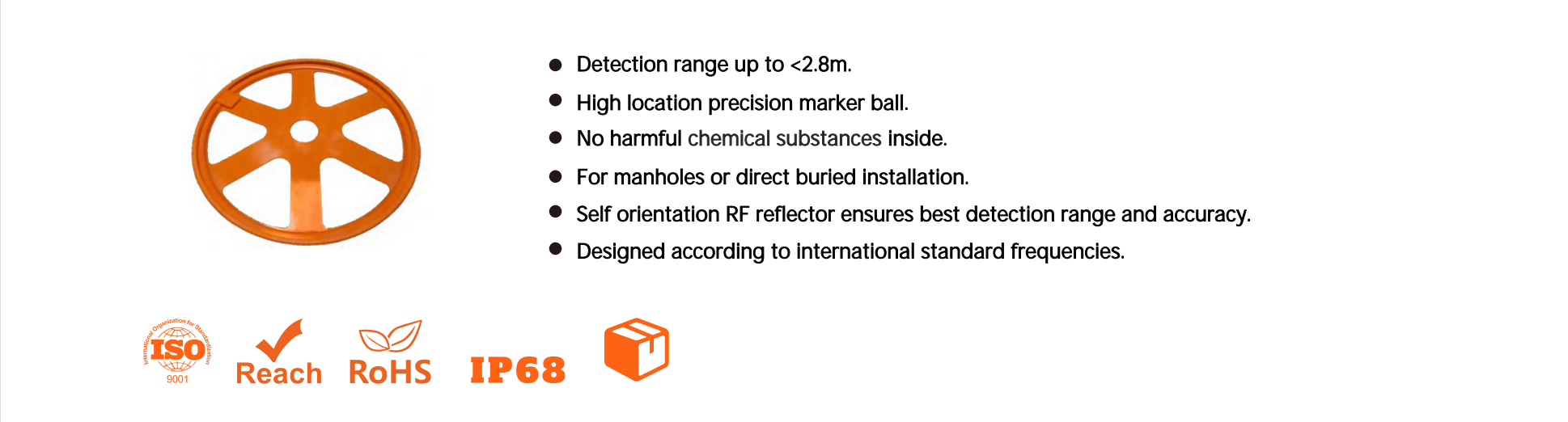

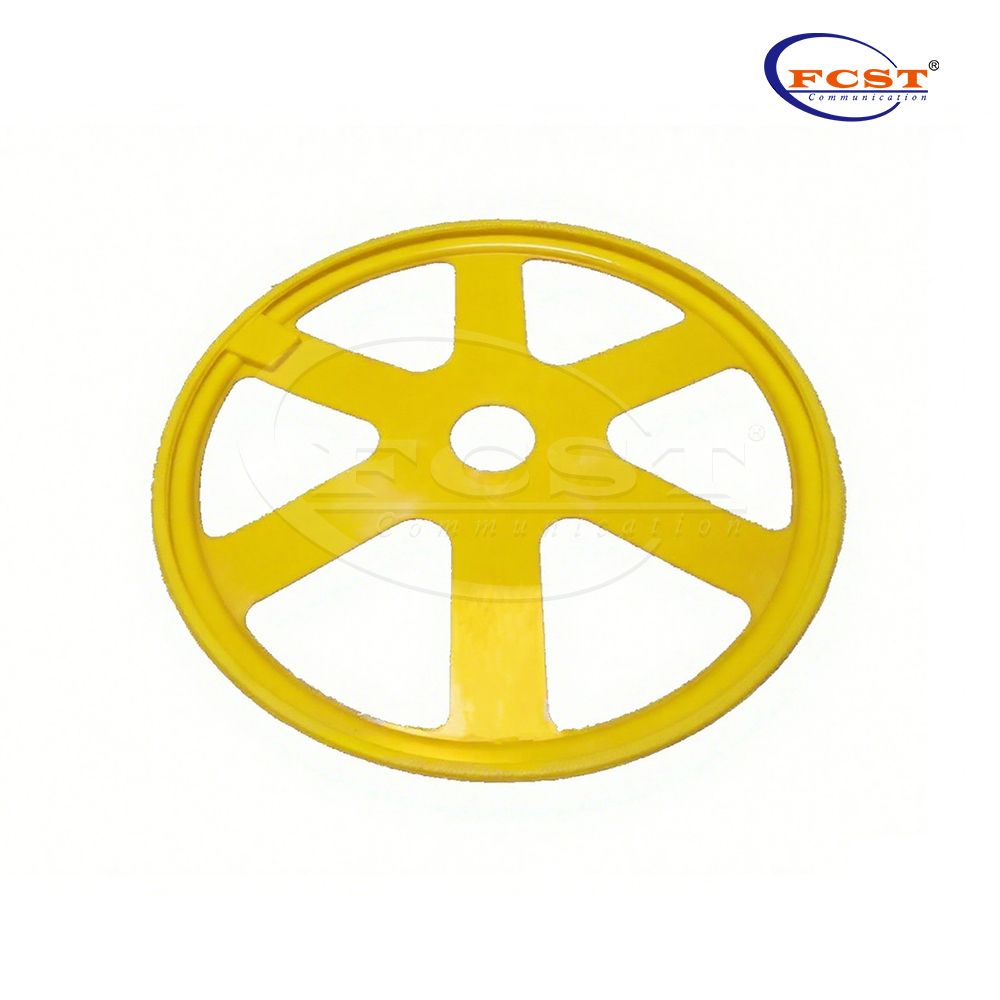

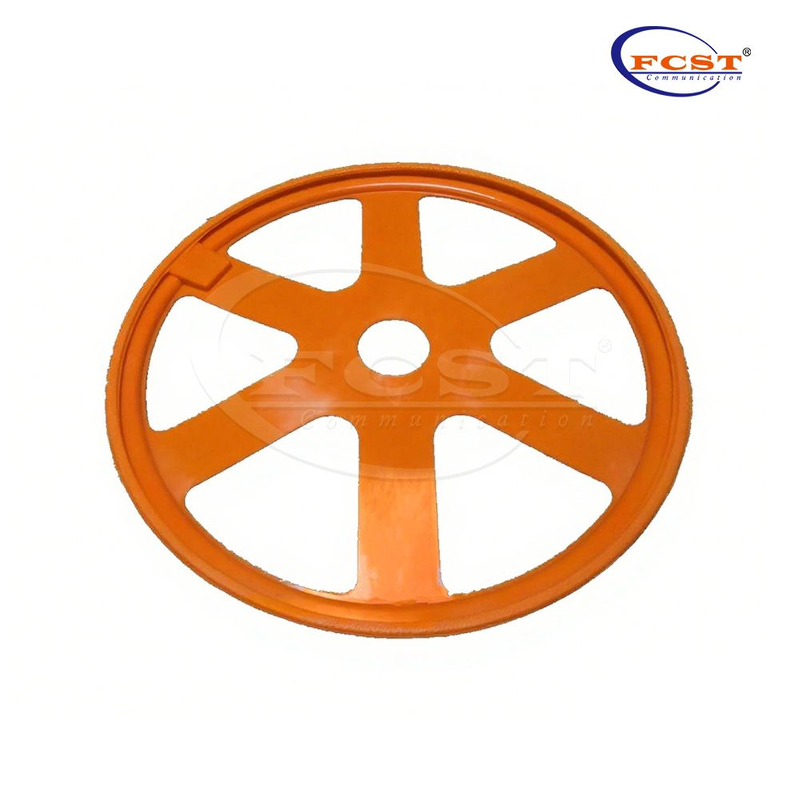

PUEM2 2.4-2.8m Passive Underground Electronic Marker is full range disk underground electronic marker is suitable for marking underground facilities with large burial depths, such as high-pressure gas pipelines, long-distance optical cables, etc..The FCST-PUEM2 disk marker is designed and produced according to international standard frequencies, and is compatible with electronic marker locators designed and produced according to international standard frequencies. (without ID mode).
Installations

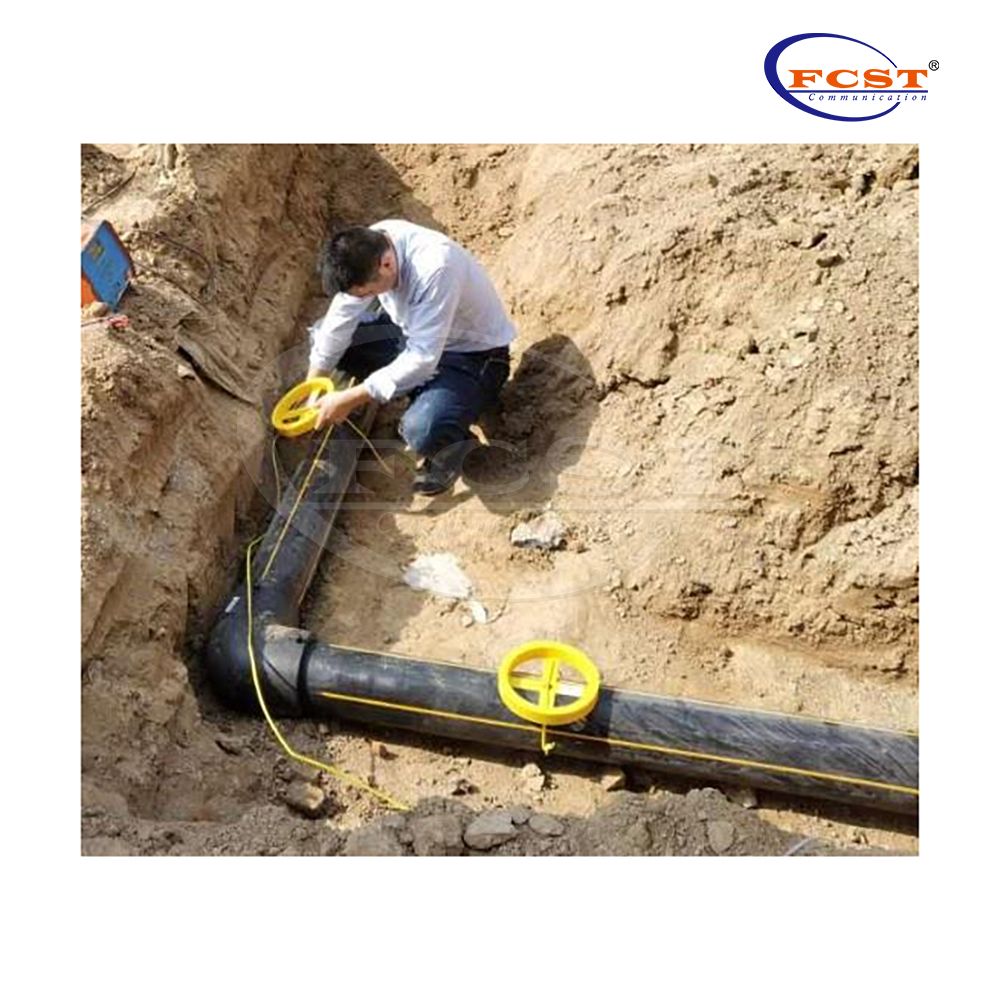

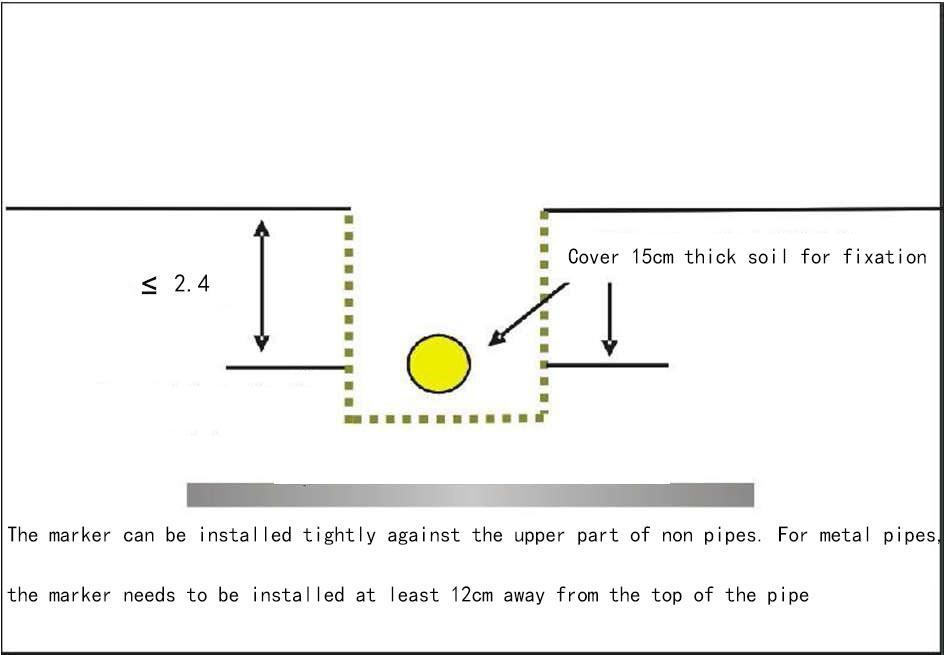

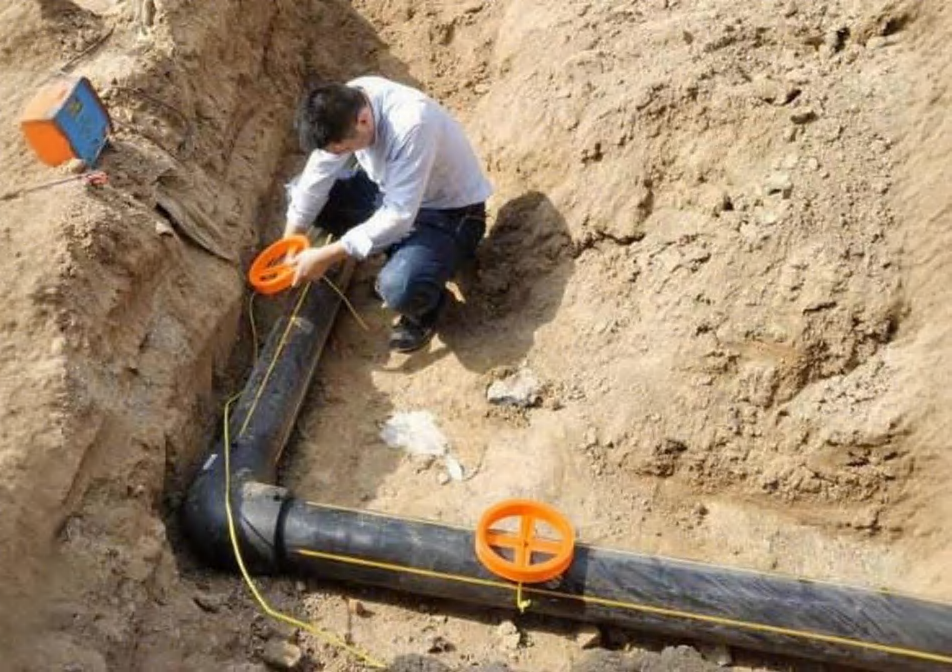

The disc electronic marker should be installed above the pipeline and kept as horizontal as possible. The non-metallic pipe should be directly attached to the pipeline and fixed with ties. When covering the soil, sand or sand should be used to fill the gap between the marker and the pipeline to avoid uneven force on the marker after covering the soil. Considering the uncertainty of the later soil cover thickness, it is generally recommended that the burial depth be less than 80% of the maximum detectable depth of the model. To avoid mutual interference between markers, the distance between two adjacent markers should be greater than 1.5 meters.FCST-PUEM2 Electronic Marker Datesheet. Do not press the marker under the pipeline or the marked object. If it is a metal pipe, the marker should be kept at a distance of no less than 12CM from the top of the pipe, and there should be no metal objects covering the marker.
