Product Overview

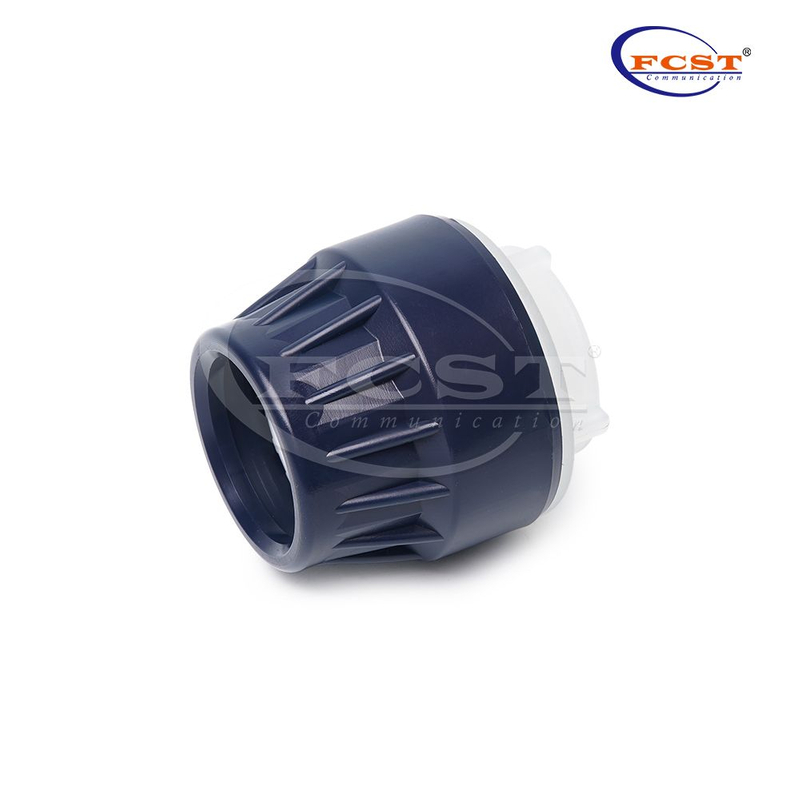

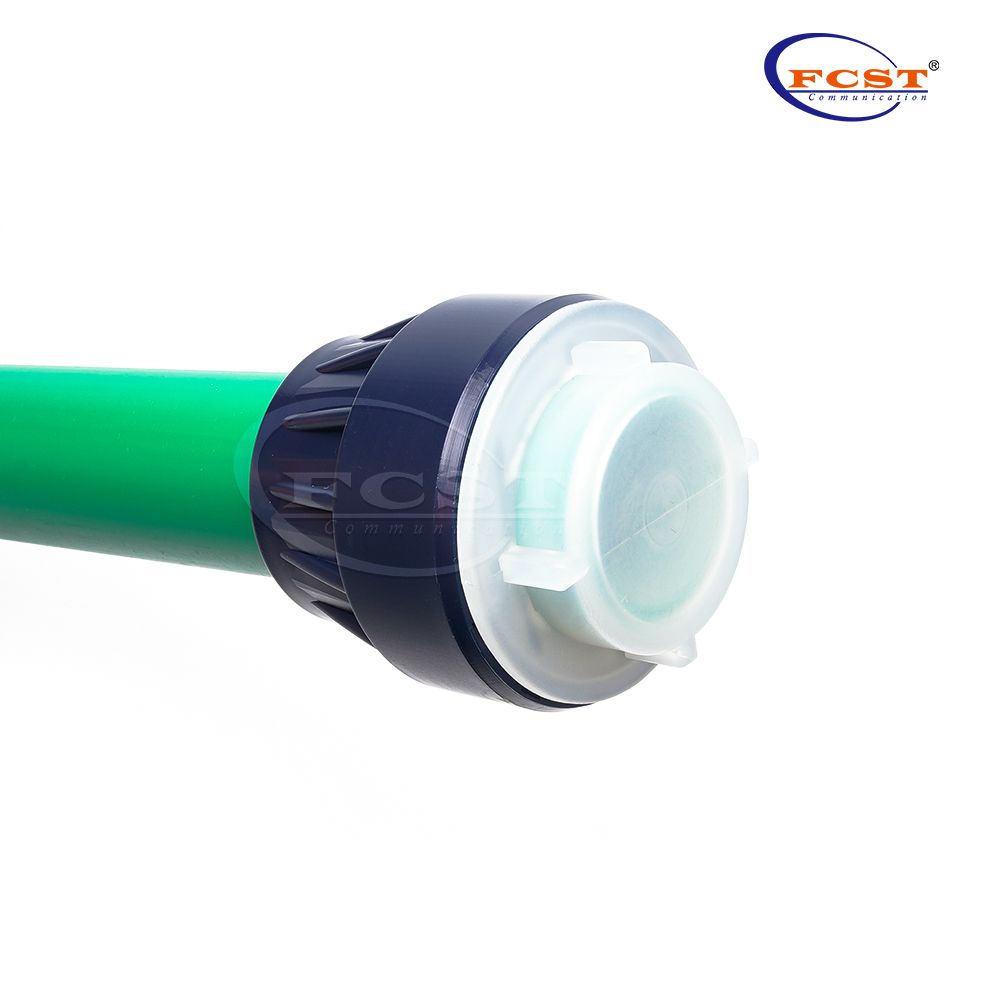

The HDPE Silicon Core Pipe End Stop Coupler, experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design. Simply push the duct ends into the coupler for a locked and air-sealed assembly. Compression Coupling end cap non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.
Product Advantages
lHDPE pipe fittings pre-lubricated O-ring is water-tight and air-tight.
lSuitable for both cable pulling & jetting applications.
lSimple, one person ‘push-on’ assembly lowers installation costs.

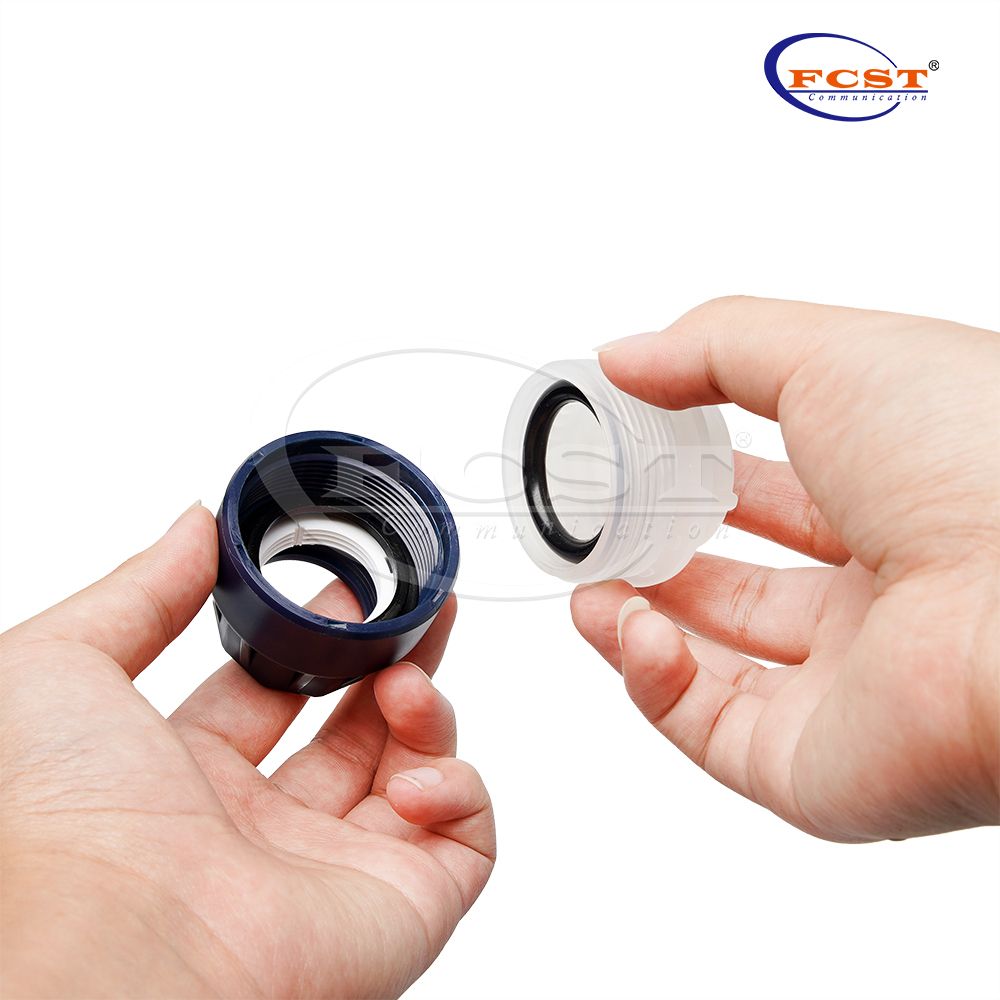

lSelf-locking ring design assembles in seconds and is re-enterable.
lHDPE Couplings high strength molded plastic body is ideal for buried duct applications.
lHDPE coupler joint visual confirmation of the pipe within the coupler ensures that it has been properly seated at the center stop.
Product Specifications
Construction | Description |
Material | PP |
Reference Standard | JT/T496-2004、Q/KL020-2005 |
Appearance | Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread. |
Tensile Resistance | ≥4300N |
Weight(g) | 53.5(32mm) |
High Temperature Resistance | -40℃~+65℃ |
Ordering Information

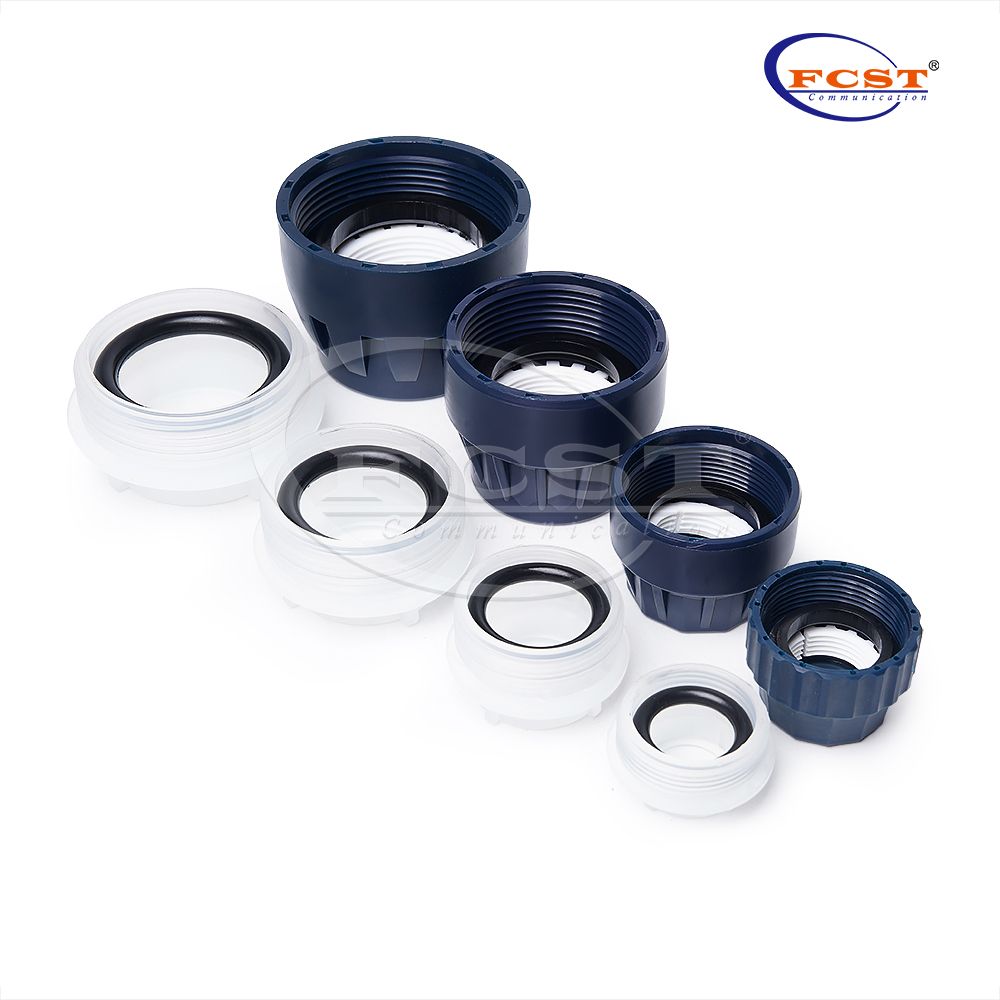

Model | D | d | H | L | Weight(g) |
FCST-ERSB25 | 48.5±0.5 | 26±0.5 | 45±1 | 92.5±1 | 34.4±0.1 |
FCST-ERSB32 | 56.5±0.5 | 33±0.5 | 54±1 | 111±1 | 53.5±0.1 |
FCST-ERSB40 | 70.5±0.5 | 41.5±0.5 | 70±1 | 142±1 | 105.9±0.1 |
FCST-ERSB50 | 84.5±0.5 | 51.5±0.5 | 75±1 | 152±1 | 172.9±0.1 |
