FCST-FDS-G-C HDPE Silicon Core Pipe Connector
FCST
FCST-FDS-G-C HDPE Silicon Core Pipe Connector
Product Advantages
lConnect two microducts which are the same outer diameter.
lA 40mm duct coupler design for quick and easy installation.
Product Specifications
Construction | Description |
Product Name | FCST-FDS-G-C HDPE Silicon Core Pipe Connector |
Material | FCST-FDS-G-A/B Body:PE FCST-FDS-G-C/FCST-SDC Body:ABS |
Product Color | Black, white, blue (support custom colors) |
Product Size | 32/26、40/33、46/38、50/42、60/50、63/54 |
Reference Standard | JT/T496-2004、Q/KL020-2005 |
Appearance | Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread. |
Connection Force (under tightened state) | 32/26mm：≥4300N 32/28mm：≥4300N 40/33mm：≥6700N 46/38mm：≥8000N |
Weight（g） | 194（40/33mm） |
High Temperature Resistance | -40℃~+65℃ |
Product Size

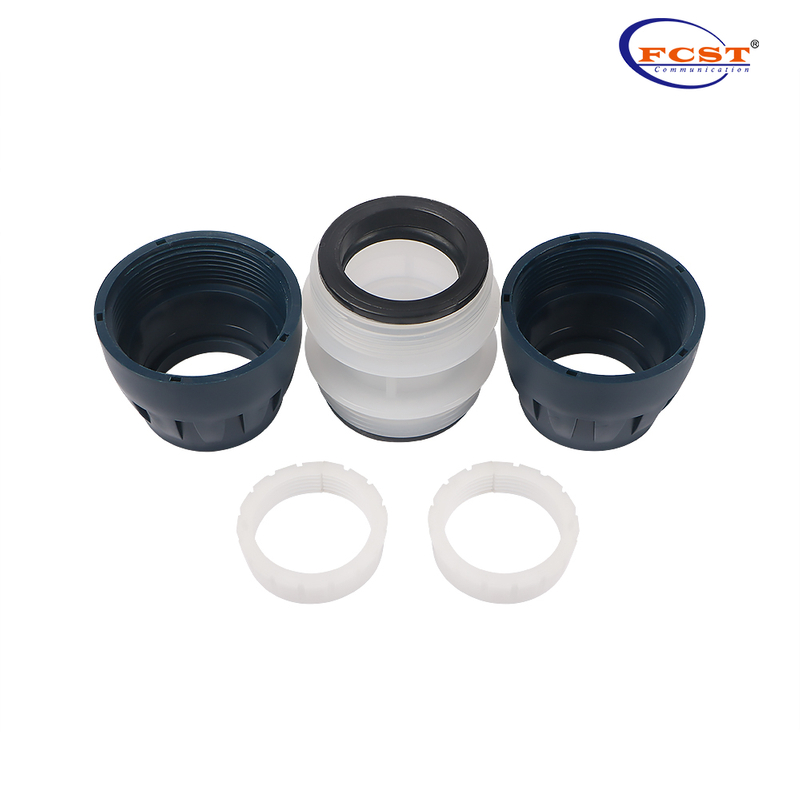

Product Structure

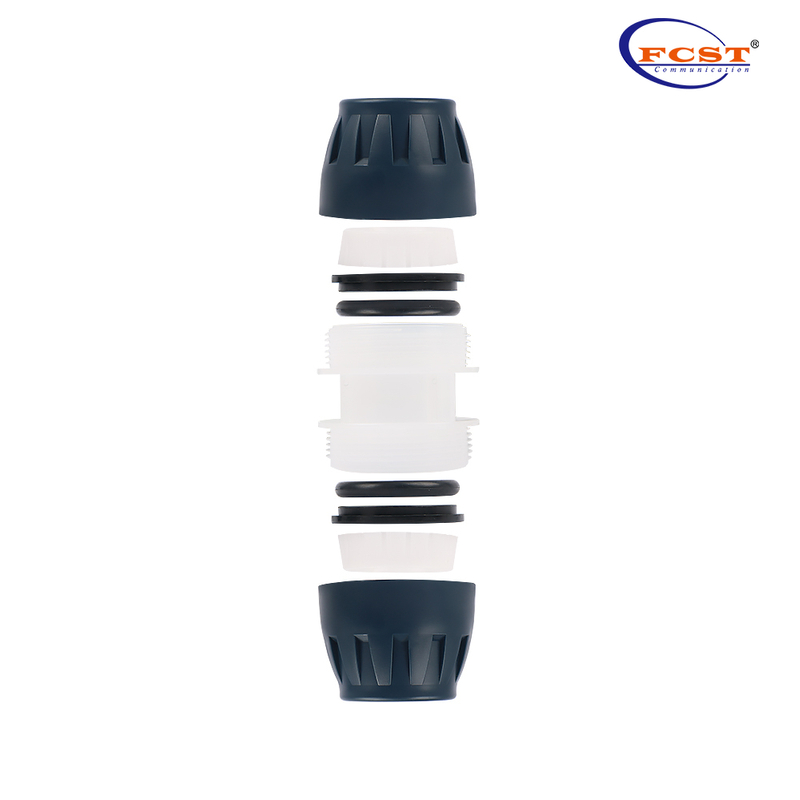

Connection sequence:
End cap, elastic collar, gasket, rubber sealing ring, connecting screw, rubber sealing ring, gasket, elastic collar, end cap
FCST-FDS-G-C-40/33mm
Installation
l1.HDPE pipe coupling can cut both ends of the silicon core tube flat and clean;
l2.Assemble the connection in the order of connection;
l3.Tighten with the special tools provided with this product to ensure that the assembly sequence is correct, and when the tightening is in place (Note:No need to use after burning tools in the tightening process), the joint sealing performance reaches a good condition;
l4.HDPE pipe connector can be disassembled and assembled many times. After a long time use, disassemble the joint and reinstall it, please carefully check the effectiveness of the sealing ring
