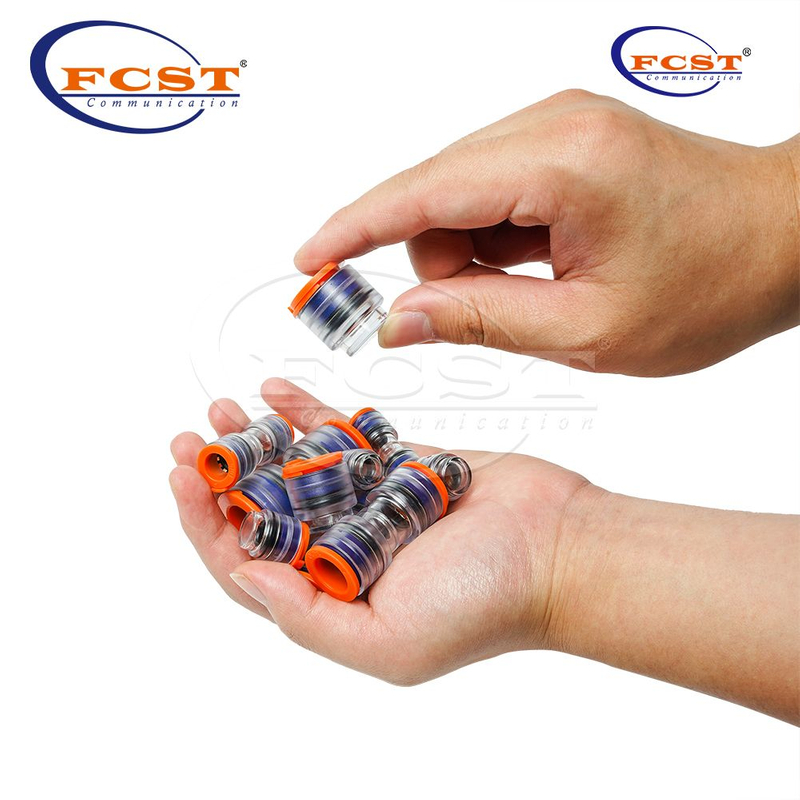

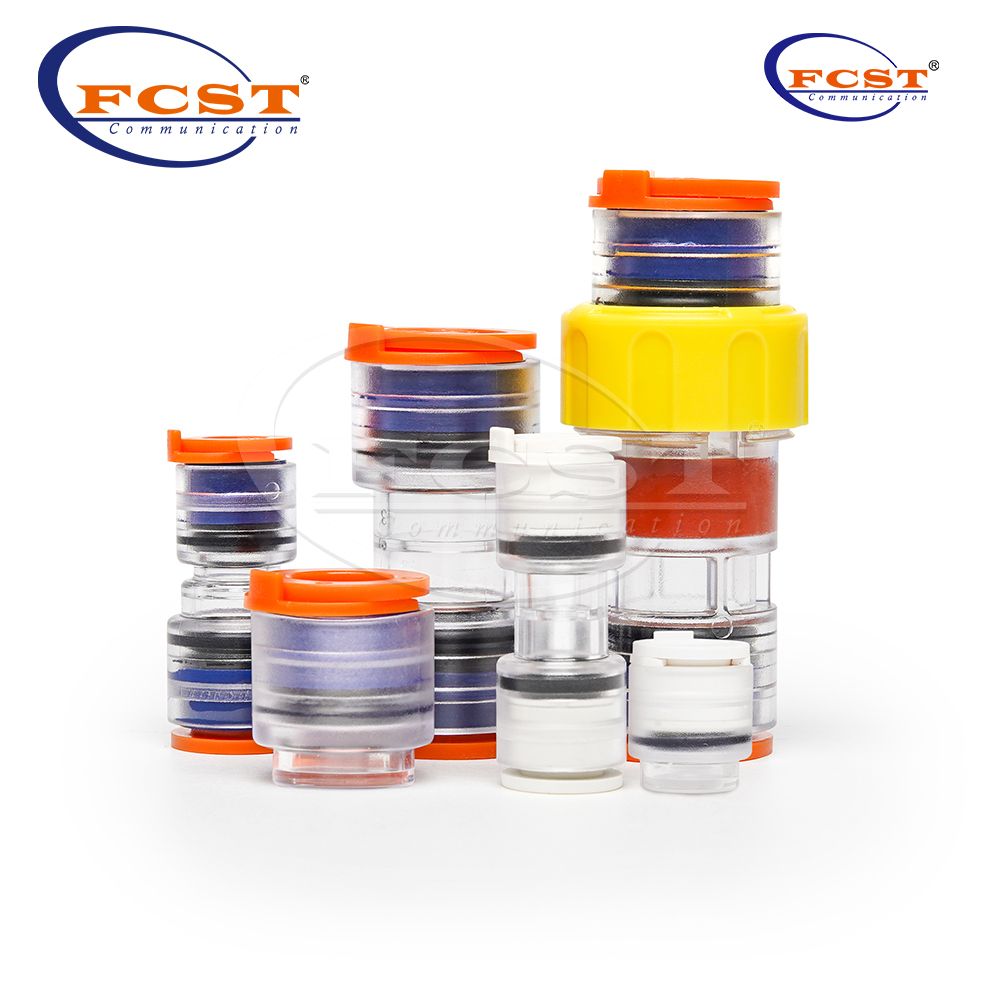

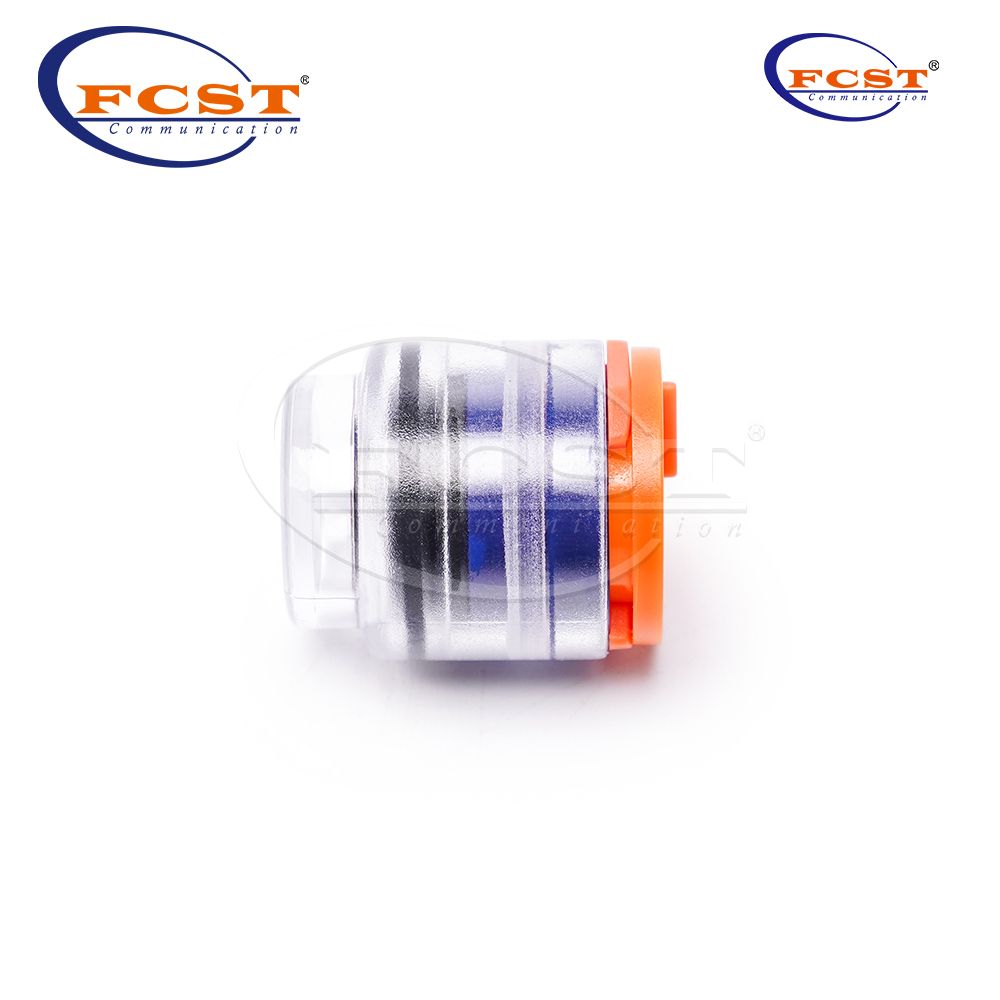

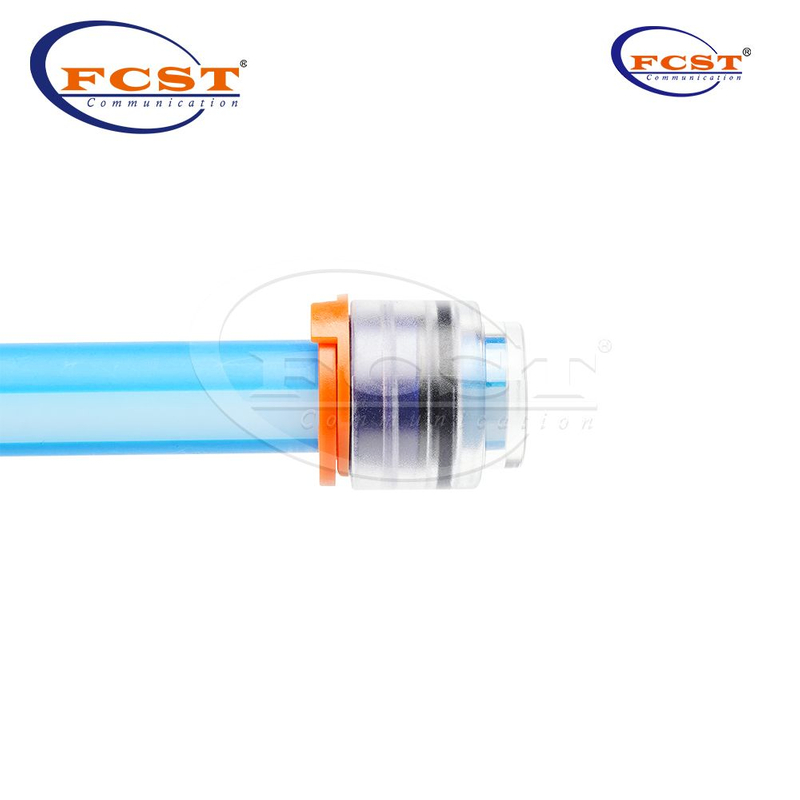

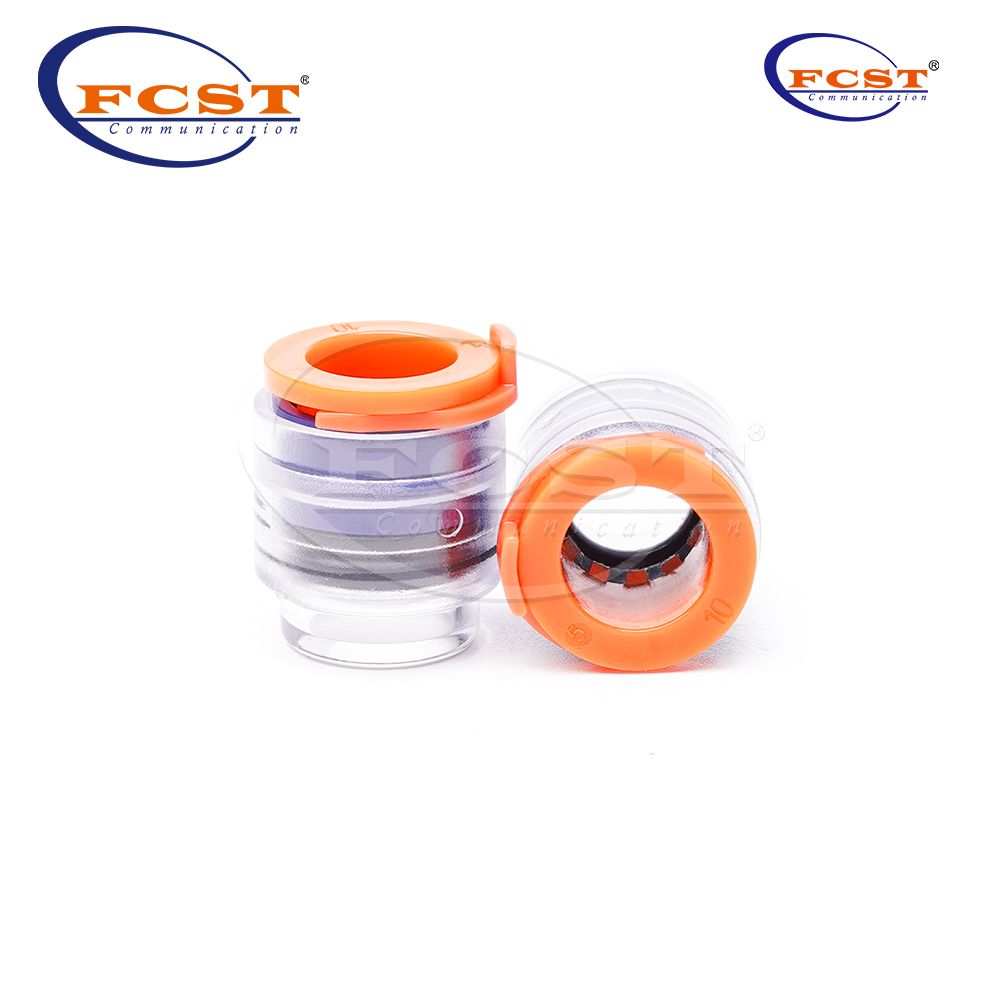

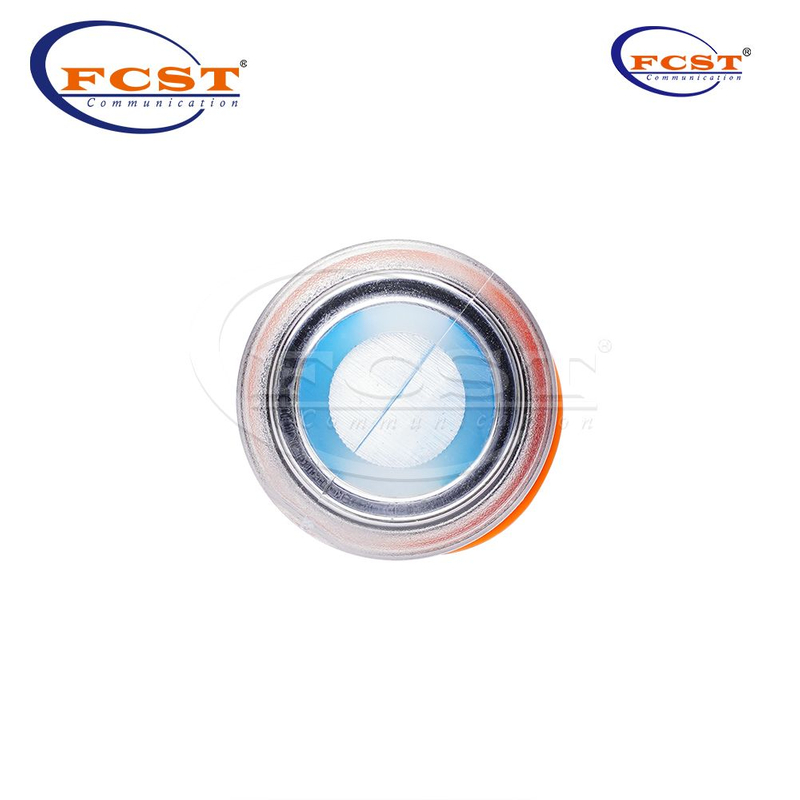

Micro Duct End Stop Connector
FCST
Micro Duct End Stop Connector
Product Overview
These HDPE microduct end stops were developed to connect microducts with each other. Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces, allowing them to be used in direct buried (DB) applications. The transparent body enables easy visual inspection of the cable with in the connector.
Product Advantages
lFor 3-25 mm Microducts.
lMicro duct end stop with easy “push-in” installation.
lCrystal clear transparent body.
l95% of the material is made of non-metal.
lLocking rings to prevent accidental removal of HDPE micro duct end cap.
Product Specification
Model | D | A | L | Weight(g) |
ERPUB3 | 3 | 11±0.2 | 16.2±0.5 | 1.66±0.1 |
ERPUB4 | 4 | 11±0.2 | 16.2±0.5 | 1.66±0.1 |
ERPUB5 | 5 | 13.5±0.2 | 14.3±0.5 | 1.86±0.1 |
ERPUB6 | 6 | 13.5±0.2 | 14.3±0.5 | 1.86±0.1 |
ERPUB7 | 7 | 15.2±0.2 | 19.2±0.5 | 2.6±0.1 |
ERPUB8 | 8 | 15.2±0.2 | 19.2±0.5 | 2.4±0.1 |
ERPUB8.5 | 8.5 | 15.2±0.2 | 19.2±0.5 | 2.4±0.1 |
ERPUB10 | 10 | 17.5±0.2 | 20.4±0.5 | 3.3±0.1 |
ERPUB12 | 12 | 21.5±0.2 | 23.5±0.5 | 5.85±0.1 |
ERPUB14 | 14 | 23.5±0.2 | 24.5±0.5 | 6.70±0.1 |
ERPUB15 | 15 | 25.3±0.2 | 25.8±0.5 | 7.80±0.1 |
ERPUB16 | 16 | 25.3±0.2 | 25.8±0.5 | 7.80±0.1 |
ERPUB18 | 18 | 32.7±0.3 | 27.8±0.5 | 15.05±0.2 |
ERPUB20 | 20 | 32.7±0.3 | 27.8±0.5 | 14.85±0.2 |
ERPUB22 | 22 | 40.0±0.3 | 36.5±0.5 | - |
ERPUB25 | 25 | 40.0±0.3 | 36.5±0.5 | - |
ERPUB1/8 | 1/8 | 11±0.2 | 16.2±0.5 | - |
ERPUB3/16 | 3/16 | 13.5±0.2 | 14.3±0.5 | 1.86±0.1 |
ERPUB1/4 | 1/4 | 13.5±0.2 | 14.3±0.5 | 1.86±0.1 |
ERPUB5/16 | 5/16 | 15.2±0.2 | 19.2±0.5 | 2.4±0.1 |
ERPUB3/8 | 3/8 | 17.5±0.2 | 20.4±0.5 | 3.3±0.1 |
ERPUB1/2 | 1/2 | 21.5±0.2 | 23.5±0.5 | 5.85±0.1 |
