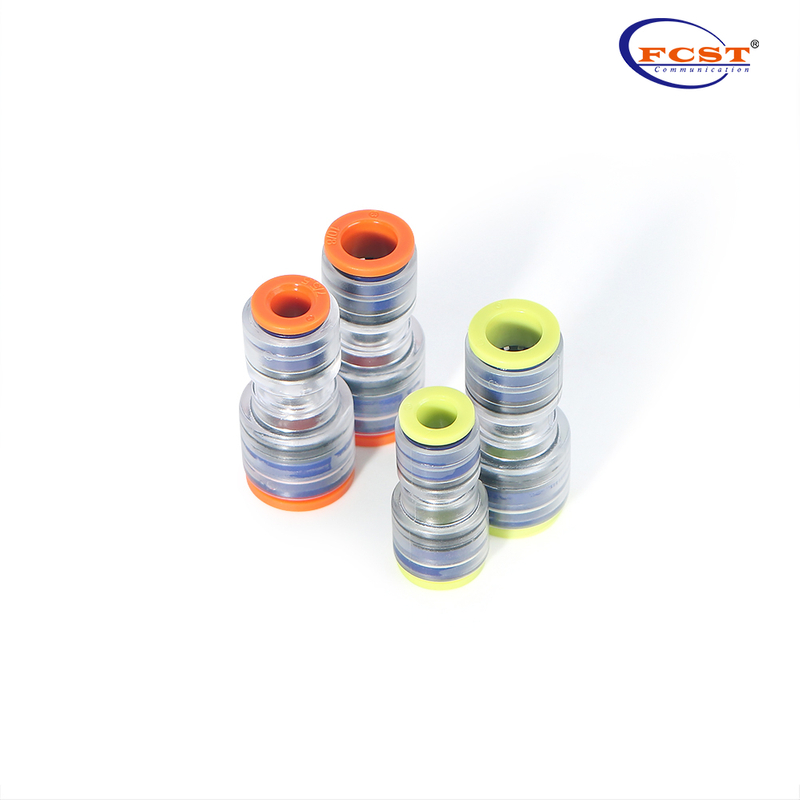

Micro Duct Reducer
Product Overview

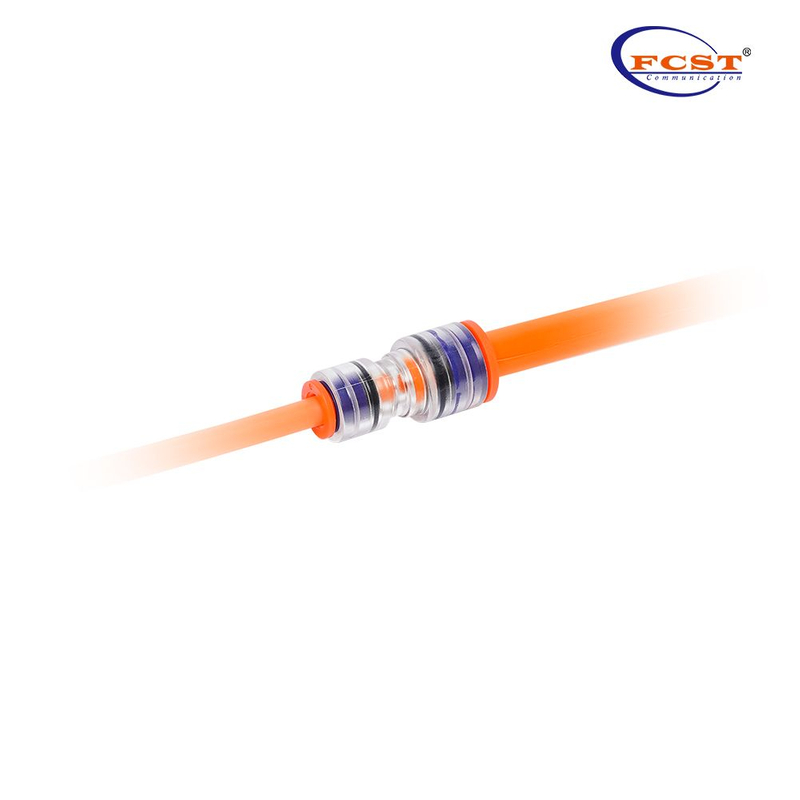

These Microduct Connector Reducers were developed to connect microducts with each other. Our system enables an easy, fast connection and disconnection of the microduct. The microduct push fit’ robust construction resistance to high pressure forces, allowing them to be used in direct buried (DB) applications. Microduct Push Fit transparent body enables easy visual inspection of the cable with in the connector.
Product Advantage
lFor 3-20 mm Microducts.
lMicroduct reducer with easy “push-in” installation.
lCrystal clear transparent body.
l95% of the material is made of non-metal.
lLocking rings to prevent accidental removal of microduct connector.
Product Specification
Model | D1 | D2 | A1 | A2 | B1 | B2 | L |
ERPG5-3/2.1 | 3 | 5 | 13.5±0.2 | 13.5±0.2 | 2.1±0.12 | 2.1±0.12 | 35.8±0.5 |
ERPG5/3.5-3/2.1 | 3 | 5 | 13.5±0.2 | 13.5±0.2 | 2.1±0.12 | 3.5±0.12 | 35.8±0.5 |
ERPG6-4/3.5 | 4 | 6 | 11±0.2 | 13.5±0.2 | 3.5±0.12 | 3.5±0.12 | 33±0.5 |
ERPG7/4-3/2.1 | 3 | 7 | 15.2±0.2 | 15.2±0.2 | 2.1±0.12 | 4.0±0.12 | 41.2±0.5 |
ERPG7/4-4/3.5 | 4 | 7 | 15.2±0.2 | 15.2±0.2 | 3.5±0.12 | 4.0±0.12 | 41.2±0.5 |
ERPG7/5-4/3.5 | 4 | 7 | 15.2±0.2 | 15.2±0.2 | 3.5±0.12 | 5.0±0.12 | 41.2±0.5 |
ERPG7-5/3.5 | 5 | 7 | 15.2±0.2 | 15.2±0.2 | 3.5±0.12 | 3.5±0.12 | 41.2±0.5 |
ERPG7/4-5/3.5 | 5 | 7 | 15.2±0.2 | 15.2±0.2 | 3.5±0.12 | 4.0±0.12 | 41.2±0.5 |
ERPG8-6/5 | 8 | 6 | 13.5±0.2 | 15.2±0.2 | 5.0±0.12 | 5.0±0.12 | 35±0.5 |
ERPG10/6-7/4 | 7 | 10 | 15.2±0.2 | 17.5±0.2 | 4.0±0.12 | 6.0±0.12 | 38±0.5 |
ERPG10/7-6/4 | 6 | 10 | 15.2±0.2 | 17.5±0.2 | 4.0±0.12 | 7.0±0.12 | 38±0.5 |
ERPG10-7/5 | 7 | 10 | 15.2±0.2 | 17.5±0.2 | 5.0±0.12 | 5.0±0.12 | 38±0.5 |
ERPG10/8-7/5.5 | 7 | 10 | 15.2±0.2 | 17.5±0.2 | 5.5±0.12 | 8.0±0.12 | 38±0.5 |
ERPG10/5.5-8/5 | 8 | 10 | 15.2±0.2 | 17.5±0.2 | 5.0±0.12 | 5.5±0.12 | 38±0.5 |
ERPG12/8-7/4 | 7 | 12 | 15.2±0.2 | 21.5±0.2 | 4.0±0.12 | 8.0±0.12 | 45±0.5 |
ERPG12/8-8/5.5 | 8 | 12 | 15.2±0.2 | 21.5±0.2 | 5.5±0.12 | 8.0±0.12 | 45±0.5 |
ERPG12/8-10/6 | 10 | 12 | 17.5±0.2 | 21.5±0.2 | 6.0±0.12 | 8.0±0.12 | 44.4±0.5 |
ERPG12/8-10/8 | 10 | 12 | 17.5±0.2 | 21.5±0.2 | 8.0±0.12 | 8.0±0.12 | 44.4±0.5 |
ERPG12-10/8 | 10 | 12 | 17.5±0.2 | 21.5±0.2 | 8.0±0.12 | 8.0±0.12 | 44.4±0.5 |
ERPG12/10-10/8 | 10 | 12 | 17.5±0.2 | 21.5±0.2 | 8.0±0.12 | 10±0.12 | 44.4±0.5 |
ERPG14/10-10/6 | 10 | 14 | 17.5±0.2 | 23.5±0.2 | 6.0±0.12 | 10±0.12 | 48.5±0.5 |
ERPG14/10-10/8 | 10 | 14 | 17.5±0.2 | 23.5±0.2 | 8.0±0.12 | 10±0.12 | 48.5±0.5 |
ERPG14/10-12/8 | 12 | 14 | 21.5±0.2 | 23.5±0.2 | 8.0±0.12 | 10±0.12 | 48.5±0.5 |
ERPG14/10-12/10 | 12 | 14 | 21.5±0.2 | 23.5±0.2 | 10±0.12 | 10±0.12 | 48.5±0.5 |
ERPG14/11-12/10 | 12 | 14 | 21.5±0.2 | 23.5±0.2 | 10±0.12 | 11±0.12 | 48.5±0.5 |
ERPG16/12-12/8 | 12 | 16 | 23.5±0.2 | 25.3±0.2 | 8±0.12 | 12±0.12 | 50.5±0.5 |
ERPG16/12-12/10 | 12 | 16 | 23.5±0.2 | 25.3±0.2 | 10±0.12 | 12±0.12 | 50.5±0.5 |
ERPG16/12-14/10 | 14 | 16 | 23.5±0.2 | 25.3±0.2 | 10±0.12 | 12±0.12 | 50.5±0.5 |
ERPG18/14-14/10 | 14 | 18 | 25.3±0.2 | 32.7±0.2 | 10±0.12 | 14±0.12 | 55.8±0.5 |
ERPG18/14-16/12 | 16 | 18 | 25.3±0.2 | 32.7±0.2 | 12±0.12 | 14±0.12 | 55.8±0.5 |
ERPG20/16-14/10 | 14 | 20 | 25.3±0.2 | 32.7±0.2 | 10±0.12 | 16±0.12 | 55.8±0.5 |
ERPG20-16/12 | 16 | 20 | 25.3±0.2 | 32.7±0.2 | 12±0.12 | 12±0.12 | 55.8±0.5 |
ERPG20/16-16/12 | 16 | 20 | 25.3±0.2 | 32.7±0.2 | 12±0.12 | 16±0.12 | 55.8±0.5 |
