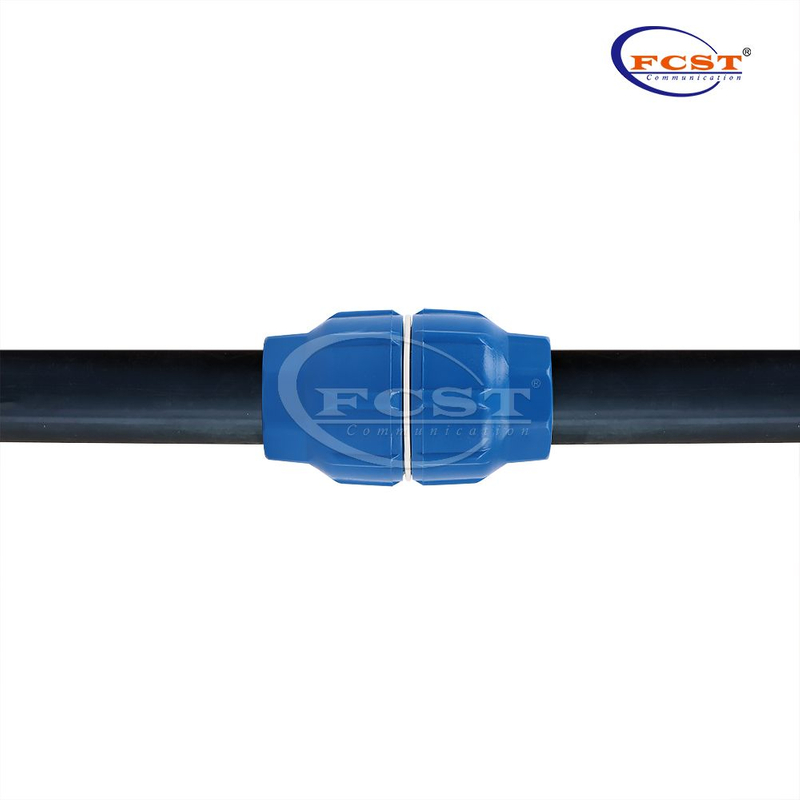

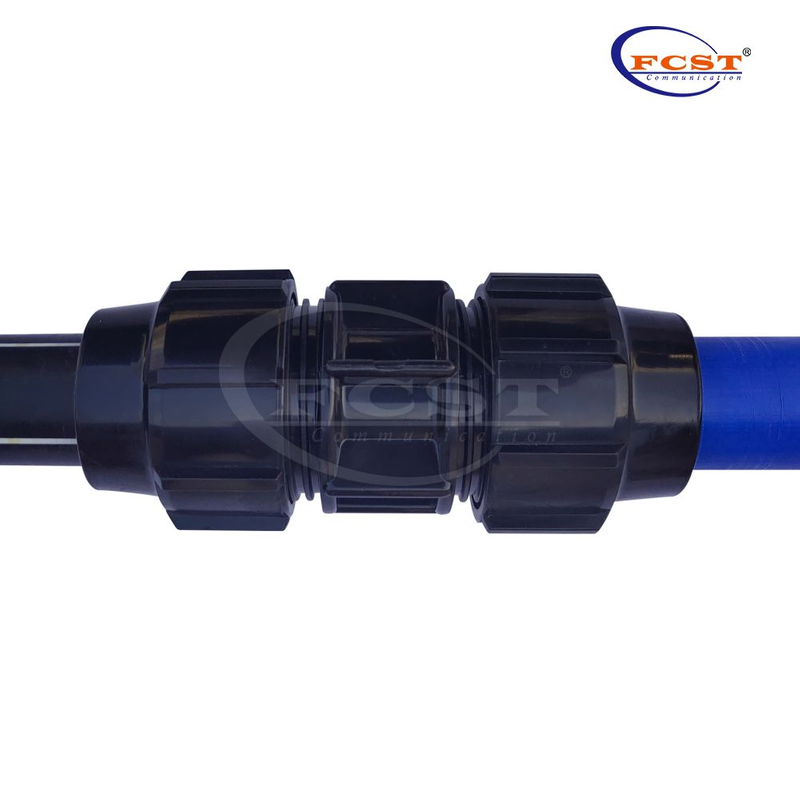

40/33mm Telecom Duct Coupling
FCST
40/33mm Telecom Duct Coupling
Product Advantages
lConnect two microducts which are the same outer diameter.
lTelecom duct connector have a push-fit design for quick and easy installation.
Product Specifications
Construction | Description |
Product Name | FCST-FDS-G-C HDPE Silicon Core Pipe Connector |
Material | FCST-FDS-G-A/B Body:PE FCST-FDS-G-C/FCST-SDC Body:ABS |
Product Color | Black, white, blue (support custom colors) |
Product Size | 32/26、40/33、46/38、50/42、60/50、63/54 |
Reference Standard | JT/T496-2004、Q/KL020-2005 |
Appearance | Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread. |
Connection Force (under tightened state) | 32/26mm:≥4300N 32/28mm:≥4300N 40/33mm:≥6700N 46/38mm:≥8000N |
Weight(g) | 194(40/33mm) |
High Temperature Resistance | -40℃~+65℃ |
Product Size

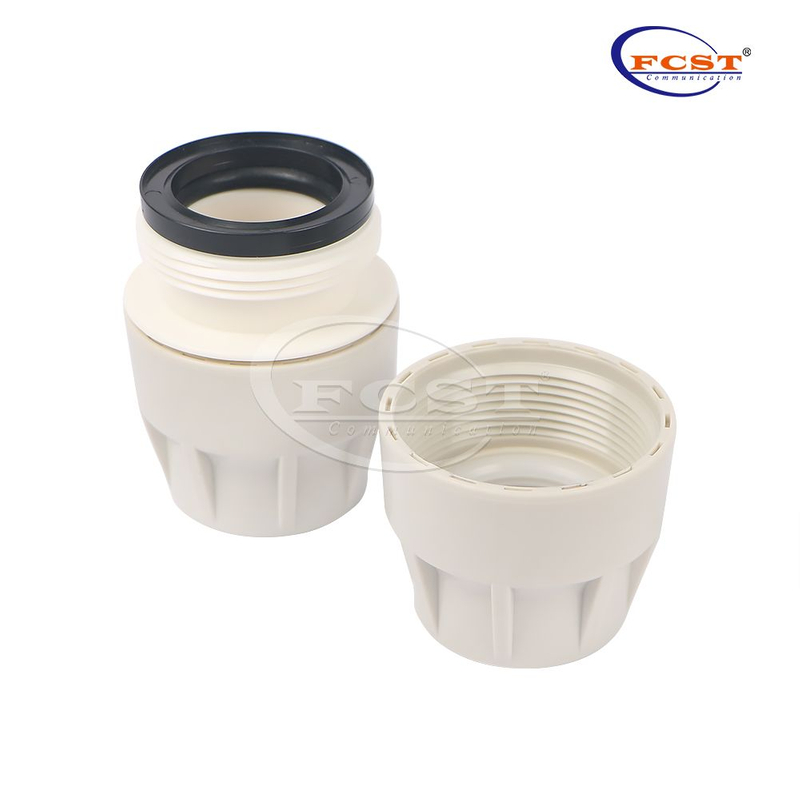

Product Structure
Connection sequence:
End cap, elastic collar, gasket, rubber sealing ring, connecting screw, rubber sealing ring, gasket, elastic collar, end cap

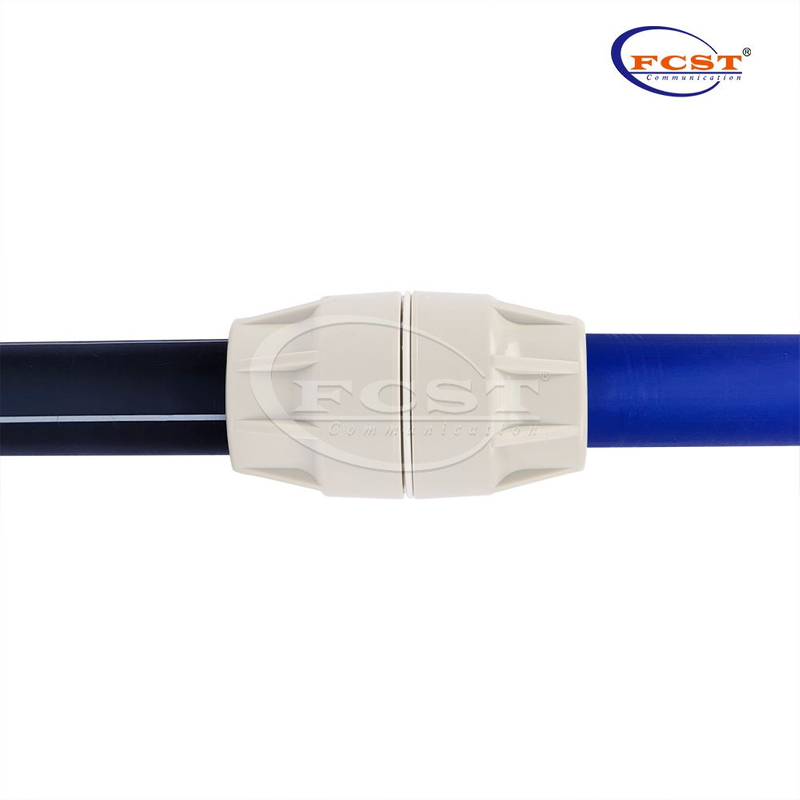

FCST-SDC5-40/33mm
Installation
lCut both ends of the silicon core tube flat and clean.
lAssemble the connection in the order of connection.
lTighten with the special tools provided with this product to ensure that the assembly sequence is correct, and when the tightening is in place (Note:no need to use after burning tools in the tightening process), the joint sealing performance reaches a good condition.
lThe joint can be disassembled and assembled many times. After a long time use, disassemble the joint and reinstall it, please carefully check the effectiveness of the sealing ring
lIf damage is found, it should be replaced.
