Fiber-to-the-home (FTTH) is a technology that delivers high-speed internet, voice, and video services to homes using fiber optic cables. There are several FTTH architectures available, such as point-to-point (P2P) and Gigabit Passive Optical Network (GPON). Each architecture has its own advantages and disadvantages in terms of network performance and cost. In this article, we will discuss how different FTTH architectures affect network performance and cost.
Point-to-Point (P2P) Architecture

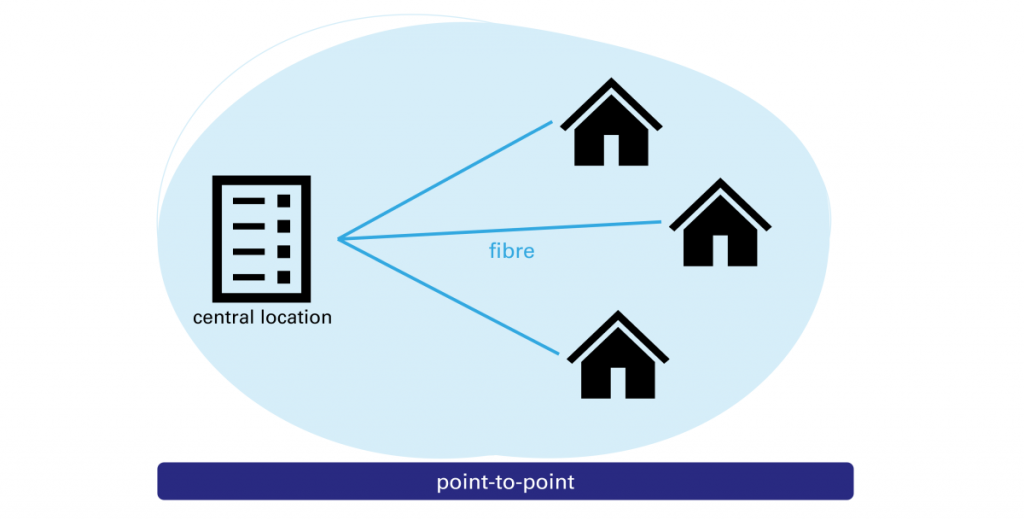

In a P2P architecture, a dedicated fiber optic cable connects the central office (CO) to each individual home. Each home has its own fiber connection, which is terminated at an optical network terminal (ONT) installed inside the home. This architecture offers the highest level of network performance and security, as there is no sharing of bandwidth or resources between homes. Each home receives the full bandwidth of the fiber optic cable, which can be up to 10 Gbps or more.
However, the P2P architecture is also the most expensive FTTH architecture, as it requires a lot of fiber optic cables to be installed. The cost of installation, maintenance, and operation is higher than other FTTH architectures. This architecture is suitable for areas where high-speed internet and high bandwidth are essential, such as business districts, hospitals, and research centers.
Gigabit Passive Optical Network (GPON) Architecture

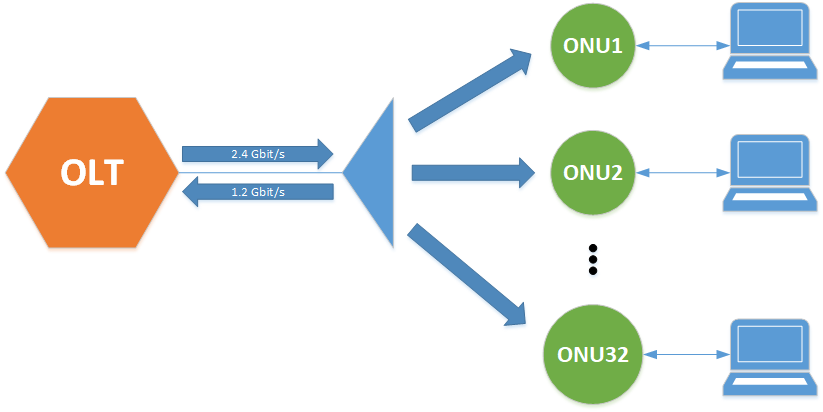

GPON is the most widely used FTTH architecture worldwide, mainly due to its cost-effectiveness. In a GPON architecture, a single fiber optic cable is shared among multiple homes. The fiber optic cable connects the CO to an optical line terminal (OLT) located in the neighborhood. The OLT then distributes the bandwidth to multiple ONTs installed in each home. The GPON architecture offers a high level of network performance and reliability, as the bandwidth is shared dynamically among homes. GPON can provide up to 2.5 Gbps of shared bandwidth, which is more than enough for most households.
The GPON architecture is less expensive than the P2P architecture, as it requires less fiber optic cables to be installed. However, the shared bandwidth can become a bottleneck if too many users are using the network simultaneously. The GPON architecture is suitable for areas with a high population density, such as urban areas and residential neighborhoods.
Comparison between P2P and GPON Architectures
The P2P architecture offers higher network performance and security than the GPON architecture. Each home has its own dedicated fiber connection, which ensures that the full bandwidth is available at all times. However, the P2P architecture is more expensive than the GPON architecture, as it requires more fiber optic cables to be installed.
On the other hand, the GPON architecture offers a cost-effective solution for delivering high-speed internet services to multiple homes. The shared bandwidth can become a bottleneck during peak hours, but this can be mitigated by the use of Quality of Service (QoS) mechanisms. The GPON architecture is suitable for areas with a high population density, such as residential neighborhoods and small towns.
Conclusion
FTTH is a technology that delivers high-speed internet, voice, and video services to homes using fiber optic cables. The choice of FTTH architecture depends on the specific needs of the area, such as population density, available budget, and required network performance. The P2P architecture offers the highest level of network performance and security but is also the most expensive. The GPON architecture offers a cost-effective solution for delivering high-speed internet services to multiple homes, but the shared bandwidth can become a bottleneck during peak hours.
