FCST02285-J
FCST
FCST02285-J
Product Overview

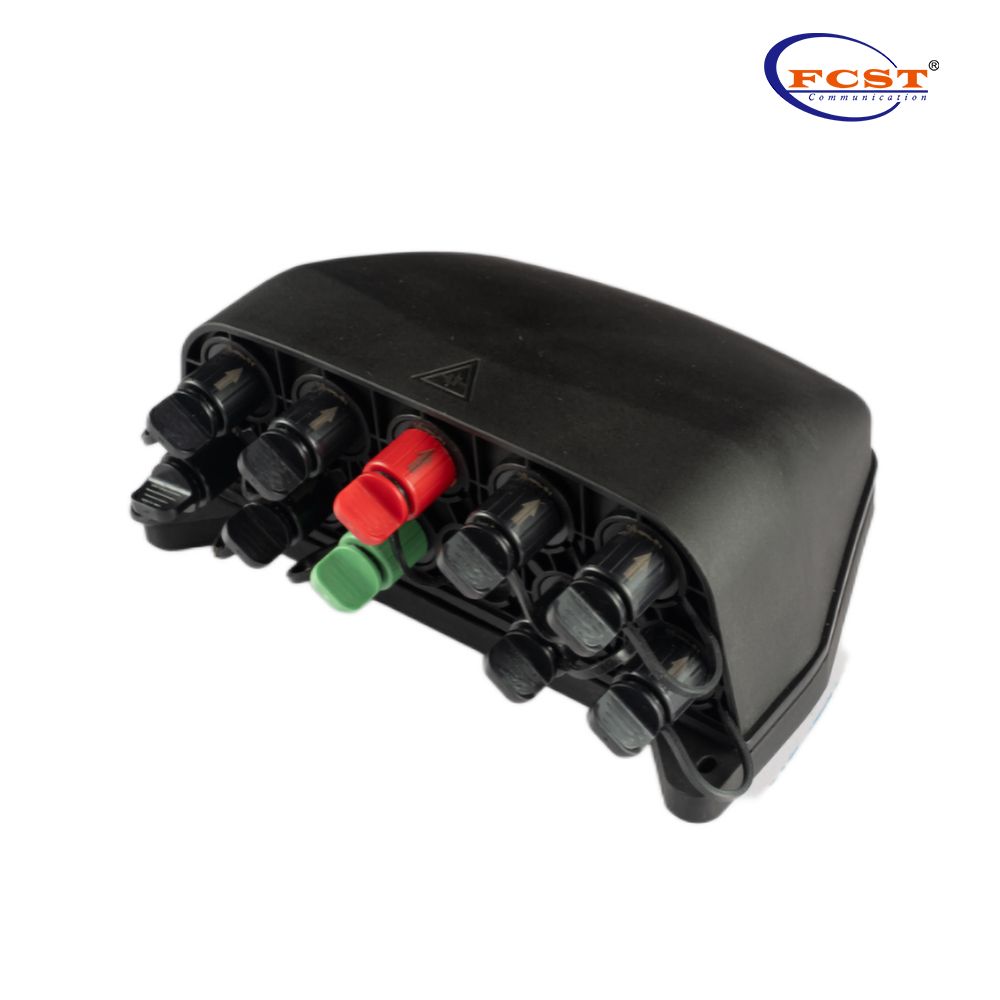

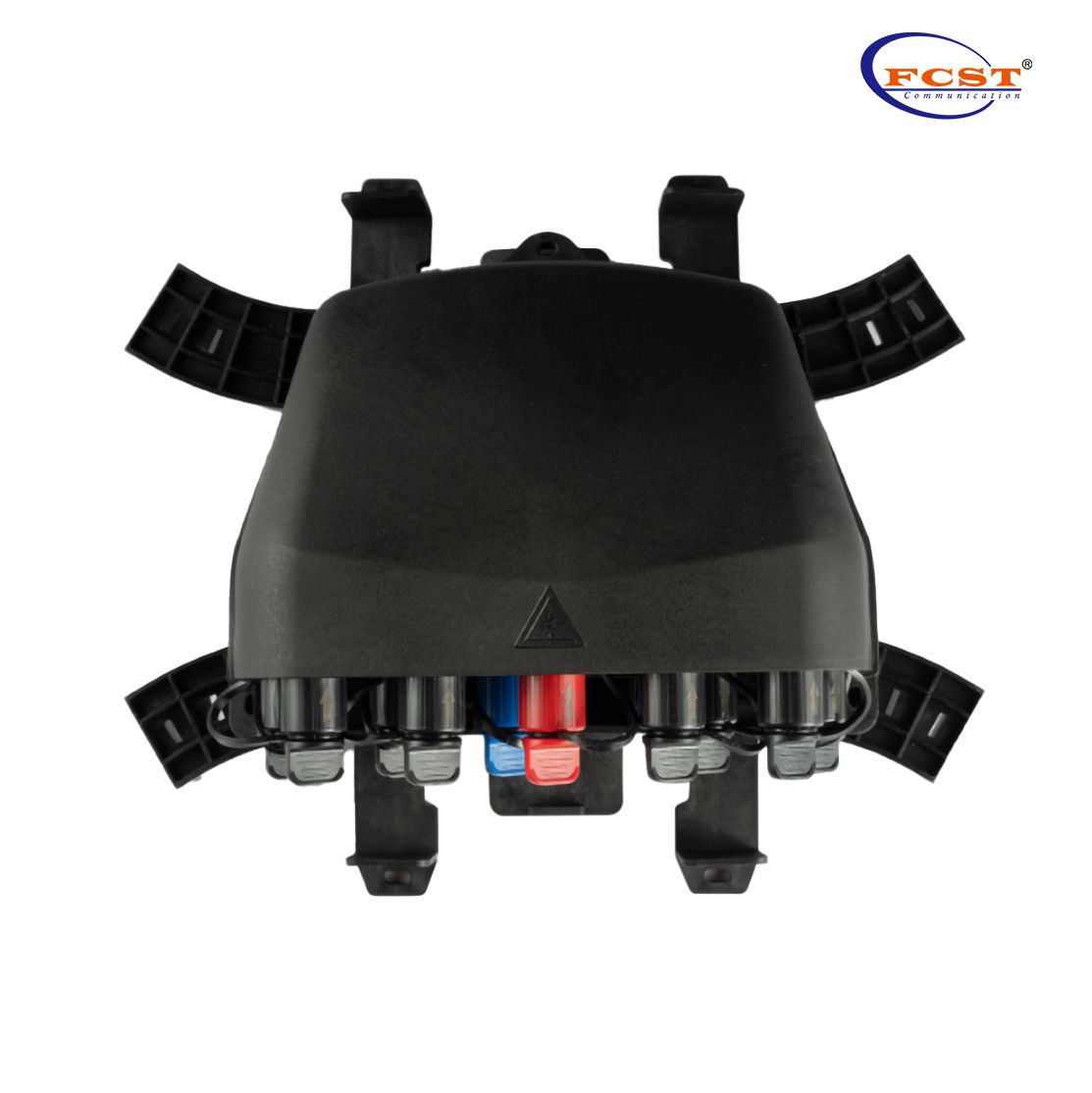

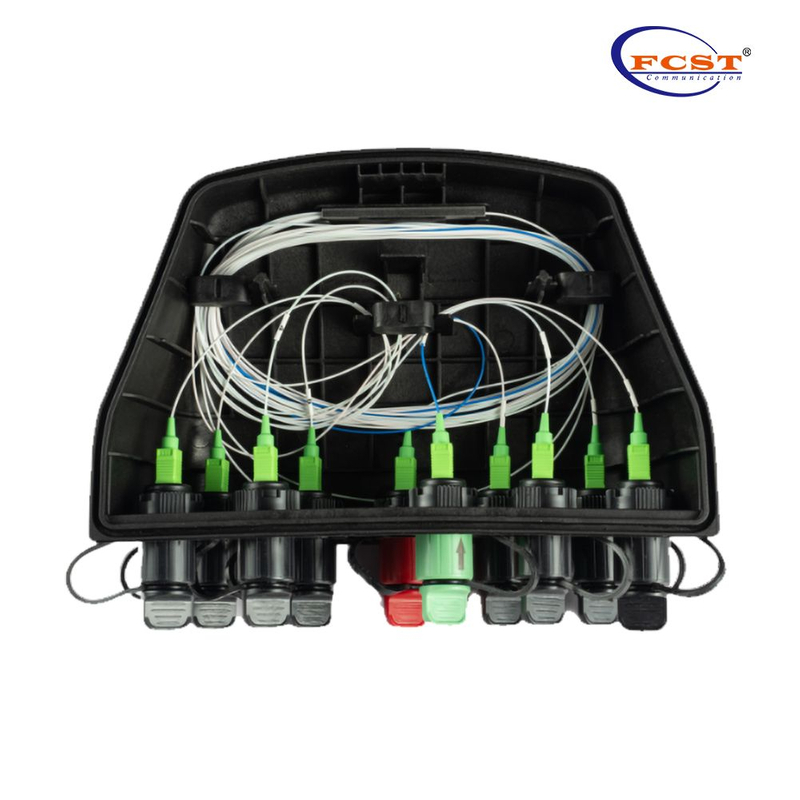

FCST02285-J Fiber Access Terminal is able to hold up to 9 subscribers. It is used as a termination point for 1 x ISP cable to connect with 9 x drop cable in FTTx network system. It integrates fiber splicing, splitting, storage and cable management in one solid protection box.
Product Advantages
l Total enclosed structure.
l Designated position for the placement of 1:9 Uneven PLC splitter.
l Material: PP+GF, wet-proof, water-proof, dust-proof, anti-aging.
l Plug-and-play installation, easy for maintenance and expansion.
l Compact design integrates distribution, splicing, splitting 3-in-1.
l 10 x reinforced adapters for drop cable with reinforced connectors.
l Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Product Specifications
Construction | Description |
Max. Capacity | 9 cores |
Material | PP+GF |
Dimension (mm) | 216*183*83.5 |
Inlets/Outlets | 1/9 |
Reinforced Adapter | 10 pcs SC/UPC or SC/APC |
Protection Level | IP68 |
Color | Black |
Installation | Pole mounting,Strand mounting,Wall-mounting |
Splitter Type | 1x8 Steel Tube PLC Splitter/ |
Note:Use HUAWEI Hardened adapter,The Seal adapter of FCST02285-J Fiber Access Terminal is used in conjunction with FastConnect Distribution Cable.

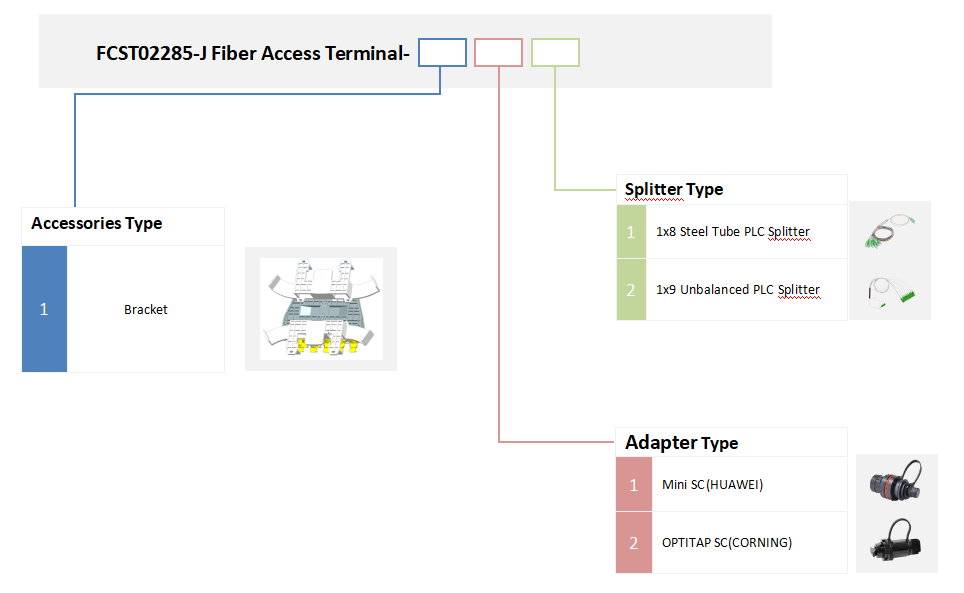

Ordering Information

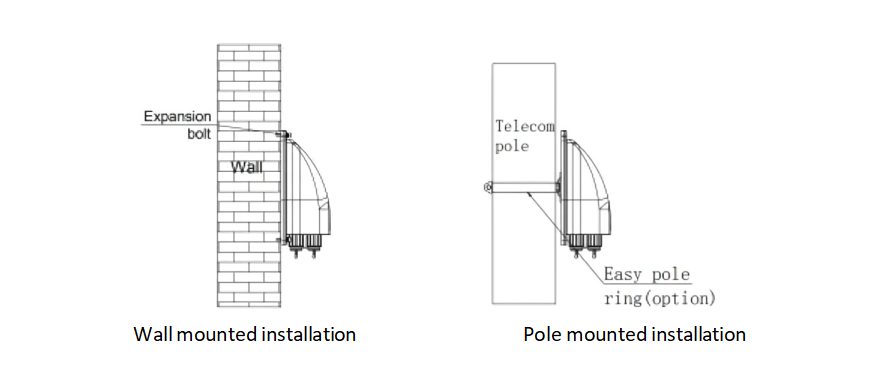

Installations
Wall-Mounted Installation
Drill 3 holes into the wall, place the expansion bolt Φ8*30,place the box to match up the holes and use bolt to fasten.
Pole-Mounted Installation
Fix 1 set of the pole ring to the telecom pole.

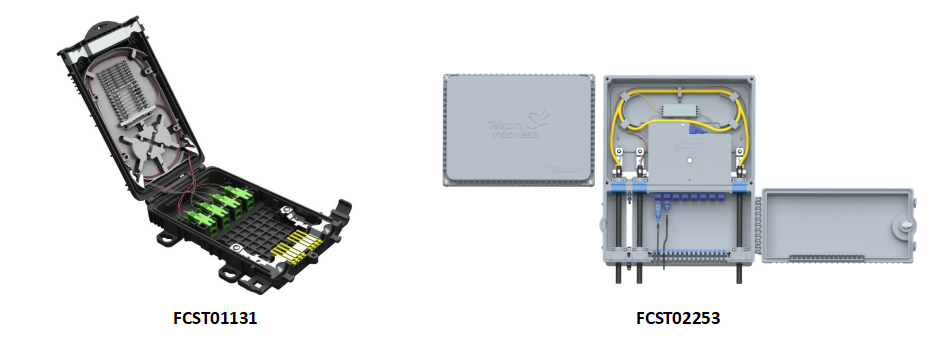

Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
