FCST02259
FCST
FCST02259
Product Overview

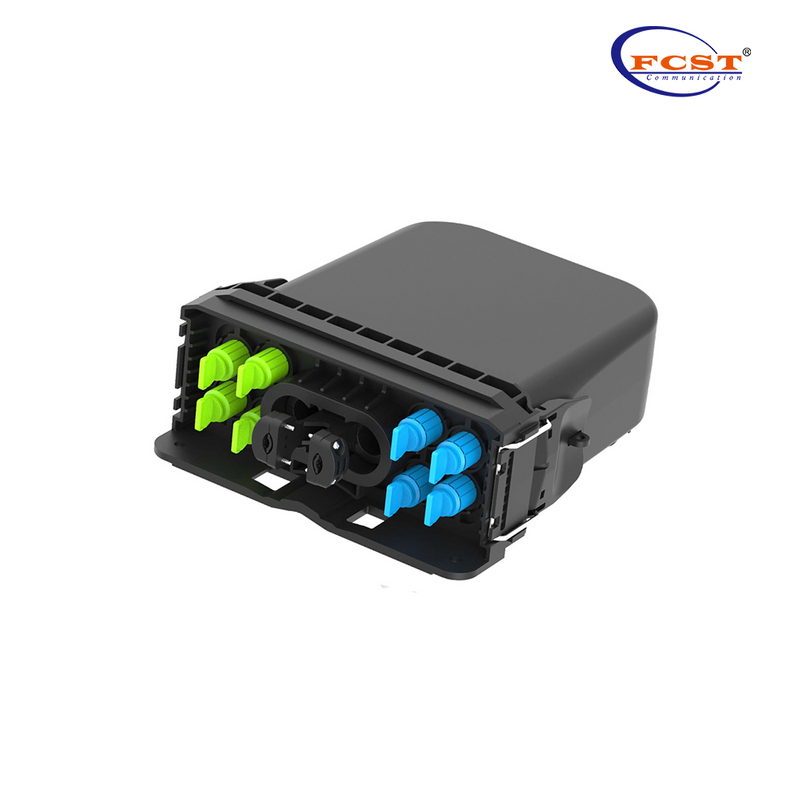

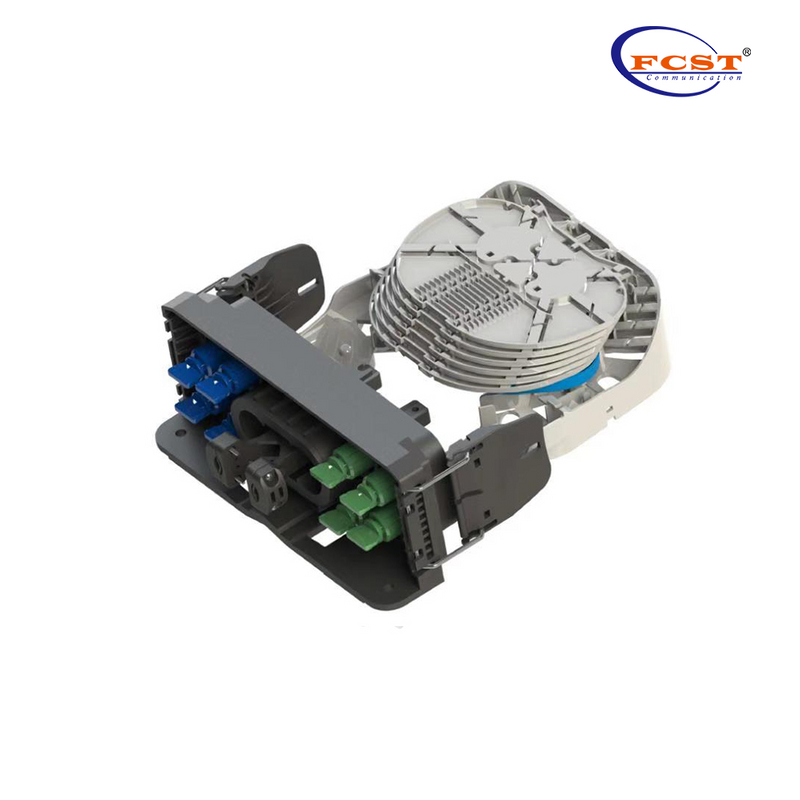

FCST02259 FastConnect Closure is a wiring line device of user distributions in FTTH system, it provides protection and management for fiber cable, and be used for terminating, cable branching, cross connection.Splitter distribute box is mainly used for user access point in FTTH-ODN network , it can be divided into indoor and outdoor type according to the installation scenario, and can be divided into distribution type and optic-split type according to the function.
Hardened Fiber Optic Jumper is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.
Product Advantages
l Fiber routing is reasonable.
l Suitable for indoor or outdoor ,wall-mounted , pole installation.
l Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

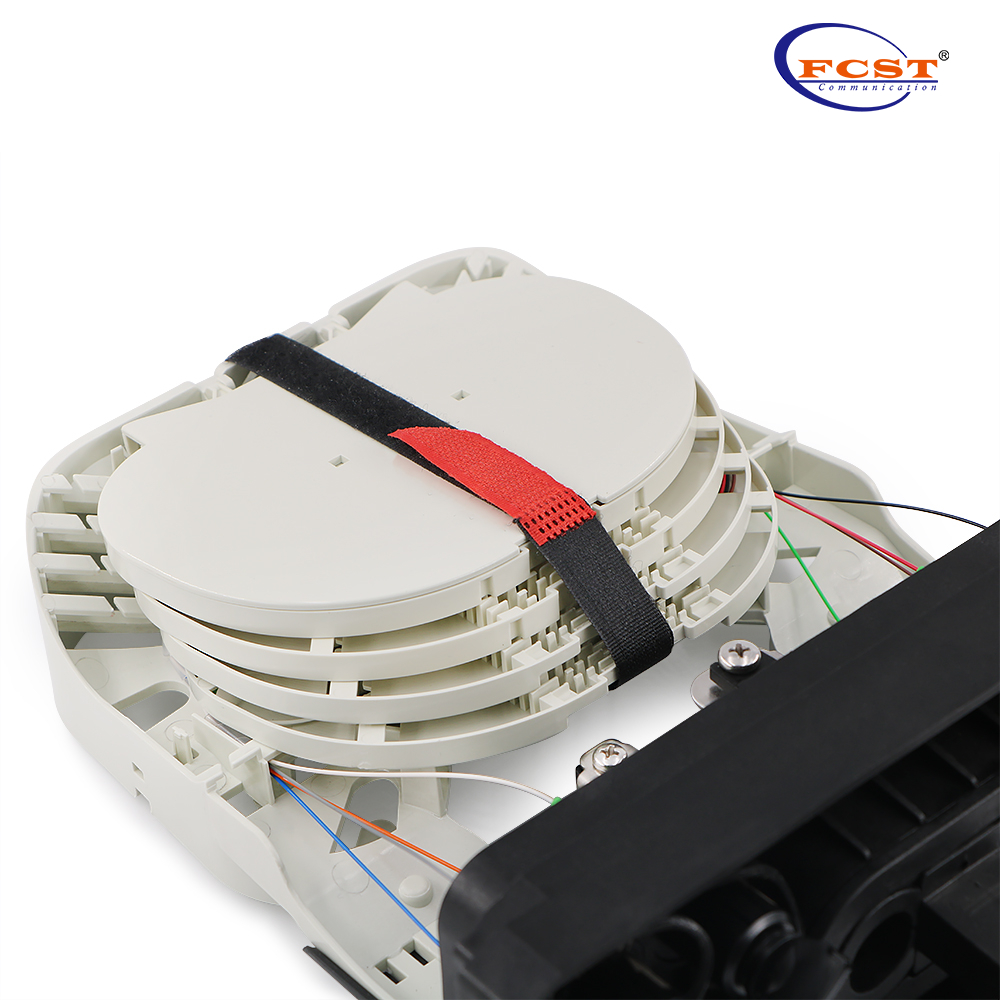

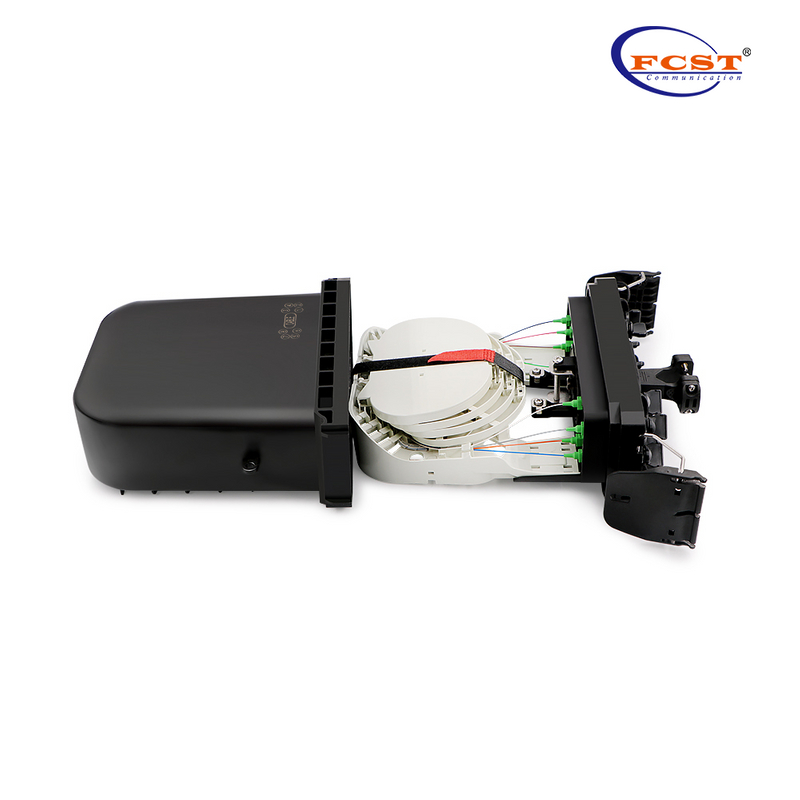

l Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
l Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance, sturdiness and durability.
Product Specifications
Construction | Description |
Max. Capacity | 8cores(SC/APC) |
Capacity of FOSC(Bunchy) | 84Cores |
Material | PP |
Dimension (mm) | 273*234*92 |

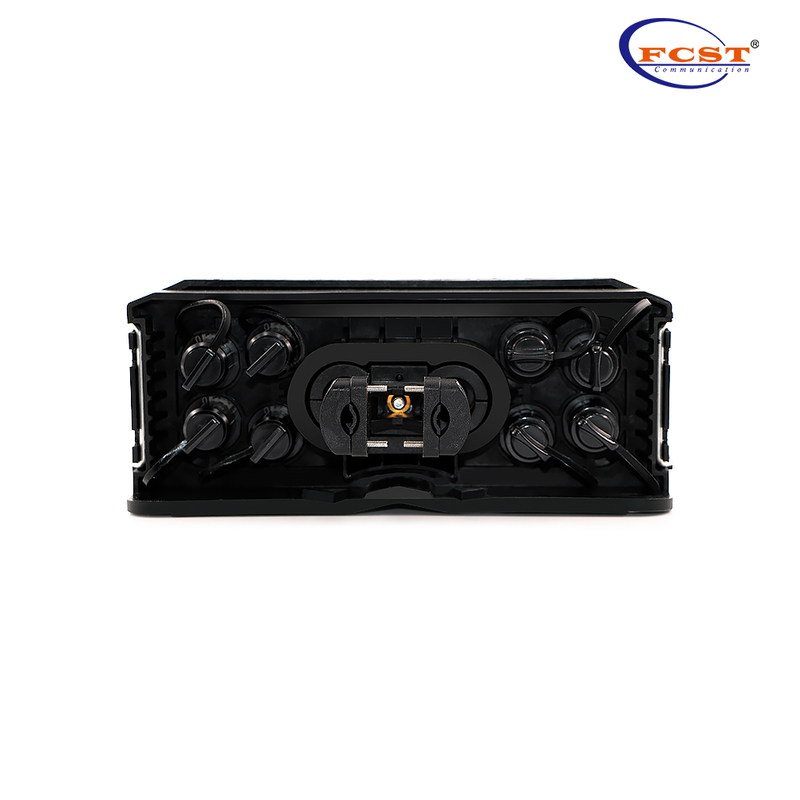

Inlets/Outlets | 2/8 |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Protection Level | IP67 |
Diameter Of Fiber Cable | Φ18mm |
Number Of Trays | 7 |
Capacity Of Tray | 12F |
A*B*C:273*234*92mm F*H:107*156mm
Hardened Adapter Optional
Installation
Fiber connector installation
Rotate the arrow part of fiber connector counterclockwise and take out the dust cap.
The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.
Product installation
Wall-mounted installation

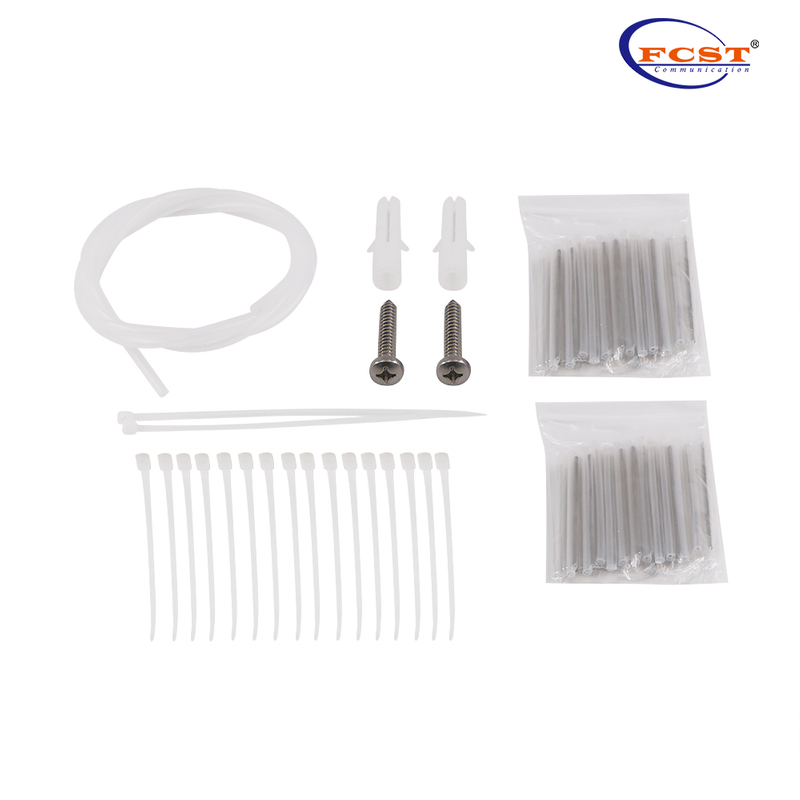

Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten.
Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole, as below.
