NF-1600B
FCST
NF-1600B
Product Overview

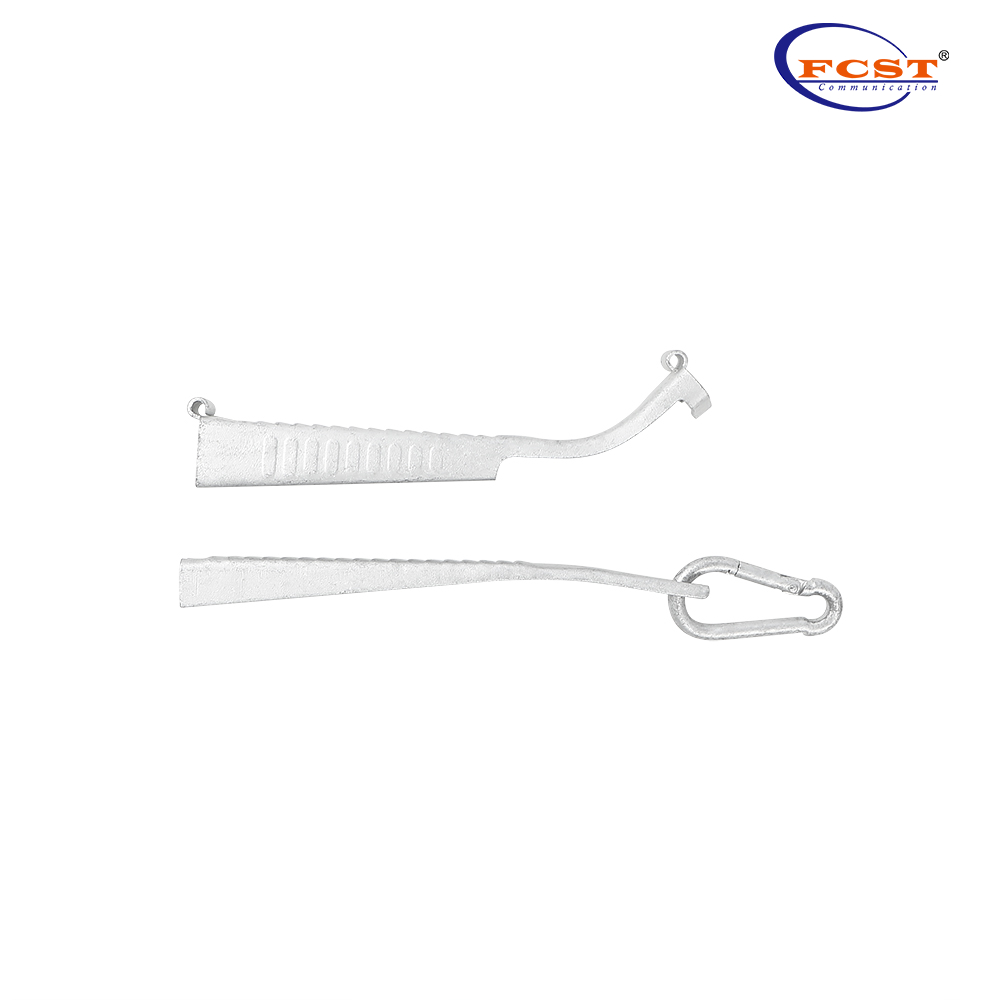

The NF-1600B Flat FTTH Drop Cable Clamp is a kind of optical fiber cabling fitting, and the Drop Wire Clamp is used to hold the Bow-type optical cable. In ODN aerial cable installation, the aerial cable drop clamp is widely used in overhead FTTH installation.
Product Specifications
Construction | Description |
Application Cable | 2pcs 2.0*5.0mm dorp cable |
Material | 1.0mm cold stamping galvanized sheet steel with organic coating. |
Dimension (mm) | 170*15*42 |
Max Span（m） | 50 |
Stretching Resistance（N） | 400 |
Salt Spray Test(h) | 1000 |
Weight（g） | 70 |
Working Temperature | -40℃～+60℃ |
Relative Humidity | ≤95%（+40℃） |
Installation Diagram
Packing Information
Construction | Description |
Outside Dimension（L*M*H）mm | - |
Weight/PC（kgs） | - |
Carton size（L*W*H）mm | 310*220*235 |
Qty/CTN（pcs） | 200 |
Weight/CTN（kgs） | 16.1 |
Inner packing: plastic bag and paper carton. The plastic bag can protect the product from moist and prevent corrosion. The paper carton can protect the product suffering from the squeeze and destruction.
